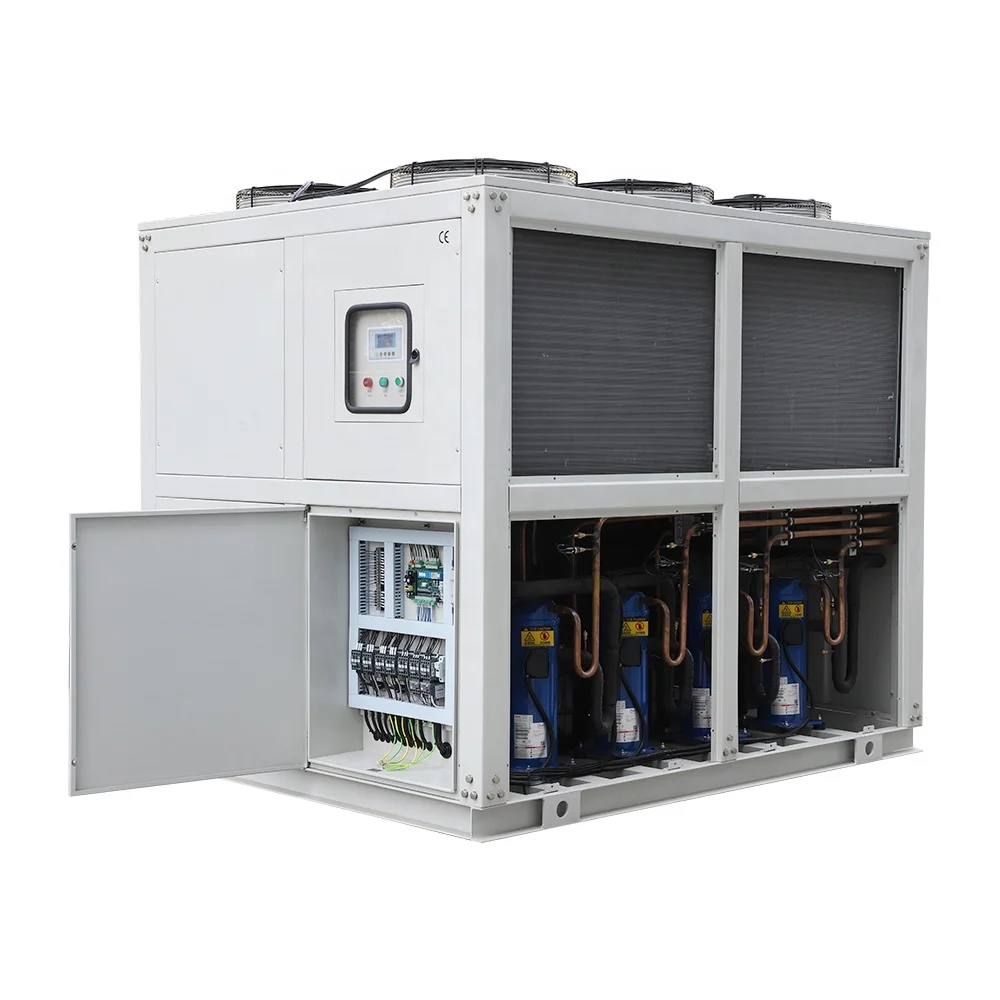

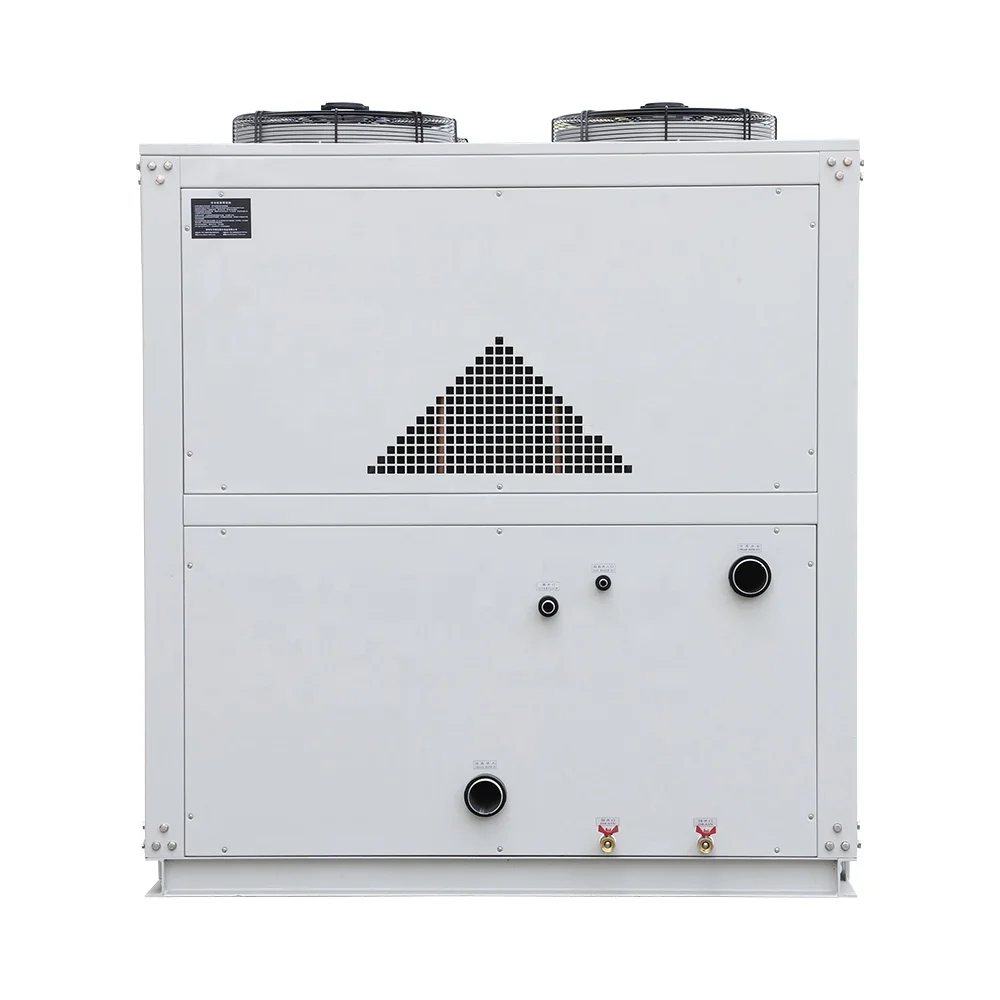

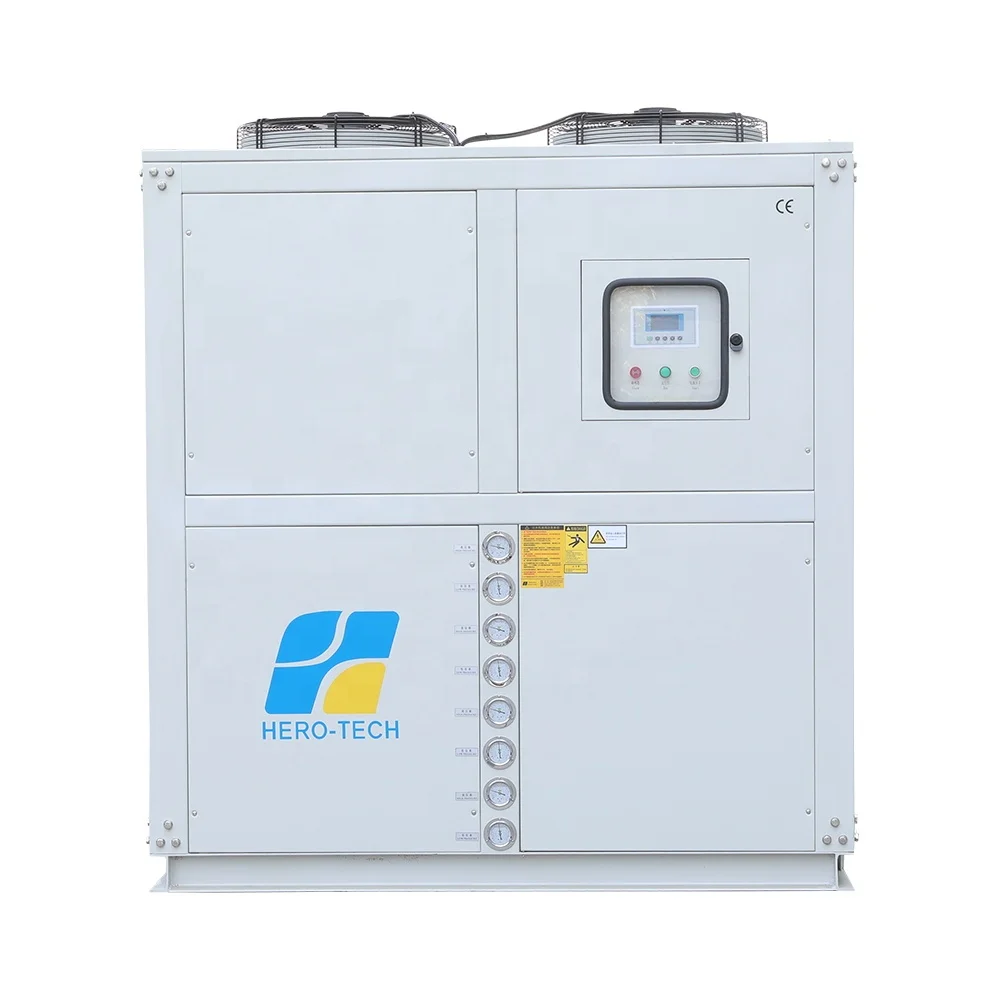

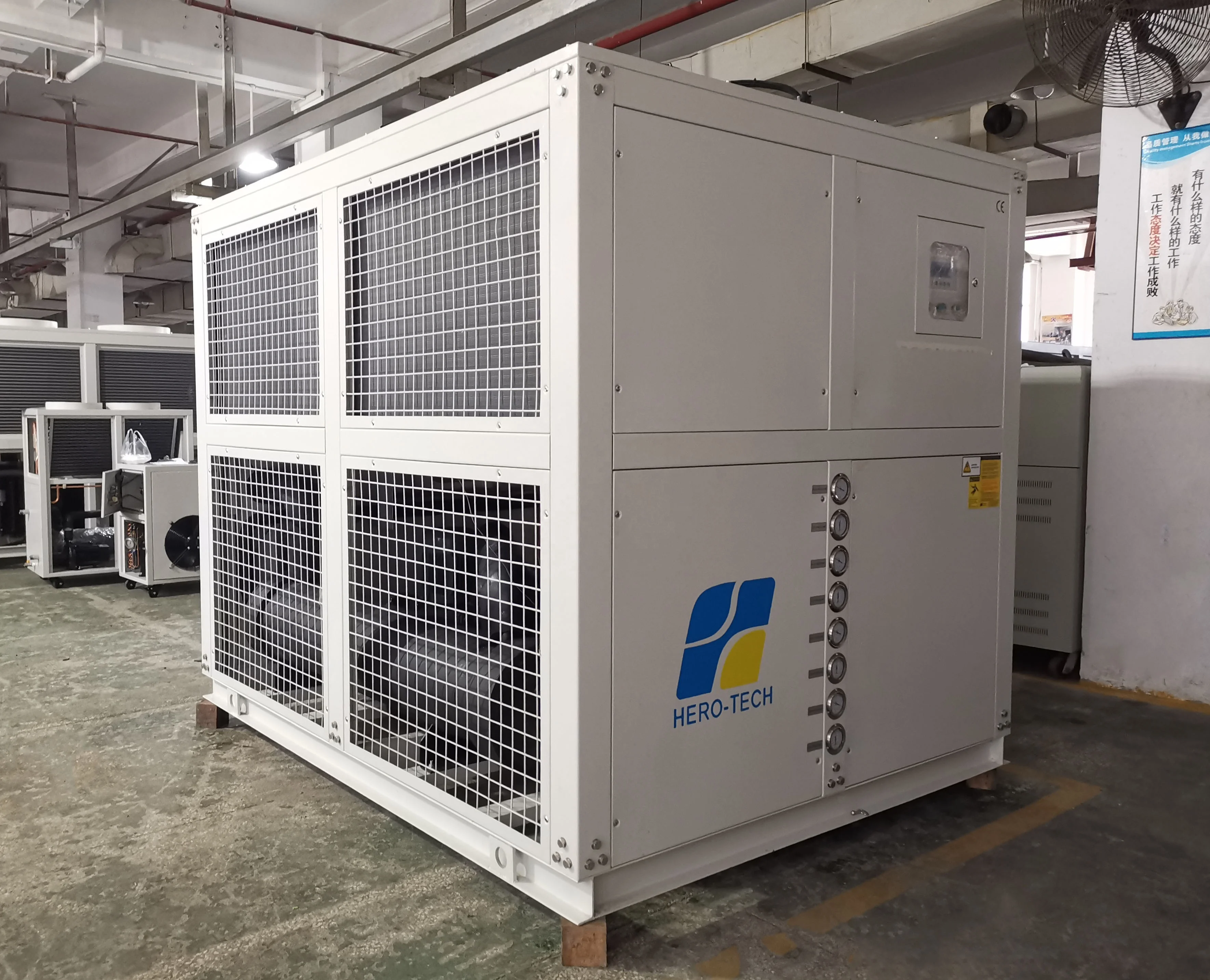

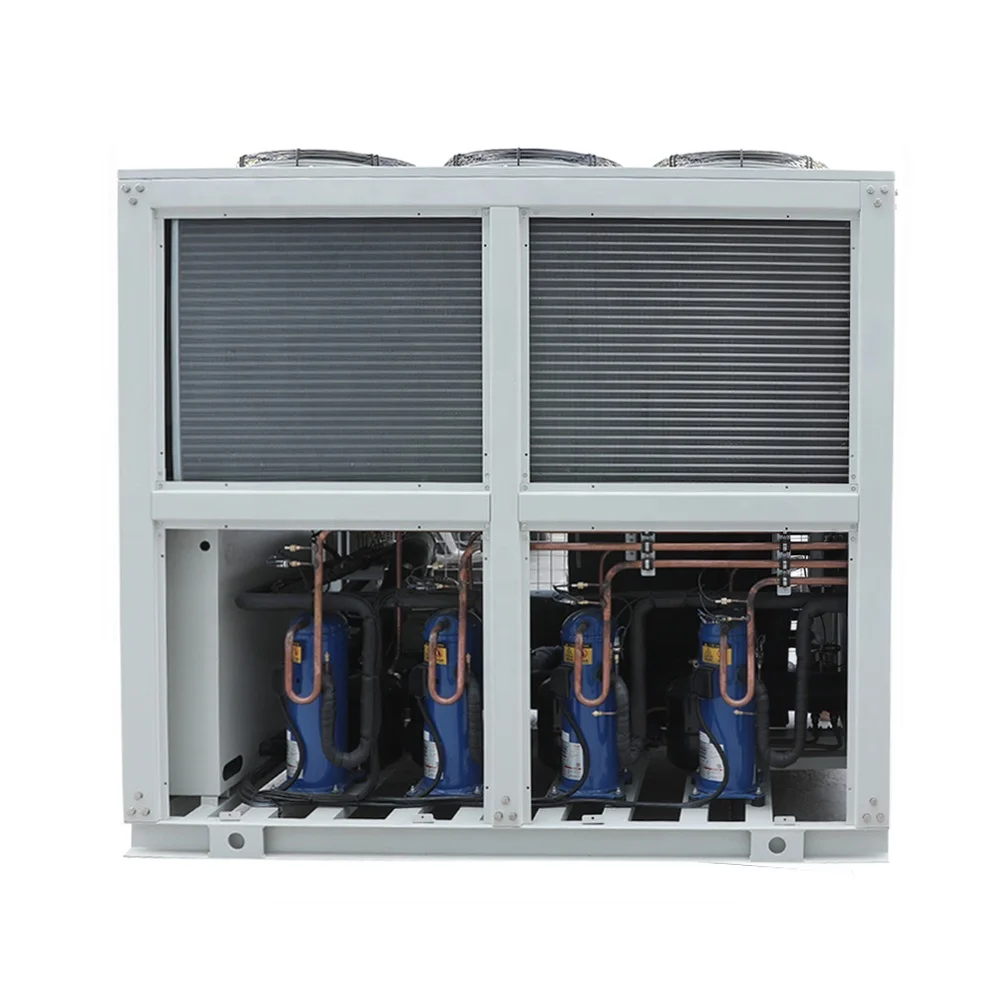

Low Temperature 15 Ton Glycol Ice Rink Chiller Aluminum Finned Copper Tube Axil Fan Shell and Tube Hermetic Scroll (piston)

Product Overview

Description

HTLT-A series low temperature industrial chiller is specially designed by HERO-TECH ,which is widely applied in pharmaceutical, chemical and bioengineering industry. The temperature is adjustable in the range of -35℃ to +5 ℃. If you have a need for reliable low-temperature cooling for your industrial application, we have the equipment you need. Our scroll chillers are currently used around the world to guarantee a vast range of processes for many leading companies. We can create custom chilling solutions adapted to your specific cooling needs and find ways to add value to your process with our reliable and efficient low-temperature scroll chillers.

HERO-TECH products are designed to help lower environmental impact with next-generation, low Global Warming Potential (GWP) refrigerants and high-efficiency operation.

Emerson expansion valve

Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

Refrigerant: R22 charged, CFC free type R410A R407Cfor option.

Multi-protection devices ensure the chiller unit running safety. Control for set and actual temperatures and safety alarms.

3PH 380V-415 50HZ/60HZ for standard design. Different design available on request.

Removable side panels for ease of access.

Process circuit with thermal insulation.

Sight glass with low level switch.

Threaded couplings for prompt connection to the user’s plant.

Swivel wheels for easy positioning.

Refrigerant circuit with top brand semi-hermetic scroll compressor Control panel.

Complete with associated control equipment with digital microprocessor.

Compact design, easy to install and operate, convenient to clean and maintenance.

HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.

Dependable, versatile, high-efficiency cooling.







Model				HTLT-40AD
Nominal cooling capacity		-10℃	KW	56.8
		-20℃		38.2
		-30℃		23.5
		-35℃		17.44
Max power consumption			KW	36.4
Power source				3PH 380V~415V 50HZ/60HZ
Refrigerant
Type				R22/R404A
Control				Thermostatic expansion valve
Compressor
Type				hermetic scroll(semi-hermetic piston)
Motor Power			KW	14.4*2
Evaporator
Type				Shell and tube/ss plate heat exchanger
Chilled water volume	-10℃		m3/h	9
	-20℃			5.3
	-30℃			3.3
	-35℃			2.3
Pipe connection			Inch	3
Pump
Power			Kw	4
Lift			m	20
Condenser
Type				Shell and tube
Safety devices
Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension
Length			mm	2180
Width			mm	1800
Height			mm	2040
Net weight			KG	1125
The above specifications are according to the following design conditions: 1.    Condensing temperature 45 ℃ 2.    Volume fraction of glycol water solution 47.8% We reserve the right to modify the specifications without further notice



Medical Processing

Certain medical fabrication processes and storage requires reliable cooling to guarantee safety and effectiveness. When cooling failure isn’t an option, you need a low-temperature scroll chiller you can count on for:

Transforming various medical ingredients and compounds

Manufacturing highly sensitive medicines

Storage of medicines and human tissues for surgery

Testing of new drugs and procedures in extreme cold conditions

Product and Material Testing

Many types of clothing, materials and equipment need to be tested to -35°C temperatures. Our low-temperature industrial scroll chillers can be used for a wide range of testing applications, such as:

Automotive and transport equipment verification

Fabric and cloth cold temperature resistance and protection

Plastic, rubber and metal strength at freezing temperatures

Cold temperature performance of coolants, oils and fluids

About us

Hero-Tech refrigeration Equipment Co., Ltd, subordinated to Hero-Tech Group, was founded in Shenzhen Guangdong Province in 2005, with registered capital RMB5,000,000.00. And we have our own heat exchanger processing factory and Casing processing factory.

Since its inception, Hero-Tech adhered to Germany technique and management and passed certification of ISO9001:2000 and CE. 20 years experience in industrial refrigeration made Hero-Tech front-runner status in China. Meanwhile, oversea sales network was built and improved, covering dozens of countries and areas, such as the Occident, Middle-East, South-East Asia and Australia. It brings continuing rapid growth of annual export volume. Till the end of 2019, export value contributes more than 70% of the annual sales turnover.

“Professional, therefore take the lead”. After years of development, Hero-Tech has domestic and foreign customers consistent high praise because of excellent product performance and high efficiency service.

Exhibition

Q1: Could you help us to recommend the model for our project?
A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following:

Cooling capacity; If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; Environment

temperature; Refrigerant type, R22, R407c or other, pls clarify; Voltage; Application industry; Pump flow and pressure requirements;

Any other special requirements.

Q2: How to ensure your product with good quality?
A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components.

The units will be fully tested before package and The packing will be carefully checked.

Q3: What's the warranty?
A3: 1 year warranty for all parts; Whole life labor free!

Q4: Are you a manufacturer?
A4: Yes, we have more than 23 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.

Q5: How can I place an order?
A5: Contact our online customer service, or call us via Cel number +86 15920056387 directly.
