Легкий поворотный верхний ролик с небольшим полиуретановым колесом (60676853535)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

DESCRIPTION

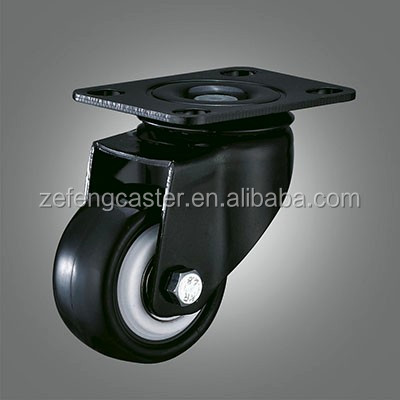

Product Name: 40/50/63/75/100/125 mm light/medium duty top plate swivel caster with polyurethane wheel
Series Name: L5 light duty polyurethane caster wheel series
Series Size: 1-1/2 inches, 2 inches, 2-1/2 inches, 3 inches, 4 inches, 5 inches

FEATURES

Zinc-plated pressed steel housing with double steel ball raceway in swivel head
High performance PU wheel with precision ball bearing
30 - 100 kg loading capacity

SPECIFICATION

Blow is standard data (other option available) of this collection for your reference

\t
CASTER WHEEL SIZE
\t
WHEEL DIMENSION
\t
OVERALL HEIGHT
\t
LOADING CAPACITY
\t
1-1/2 inches
\t
40x20 mm
\t
62 mm
\t
30 kg
\t
2 inches
\t
50x24 mm
\t
74.5 mm
\t
50 kg
\t
2-1/2 inches
\t
63x32 mm
\t
93 mm
\t
70 kg
\t
3 inches
\t
75x32 mm
\t
105 mm
\t
80 kg
\t
4 inches
\t
100x32 mm
\t
130 mm
\t
100 kg
\t
5 inches
\t
125x32 mm
\t
157 mm
\t
120 kg
\t
Additional Data
\t
Mounting Type
\t
top plate (45.5x27.5 mm, 52.5x35 mm, 75x45 mm)
\t
Brake Type
\t
swivel (rotating/revolving), total lock brake, fixed (rigid)
\t
Fork Finishing Type
\t
balck electrophoresis, zinc plated, yellow galvanized, chrome plating
\t
Bearing Type
\t
single ball bearing, double ball bearing
\t
Wheel Tread Material
\t
PU (polyurethane)
\t
Wheel Core Material
\t
PP (polypropylene/polyolefin)

REMARK

1. standard thickness: fork is 1.5 - 2.5 mm, plate is 1.5 - 3.0 mm, also there're other optional and can be customized
2. pls note that we do both that OEM for famous brands and ODM for distributors with full production line for all types of castor wheel and we are able to accurately identify which type of caster should be applied to which type of equipment and evrionment, pls give me a try, we'd offer one-stop casters solution for your any special requirements

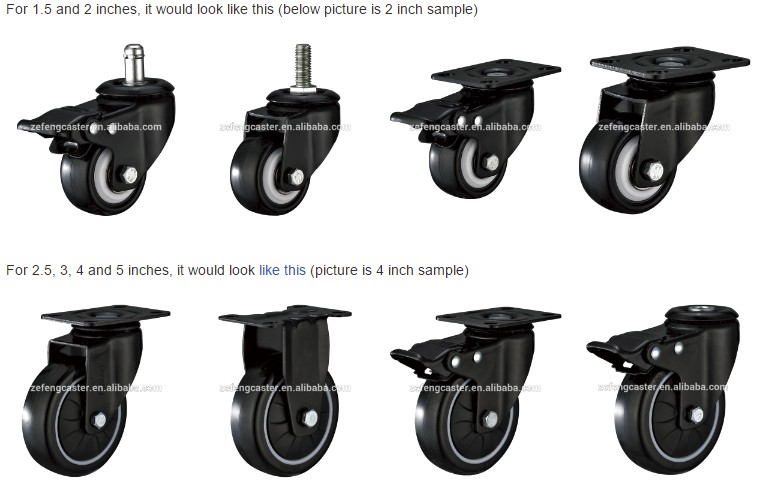

Detailed Images

Product Comparison

maybe other factory make it, but we make it better

Fork Selection

For this series, various types of fork component are available for different configuration of equipment, we can work together to find optimal caster solution for you applicantion

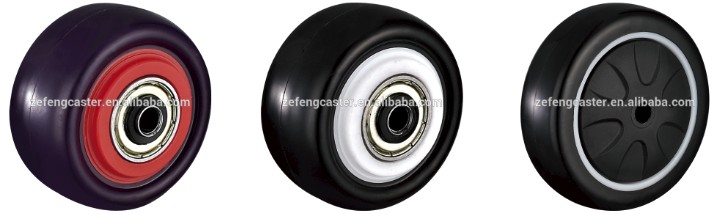

Wheel Selection

For this series, a wide variety of rubber wheels are available for different operation environment, let's work closely with our experts to select proper caster wheel for your unique application needs

PU wheel - Purpler/Red
40/50/63 mm

PU wheel - Black/White
40/50/63 mm

PU wheel - Black/White with Cover
75/100/125 mm

Related Products

Title goes here.

Left one is recommended similar product which under the same series with total locking brake system

3 inches (75 mm) to 10 inches (250 mm) are available

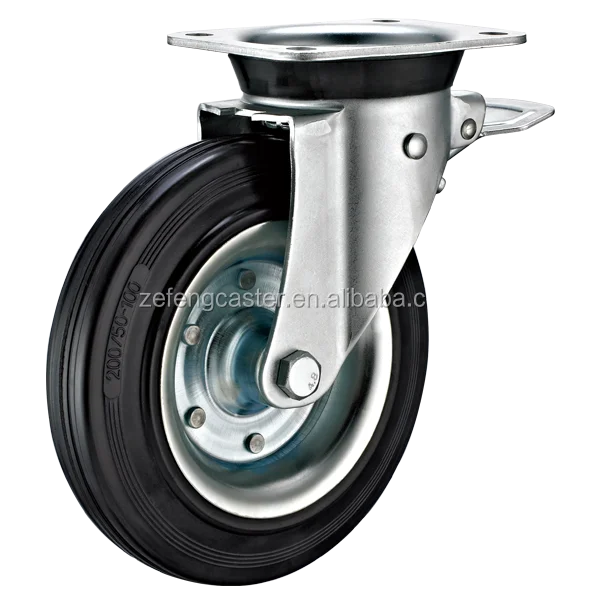

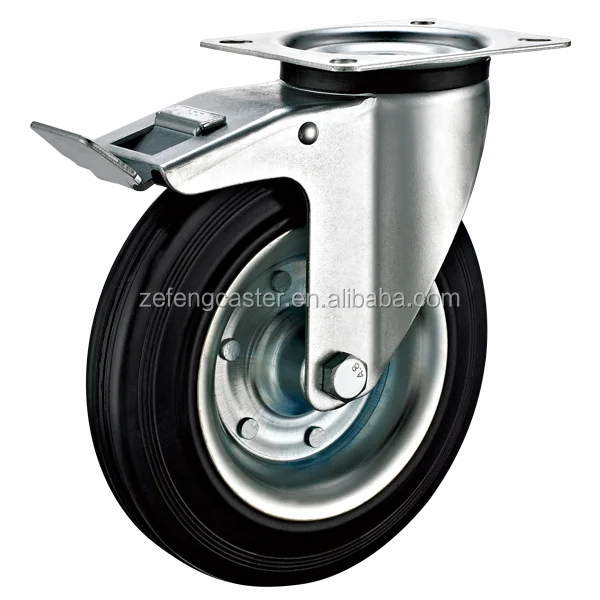

waste bin caster with black rubber wheel

Left one is recommended similar products which suitable for waste bin container

6 inches (160 mm)  to 8 inches (200 mm) are available

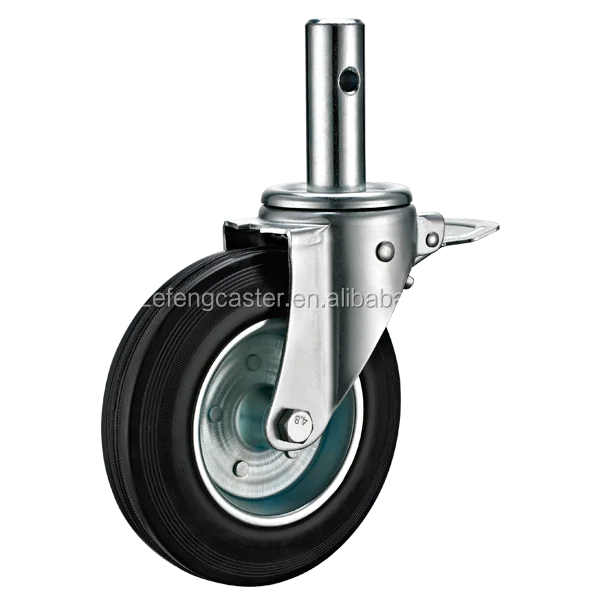

scaffolding caster with black rubber wheel

Left one is recommended similar products which suitable for scaffold and mobile ladder


6 inches (160 mm) to 8 inches (200 mm) are available

Our Service

Not find your needs?

It just shows standard casters in this shop, other wide array of casters are available in our factory, if you do not find information you need, pls contact me directly.


We also provide custom casters, let's closely work with design engineers to find the right caster and wheel to meet your specific application requirements.


Things to Note: OEM and ODM, WE DO BOTH!

Here we are -

Understanding your requirements is our first priority!

For over 12 years, Zefeng Caster Company has been providing reliable casters, wheels and solutions to famous brands and reputable distributors. We will work hard to deliver casters that exceed your expectations.

Contact us -

Our team is available between Monday through Saturday and can be reached at 086 158 1447 7815 (WeChat & What's App) and TradManager.

You may also contact us via email whenever necessary:)

We look forward to hearing from you.

Certifications

EN 1004 certification for scaffolding castor wheel

EN 840 certification for waste bin castor wheel

EN 12530 certification for European castor wheel

ANSI MHI ICWM certification for American style caster wheel

Engineering

Utilizing the latest in available technologies, our highly experienced design and engineering teams ensure every detail in performance, materials and aesthetics are delivered to meet customer expectations and safety standards.

This makes Zefeng create the greatest value for customer.

Manufacturing

Industry leading equipments and highly skilled workers confirm our casters meet stringent quality standards. We constantly strive to set standards in caster manufacturing innovation and automation.

This ensures Zefeng leads the industry in China-made casters and wheels.

Testing

To assure our products are of the utmost quality, we test to the highest standards and continually evaluate all production results and processes.

This allows Zefeng to offer an industry leading 1-year warranty on all WLD branded products.

\t
Why the choice is Zefeng casters?
\t
Customization
\t
customization casters upon flexible production, add your logo on caster or wheel
\t
Tooling
\t
3000+ existing die and mould, new mold is free if you place mass-production order
\t
Sample
\t
free for review purpose
\t
Production Line
\t
100% owned start of art manufacturing, we are always factory
\t
Human Resource
\t
98% experienced and dedicated worker, we are always professional
\t
Technology
\t
10+ patent and unique material formulation
\t
Management System
\t
comply with ISO9001:2015, with ERP information management system
\t
Service
\t
quickly response to marketing demand, 1-year warranty and free to replacement
\t
Quality
\t
containul improvement upon craftsmanship spirit of striving for the best
\t
Price
\t
very competitive under the same quality level

What’s the same?

Most of suppliers make this type of caster wheel, but we make it better because we’re focusing manufacture with full range of caster models for various equipments and achieve the same quality level with lower price

What’s the different?

Most of suppliers provide caster only, but we provide caster solution because we have accumulated expertise and technology to identify different industries and ergonomic needs with different caster solution

Time is money and time cost is expensive, no need spend too many time for souring and comparing, we can provide the most suitable caster wheel with one-stop solution to save your time cost
