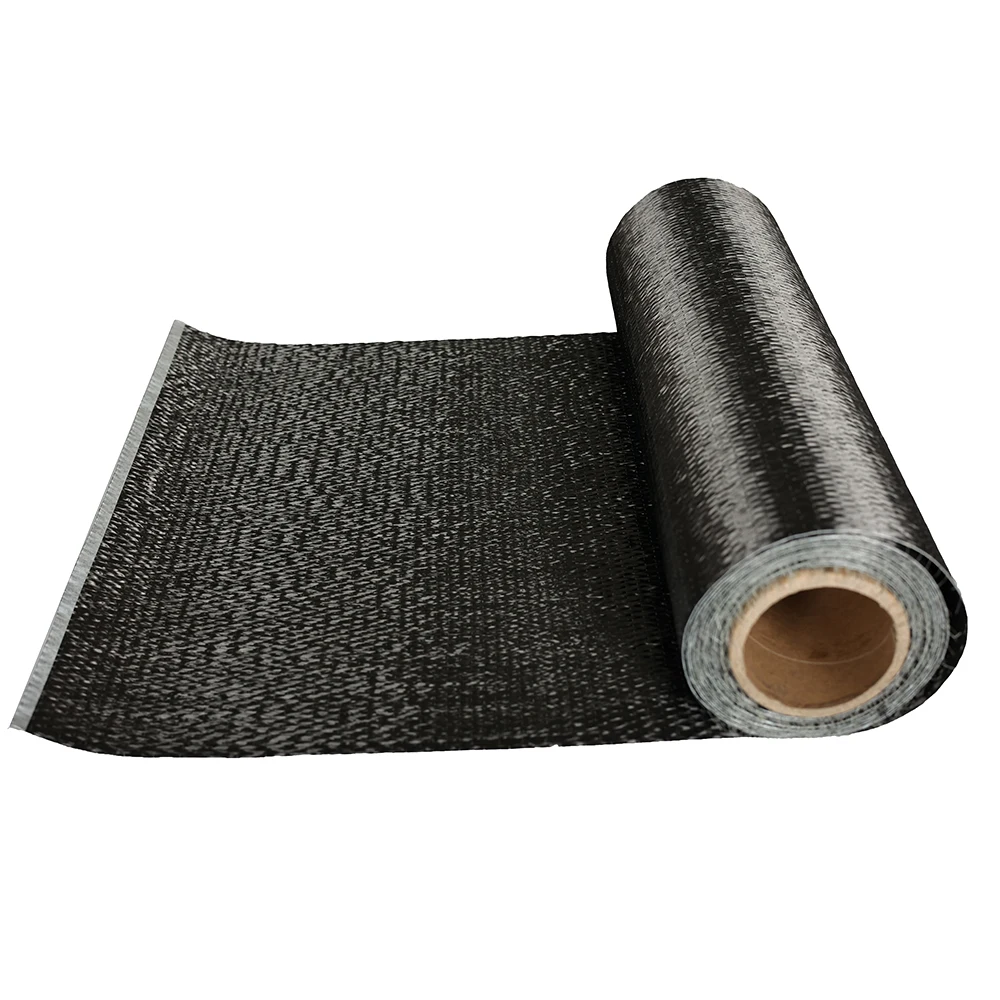

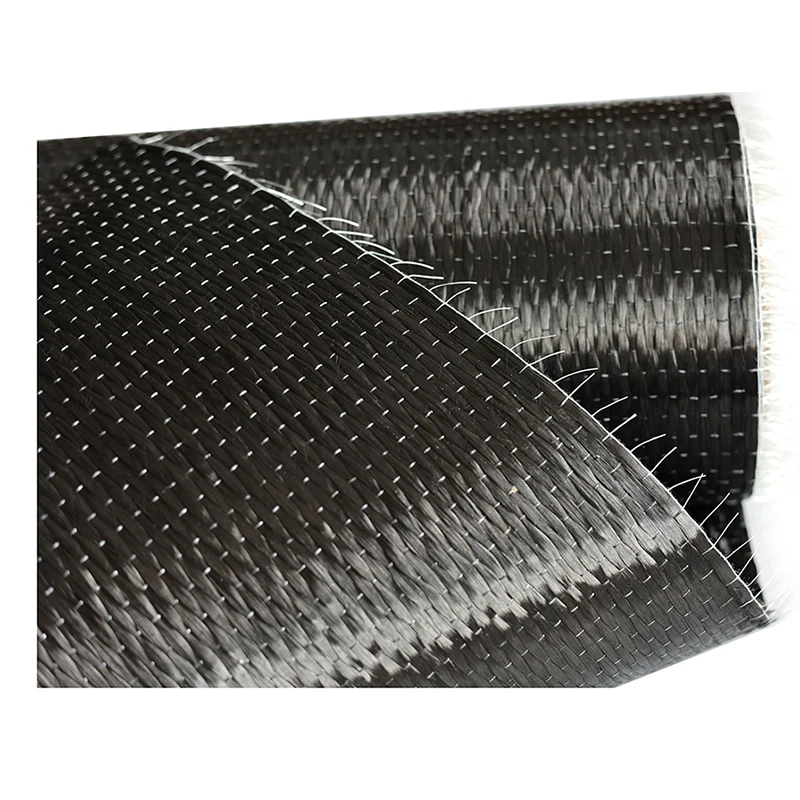

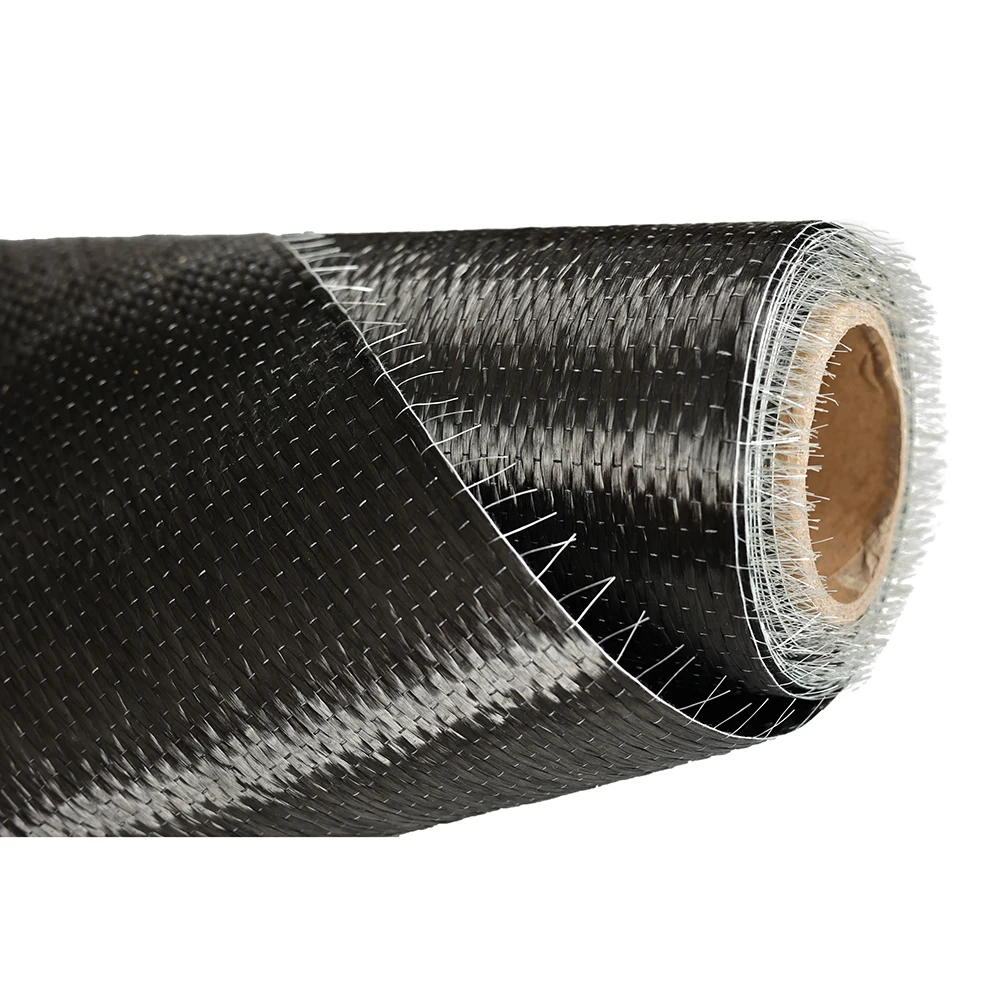

Однонаправленная ткань из углеродного волокна для строительного усиления, однонаправленное углеродное волокно
- Category: Carbon Fiber Fabric >>>
- Supplier: Yixing Huaheng High Performance Fiber Textile Co. Ltd.
Share on (60677008192):
Product Overview
Description
Product Description
Overview:
It mainly made by 12K carbon fiber with ordinary weight 200gsm and 300gsm.It has good performance of high strength,hugh mogulus,light weight,easy construction,high temperature resistance,anti-acid corrosion,and other advantages.It is used mailly in crack repair,building reinforcement,reinforcement against earthquake,etc.
Application:
1. the use of the building load increases
2. the project uses functional changes
3. material aging
4. the concrete strength is lower than the design value
5. structural cracks processing
6.harsh environment service component repair and protection
Type | Grade | Tensile Strength(Mpa) | Tensile Modulus(Gpa) | Elongation(%) | Thickness(mm) | Weight(g/㎡) |
H12K-CF200 | I | ≥3500 | ≥240 | ≥1.7 | 0.111 | 200 |
II | ≥3200 | ≥210 | ≥1.5 | 0.111 | 200 | |
H12K-CF300 | I | ≥3500 | ≥240 | ≥1.7 | 0.167 | 300 |
II | ≥3200 | ≥210 | ≥1.5 | 0.167 | 300 |

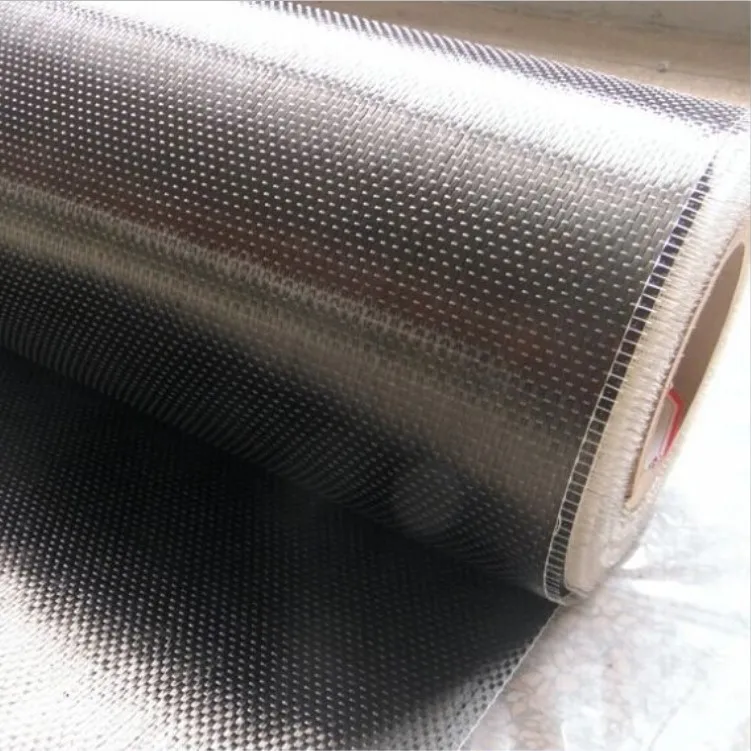

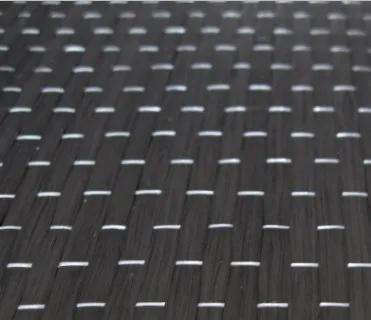

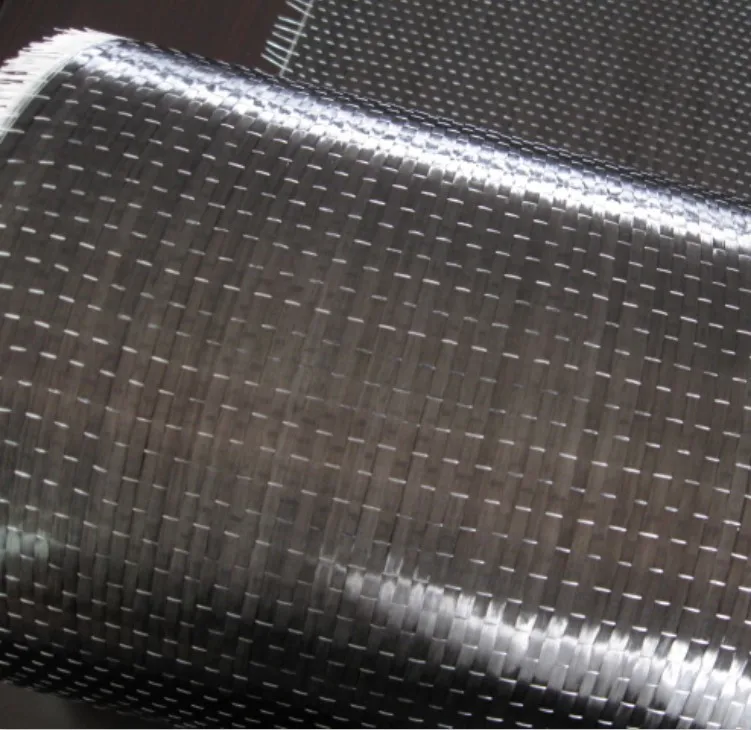

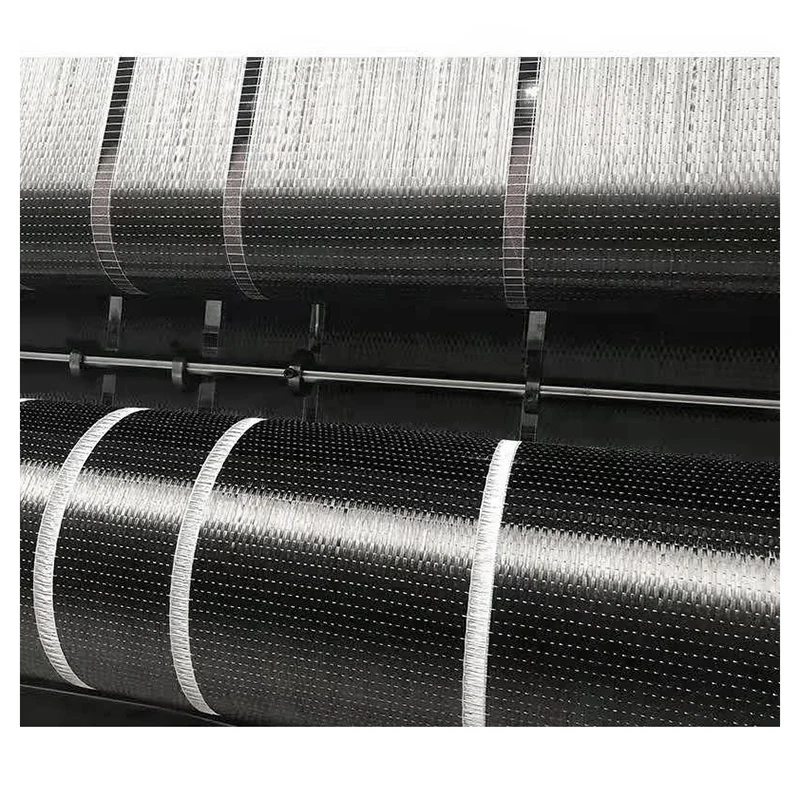

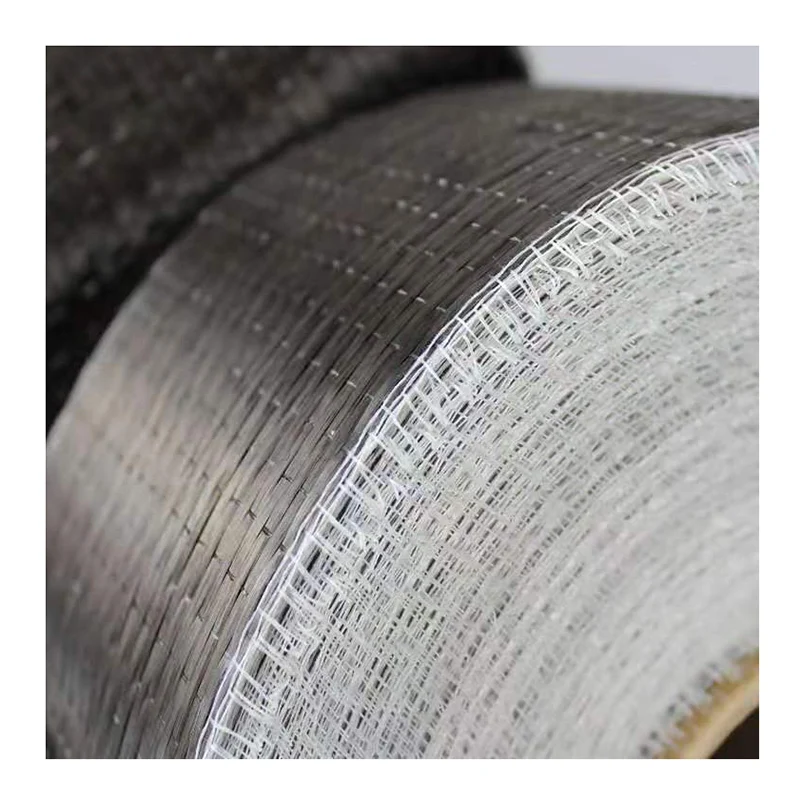

Detailed Images
Fabric Type | 12K unidirectional carbon fiber fabric |
Material | 100% carbon fiber |
Reinforcement Yarn | Grade I |
Tensile Strength(MPa) | ≥3500 |
Tensile Modulus(GPa) | ≥240 |
Elongation(%) | ≥1.7 |
Width(mm) | 100-1000 |
Thickness(mm) | 0.111 |
Weight(g/m2) | 200 |
Bending Strength(MPa) | ≥700 |
Interlaminar shear strength(MPa) | ≥45 |

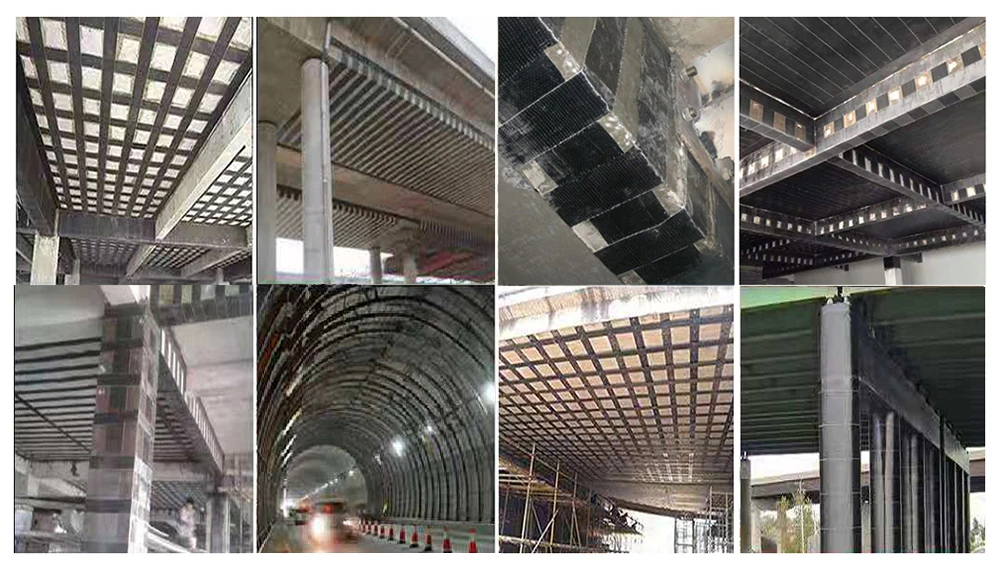

Product Use
Related Products
Carbon fiber woven tape
Carbon fiber woven tape
Carbon fiber woven tape
Carbon fiber reinforcement laminate
Carbon fiber reinforcement laminate
Carbon fiber reinforcement laminate

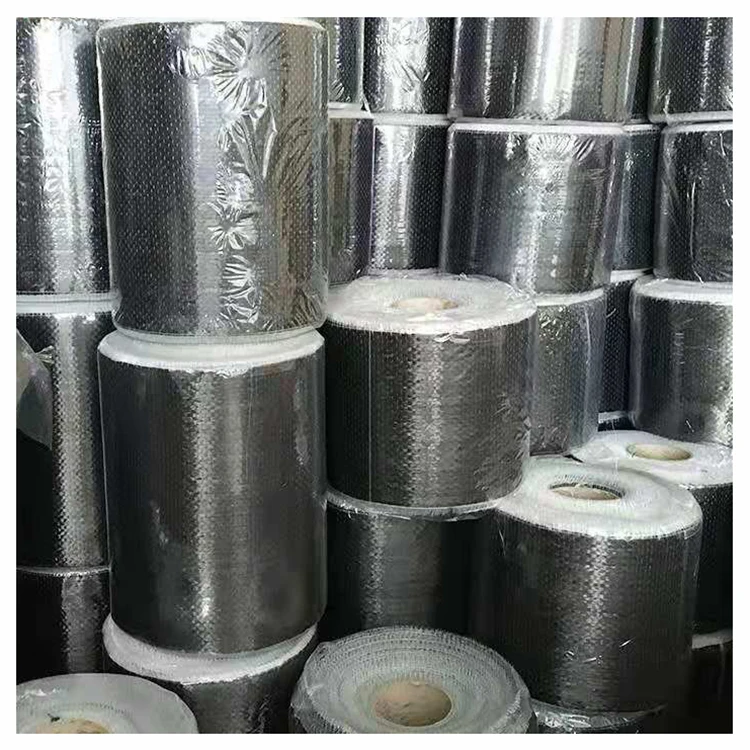

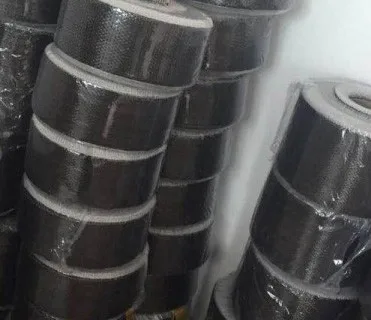

Packing & Delivery
Our Company
YIXING HUAHENG HIGH PERFORMANCE FIBER TEXTILE CO.,LTD
Our company founded in 2001,is professionally engaged in weaving, researching and developing each kind of fiber with high performance. The company mainly take the high strength composite material as the raw material, such as carbon fiber, aramid fiber,basalt fiber,glass fiber.HSHMPE fiber,PBO and so on to weave the composite product.
At the same time,the company has applied for 3 patents for the aboved research and also has past the reliable quality guarantee system,such as ISO9001,2000quality systems authentication.
Since 2009 the company developed five major categories of fiber-reinforced composite products:
1.COMPSPEED Kevlar fabric ,basalt fiber fabric,high strength and high modulus polyethylence fiber fabric.
2.COMPSPEED carbon fiber fabric prepreg,glass fiber fabric prepreg
3.COMPSPEED carbon fiber bicycle parts,carbon fiber motorcycle parts,carbon fiber car parts,carbon fiber sword,carbon fiber composite core,carbon fiber molded products,carbon fiber laptop case,carbon fiber laptop cooling pad
4.COMPSPEED FRP fiberglass,CFRP carbon fiber tubes,carbon fiber kite skeleton,carbon fiber mosquito nets rod,carbon fiber composite core,carbon fiber hamess frames,blinds fiberglass,carbon fiber rod.
5.COMPSPEED carbon fiber composite guide rollers,carbon fiber high-speed printing rollers, golf clubs,carbon fiber trekking poles,carbon fiber ski poles,carbon fiber walking poles (WALKING STICK)
In june 2010,we made cooperation with national technology and research organization, developed the 3D textiles till now we have authorized 2 invention patents and 16 new Utility Patents.
At the same time,the company has applied for 3 patents for the aboved research and also has past the reliable quality guarantee system,such as ISO9001,2000quality systems authentication.
Since 2009 the company developed five major categories of fiber-reinforced composite products:
1.COMPSPEED Kevlar fabric ,basalt fiber fabric,high strength and high modulus polyethylence fiber fabric.
2.COMPSPEED carbon fiber fabric prepreg,glass fiber fabric prepreg
3.COMPSPEED carbon fiber bicycle parts,carbon fiber motorcycle parts,carbon fiber car parts,carbon fiber sword,carbon fiber composite core,carbon fiber molded products,carbon fiber laptop case,carbon fiber laptop cooling pad
4.COMPSPEED FRP fiberglass,CFRP carbon fiber tubes,carbon fiber kite skeleton,carbon fiber mosquito nets rod,carbon fiber composite core,carbon fiber hamess frames,blinds fiberglass,carbon fiber rod.
5.COMPSPEED carbon fiber composite guide rollers,carbon fiber high-speed printing rollers, golf clubs,carbon fiber trekking poles,carbon fiber ski poles,carbon fiber walking poles (WALKING STICK)
In june 2010,we made cooperation with national technology and research organization, developed the 3D textiles till now we have authorized 2 invention patents and 16 new Utility Patents.
China Composite Expo
China Composite Expo
China Composite Expo
Certifications
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale,no limit of raw materials and mechanical parts,and color specifications,etc.
Q : 4. How do you ship the goods and how long does it take arrive?
A : We usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 work days to arrive.
Q : 5. We want to visit your company?
A : Sure,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
For more information,please contact us as below:
