High quality OEM carbon fibre car emblem carbon fiber badge
US $1.00-$10.00
spread tow carbon fiber 3k spread tow carbon fiber cloth spreading weight
- Category: Carbon Fiber Fabric >>>
- Supplier: Wuxi GDE Technology Co. Ltd.
Share on (62074661022):
Product Overview
Description
Product Description

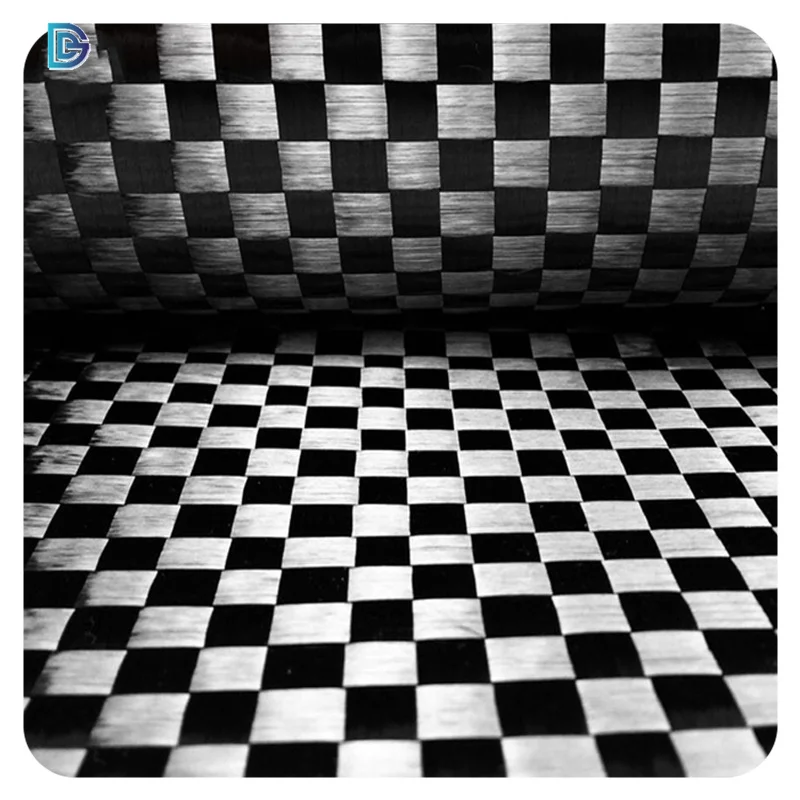

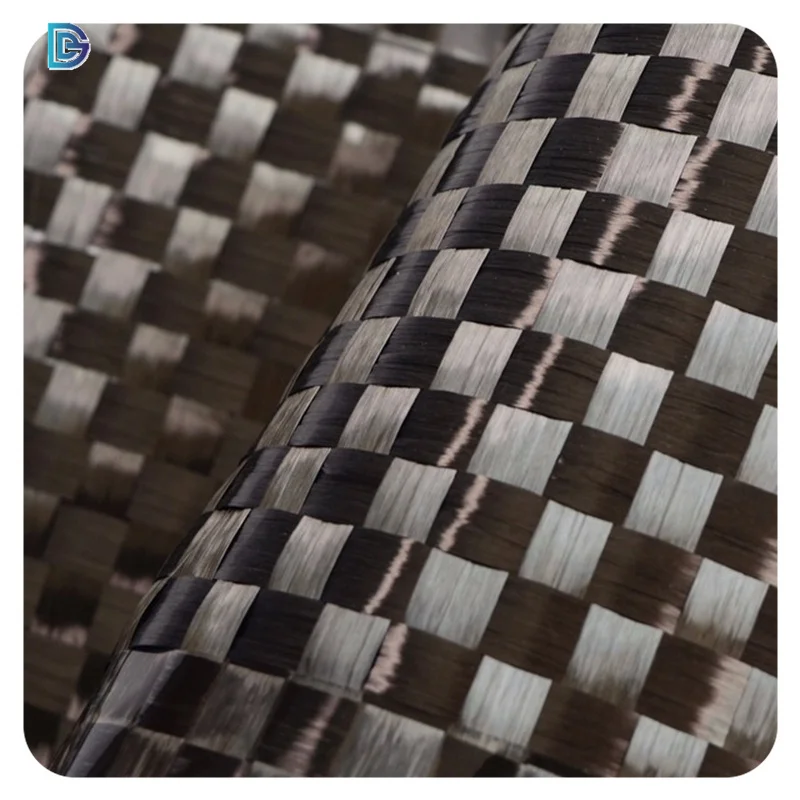

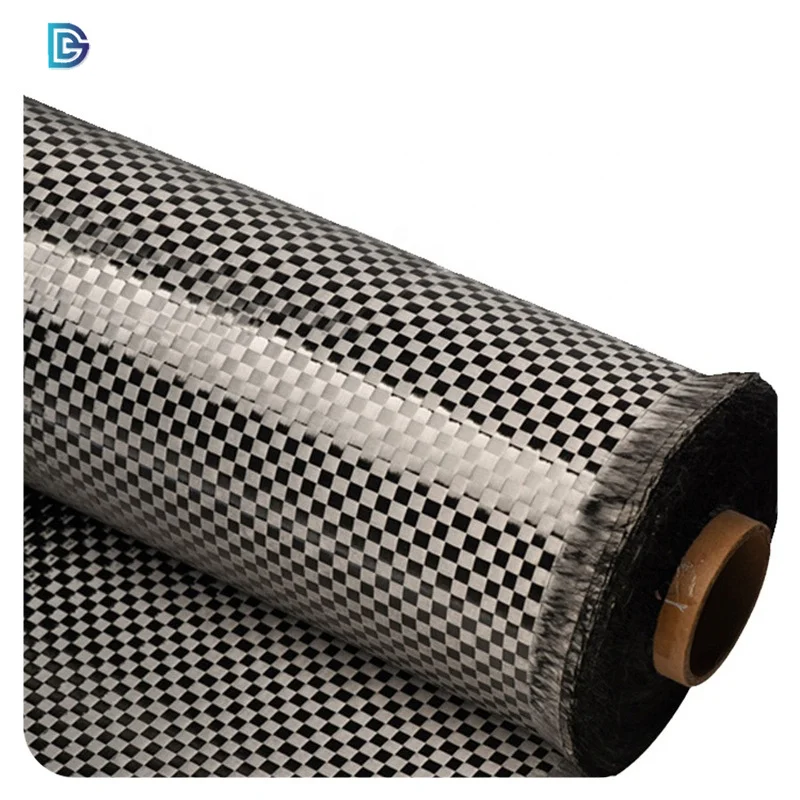

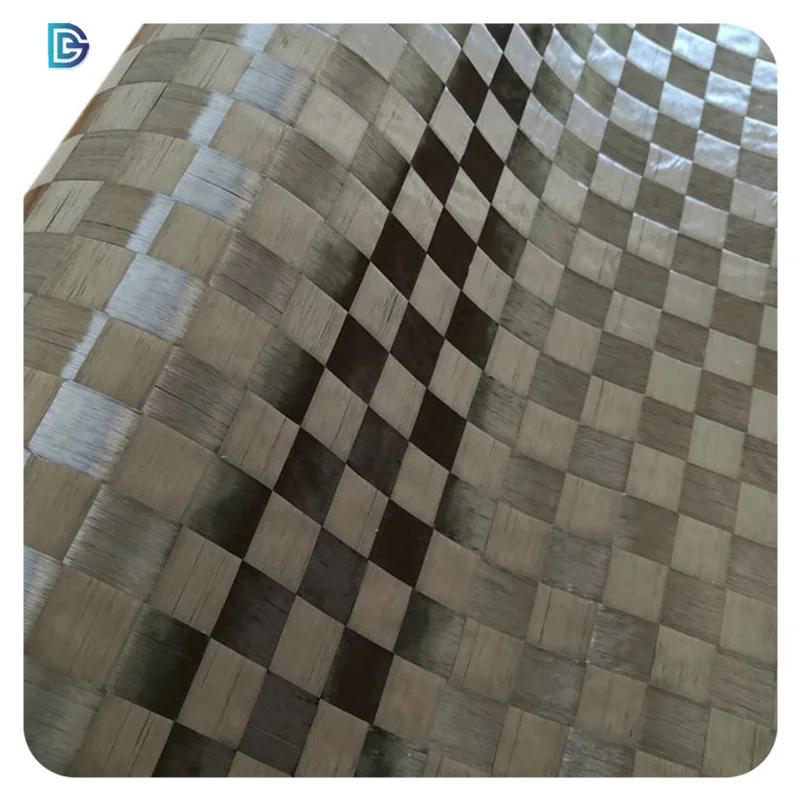

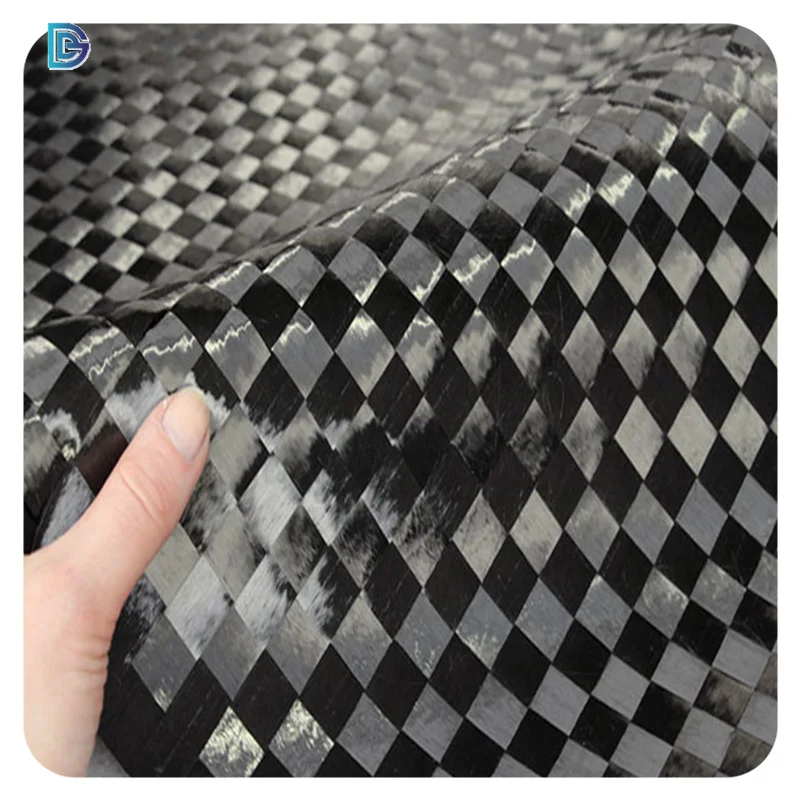

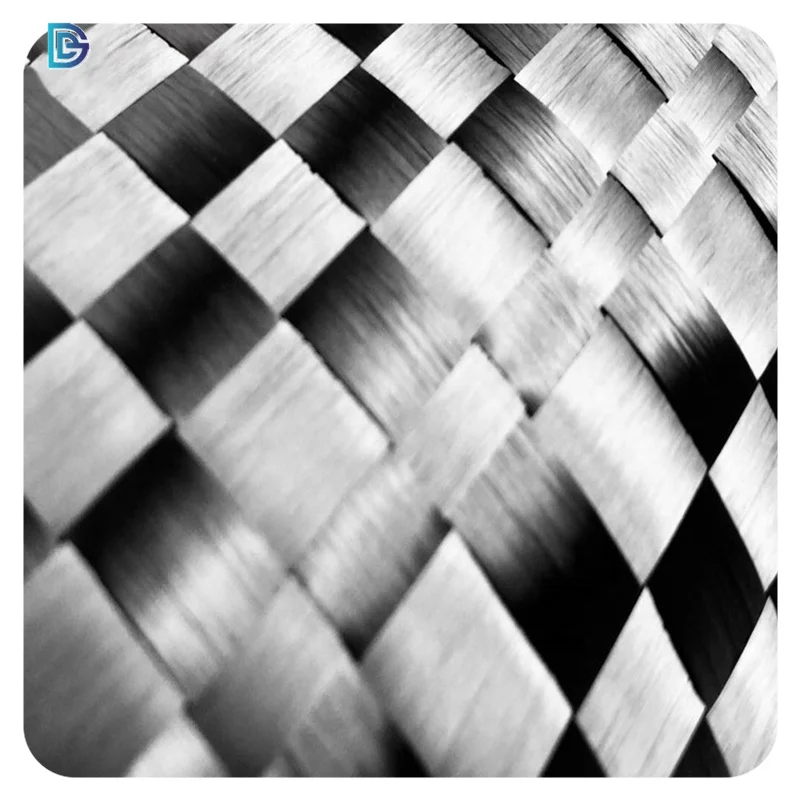

Spread tow fabric (stf) is a type of lightweight fabric. Its production involves the steps of spreading a tow in thin and flat
unidirectional tape (Spread Tow Tape, STT), and weaving the tapes to a Spread Tow Fabric. This technique increases the mechanical properties of the material and is also used to reduce weight on composites.
Product Parameters
Type | Weave | Fiber Count (10cm) | Weight(g/m2) | Theory Thickness(mm) | Width(mm) |
GDE12K-CP80 | Plain | 5*5 | 80 | 0.08 | 1000 |
GDE12K-CP100 | Plain | 6.25*6.25 | 100 | 0.10 | 1000 |
GDE12K-CP160 | Plain | 10*10 | 160 | 0.16 | 1000 |
GDE12K-CP200 | Plain | 12.5*12.5 | 200 | 0.20 | 1000 |
*Specific products could be made according to customers'requirements.
Item | Guideline | ||
Area weight(g/m2) | 80±2 | 100±2 | 200±3 |
Max load of warp direction (N/50mm) | ≥2400 | ≥3300 | ≥5900 |
Max load of weft direction (N/50mm) | ≥2400 | ≥3300 | ≥5900 |
Detailed photos
