Потолочная система с открытой сеткой, основная т секция

Product Overview

Description



 exposed grid grid ceiling system, main t section







 Product Description



- Raw materials : ZINC coating from 80 to 275 gram per square meter , also can use  the stainless steel mirror or aluminum mirror .



- Thickness : Form 0.25mm to 0.40mm .



- Dimension :



                Length : Main Tee up to 3.75 meters ,Cross Tee up to 1.22 meters ,



                Width : From 14mm to 24mm and Hight from 24mm to 38mm .



                                We can produce any size to meet and install your ceiling .



 - Colour : The surface is white , but also can be stainless steel mirror and aluminum mirror .

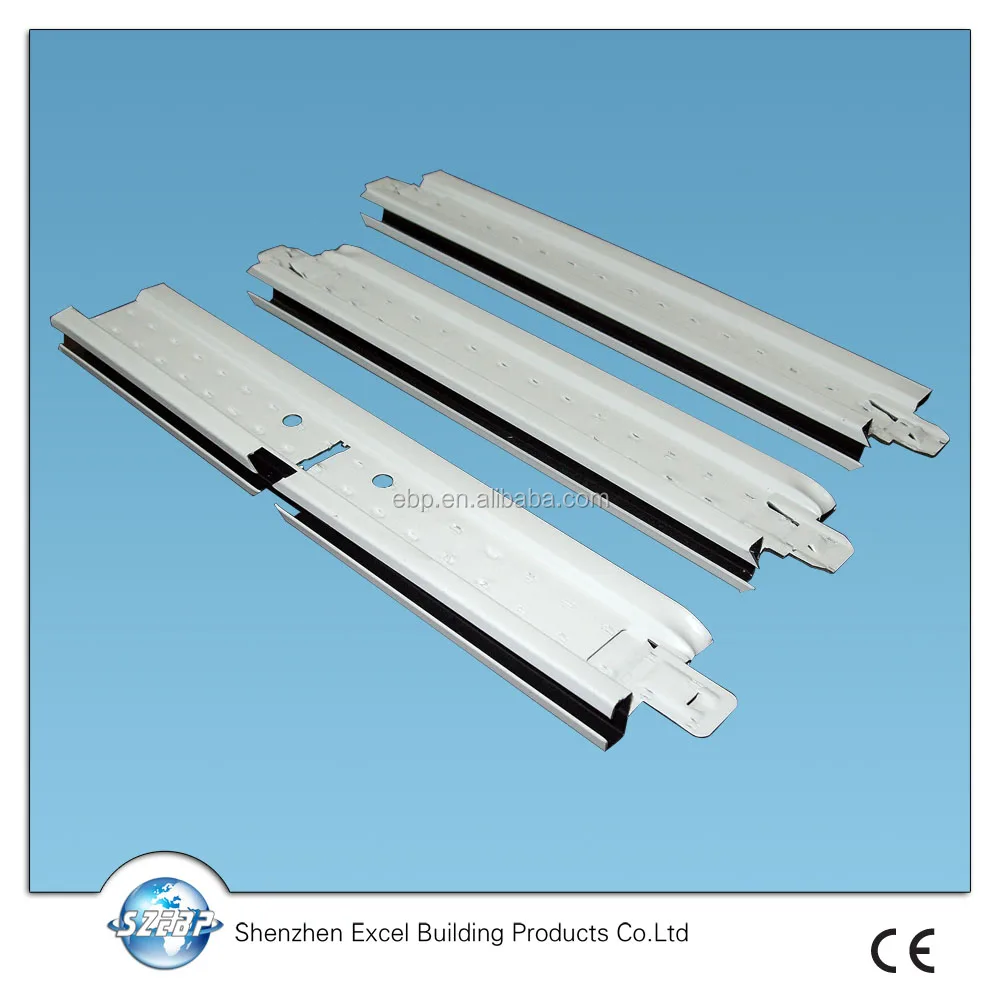

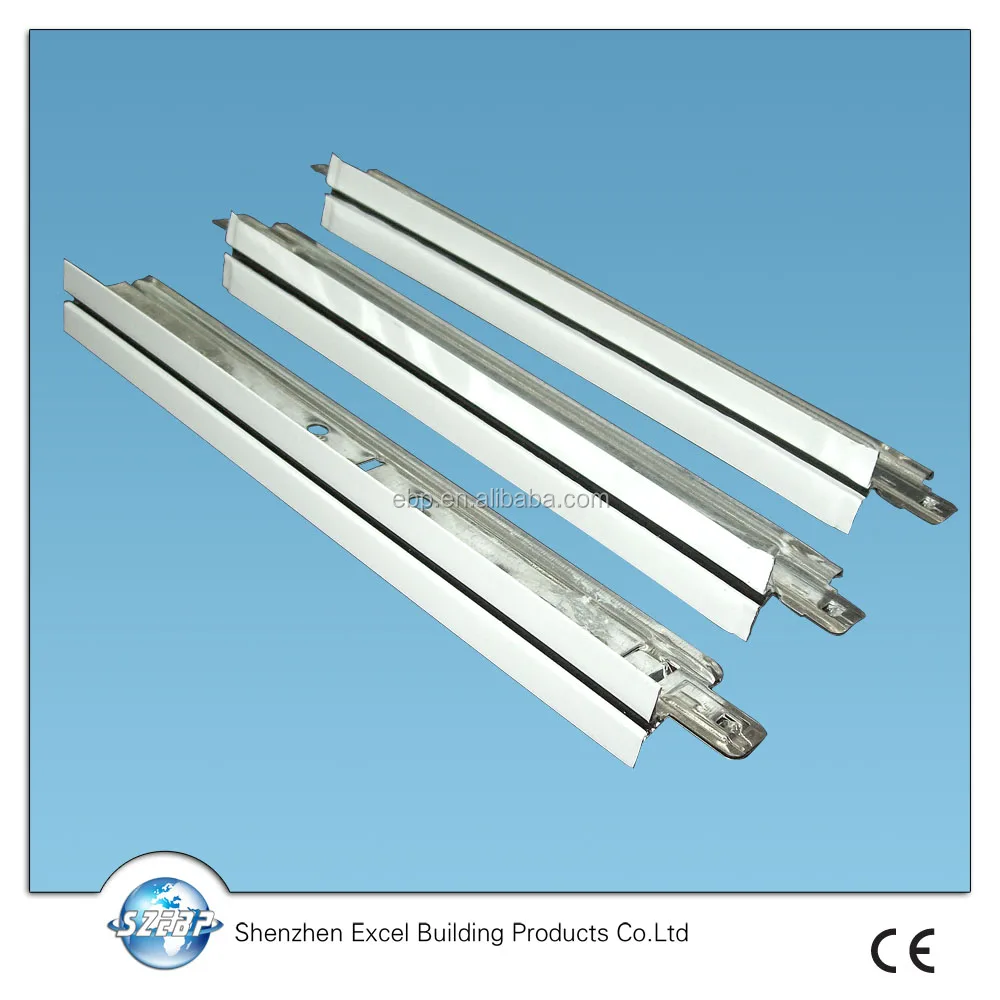

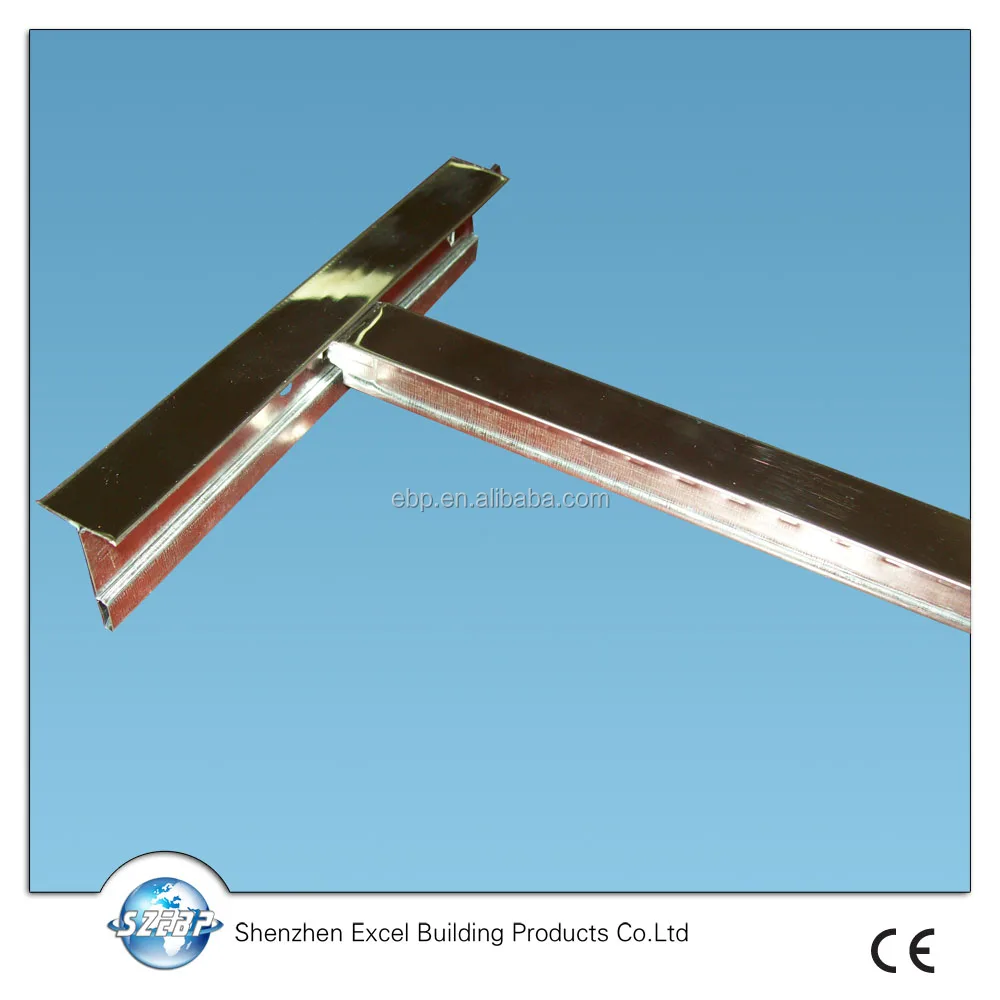

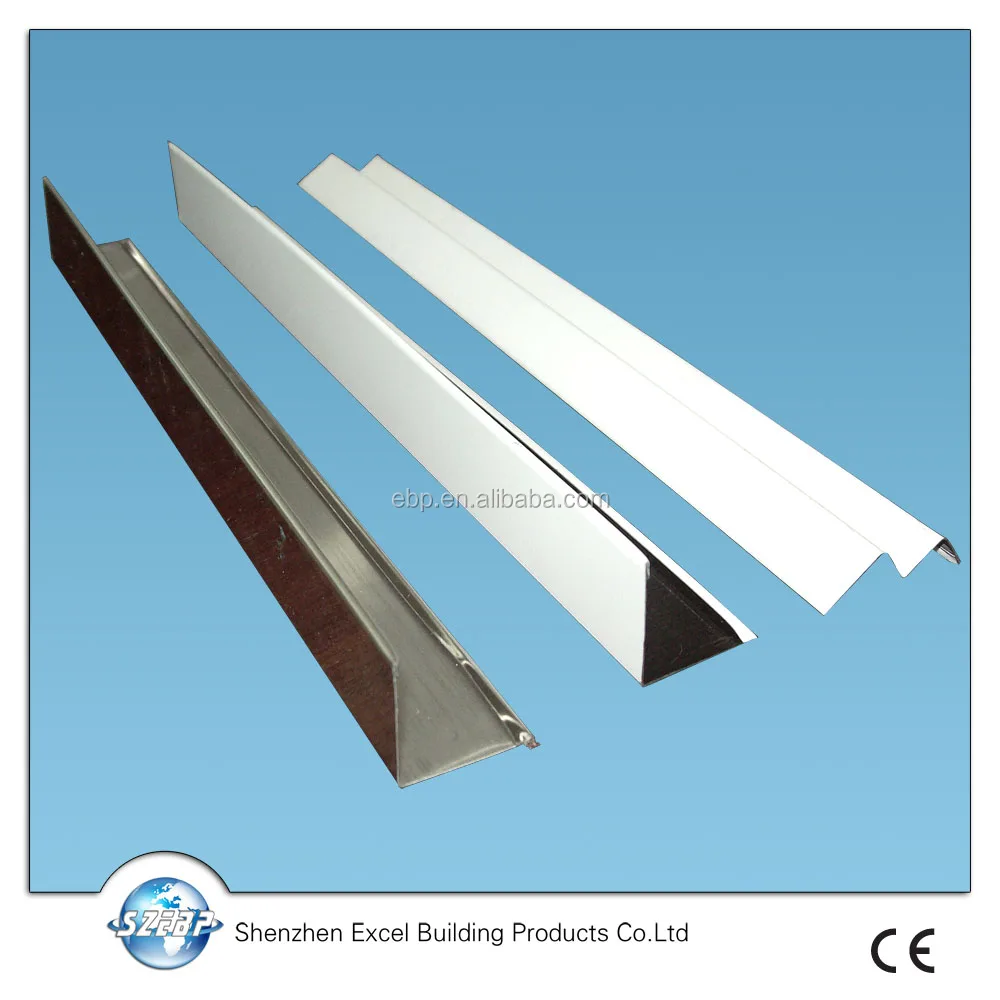

exposed grid grid ceiling system, main t section Pictures



















exposed grid grid ceiling system, main t section flat t Specifications





Item	Description	Width (mm)	Hight (mm)	Thickness (mm)	Length
1	T24 MAIN TEE	24	38	0.25~0.40mm	up to 3.75m
			32
			28
			26
			24
	T24 CROSS TEE	24	38	0.25~0.40mm	up to 1.22m
			32
			28
			26
			24
2	T15 MAIN TEE	15	38	0.25~0.40mm	up to 3.75m
			32
			28
			26
	T15 CROSS TEE	15	38	0.25~0.40mm	up to 1.22m
			32
			28
			26
3	T14 MAIN TEE	14	32	0.25~0.40mm	up to 3.75m
			28
			24
	T14 CROSS TEE	14	32	0.25~0.40mm	up to 1.22m
			28
			24





exposed grid grid ceiling system, main t section Groove Tee Grid Specifications



Item	Description	Width (mm)	Hight (mm)	Thickness (mm)	Length
1	U23 MAIN TEE	23	32	0.25~0.40	up to 3.75m
			29
			24
	U23 CROSS TEE	23	32	0.25~0.40	up to 1.22m
			29
			24
2	U17 MAIN TEE	17	32	0.25~0.40	up to 3.75 m
			29
			24
	U17 CROSS TEE	17	32	0.25~0.40	up to 1.22m
			29
			24
3	U15 MAIN TEE	15	32	0.25~0.40	up to 3.75m
			29
			24
	U15 CROSS TEE	15	32	0.25~0.40	up to 1.22m
			29
			24









exposed grid grid ceiling system, main t section slotted  Tee Grid Specifications



Item	Description	Width (mm)	Hight (mm)	Thickness (mm)	Length
1	U15 MAIN TEE WITH 8mm GAP	15	42	0.25~0.40	up to 3.75m
			32
			26
	U15 MAIN TEE WITH 8mm GAP	15	42	0.25~0.40	up to 1.22m
			32
			26
2	U15 MAIN TEE WITH 5mm GAP	15	30	0.25~0.40	up to 3.75m
			25
	U15 MAIN TEE WITH 5mm GAP	15	30	0.25~0.40	up to 1.22m
			25









Shenzhen Excel Building Product Co., Ltd is a professional manufacturer in making building materials and products since 1993, our products include metal stud & track partition system, main channel & furring channel, gypsum board suspension system, T grid system, wall angle, etc.

Our factory has successfully passed and got the ISO 9001 International Quality System. All of our building products have passed the examination of the domestic authoritative department and the experts. At the same time, our products are confirmed and recommended to gain the honour of "The New Tech Products With Creativity".
