Product Overview
Description

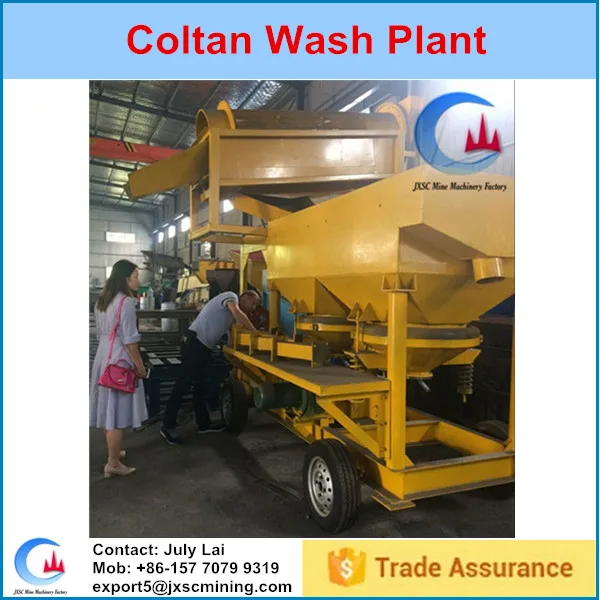

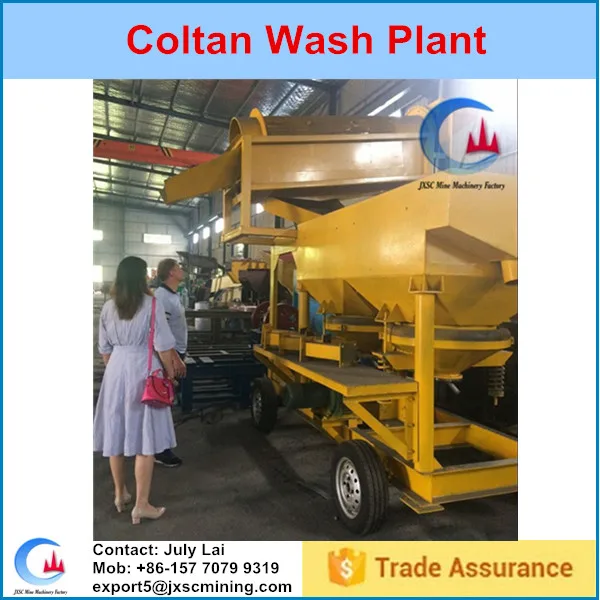

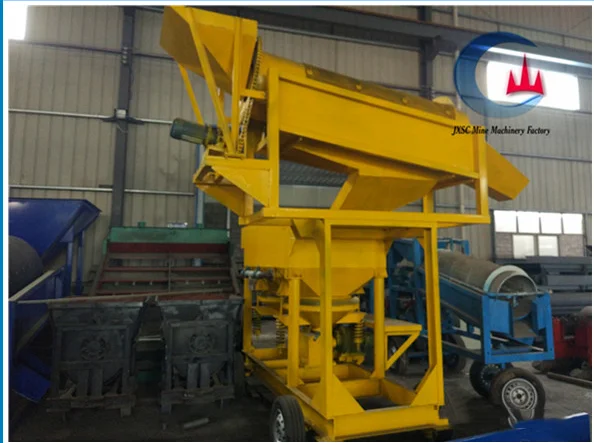

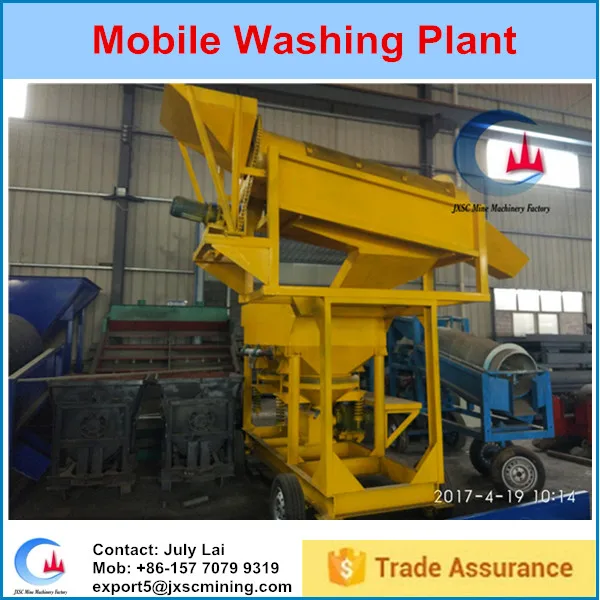

Mobile Wash Plant

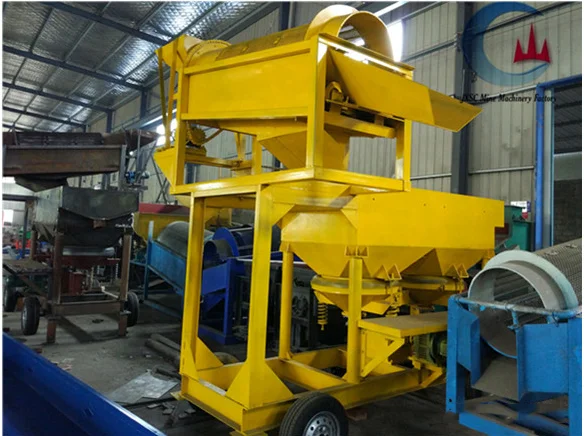

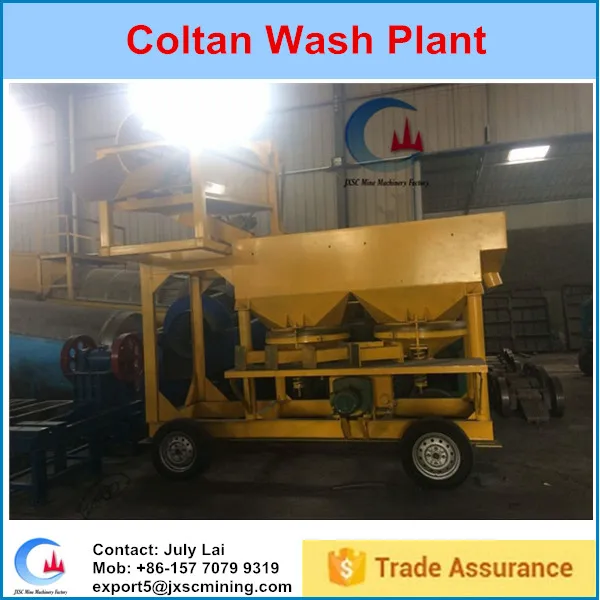

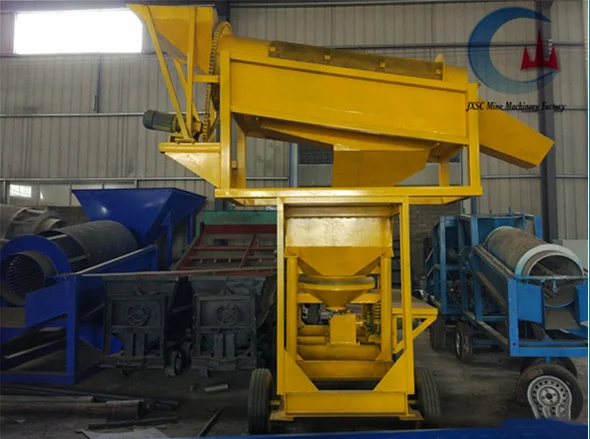

Portable Jig All-In-One Machine Wash Plant
This portable washing plant is widely used in washing minerals like Gold/Diamond/Coltan/Tin/Tungsten/Manganese and other heavy minerals.
-- It's not only work as a integral washing plant, but also can be disassembled to two machine work individually: TROMMEL SCREEN & JIG MACHINE.
-- Equipped with complete water system, include water pump, water spray and pipes, wash thoroughly for the minerals.
-- With feeding hopper, Mobile system with rubber wheels, easily move to anywhere.
-- If used for Gold processing, this machine also can be conjunction with Sluice Box and Shaking Table for a further concentration.
-- It's not only work as a integral washing plant, but also can be disassembled to two machine work individually: TROMMEL SCREEN & JIG MACHINE.
-- Equipped with complete water system, include water pump, water spray and pipes, wash thoroughly for the minerals.
-- With feeding hopper, Mobile system with rubber wheels, easily move to anywhere.
-- If used for Gold processing, this machine also can be conjunction with Sluice Box and Shaking Table for a further concentration.

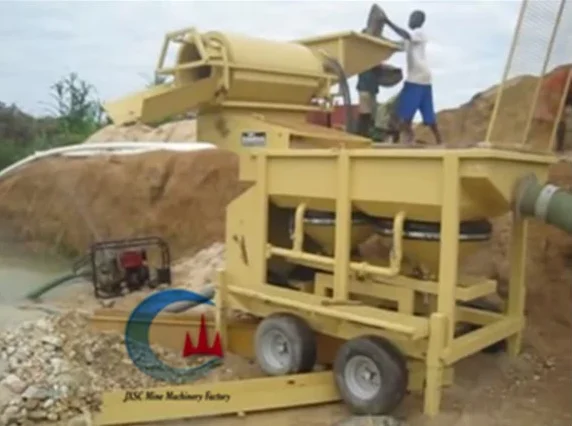

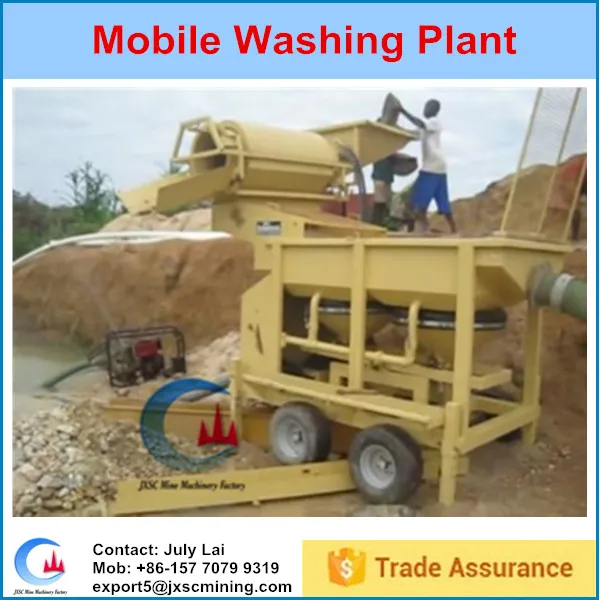

Mobile Jig Wash Plant working on site
This portable washing plant(trommel screen+jig separator) is working on our customer's alluvial gold site.The detailed sepecifications of this mobile plant as below:
1.Trommel Screen: Model JXSC-GW-513, capaacity of 1-5 t/h.
2.Jig separation: Model JT1-1,capacity of 1-5t/h, mobile type with rubber wheels,easily move to other places.
This mobile plant is very suitable for small scale alluvial gold and diamond plant.
\t\t\t\t\t\t\t\t\tJig Separator \t\t\t\t\t\t\t

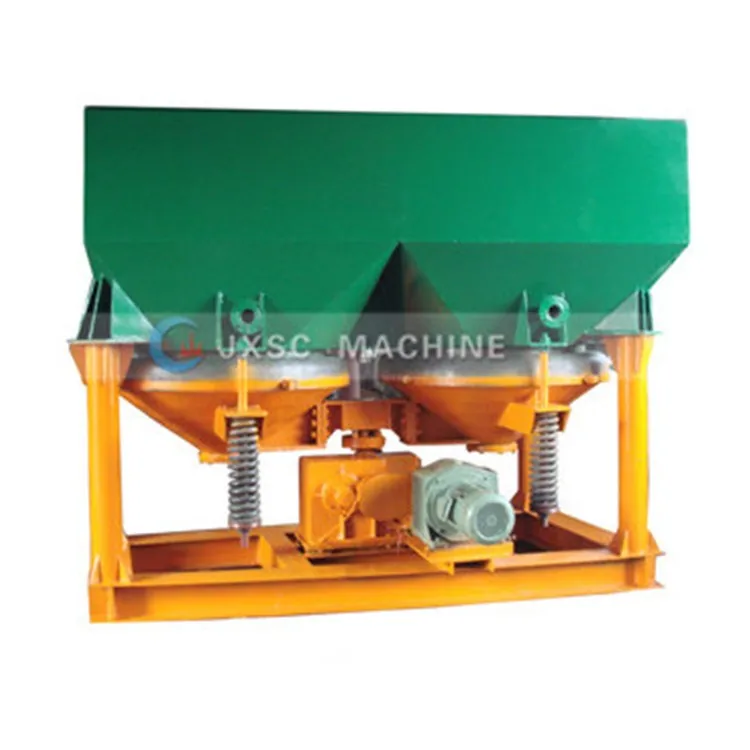

Jig Separator Machine Introduction
Jig concentration machine belongs to a type of energy-saving gravity separation equipment, which is developed according to the law of layer theory of jigger bed stratification, and on the basis of traditional jigger. The performance of saw-tooth Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.
Jig Separator Machine Technical Parameters
mall Capacity Gold Jig Concentrator Machine Gravity Separator Jig Machine for Placer Gold Ore Separation
Model | Jig Area (M2) | Stroke (R/Min) | Feeding size (mm) | Hutch Water ( T/H) | Pressure Water (kg/cm2) | Capacity (T/H) | Power (KW) | Overall dimensions (mm) | Weight (T) |
JT0.57-1 | 0.57 | 60-160 | <6 | 1-2 | ≥0.3 | 1-2.5 | 1.5 | 1560x820x1550 | 0.612 |
JT1-1 | 1.04 | 60-160 | <10 | 2-3 | ≥0.3 | 4-10 | 2.2 | 1322x1190x1915 | 0.9 |
JT2-2 | 2.28 | 60-160 | <10 | 2-4 | ≥0.3 | 8-15 | 3 | 3225x1550x2150 | 1.637 |
JT4-2 | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 7.5 | 4240x1990x2750 | 4.6 |
JT4-2A | 4 | 50-125 | <10 | 4-8 | ≥0.1 | 8-16 | 8 | 4240x1990x2750 | 4.6 |
JT5-2 | 4.86 | 80-120 | <10 | 4-10 | ≥0.1 | 10-20 | 7.5 | 3940x2006x2580 | 4.6 |
Jig Separator Machine Application
JXSC jig machine is widely used in processing plant of tungsten, tin, gold, diamond, iron, titanium, iron, coltan, manganese, fluorite, chrome. It can also be used for recovery for alloy particles from manganese slag, chromites slag and stainless slag, etc.

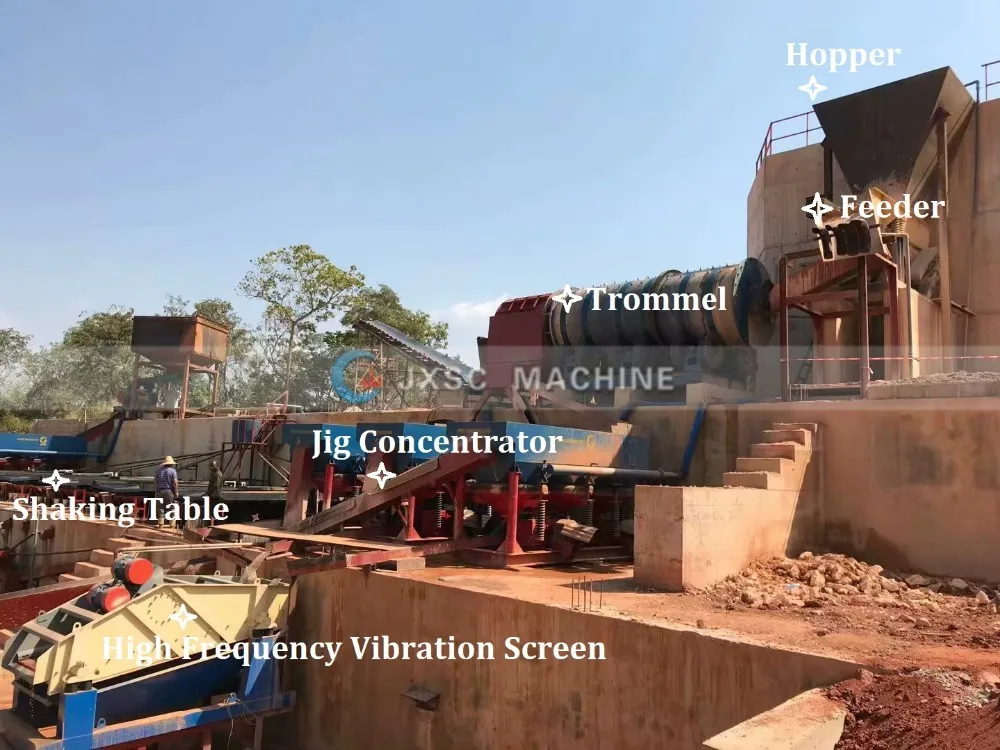

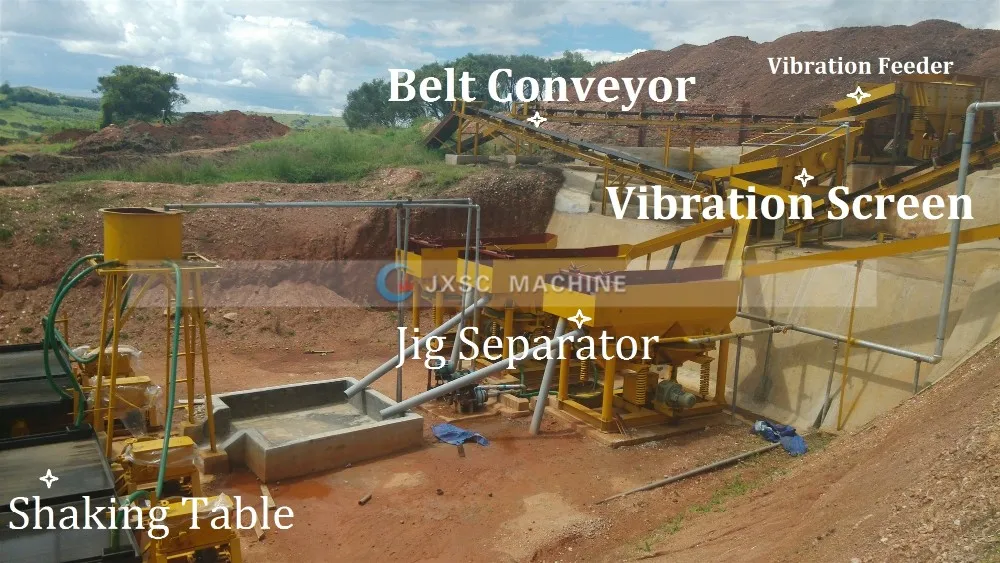

100TPH Coltan Mining Plant Project in Uganda
1) JXSC designed flowchart and plant layout drawing based on the coltan mine site conditions.
2) JXSC supplied hopper, feeder, trommel scrubber, vibrating screen, slurry pump, jig separator, belt conveyor, spiral chute, cone crusher, shaking table.
3) JXSC Engineer Mr. Wen services at Uganda Coltan Project mine site based on customer's request.

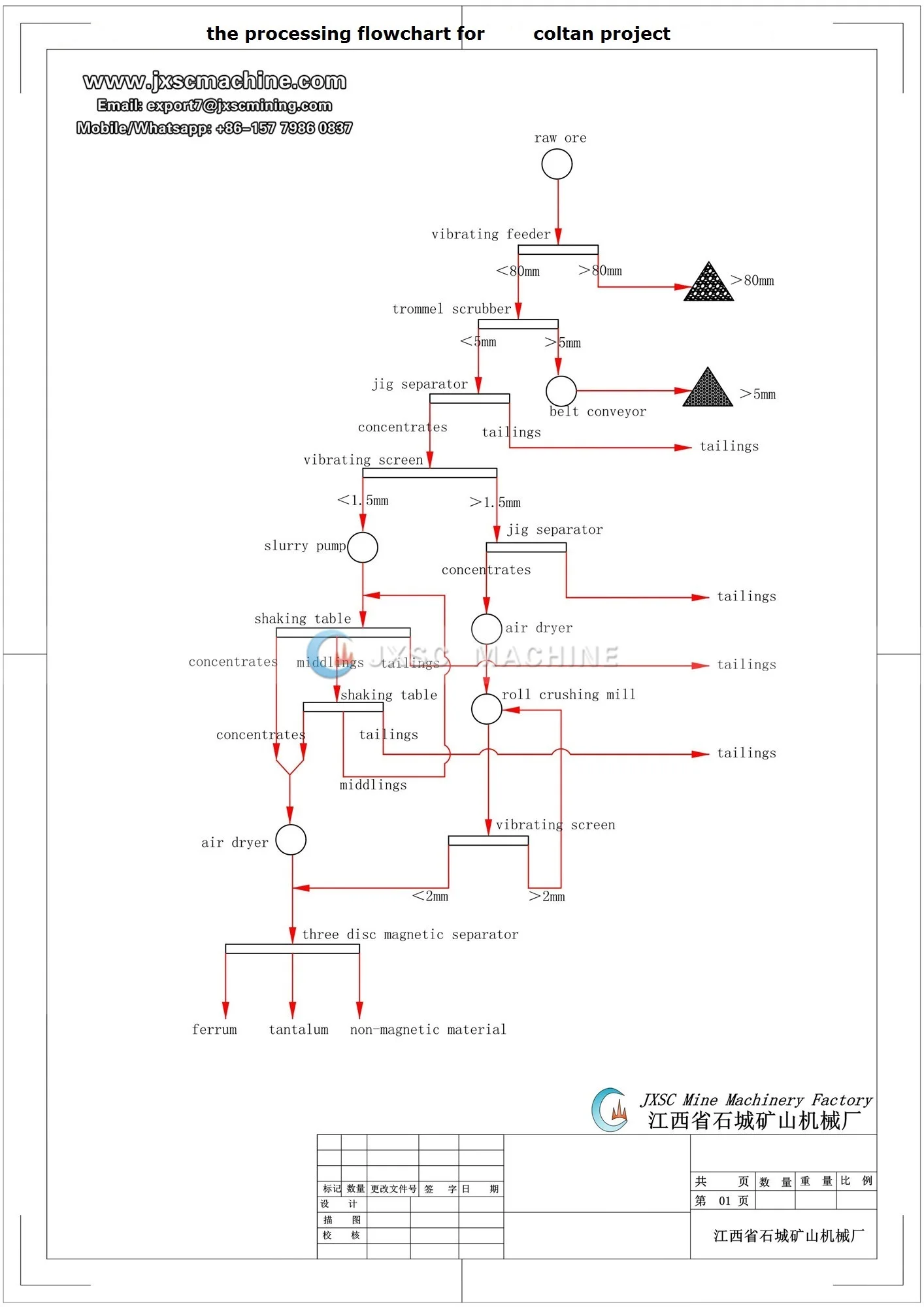

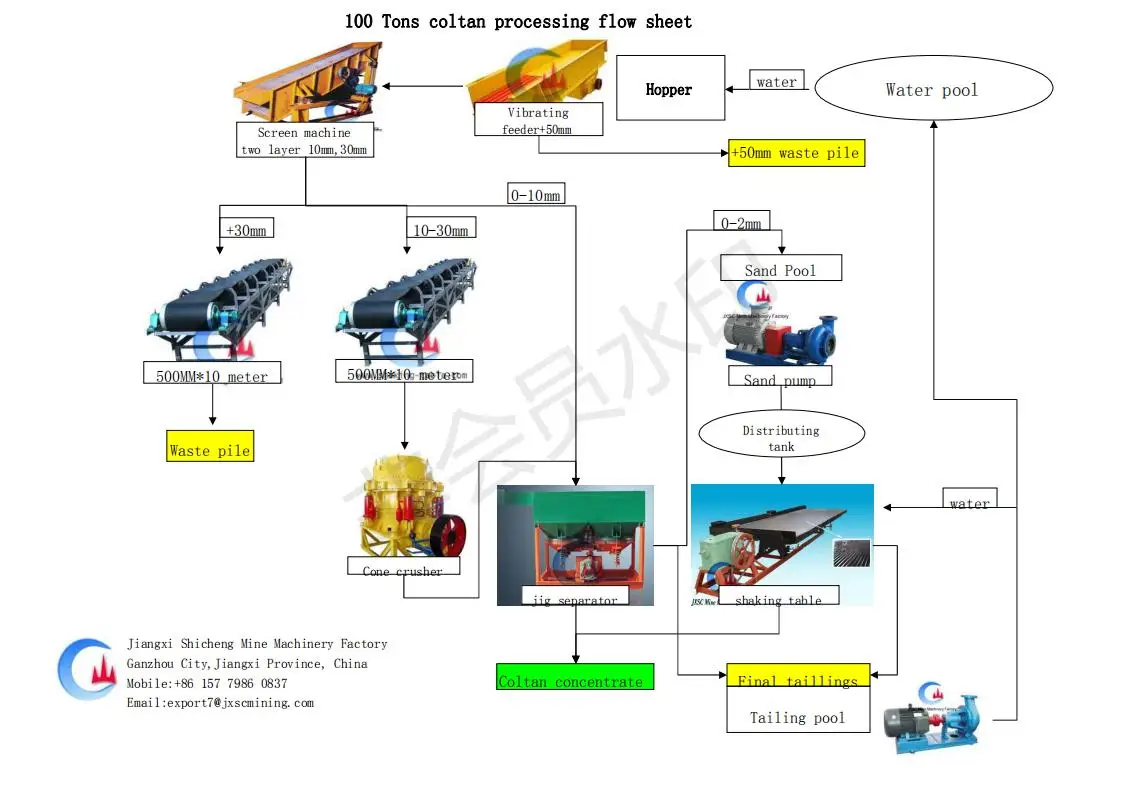

JXSC designed the complete processing flowchart for this coltan mining project as below:

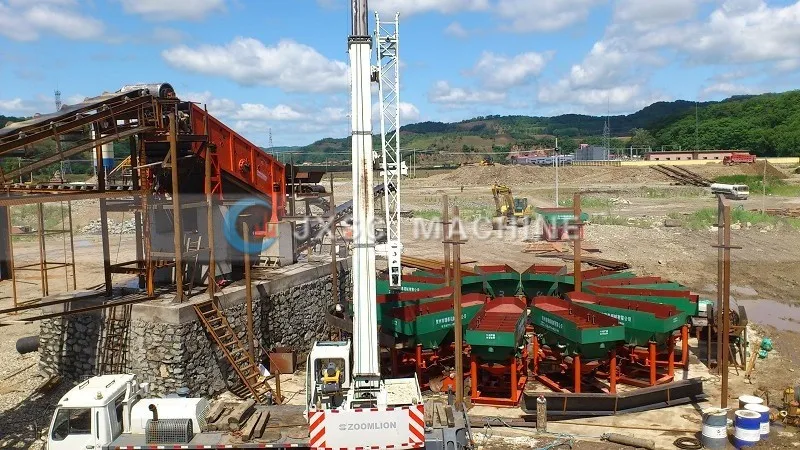

100tph Complete Set Plant Tantalum-niobium Ore Processing in Nigeria
1) JXSC supplied complete Set Plant , including Jig Separator, Trommel Scrubber Washing Machine & Shaking Table etc. for this project.
2) JXSC sent Engineer Mr. Wen services at customer's mine site to guide for installation, commission, start up and training.
Jig separator machine can be also used in the following applications:
1) To recover Finished Concentrate from ores in which the mineral grains are liberated. Recovery of minerals of various kinds that occur in Placer / Alluvial deposits, or decomposed rocks.
2) Recovery of minerals from primary/ hard rock ore, which can be liberated by crushing/ grinding process, i.e. (Diamonds, Color Gemstones, Manganese, Barite, fluorite, Gold & other precious metals, base metals, ferrous metals, light metals, coal) and heavy minerals of all kind.
3) Cobbling operation, to discard waste rock before final processing of the crude concentrate.
Processing flowchart for alluvial gold plant
Packing & Shipping

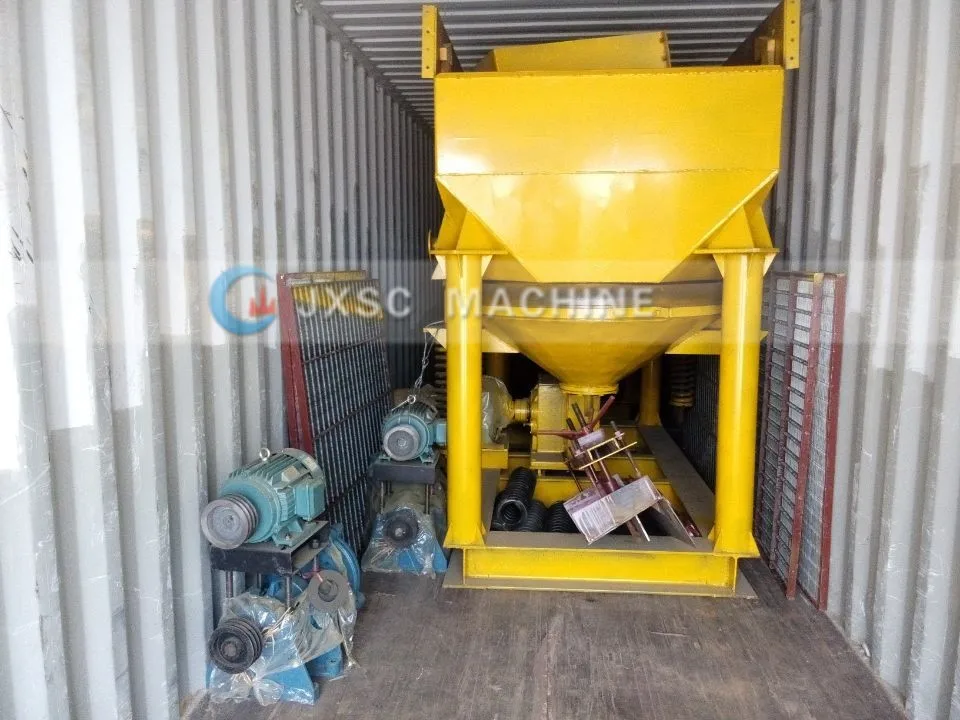

Packing/Loading
1. Some machines spare parts would be packed in wooden boxes to avoid broken.
2. Usually the machines are fixed and loaded in container directly.
Shipping
1. Usually our mining machines are shipped in 40'HQ or Flat Containers by sea.
2. Our mining equipments can be also shipped by air if customers request.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Jiangxi Shicheng Mine Machinery Factory
Jiangxi Shicheng Mine Machinery Factory is an experienced supplier of complete set mining equipments, professional at providing complete set processing equipments for Gold ore /Tin ore /Tungsten ore /Iron ore / Diamond/ Coltan ore / Silica sand / Zircon sand/ Black sand/Chrome ore, ect. As well as complete set small lab mining machines.
Our Core Advantages as below :
1.+30 years history FACTORY at mining machinery
2.Provide engineer team after sales service
3.Provide Complete set mineral processing plant
4.Provide Sample testing service in factory lab for free
5.Provide professional Mining Solution Consulting
JXSC Main product including: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, jaw crusher, hammer crusher, ball mill, flotation machine, spiral classifier. as well complete set small laboratory mining equipments
JXSC Mine Machinery Factory main markets
Africa, South Amercia, Europe , Southeast Asia, Asia,ect. Our cooperated customers cover Mali, Ghana, Sudan , Uganda, Mozambique, Suriname, Zambia, Nigeria, Cameroon, Madagascan, Malasia, Indonesia, Korea, Philippines, Monglia, Singapore, Inida, Iran, Mexico, Brazil, Chile, Peru, Spain, Canada, Austrilia,U.S, UAE,ect.
\t\t\t\t\t\t\t\t\tCertificates \t\t\t\t\t\t\t
JXSC Mine Machinery Factory has obtained ISO9001:2008 standard certificate, most mining machines obtained CE, SGS and BV certificate.
\t\t\t\t\t\t\t\t\tOur Service \t\t\t\t\t\t\t
Pre-Sales Service
*Inquiry and consulting support
*Ore sample testing support
*View our Factory
*Design Flowchart
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* 1 year warranty
* Engineers available to service machinery overseas.
FAQ
1.How is the quality of your products?(mining equipment/machine)
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
Answer: Our products are manufactured strictly according to national and international standard, and we will do a test on every machine before delivery.
2.Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description or promise we made before you place order, we promise 100% refund.
3.How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
4.Service and Payment Terms?
Answer: We can accept T/T and L/C; 30% deposit, 70% balance before factory delivery, which is international trade practice;Finished product pictures will be provided to customers before delivery.
5.What about the production time?
Answer: All of our machines are produced in standard time frame.
For complete set equipment for the entire line,factory production time is about 30-35 days;
For single machine,factory production time is about 10-15 days;
For laboratory equipment,factory production time is about 5-7 days.
If you are interested in our products, please don't hesitate to contact us. Could you tell me the following questions, so that I can give you a complete solution, including best Exw-works Price Quotation!
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
1. Which machine do you need? like gold washing machine, spiral chute, vibrating screen, Jig separator, Shaking table, etc.
2. What is your raw ore that you plan to process? like gold ore, diamond ore, tantalite or silica sand, etc.
3. What is the capacity you need? Like 10 tones per hour.
4. What is the feeding size to the machine? and what is the discharging-material size that you require?
Sincerely welcome to send your inquiry,you can get best quotation and professional service.
