XJL 150 Rubber Extruder / Hot Feed Extruder

Product Overview

Description

            XJL-150  Rubber Extruder / Hot Feed Extruder

                                     Wechat / Whats app:0086-13963951313





Type	XJL-150	XJL-200	XJL-250
Screw diameter(mm)	150	200	250
The rotation speed of screw(r/min)	41.6	44	40
Length-diameter ratio(L/D)	5.24	5	4.8
Cutting device rotation speed(r/min)	17	16	6
Main motor power(KW)	45	75	110
Steam pressure(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure(Mpa)	0.2	0.2	0.2
Production capacity(kg/h)	400	800	1200
Size(mm)	3585*814*1470	4600*1800*1800	4950*1800&1483
Weight(kg)	5000	8000	9000



2.Application:

1).Rubber strainer is mainly applied in the filering of natural and reclaimed rubber, and also appropriate for rubber manufacturers to strain the uppers and rubber materials of inner tubes.

2).The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.to ensure the safety of the roller of the rolling mill. In the process of rolling,the threshing of  the screw rod promotes the uniform plasticization of the rubber,and cool perservation by water can be adopted for stablizing the process.

3).Adopts hardened-gear speed reducer,which has a compacted structure with lower noise and higher transmission efficiency.

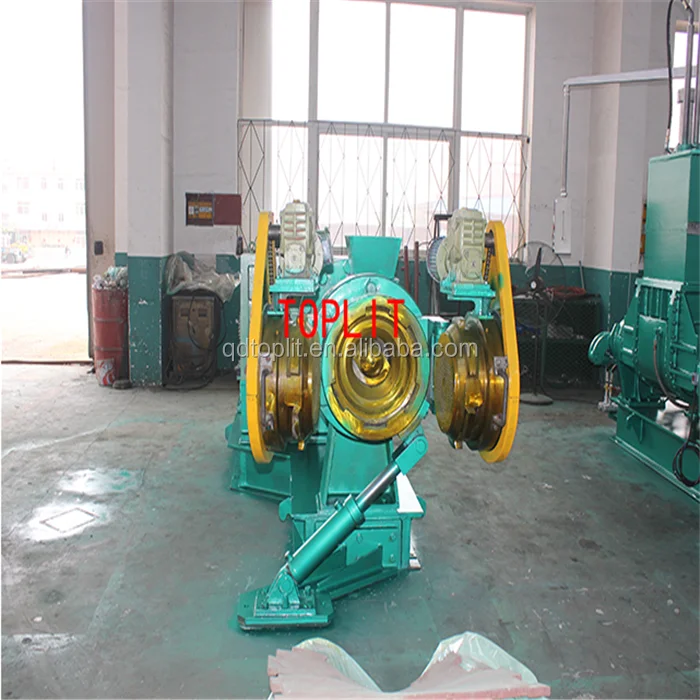

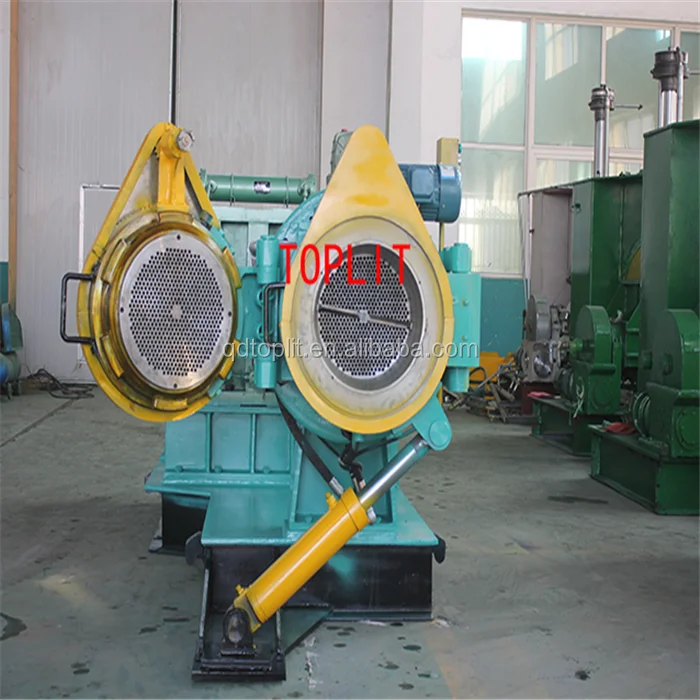

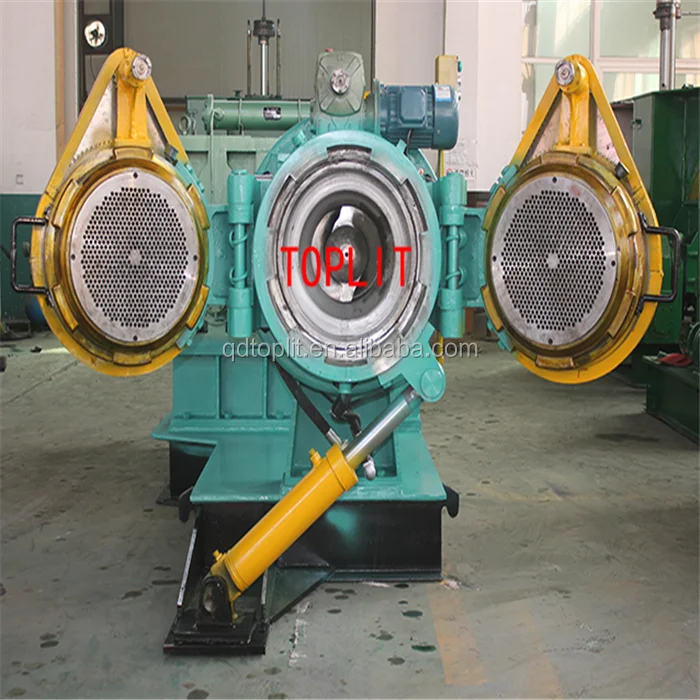

4).This rubber filter has double heads,which are in closing/opening type.



E-mail: Judy at qdtoplit dot com

Wechat / Whats app: 0086-13963951313

Skype:toplitjudy89

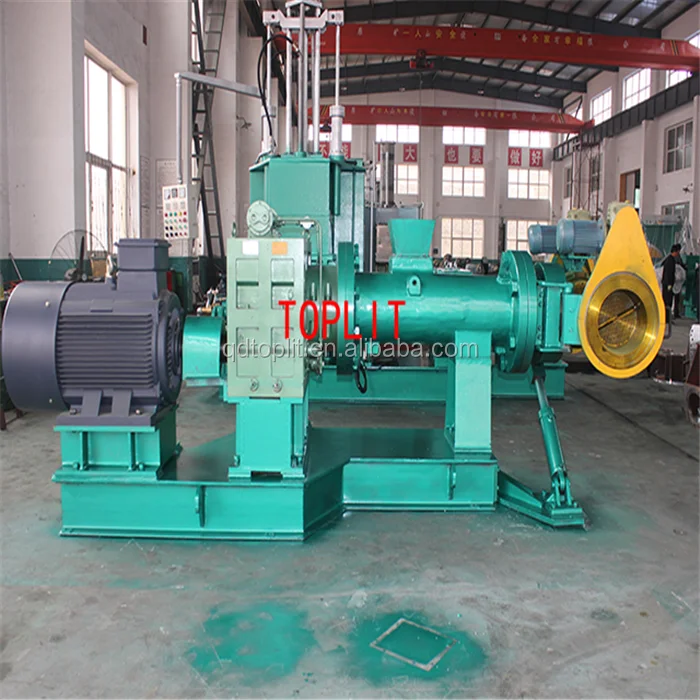

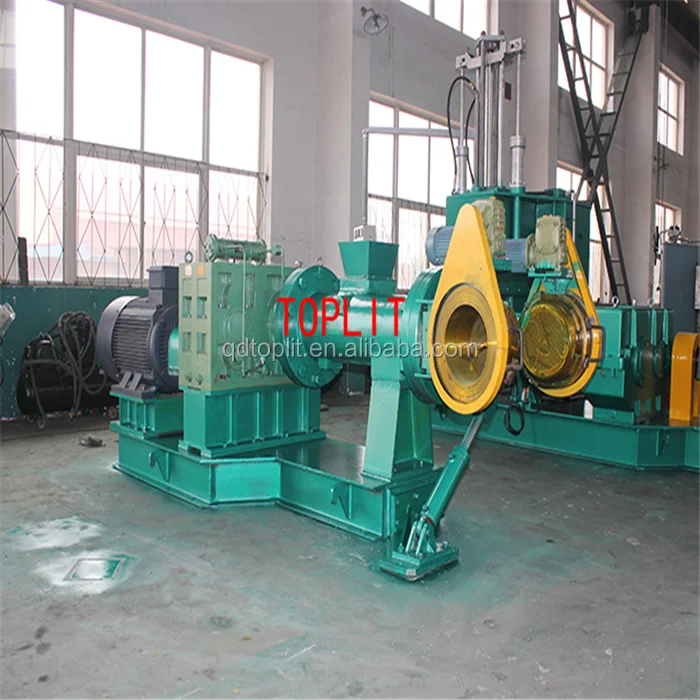

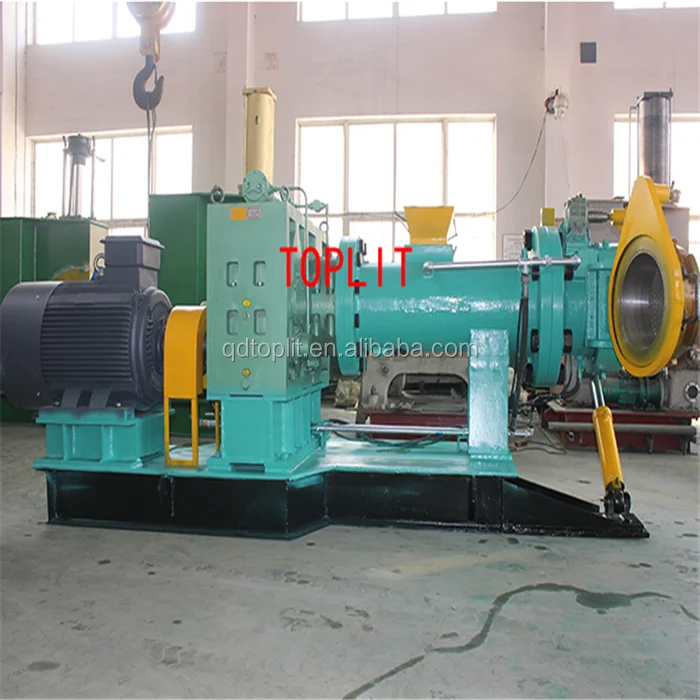

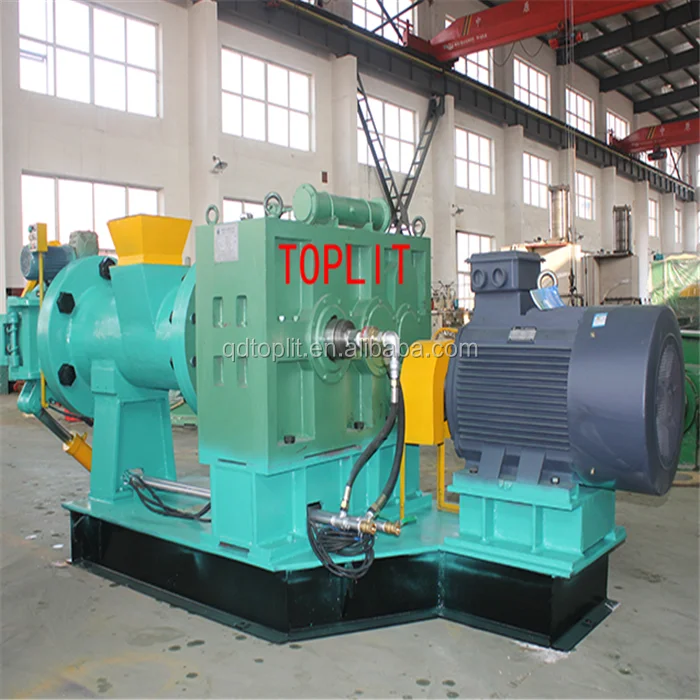

4.Reference pictures:
