The Quality Is Guaranteed And The Price Is Appropriate
US $14.50-$16.00
TianGe Factory Recording studio wall and ceiling sound absorbing acoustic perforated panel
- Category: Acoustic Panels >>>
- Supplier: Foshan,TianGe,Acoustic,And,Decor,Material,Co.,Ltd.
Share on:
Product Overview
Description

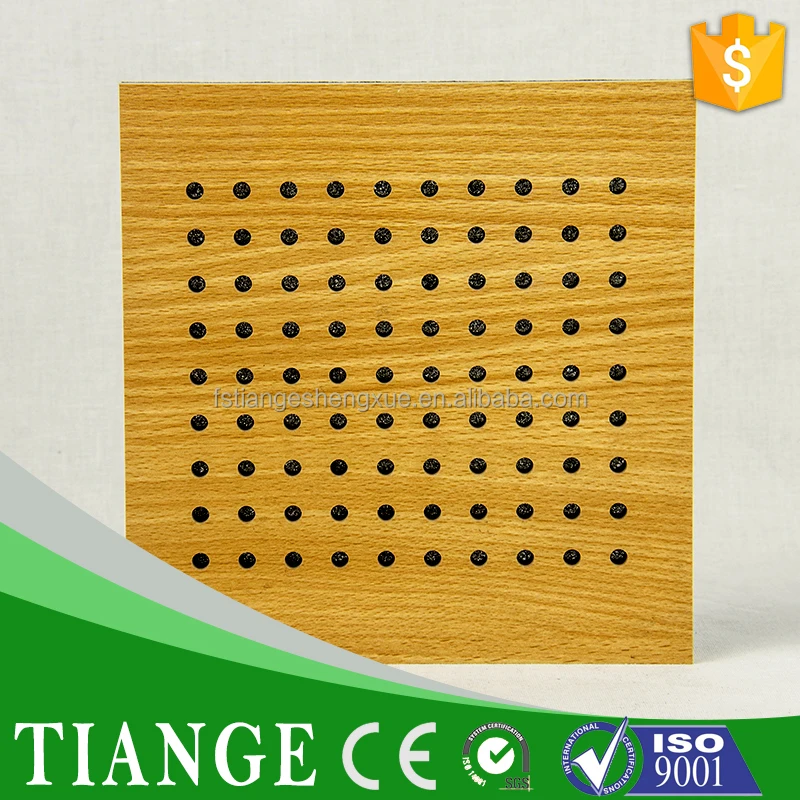

Recording studio wall and ceiling sound absorbing acoustic perforated panel
Model Description
1 > Perforated acoustic panel is a kind of resonance absorption material with holes through on the
quality MDF board.
2 > It has strong selection on the sound spectrum and particular great performance on the middle
and low frequency.
3 > If filled with the acoustic cotton at the back side space of the acoustic panel, it has better performance
on the middle and high frequency.
4 >The holes diameter and pitch can be custom made.
5 > Strong impact resistance, excellent decorate performance, elegant color, especially work for wooden
construction.
| PRODUCT SIZE | |
| width | 600mm 1200mm 1220mm |
| length | 800mm 1200mm 2440mm 2400mm |
| thickness | 12mm 15mm 18mm |
allowance : width ±1mm , length ±1mm , thickness ±0.2mm | |

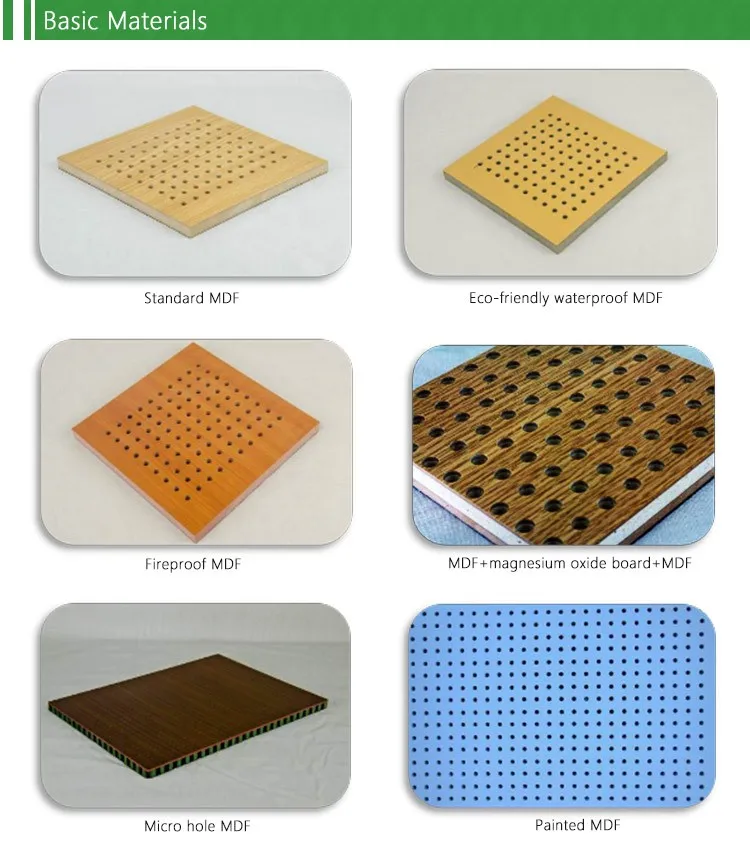

1 > The perforated acoustic panel is made of high quality MDF board.
2 > according to the customer’s acoustic and decoration requirement, our MDF board can equipped with
outstanding environmental, flame retardant and waterproof function, even can with various colors and
finish choices.
3 > Compared with the grooved acoustic panel, the perforated panel has better impact resistance.
4 > Our perforated acoustic panel’s highest fire retardant grade can reach A2(GB) grade, and the best
environmental protection can reach E1(GB) grade.
Acoustic absorption is usually defined in terms of an absorption coefficient (usually denoted by the Greek letter alpha, α),
defined as the ratio of absorbed to incident sound energy from a single interaction between a sound wave and a certain
material.
Absorption coefficients range from 0 to 1 and vary with frequency,
α=0 means that the material absorbs no sound and reflects all sound energy incident on it.
α=1 means that the material absorbs all sound energy incident on it and reflects none.
Absorption coefficients of 0 and 1 are ideal values that do not exist in reality because all materials reflect and absorb some sound.
In general, materials having absorption coefficients less than 0.15 are considered to be reflective and those having absorption coefficients greater than 0.4 are considered to be absorptive.
As you can see our Testing report show that our products have a very good performance in a large range of application.
