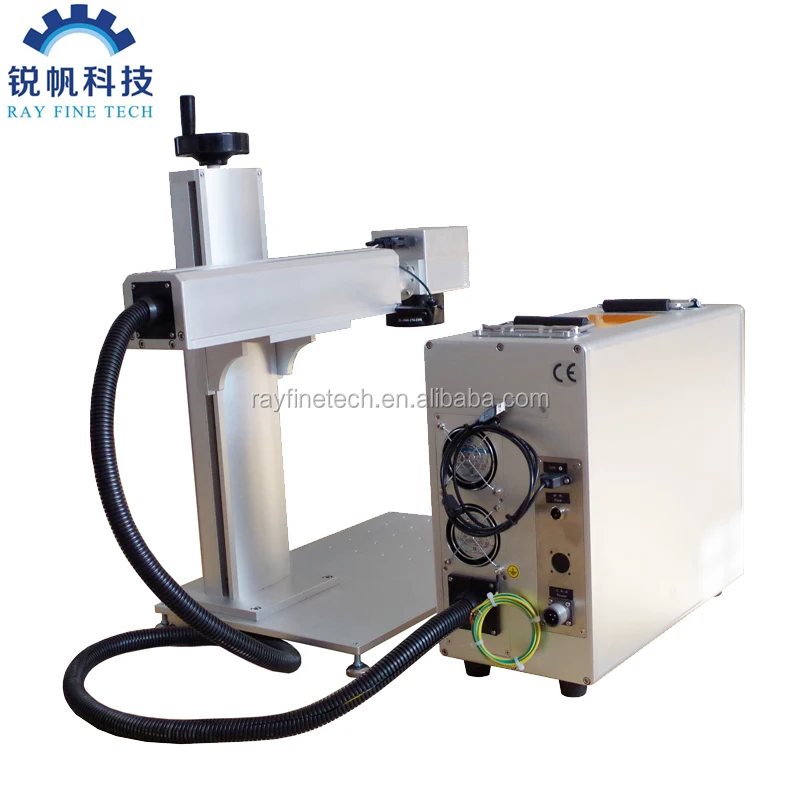

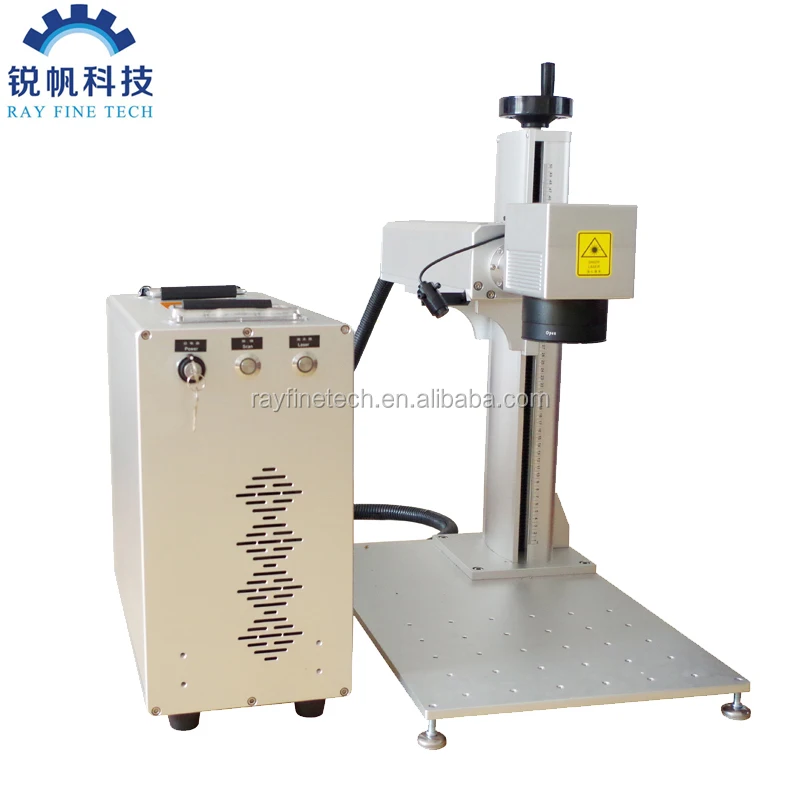

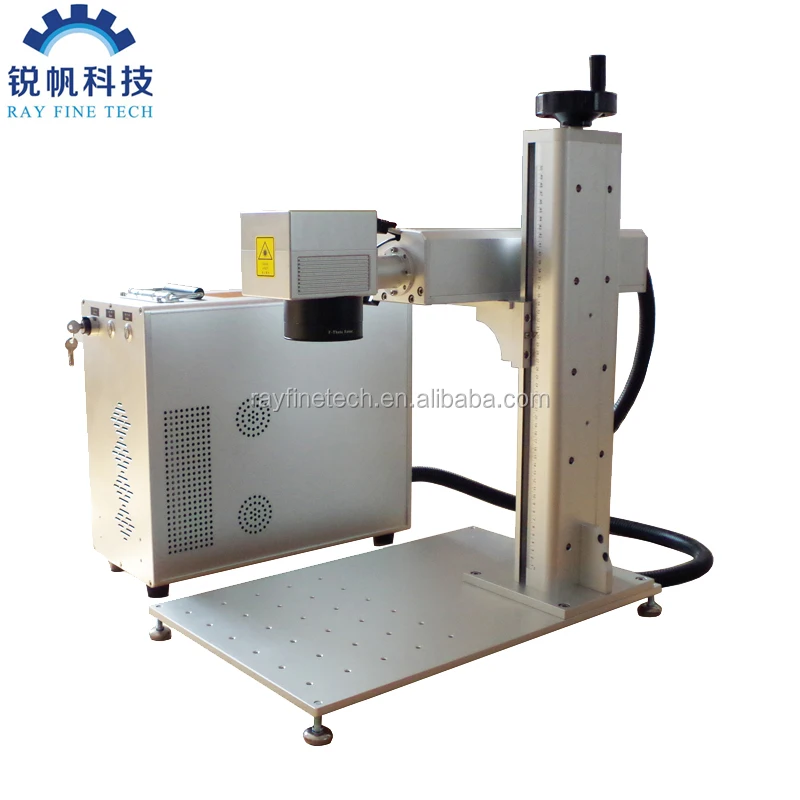

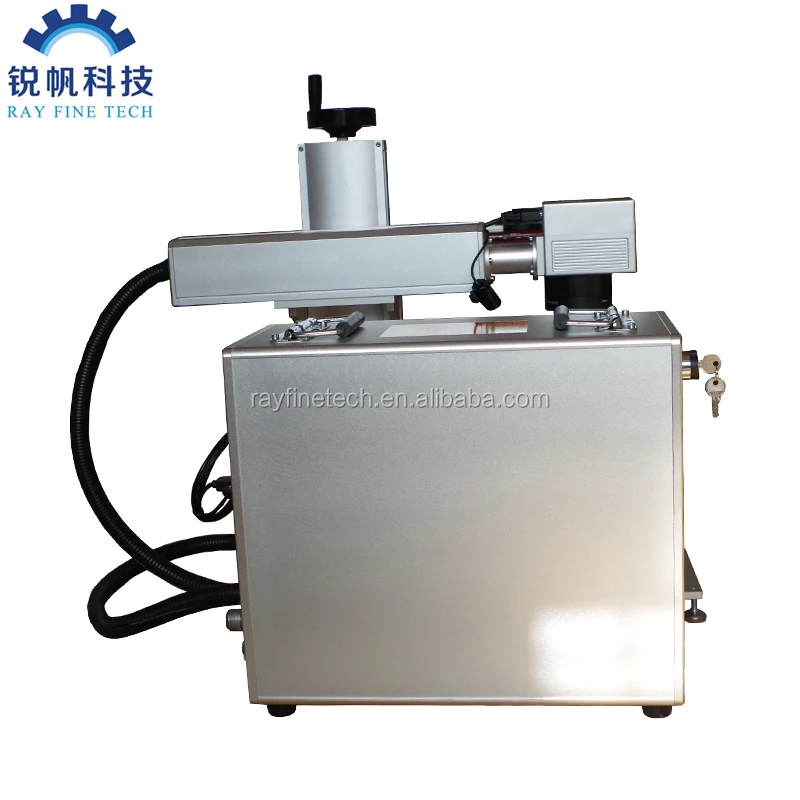

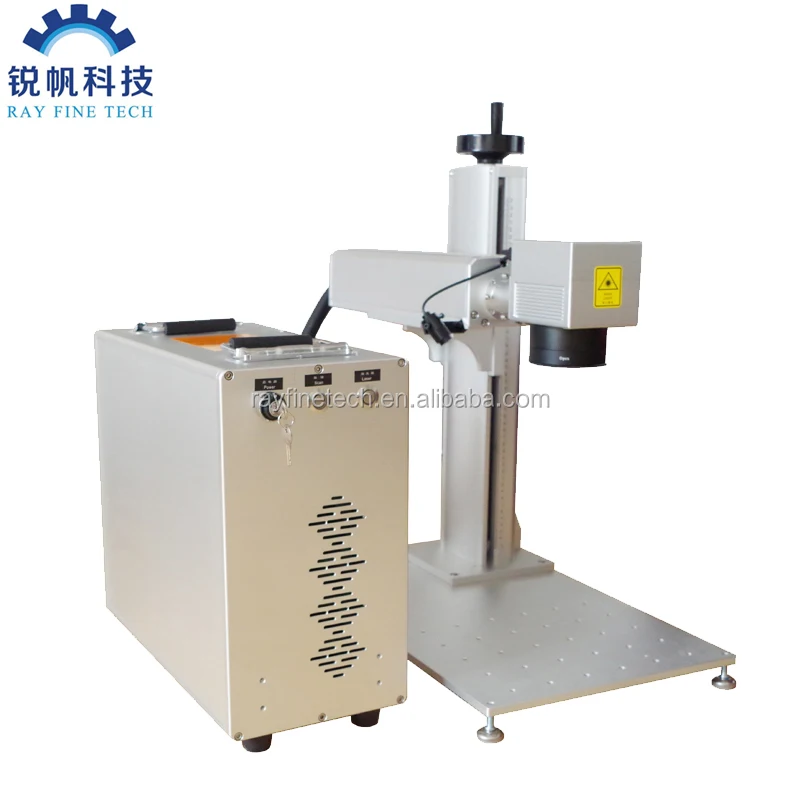

Машина для глубокой разметки металла и тонкой резки металла, волоконно лазерная маркировочная машина 60 Вт JPT LP, оптоволоконный лазерный источник

Product Overview

Description

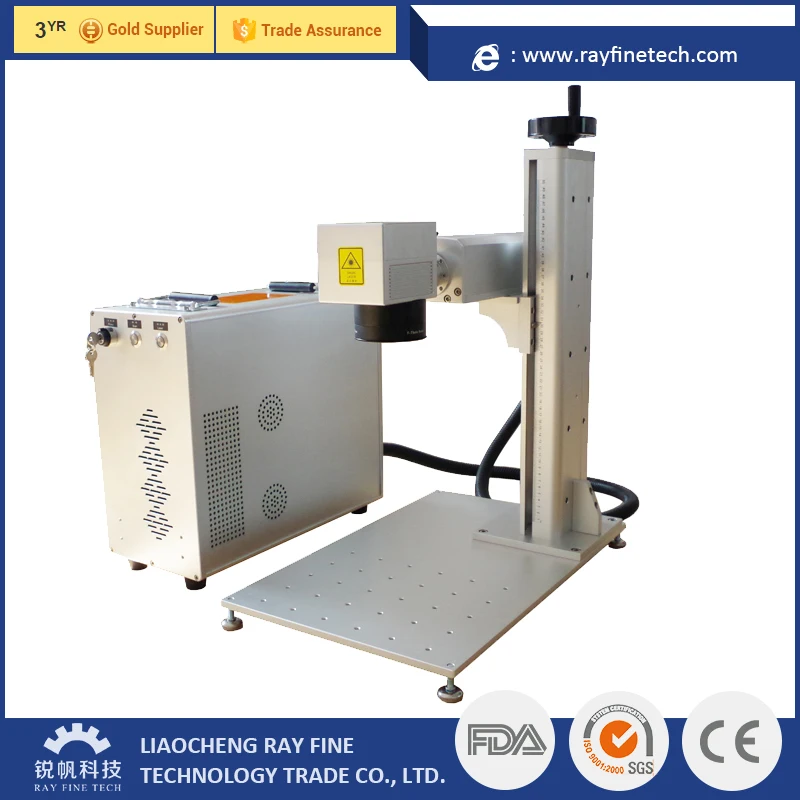

Metal deep marking and thin metal cutting machine fiber laser marking machine 60w JPT LP fiber laser source







Application:

1. Silicone keypad marking,plastic marking

2. Metal deep marking

3. Metal surface processing

4. High frequency line processing



Technical Parameter:

Model	RF-F-60W
Laser Source	60W JPT MOPA YDFLP-60-LP1-L1
Power output	60W
standard Marking Area	110mm×110mm
M2 (LASER BEAM QUALITY)	<1.8
Average output power	>60w
Full power frequency range	50~400KZH
Pulse adjustable range	1~400KHZ
Pulse duration	200NS
Maximum pulse energy	1.2MJ
Marking speed	2m/s
Positioning speed	10m/s
Repeated positioning accuracy	<20 urad
Min. linear width	0.001mm
Wavelength	1064nm
Min. Character size:	0.1mm
Supply voltage:	AC 110/220V±10%, 50/60Hz
Main board and control software	Genuine EZCAD
Machine package dimension	77x47x80cm
Machine package gross weight	70KGS
Cooling method	Air cooling
CE Certificate	Approved
certificate	Approved

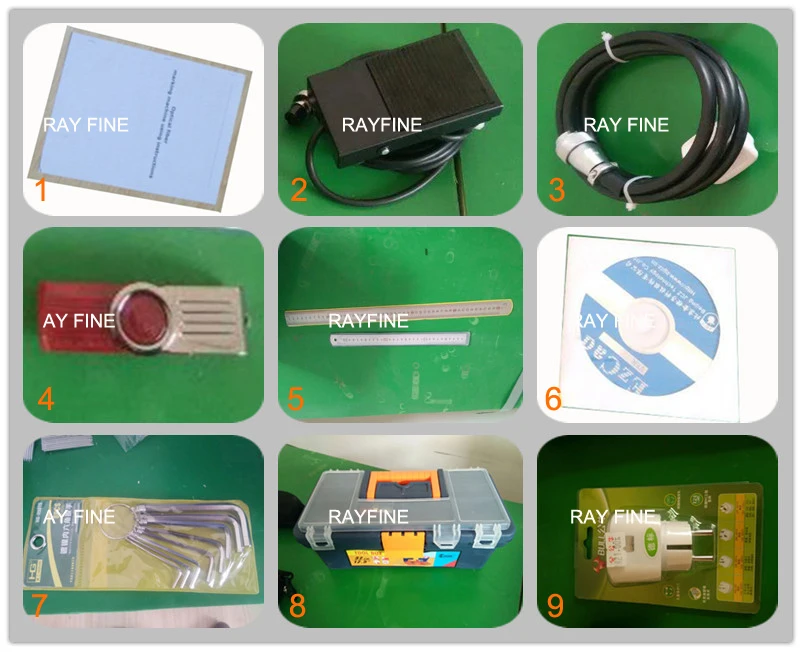

Standard accessories with RF-F-60W laser marking machine:

No.	Item	Quantity
1	English user manual	1 pcs
2	Foot touch switch	I pcs
3	Power cable	1 pcs
4	U disk with machine quick setup program	1 pcs
5	Focal length measuring ruler	I pcs
6	EZcad software CD	1 pcs
7	Tools	1 set
8	Tools box	1 set
9	Power adapter based on different Power plug standard	1 pcs



Machine mainly Quality parts :

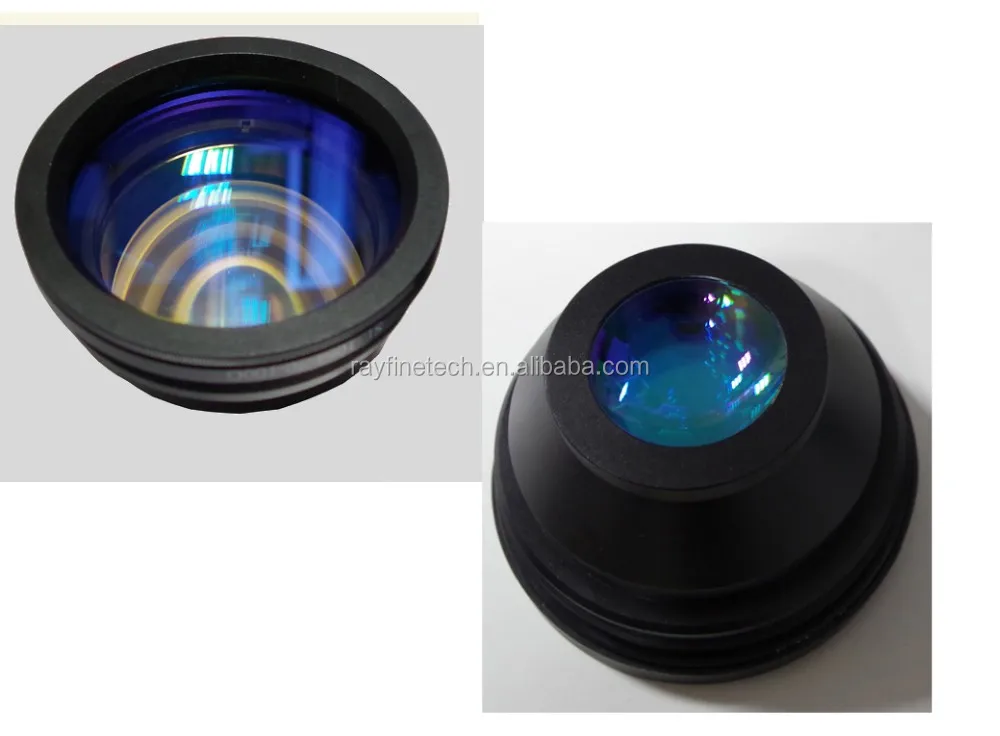

High quality wavelength tech optical lens:

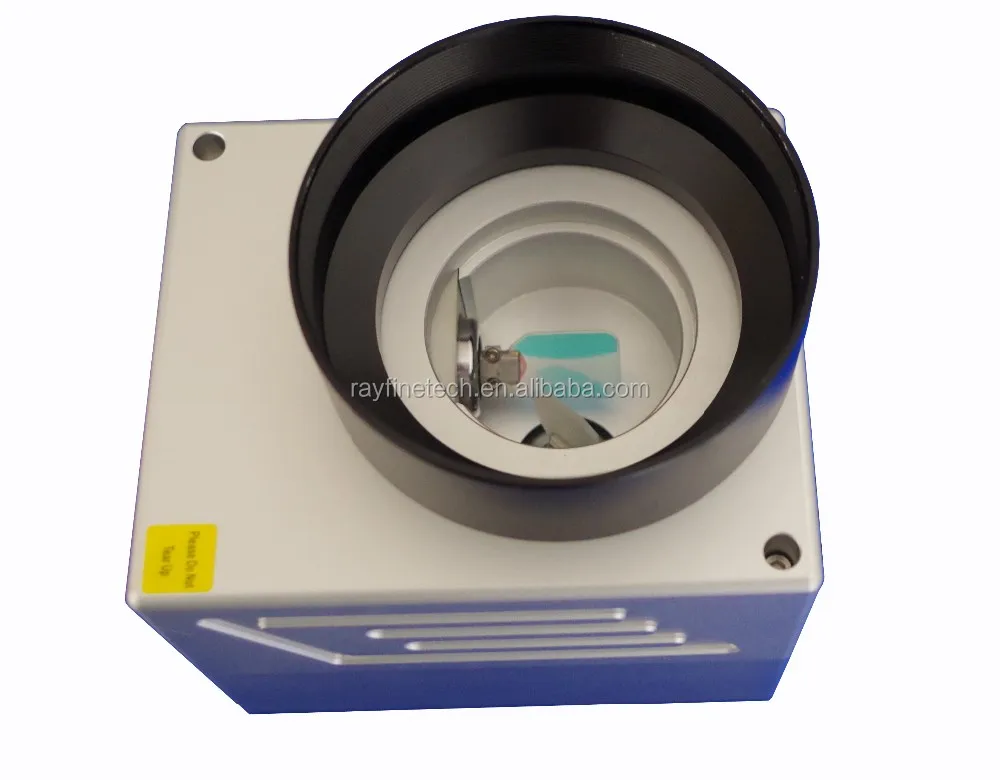

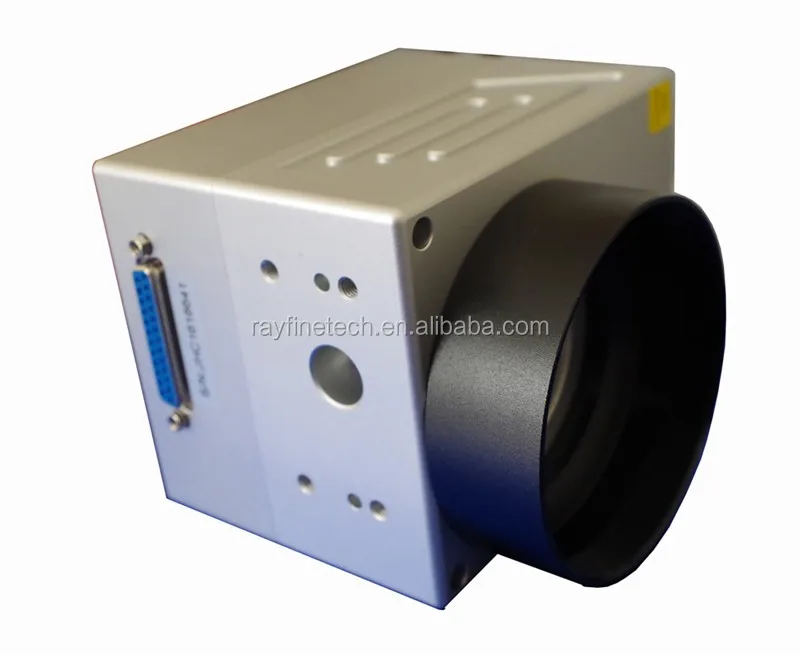

High speed and precision digital Galvotech scan head:

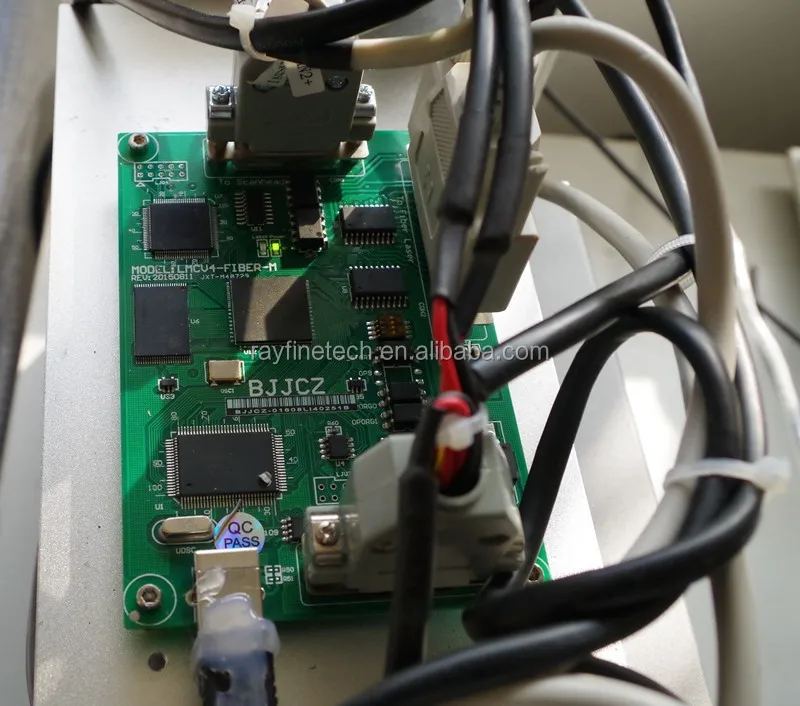

Genuine EZCAD control board and program(BJJCZ brand) which support XP WIN7 /8 /10 32/64 bit operating system and connect with computer by USB line

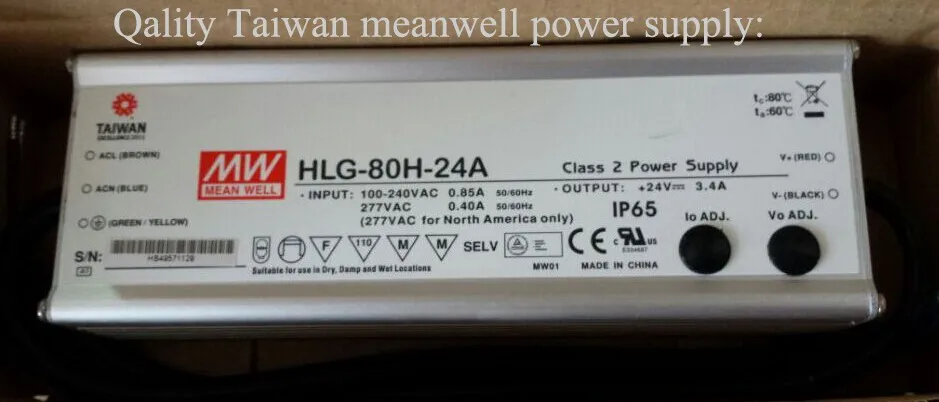

TAIWAN Genuine MEAN WELL Switching power supply:

Double red dots which is more easier to find focus;

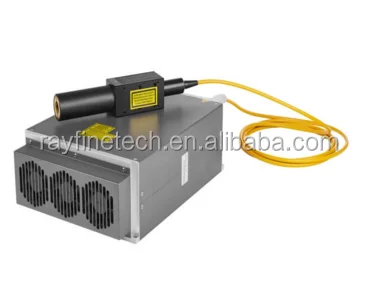

20W JPT MOPA YDFLP-20-LP1-S 20w with high quality marking effect and broader pulse duration.

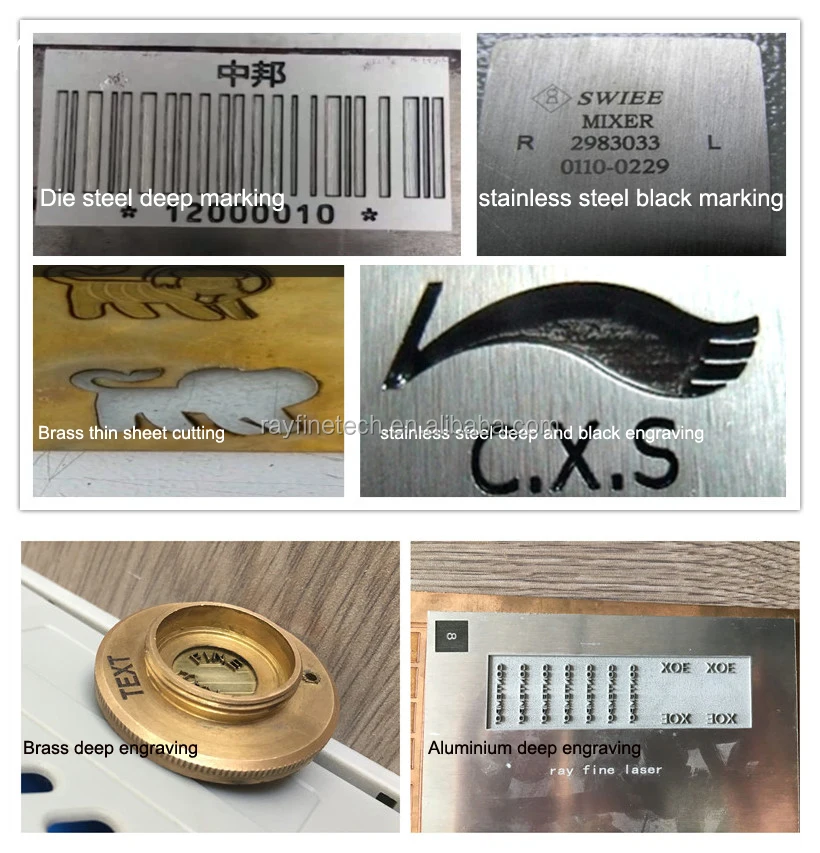

 Deep marking samples:

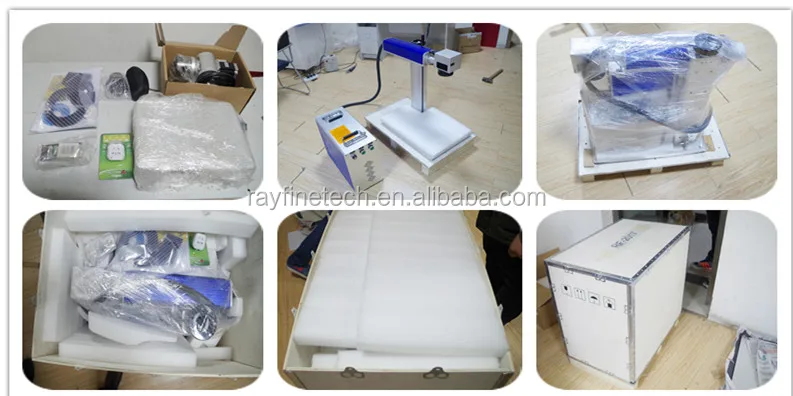

package:

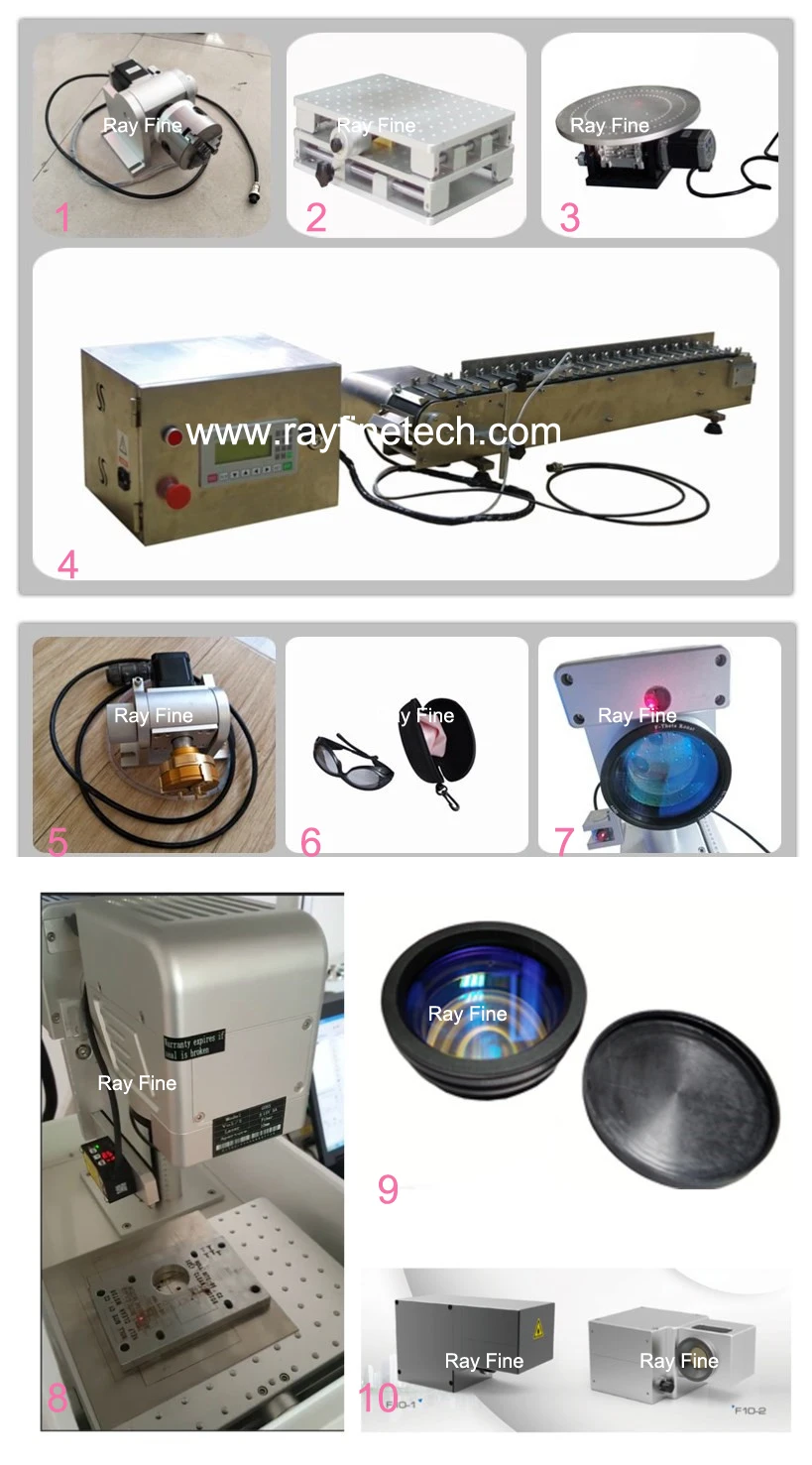

Options:

1) Rotary attachment for curved surface marking



2) 2D WORKING TABLE WH:X Y axis adjutable worktable can achieve very small position movment of workpiece via adjust the worktable.  So if the workpiece's position need very small movment, we no need to move the workpiece, just to adjust the worktable by X and Y axis's handle.



3) Rotating worktable



4) Customade conveyor belt for pen marking



5) Rotary axis is special for ring marking



6) Fiber laser goggles



7) Cyclops camera position system.We can see workpiece in software through the camera, then we can set the marking point via software on the photo then we no need to move the workpiece to find the marking place. That means draw there, mark there.





8) Auto focus :when we mark workpieces with different height, the machine will be up and down the laser head by itself. No need move the laser head up and down by hand.



9) Optional working size lens:

75*75mm/110*110mm/150*150mm/200*200mm/250*250mm/300*300mm

the smaller size laser beam more fine and powerful

200*200mm lens more easy to get different colors on MOPA laser pulse



10) 3D Dynamic focus (FEELTEK 3-AXIS SYSTEM
