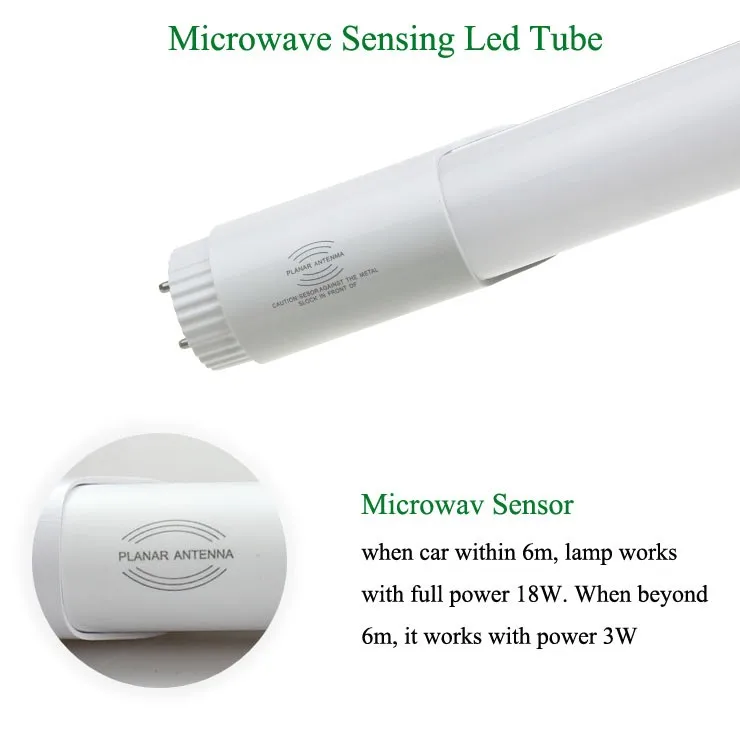

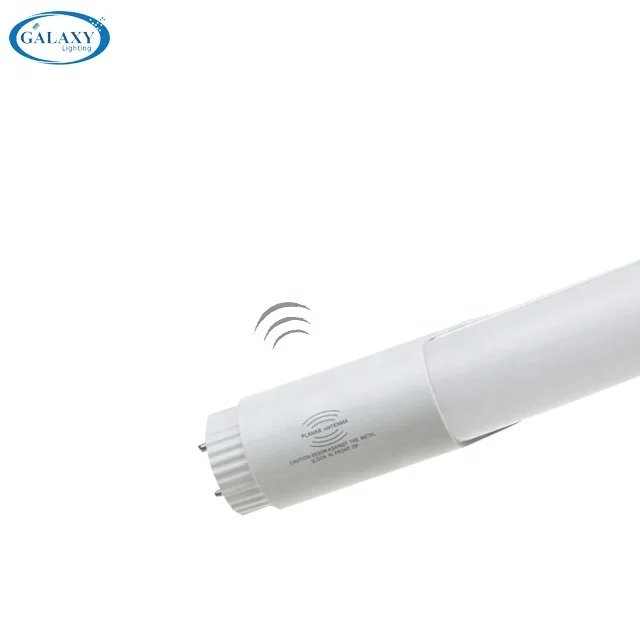

3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample
3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample
3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample
3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample
3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample

3 Steps 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with free sample

Share on (60680679655):


Price:RUB 379.09 - RUB 606.55

Quantity:


Product Overview

Description

Specification

Perferable 4ft 20W Dimmable Microwave Motion sensor T8 LED tube light with Free sample


We can make
Two steps dimming sensor 100%-20%
Two steps dimming sensor 100%-0%
Three steps dimming sensor 100%-20%-0%

1.High brightness EPISTAR 2835 LED chip

2.High CRI>80Ra; CRI>90Ra available

3.THD<15%, power factor >0.9

4.50,000hrs lifespan, 3/5 years warranty

5.Constant Current Driver with AiSHI component

6.No mercury allowing for non-hazardous waste materials

7.Instant illumination, No Flicker, no buzz

8.Thick Aluminum housing for heat radiation


Setting Information
Base
G5 or G13
Input Voltage
85-265VAC / 220-250VAC
Wattage
20W
Length
4ft /1200mm
Power Factor
>0.95
Lumen
1800lm--2200lm
Diameter
26MM
Warranty
3 years
Product Description
Model
GL2-10
GL3-15
GL4-20
GL5-22
GL5-25
GL5-30
GL6-32
GL8-40
Length
60cm
90cm
120cm
                        150cm
180cm
240cm
Wattage
10W
  15W
  20W
  22W
   25W
  30W
  32W
 40W
LED chip
60 pcs
Epistar
SMD2835
88pcs
Epistar
SMD2835
120 pcs
Epistar
SMD2835
150pcs
Epistar
SMD2835
150 pcs
Epistar
SMD2835
184pcs
Epistar
SMD2835
184pcs
Epistar
SMD2835
240pcs
Epistar
SMD2835
Voltage
                                                                  AC85-265V    /   AC 220-250V
Lumen
900
~1200lm
1350
~1800lm
1800
~2400lm
1980
~2640lm
2250
~3000lm
2700
~3600lm
2880
~384lm
3600
~4800lm
CRI
                                                                                       >80
Power
factor
                                                                                      >0.95

LED chip

0.2w Taiwan Episitar 2835SMD with copper stent

24-26lm per chip to ensure High Lumen for the light.


Sufficient chips for perfect heat dispersing performance.

60CM:60PCS,90CM:90PCS,120COM:120PCS, 150CM:150PCS, 180CM:180PCS, 240CM:240PCS.


Eg. 0.2Watt per chip, 0.2*240=48W as max wattage. We make 36w or 40w for long lifetime.

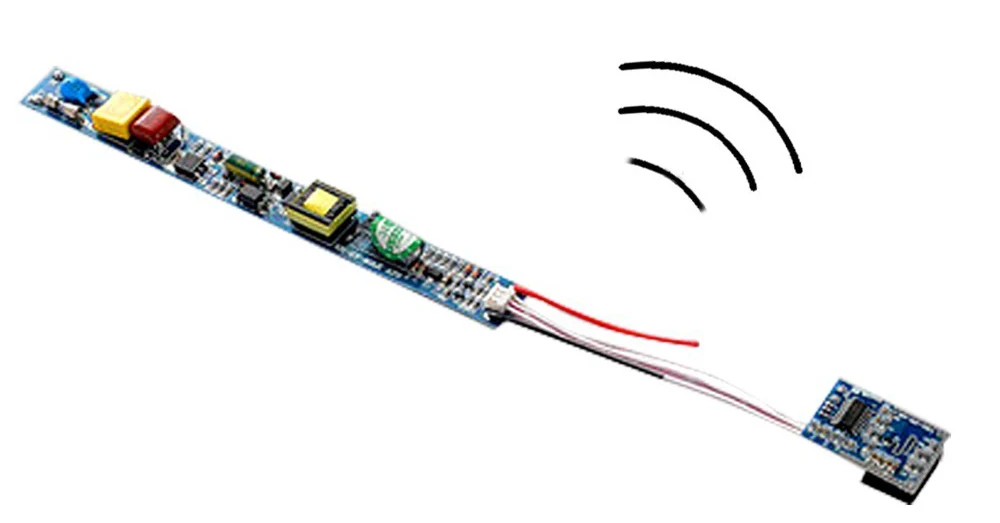

LED Driver WE DESIGNED

Reliable Constant Current driver with IC, high efficiency.

THD  < 10%. Power Factor >0.95. Lifetime > 50,000hrs.

Over current protection, Lightning protection

DALI DIMMABLE is also Available

No Flicker/pulsation performance.

3.7KV hi-pot test, EMI, LVD,EMC tested.

Good quality component---AiSHi Capacity


Galaxy patent design and  produced

Lamp housing

Galaxy own mould 0.84mm thick aluminum alloys housing ensure excellent heat dispersing ability and strong body, which make a long lifetime for LED Tube light.


Common 0.38mm aluminum housing is easy to be

out of shape and not good for heat radiation.

Tube Cover

We used good material PC Cover for galaxy lighting tech

LED tube, no dark space with milky cover and no shade

with transparent cover.


High light transmission and flame-retardant ability




Production Process
Package
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ 200pcs, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: For samples, we usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional for normal order.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. We will use laser print. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system 100% check and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
