Усилитель сигнала LPDA Aerial, 600 2700 МГц, gsm, для телефона
- Category: Repeaters >>>
- Supplier: Shenzhen Ayision Technology Co. Ltd.
Share on (60681079096):
Product Overview
Description
Product Description
ELECTRICAL | ||
Model Number | XDS/ZDS/DDS | |
Frequency Range | 800-2700MHz | |
Gain(dbi） | XDS 12/ZDS 16/DDS 20 | |
Intermodulation IM3 | ≤-95dBc | |
VSWR | ≤1.5 | |
Polarization | Vertical | |
Max power | 100 W | |
Nominal Impedance | 50 Ω | |
MECHANICAL | ||

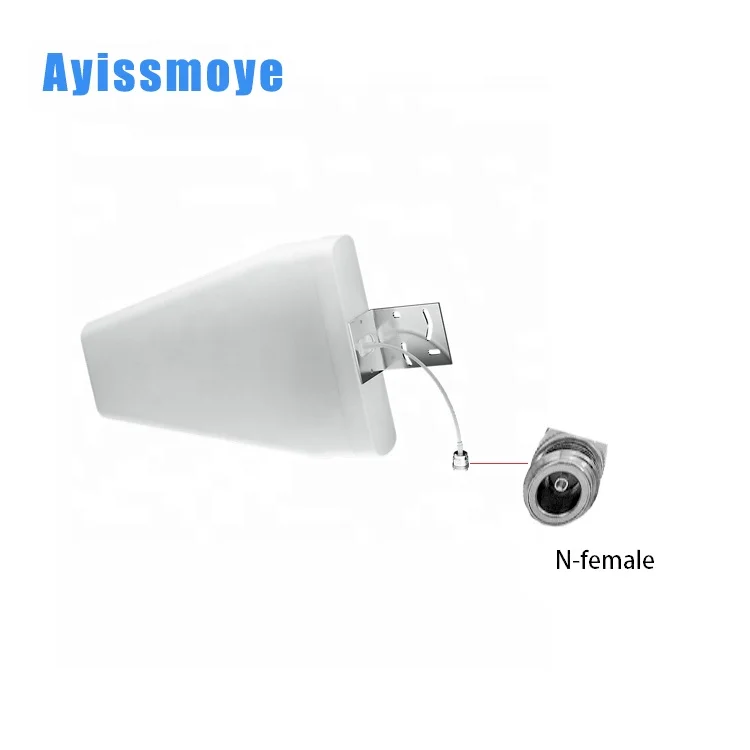

Connector | N-female | |
Weight（kg） | XDS 0.4/ZDS 0.7/DDS 1.0 | |
Color | white | |
Rated Wind Velocity | 60m/s | |
Working Temperature | -40~+70℃ | |
Mounting | Fixed with Nut | |

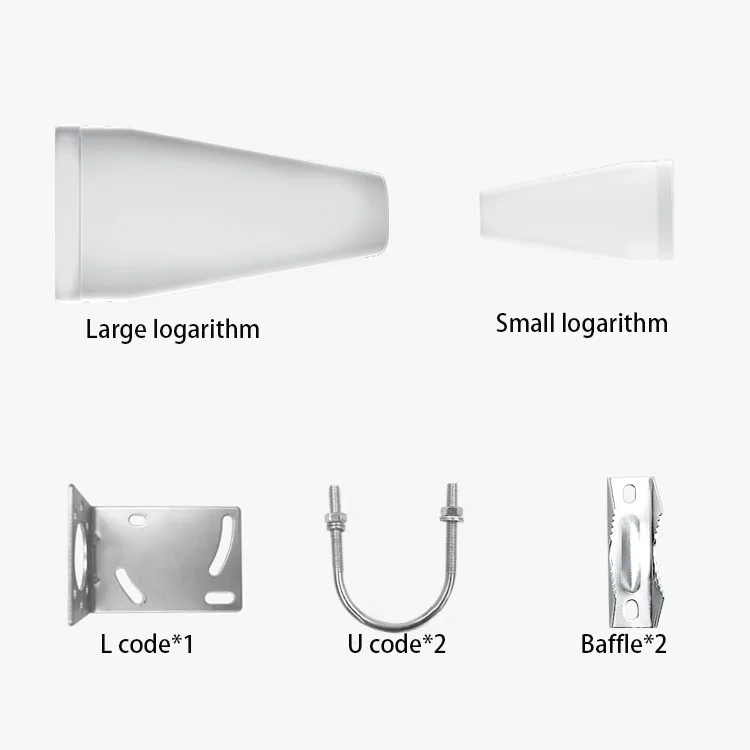

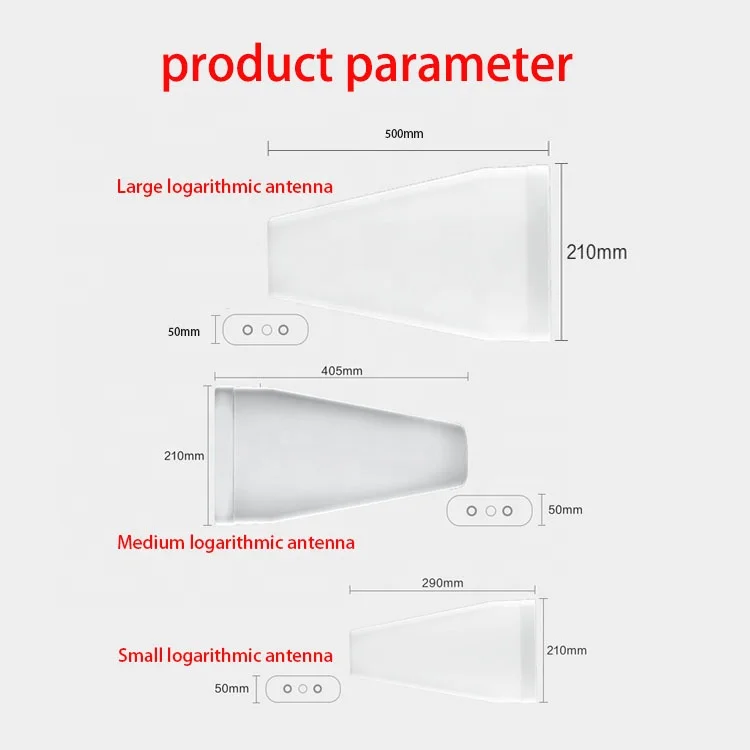

Product specification | Product model | Product size |
Small logarithmic antenna | XDS | W=50mm L=210mm H=290mm |
Medium logarithm antenna | ZDS | W=50mm L=210mm H=405mm |
Large logarithmic antenna | DDS | W=62mm L=210mm H=500mm |

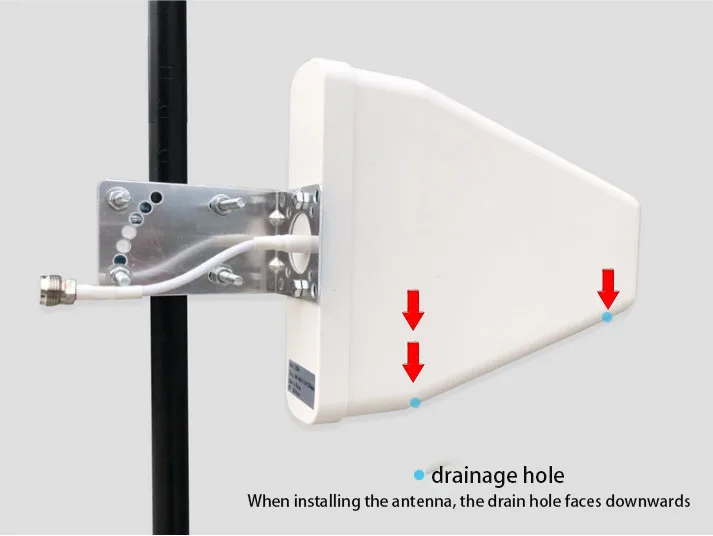

Installation Notes
1.Use a mobile phone outdoors to test the strong signal source, and the installation height is 5-8 meters above the ground towards the direction of the open base station

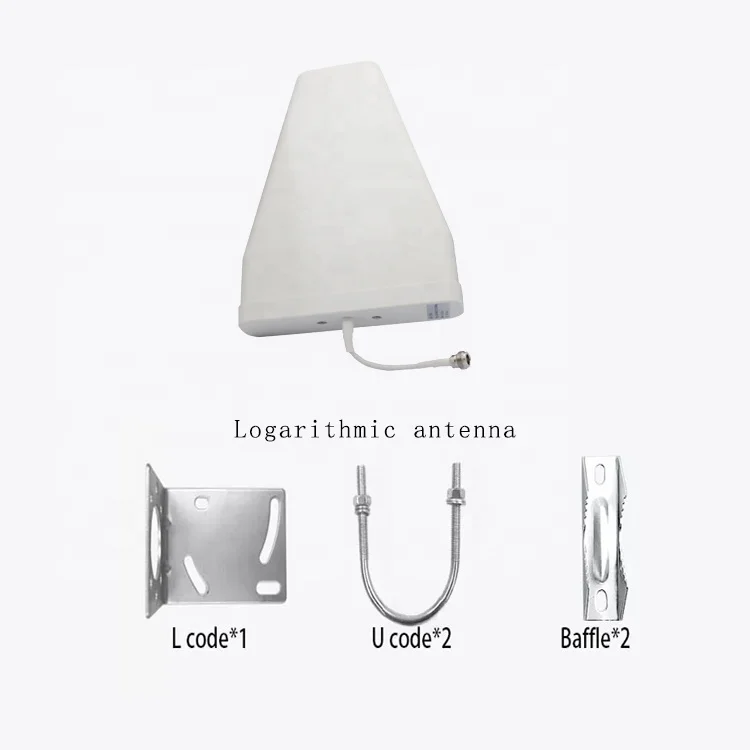

2.Choose a suitable height and fix it on the fixed pole. After testing the effect of the signal amplifier, fix the antenna with L code and U code
3.The distance between the outdoor antenna and the indoor antenna is required to be more than 10 meters
4.Choose bamboo poles or PVC pipes for fixing poles, and avoid metal to avoid signal interference

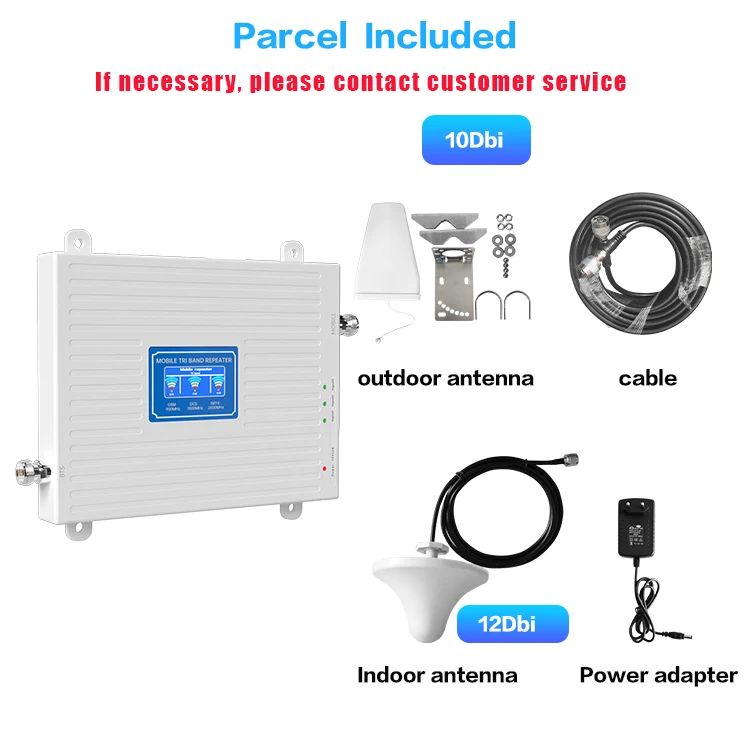

A regular cell phone repeater consists of: (full kit)
1 -Outdoor antenna log periodic antenna(or wall mounted, yagi antenna)
2 - Indoor Omni ceiling antenna( panel antenna)
3 -Power adapter
4 - User manual
5 - Cell phone repeater
2 - Indoor Omni ceiling antenna( panel antenna)
3 -Power adapter
4 - User manual
5 - Cell phone repeater
Why do you need to buy repeater/booster ?
Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can save
somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those
places are either too far from the cell phone base station or located inside underground constructions, for example:
1.Parking lots
2.Big stores, office buildings
3.Cars, boats etc.
4.House in remote areas
somebody’s life.
Unfortunately, there are still some places where they can find themselves “out of coverage” ,no signal at all... Usually those
places are either too far from the cell phone base station or located inside underground constructions, for example:
1.Parking lots
2.Big stores, office buildings
3.Cars, boats etc.
4.House in remote areas
Related Products
Credit Insurance Introduction
Delivery and packaging

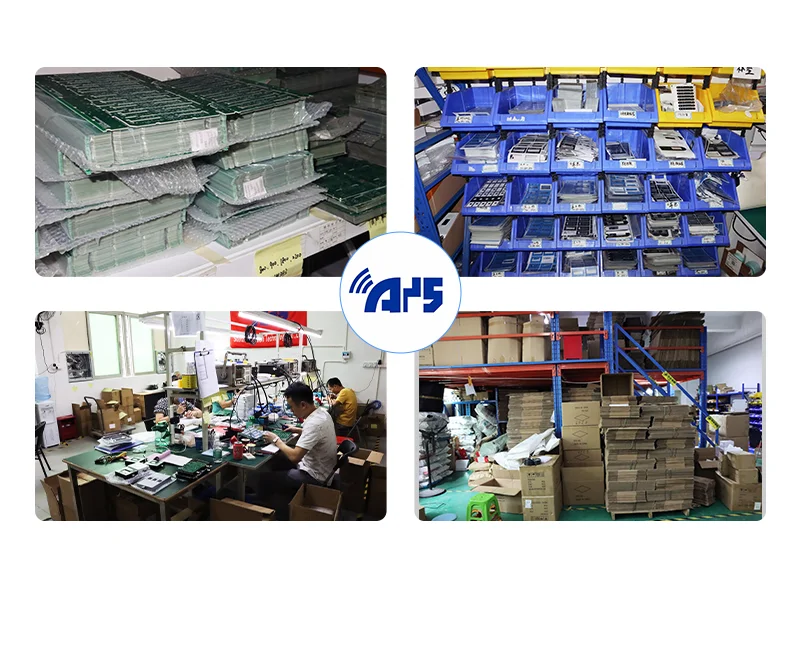

Company Profile
