Waste rubber crusher machine/rubber tire recycling machine
- Category: Rubber Recycling Machinery >>>
- Supplier: Zhengzhou Harvest Machinery Co. Ltd.
Share on (60681869656):
Product Overview
Description
Fully-automatic tire recycling plant:

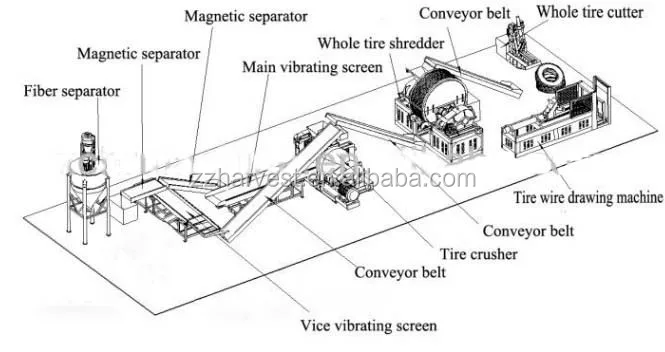

The working principle of fully-automatic tire recycling line
Tire pre-processing machine : Tire debeader, Tire cutter machine

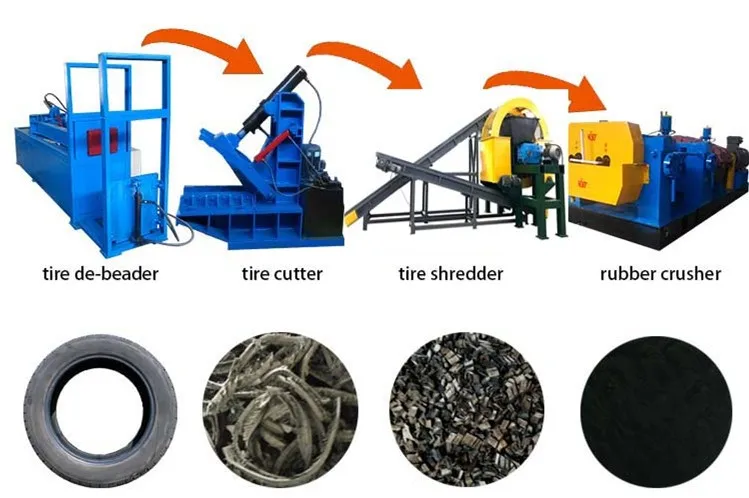

Waste tire--Automatic tire shreder--XKP Rubber crusher--Main vibrating screen machine--Magnetic separtor--Vice vibrating screen machine--Magnetic separator--Fiber separator--Rubber powder

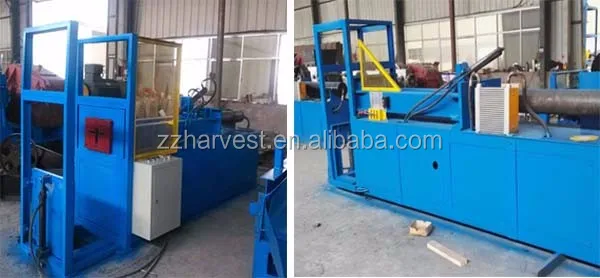

Tire de-beader:
It is designed to draw out the wire steel from tire bead.
| Model No. | TD-1200 |
| Feed size of tire(mm) | ≤φ1200 |
| Capacity(tires/h) | 80 |
| Power(KW) | 18.5 |
| Overall dimensions(m) | 4.5*1.5*1.8 |
| Equipment weight (T) | 3.5 |

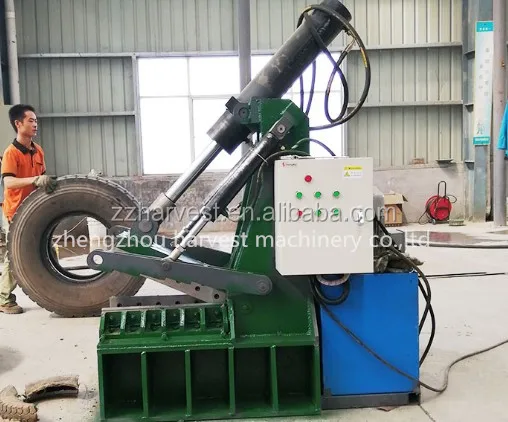

Tire cutter: to cut small diameter tire into smaller piece
| Model No. | TC-1200 |
| Feed size of tire(mm) | ≤φ1200 |
| Capacity(tires/h) | 30-40 |
| Power(KW) | 7.5kw |
| Overall dimensions(m) | 1.85*0.7*1.76m |
| Equipment weight (T) | 2.5T |

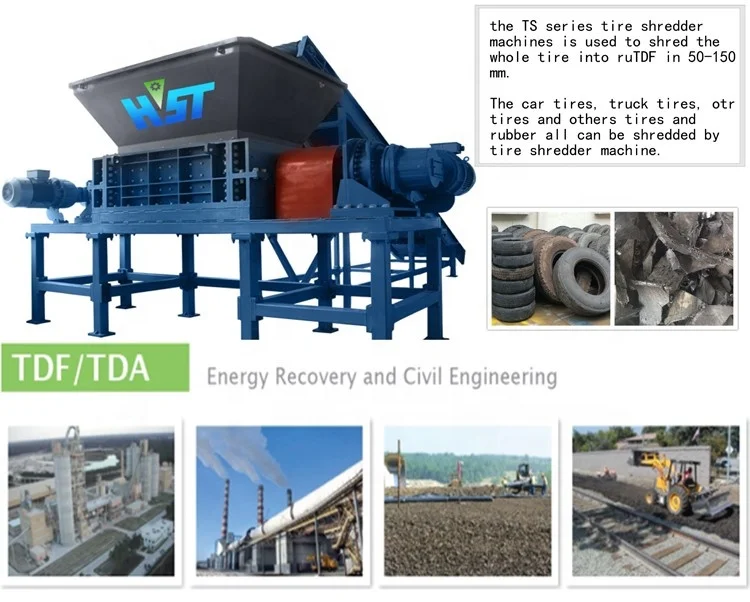

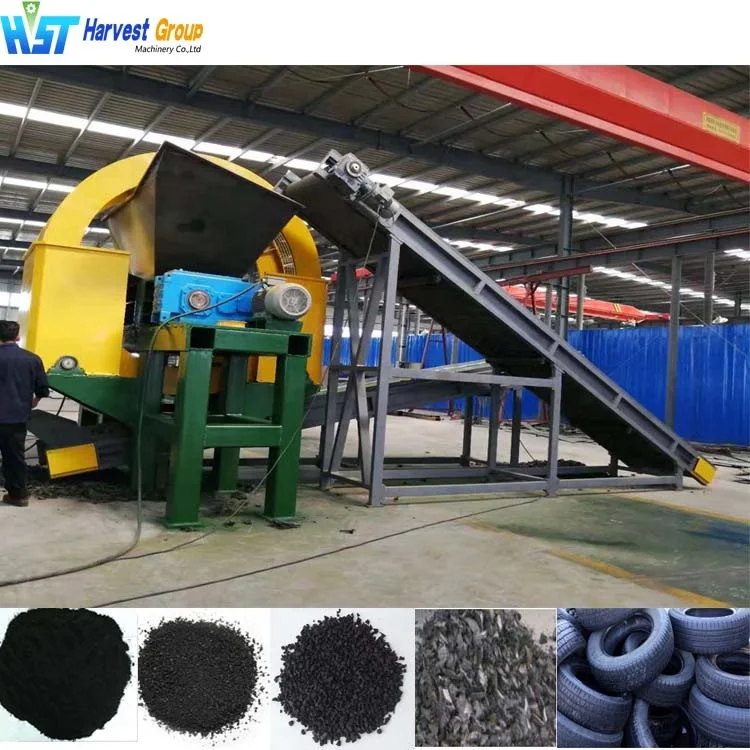

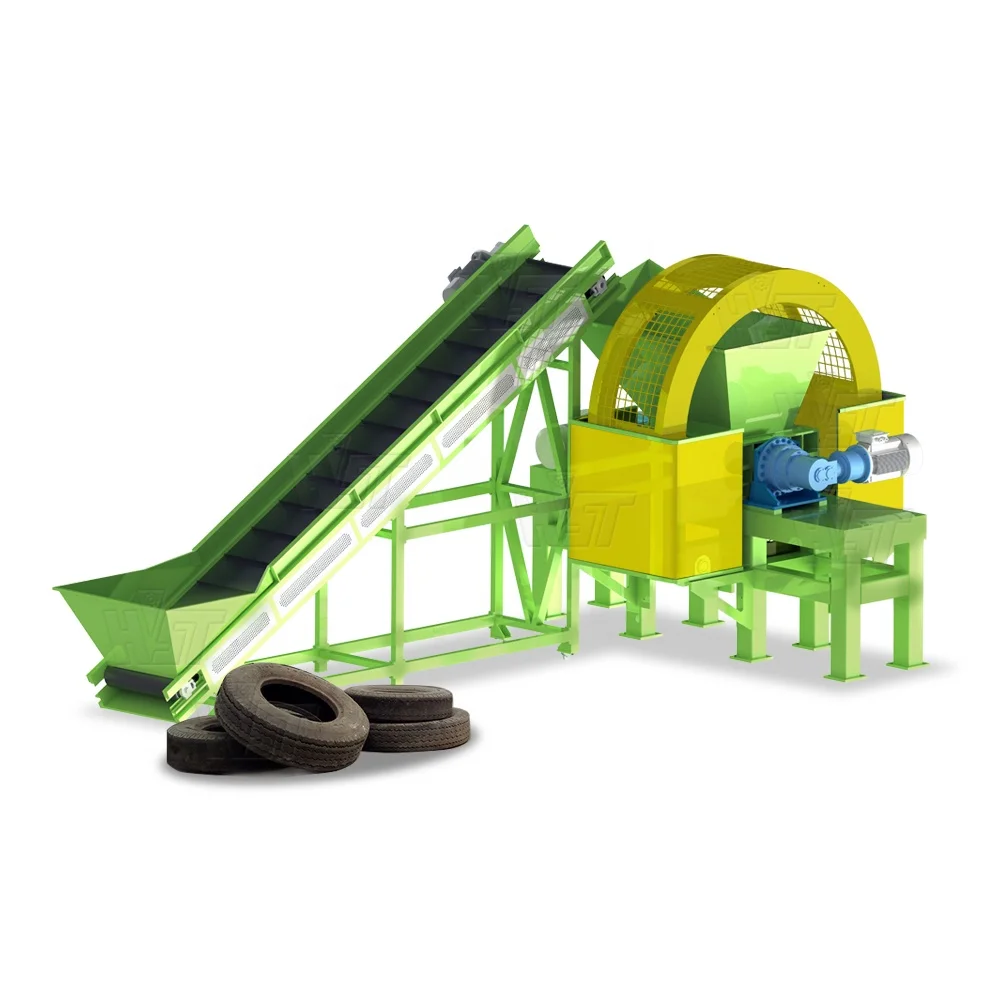

Double tire shredder: to shred whole tire into rubber blocks, such as 50-150mm as request
| Model | Input size | Output size | Capacity | Motor | Dimensions | Weight |
| TS-800 | 50*50mm | 1-2T/h | 2*22kw | 4x2.6x3.2m | 8T | |
| TS-1200 | 1200mm | 60*60mm | 3-5T/h | 2*37kw | 4.8x2.8x3.5m | 14T |
| TS-1600 | 1600mm | 50-150mm | 6-8T/h | 2*45kw | 5x2x3.4m | 18T |
| TS-1800 | 1800mm | 50-150mm | 7-10T/h | 2*55Kw | 5.6x2x3.4m | 23T |
| TS-2000 | 2000mm | 75-200mm | 10-15T/h | 2*75kw | 6x2.4x4m | 36T |
| TS-2400 | 2400mm | 100-200mm | 20-30T/h | 2*110kw | 7.4x3.2x5.2m | 56T |
Semi-automatic tire recycling plant:

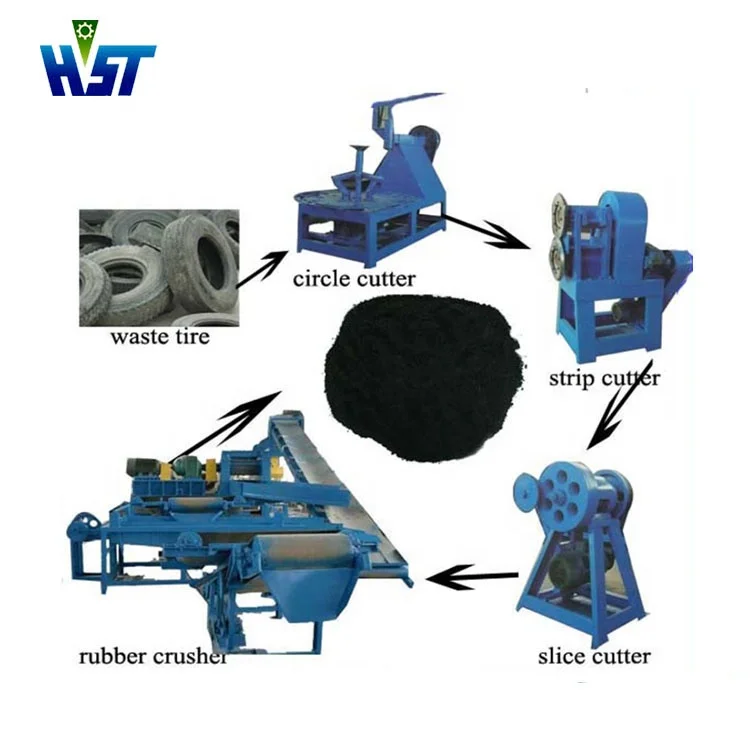

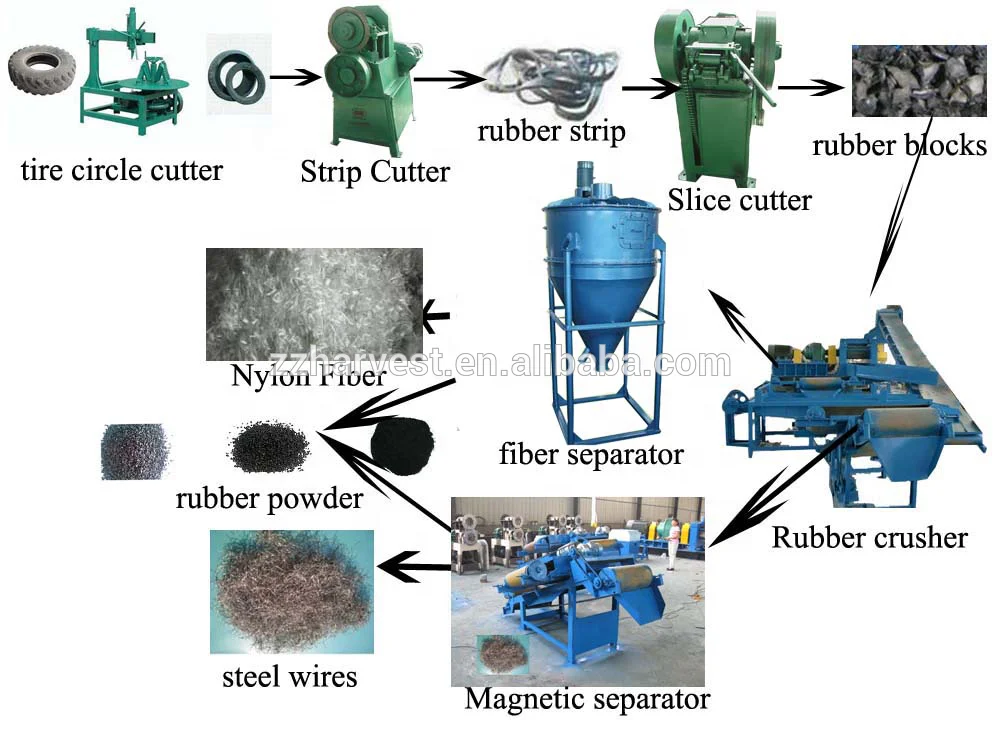

The working principle of semi-automatic tire recycling line

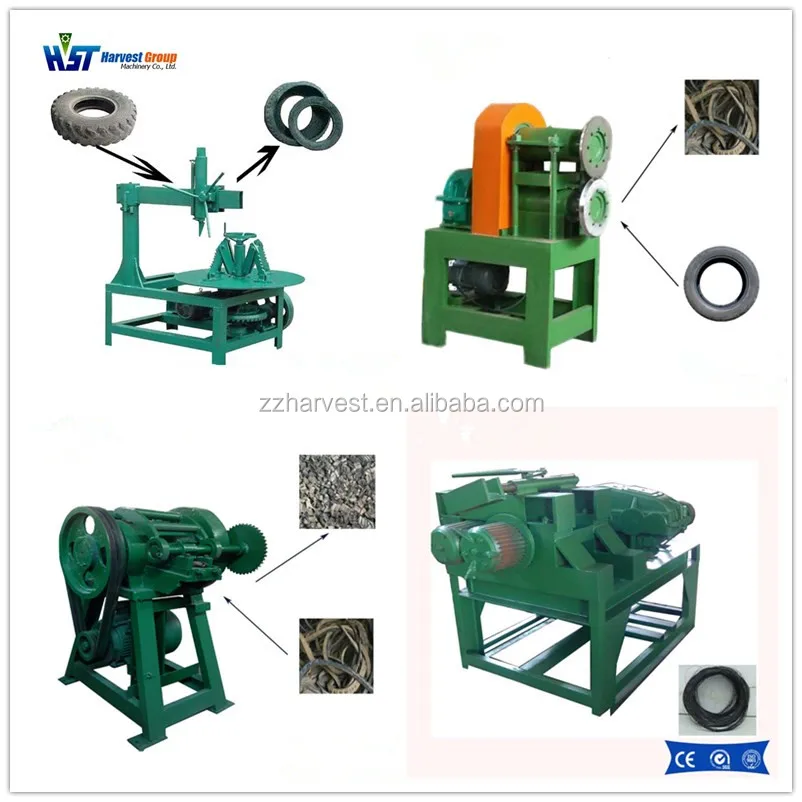

Tire pre-processing machine :Tire circle cutter, Tire strip cutter, Tire slice cutter, Rim separator
Rubber block--Rubber crusher--Main vibrating screen machine--Magnetic separtor--Vice vibrating screen machine--Magnetic separator--Fiber separator--Rubber powder

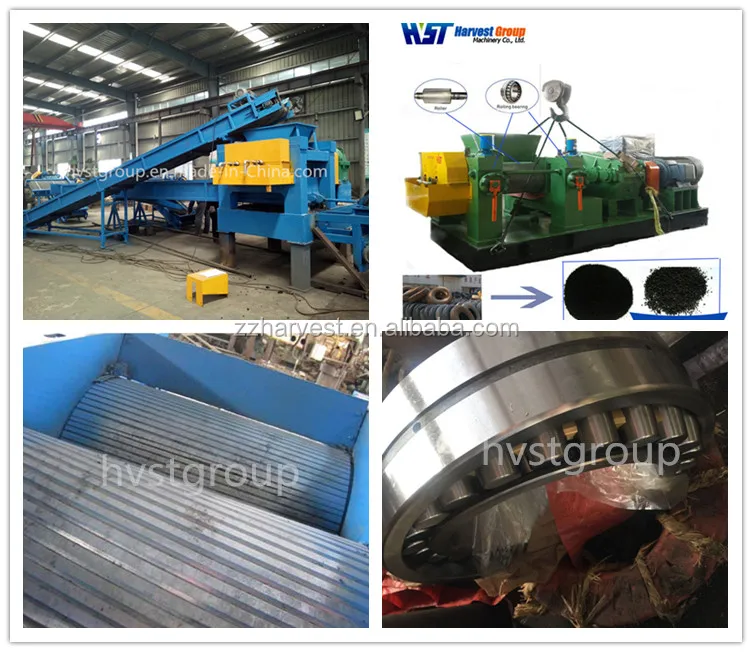

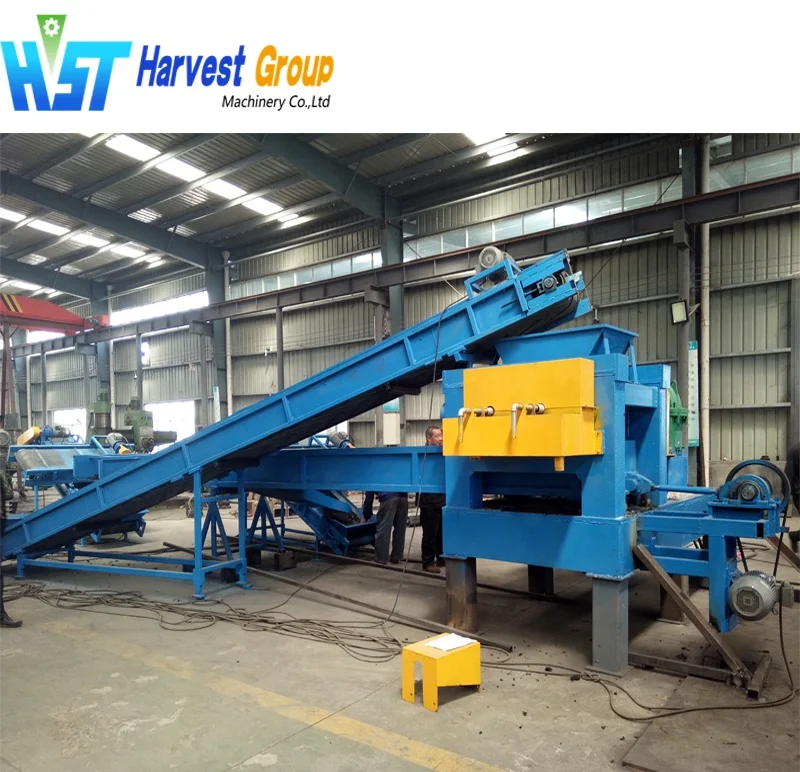

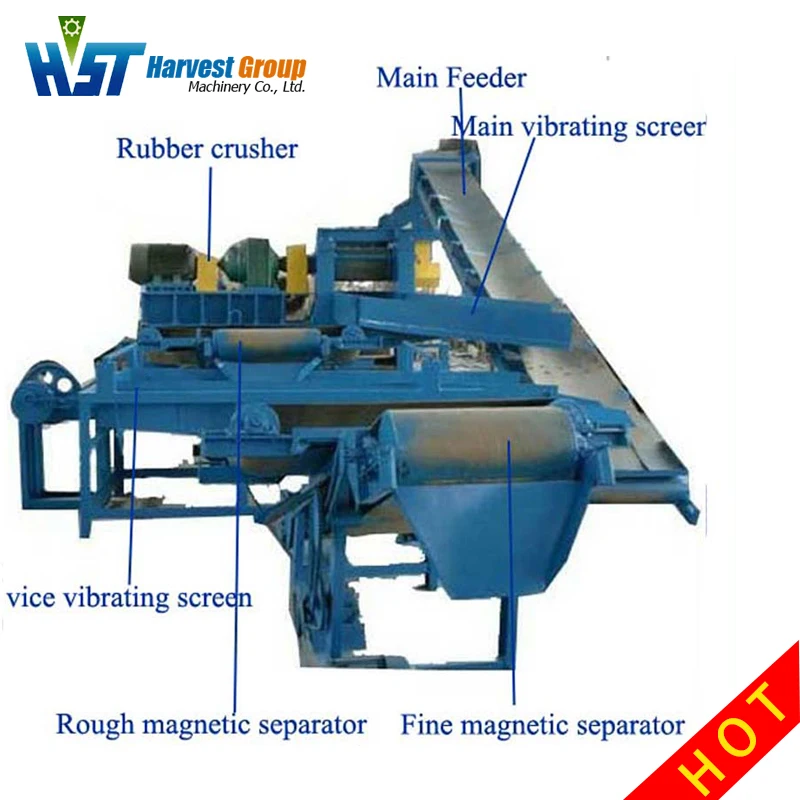

Rubber crusher machine (host equipment): to grind rubber blocks into smaller rubber granule or powder as your request.

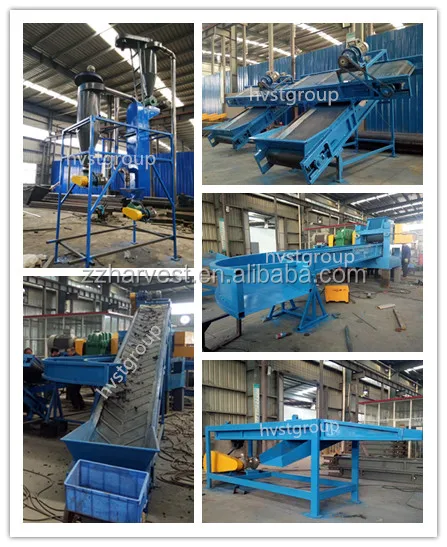

Auxiliary equipment of rubber crusher: Vibrating screen machine, magnetic separator, fiber separtor, main feeder, etc
Q1: Are you a factory or a trading company ?
A1: We are a manufacturer with 30 years production experience in tire recycling plant and nail making machines. We have export license, we can offer you the factory prices.
Q2: Can you guarantee the capacity as you mentioned ?
A2: Definitely yes, the grooved two rollers are specially designed to increase the output and ensure the working efficient.
Q3: are you sure the final rubber powder can be completely clean out of wire steel or nylon ?
A3: The final powder purity can reach 99.9%. we have magnetic separator which can separate the wire steel from the rubber powder.
Tel/Whatsapp/Wechat: 86 18238829088
