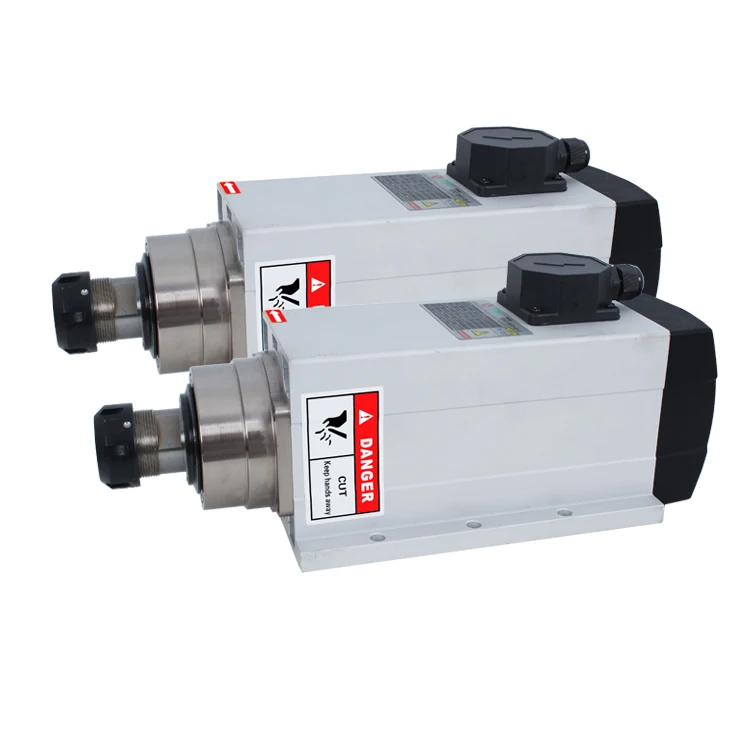

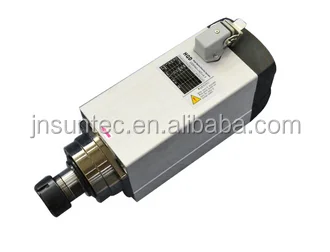

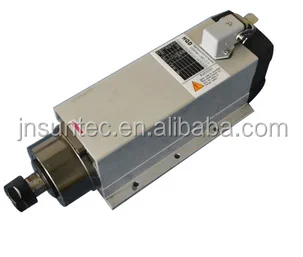

Fast speed factory price air cooling spindle 3.5/4.5/6kw spindle motor

Product Overview

Description

Fast speed  factory price air cooling spindle 3.5/4.5/6kw  spindle motor



Main specifcation



• Product name: GDF60-18Z/4.5


• Rotating speed: 18000/24000RPM


• Rated power: 4.5KW


• Torque: 2.39/1.79Nm


• Voltage: 220/380V


• Current: 15/9.0A


• Frequency: 300/400HZ


• Connection of spindle end: ER25-Φ3.175-Φ16


• Cooling: Water-cooled


• Lubrication: Grease


• Bearing No.: 2*7007C P4,2*7002C P4


• Weight: 12Kg







Delivery





2.All Spindles will be sent by DHL or FedEx as default,Normally it takes 3 to 5 days to get to the customers depends on different locations of the World.

(Note: For some special regions like Argentina, we will send by EMS instead of DHL to help you save the custom clearance cost.)

3.The shipping cost marked in our shop is based on sending to the US. Shipping Cost varies from different locations of the world,So we will correct the shipping fee for you after you buy it.



Service

1. 24months quality guaranty
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
