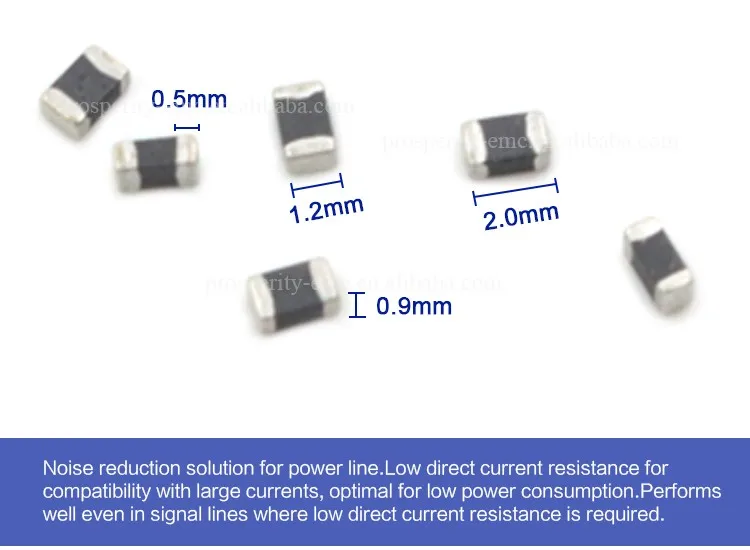

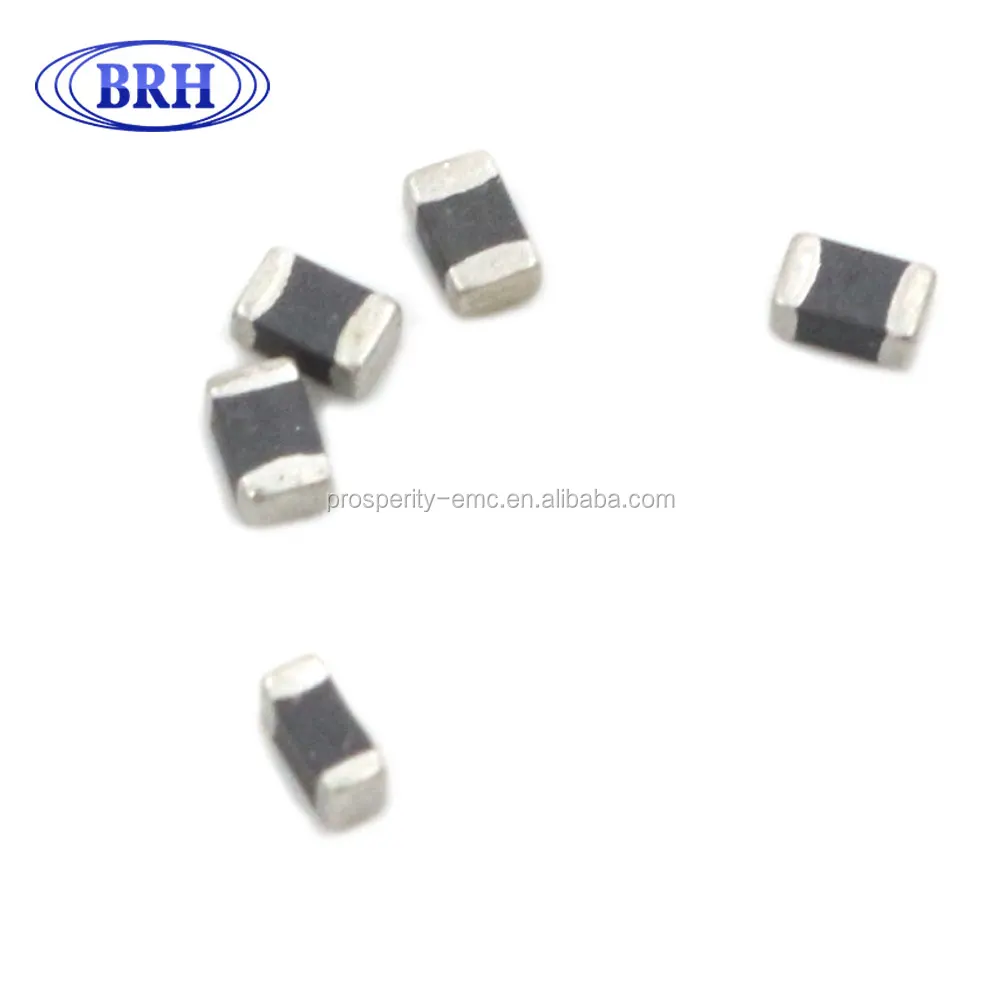

Best price large current Smd ferrite bead inductor for Power Line
Best price large current Smd ferrite bead inductor for Power Line
Best price large current Smd ferrite bead inductor for Power Line

Best price large current Smd ferrite bead inductor for Power Line

Share on (60682299345):


Price:

Quantity:


Product Overview

Description


Description
\t

MODEL
\t
PRODUCT DIMENSIONS
\t
A
\t
B
\t
C
\t
D
\t
0402
\t
1.00±0.10
\t
0.50±0.10
\t
0.50±0.10
\t
0.25±0.10
\t
0603
\t
1.60±0.20
\t
0.80±0.20
\t
0.80±0.20
\t
0.30±0.20
\t
0805
\t
2.00±0.20
\t
1.20±0.20
\t
0.90±0.20
\t
0.50±0.30
\t


SIZE CODE
(inch)
\t
RECOMMENDED PATTERN
(mm)
\t
A
\t
B
\t
C
\t

0402
\t

0.4
\t

1.2-1.4
\t

0.6-0.8
\t

0603
\t

0.7-0.8
\t

1.8-2.0
\t

0.6-0.8
\t

0805
\t

1.0-1.2
\t

2.6-4.0
\t

1.0-1.2
Parameter
\t
Detailed specifications and parameters are introduced
\t

ORDERING CORE
\t
Impedance
\t
DC Resistance
\t
Rated Current
\t
(Ω)
\t
(Ω)MAX
\t
(mA)MAX
\t
BEAD0805S100A10T
\t
10
\t
0.200
\t
1000
\t
BEAD0805S100A60T
\t
10
\t
0.010
\t
6000
\t
BEAD0805S220A60T
\t
22
\t
0.010
\t
6000
\t
BEAD0805S330A40T
\t
33
\t
0.035
\t
4000
\t
BEAD0805S400A08T
\t
40
\t
0.250
\t
800
\t
BEAD0805S420A40T
\t
42
\t
0.035
\t
4000
\t
BEAD0805S520A10T
\t
52
\t
0.200
\t
1000
\t
BEAD0805S600A30T
\t
60
\t
0.040
\t
3000
\t
BEAD0805S600A40T
\t
60
\t
0.035
\t
4000
\t
BEAD0805S700A30T
\t
70
\t
0.040
\t
3000
\t
BEAD0805S800A40T
\t
80
\t
0.035
\t
4000
\t
BEAD0805S800A50T
\t
80
\t
0.020
\t
5000
\t
BEAD0805S101A30T
\t
100
\t
0.040
\t
3000
\t
BEAD0805S121A30T
\t
120
\t
0.040
\t
3000
\t
BEAD0805S121A40T
\t
120
\t
0.035
\t
4000
\t
BEAD0805S121A50T
\t
120
\t
0.020
\t
5000
\t
BEAD0805S151A40T
\t
150
\t
0.035
\t
4000
\t
BEAD0805S201A40T
\t
200
\t
0.035
\t
4000
\t
BEAD0805S221A30T
\t
220
\t
0.040
\t
3000
\t
BEAD0805S301A10T
\t
300
\t
0.200
\t
1000
\t
BEAD0805S301A30T
\t
300
\t
0.040
\t
3000
\t
BEAD0805S401A30T
\t
400
\t
0.040
\t
3000
\t
BEAD0805S601A10T
\t
600
\t
0.200
\t
1000
\t
BEAD0805S601A20T
\t
600
\t
0.100
\t
2000
\t
BEAD0805S102A10T
\t
1000
\t
0.200
\t
1000
\t
BEAD0805S152A03T
\t
1500
\t
0.500
\t
300
\t
BEAD0805S152A08T
\t
1500
\t
0.500
\t
800
\t
Test Frequency:100MHz                 Tolerance:±25%
