High Precision Easy To Operate Granite Block Stone Cutting Machine
- Category: >>>
- Supplier: Xiamen Great Base Co. Ltd.
Share on (60683488005):
Product Overview
Description
Part One
Product Application
1. It is PLC system, can achieve fully automatic cutting.
2. It uses one different blade installing way so that it can save the blades cost.
3. It doesn't need trolley to achieve slicing, so that you can save maintain cost.
4. It uses double cylinders to go up/down, more stable and quickly.
Technical | ||||
Name | Unit | GBQQJ-2500B | ||
Saw blade diameter | mm | Total 12pcs, Max.ф2500 | ||
Max. horizontal stroke | mm | 3200 | ||
Max .up-down stoke | mm | 1400(Max.cutting depth1050mm) | ||
slicing stroke | mm | 2300 | ||
Main motor power | kw | 55 | ||
Girder length | mm | 7480 | ||
Water consumption | m3/h | 12 | ||
Weight | kg | 14000 | ||
Main Features
1) Easy in installation and maintation.
2) PLC is Omron from Japan.
3) The gear in th headstock is M=8, much stronger.
Part Two
Detailed Images
Machine Parts

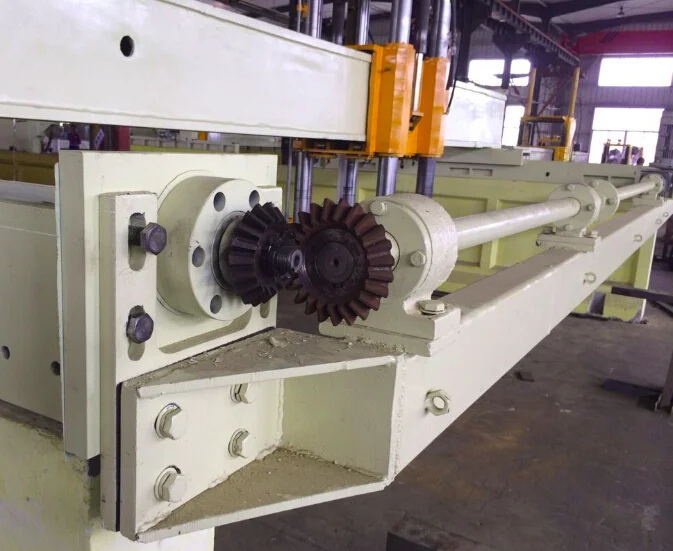

Name: Transmissio Gear
The two gears through meshing to achieve slicing
Main Parts

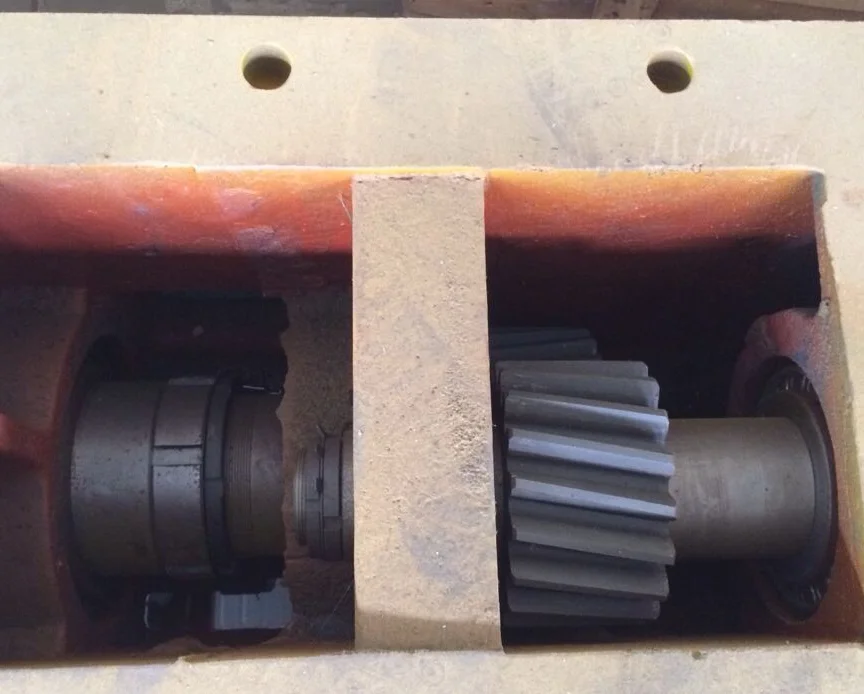

Name: Gear in headstock
Original: Chinese
The modulus of the gear is 8.
Machine Parts

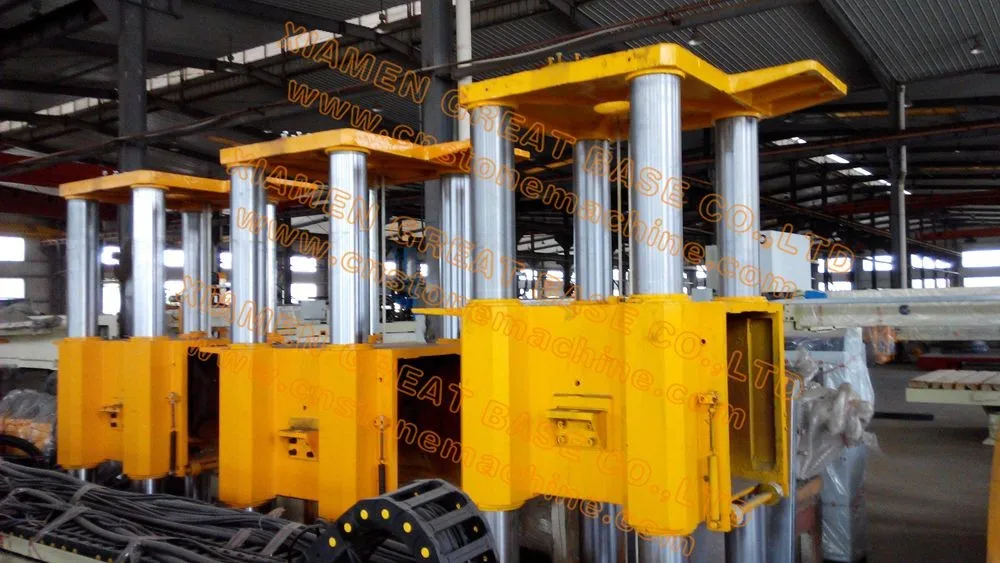

Name: Columns for up/down
Original: Chinese
The diameter of the column is 190mm.
Main Features

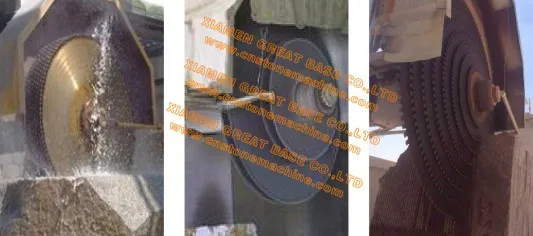

Name: Blade installing way
In this machine, it can have two installation ways of blades.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 7500 (L) * 1000 (W) * 2350(H)mm | |
Weight | 7 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). The wooden box will be fumigated. | |
Packaging | ||
Size | 4000*450*600mm | |
Weight | 1.2 T | |
Packaging Details | The supports are nude packing. But it is reinforced. | |
