Full Automatic Pet Blow Machine Auto Bottle Blowing Machine
US $13000-$30000

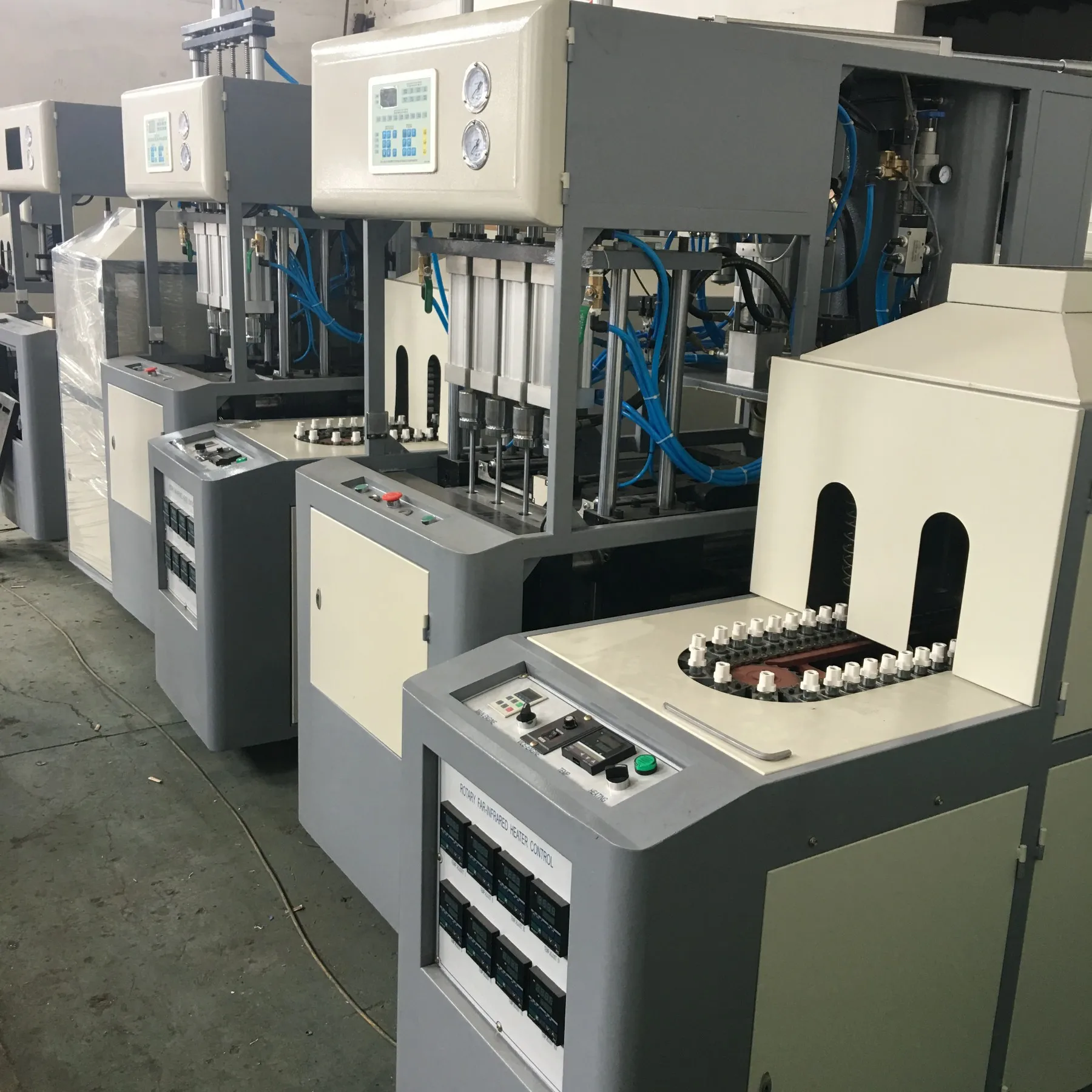

4cavity Semi Auto Pet Bottle Blowing Machine
- Category: Stretch Blow Moulding Machines >>>
- Supplier: Zhangjiagang Zenith Beverage Machinery Co. Ltd.
Share on (60684283632):
Product Overview
Description
Detailed Images
Product Description
Product Application

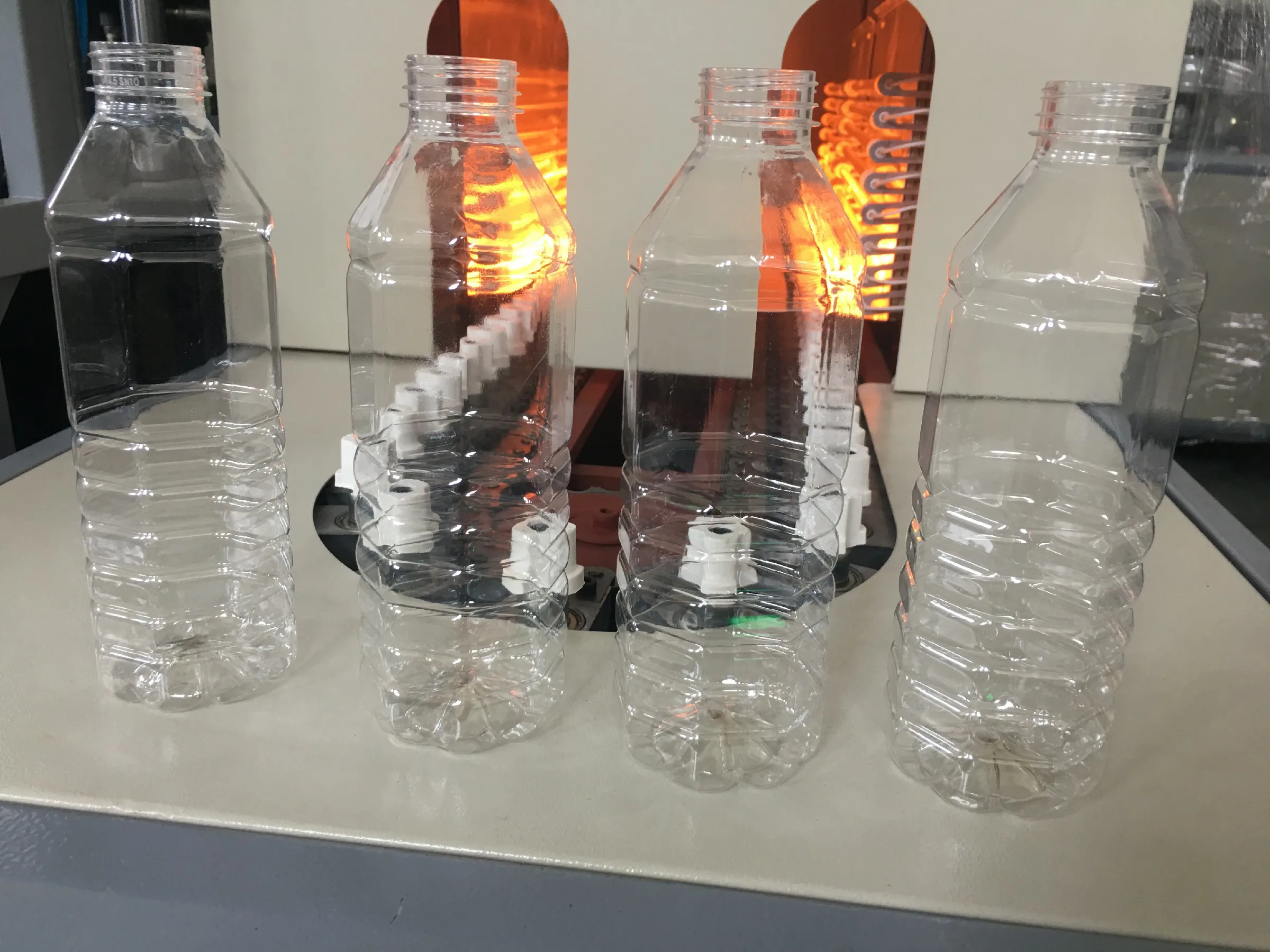

Semi-Auto Pet Bottle Blowing Machine is applied for 50ml-1500ml small volume bottle production,

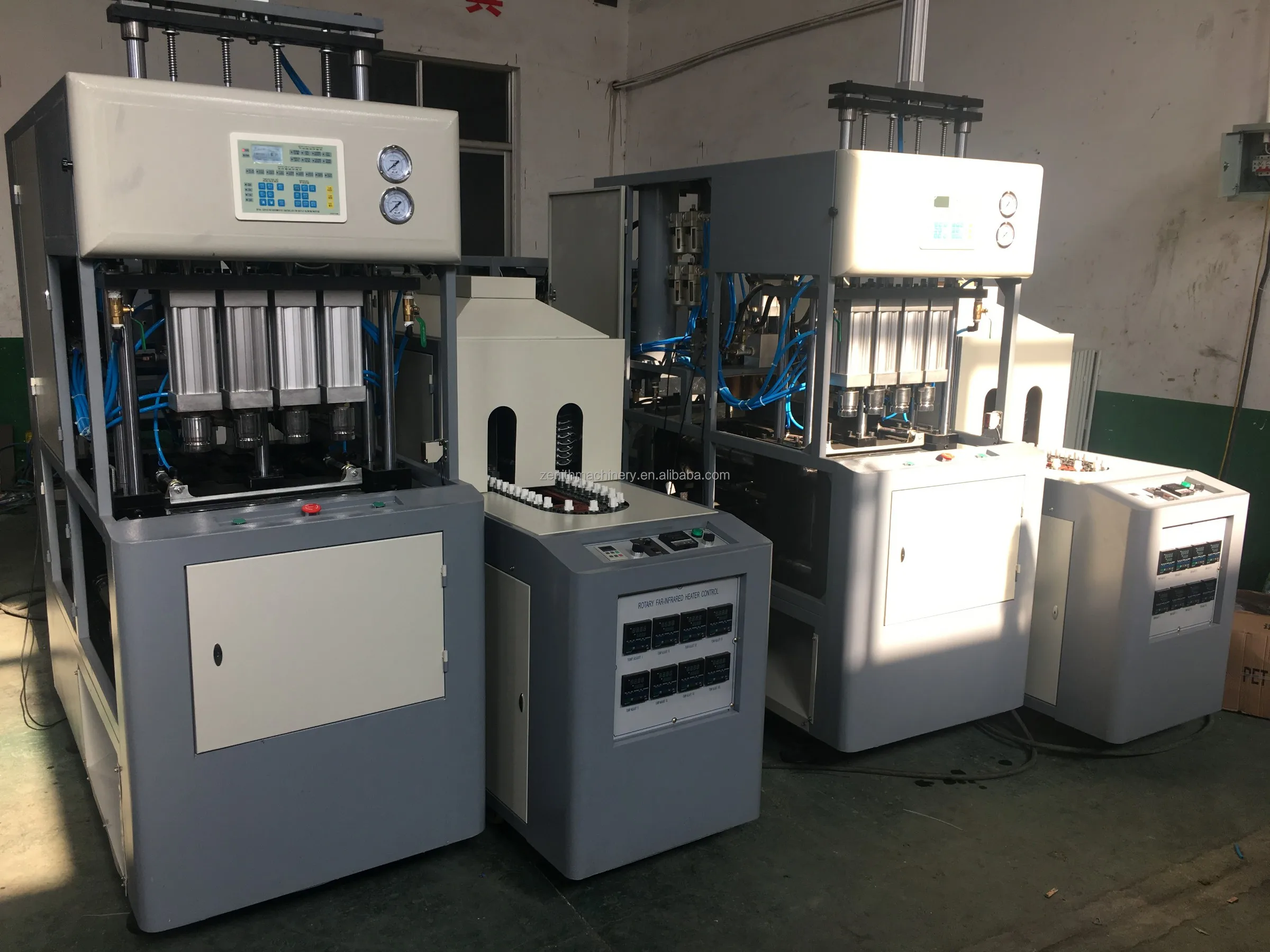

Semi-Auto Bottle Blowing Machine is best suitable for small scale production and beginner; the preforms manually put onto preform holder and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles
bottle blowing machine Main Advantage:
big flow rate blowing valve design guarantee smooth and continous blowing,with pre blow function gurantee the blowed bottle with evenly thickness,

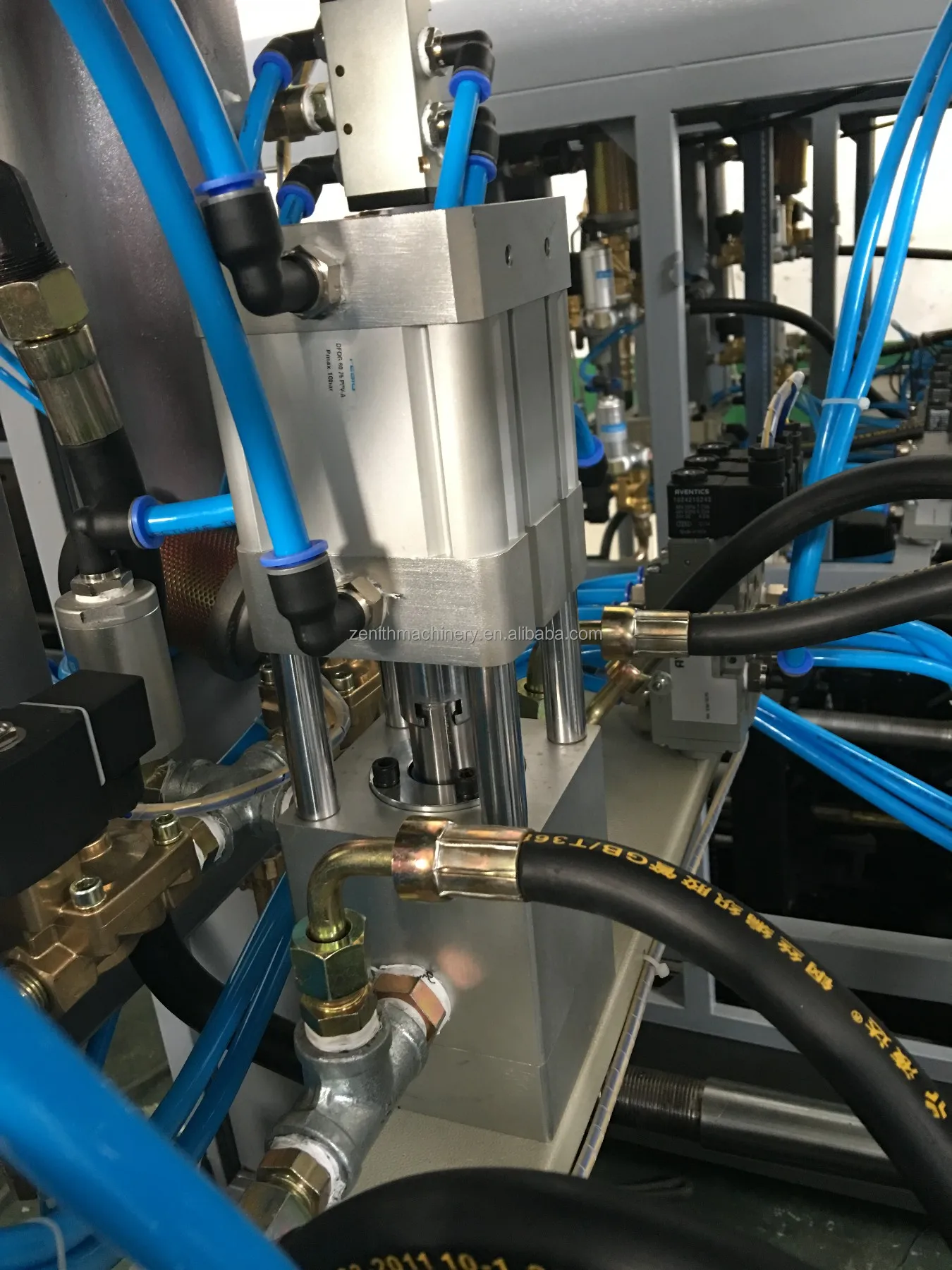

Germany brand solenoid valve guarantee the blowing machine action stable,

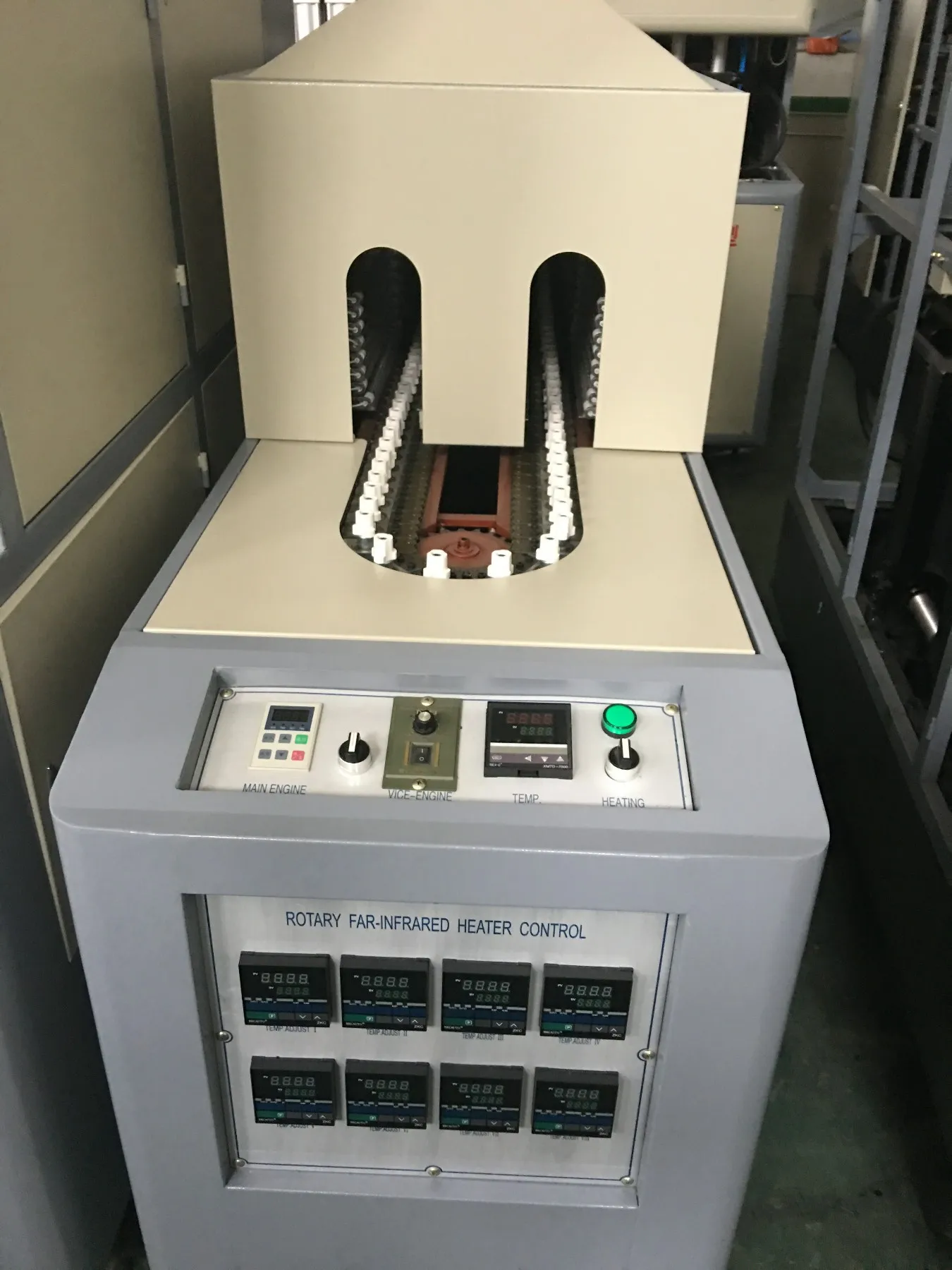

Infrared heating oven Temperature by Temperature control module gurantee the heating stable,

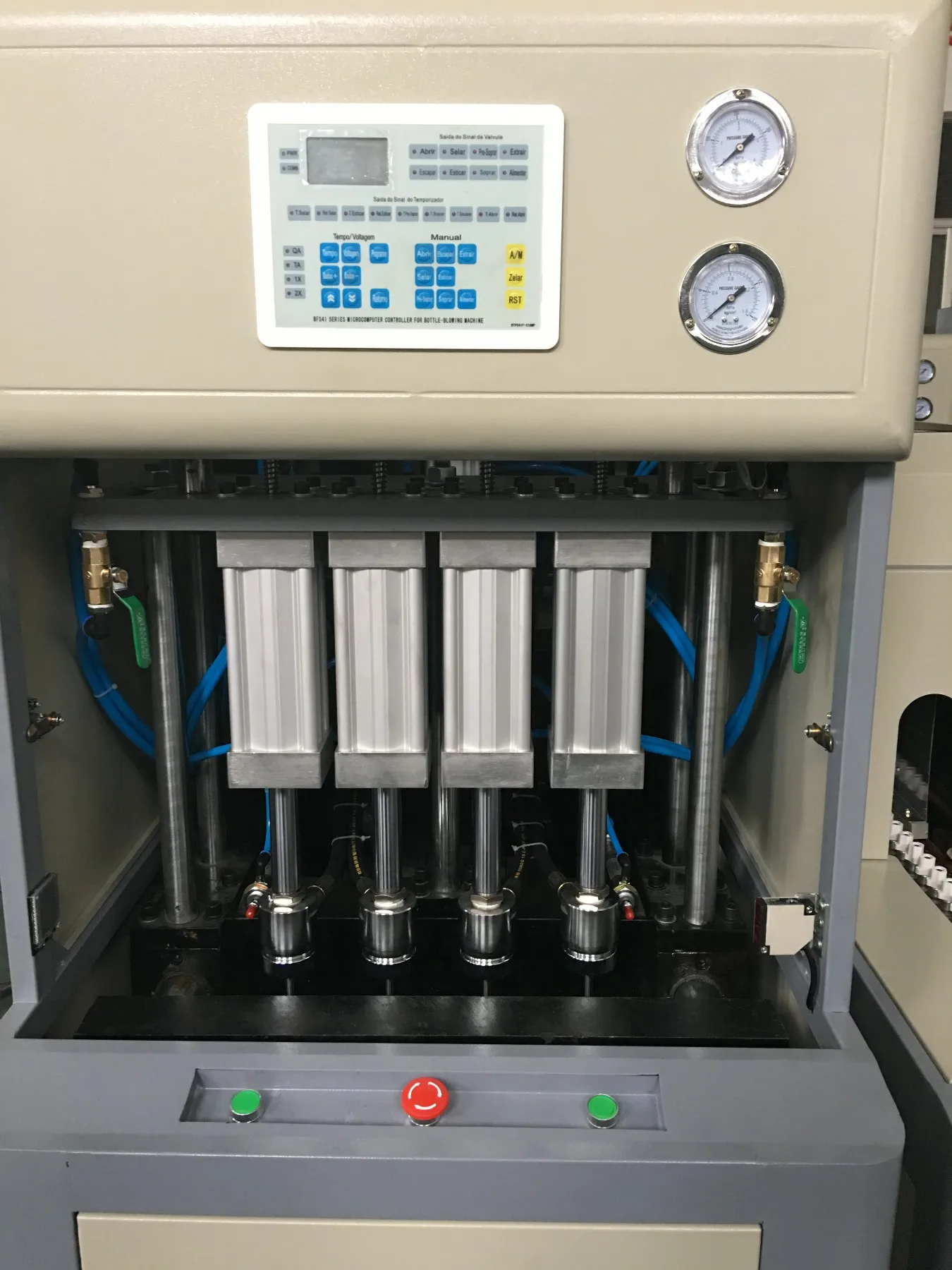

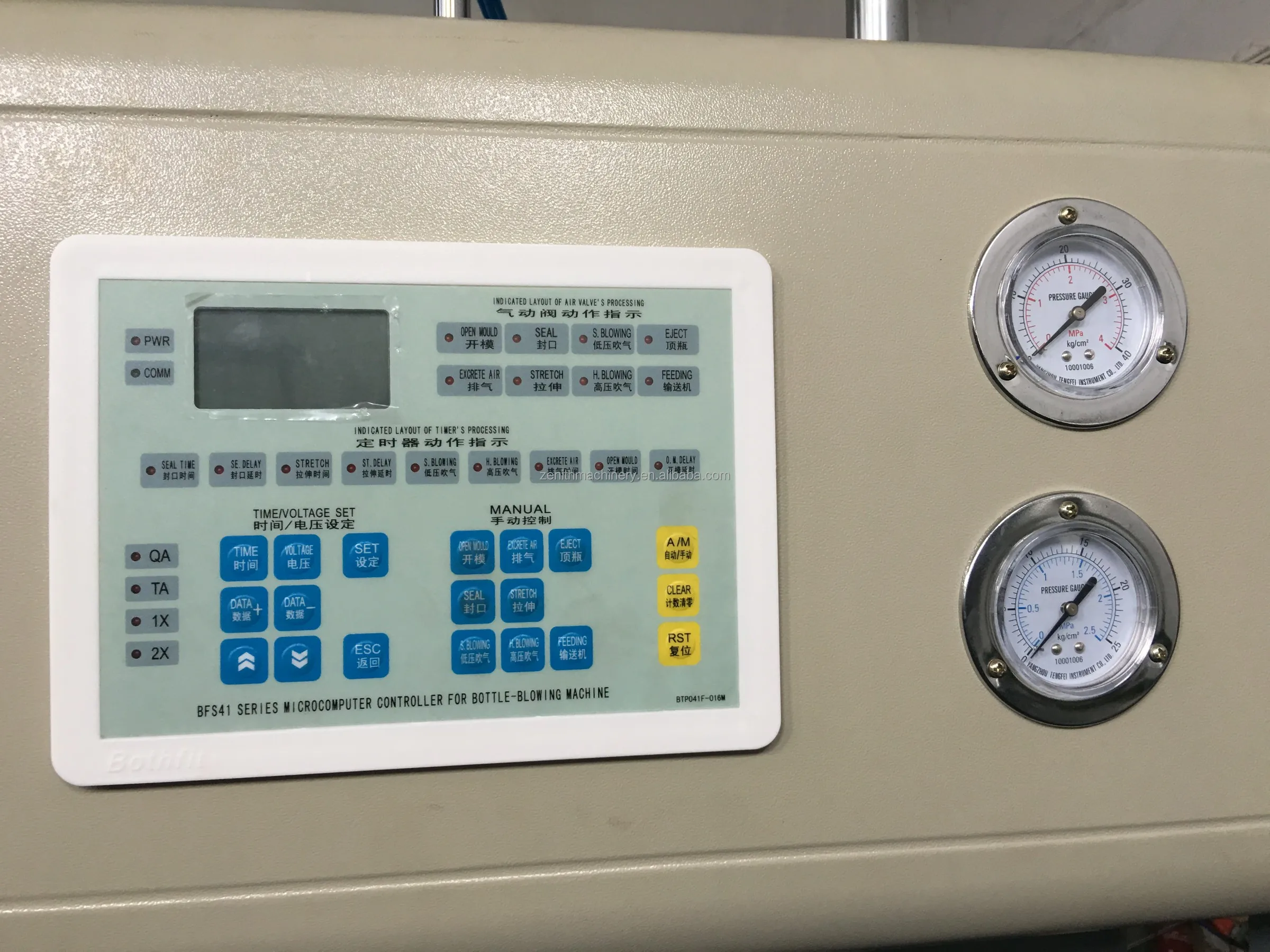

The machine is controlled by PLC system, with menu of different language for easy setting,
Semi-Auto Bottle Blowing Machine is best suitable for small scale production and beginner; the preforms manually put onto preform holder and heated in infrared oven, then the heated preforms manually put into blow mould to stretch blowing into bottles
bottle blowing machine Main Advantage:
big flow rate blowing valve design guarantee smooth and continous blowing,with pre blow function gurantee the blowed bottle with evenly thickness,
Germany brand solenoid valve guarantee the blowing machine action stable,
Infrared heating oven Temperature by Temperature control module gurantee the heating stable,
The machine is controlled by PLC system, with menu of different language for easy setting,
\t\t\t\t\t\t\t\t\tMain Specification \t\t\t\t\t\t\t
MODEL | Unit | ZSB-4-2200 | ||
Products | Raw material | PET | ||
Max.Capacity of bottle | L | 2 | ||
Theoretical production capacity | BPH | 2200 | ||
Max.neck diameter | mm | 38 | ||
Max.bottle height | mm | 360 | ||
Max.bottle diameter | mm | 120 | ||
Molding unit | Clamping force | Kn | 180 | |
Max.mould plate dimension(L*H) | mm | 420*640 | ||
Mould opening stroke | mm | 200 | ||
Max.Mould stretching stroke | mm | 400 | ||
Max.Mould thickness | mm | 240 | ||
Number of cavity | cavity | 4 | ||
Electricity | Total power consumption | Kw | 12 | |
Voltage/frequency | v/hz | 380v 220v 3phases /50hz 60hz | ||
Compressed Air system | Operation pressure | Mpa | 0.8-1.2 | |
Blowing pressure | Mpa | 3.0 | ||
High pressure Air consuming | M3 /min | 2.4 | ||
Air Cooling dryer | M3 /min | 2.0 | ||
Air filters 2pcs | M3 /min | 2.0 | ||
Air tank | L | 300 | ||
Chilled water | Water chiller | recyling cooled water 20degree 4HP | ||
Machine size and weight | Blower Dimension(L*W*H) | m | 1.85*1.05*1.8 | |
Blower weight | Kg | 1100 | ||
Heater dimension | m | 1.65*1.05*1.35 | ||
Heater weight | Kg | 800 | ||
\t\t\t\t\t\t\t\t\tComponents List \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tAccessory machines \t\t\t\t\t\t\t
Shangair brand High Pressure Air compressor
High pressure Air Tank
Air Cooling Dryer With two Air Filters
Water Chiller Air Cooling Type
