Full Functional Wood WPC UPVC Window Door Frame Wrapping Machine

Product Overview

Description







Covering Film: PVC, Leather, pp, paper, roll veneer, aluminum foil, and so on.

Base Profiles:  MDF, plywood, aluminum profile, particle board, steel, PVC, WPC, etc.

 Glue: PUR hot glue

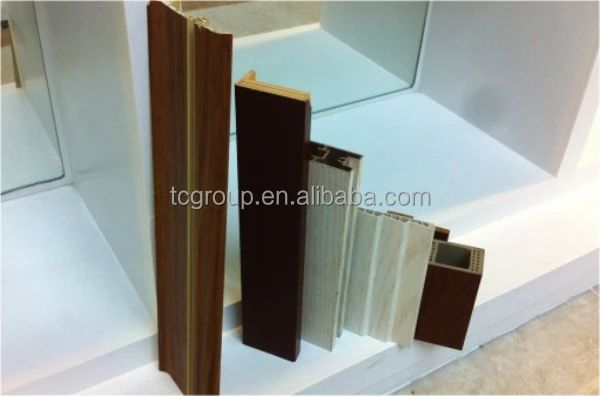

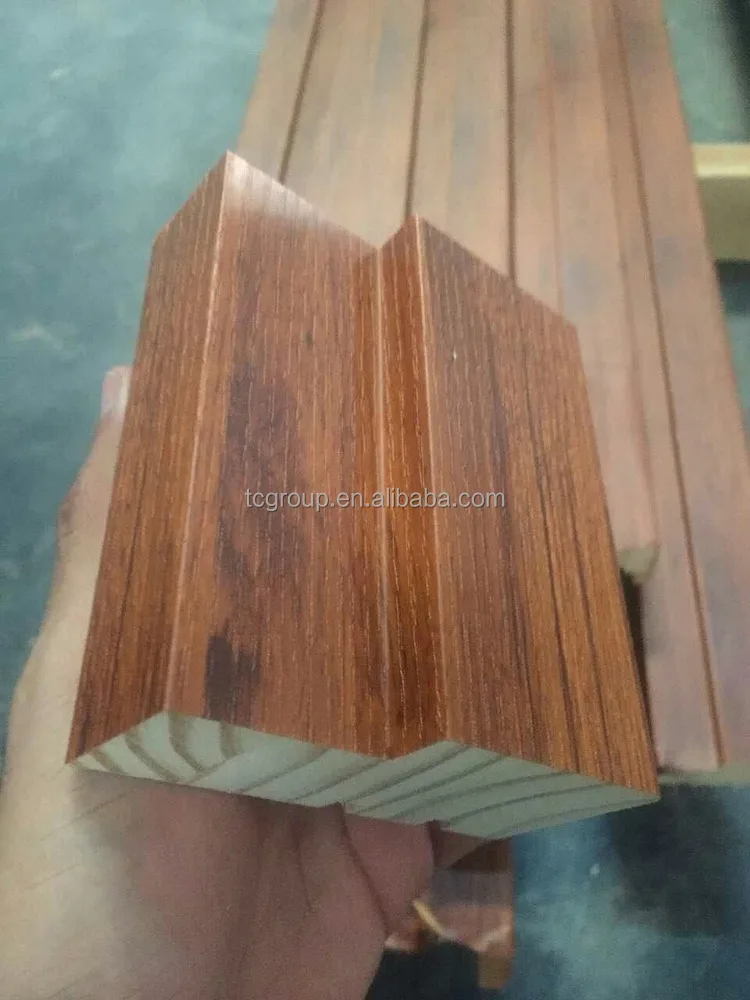

Window frame, door frame, door shuttle, wall strips, wall panels, ceiling strip, voice speaker, picture frame, some other decorative profiles related to furnitures and building materials.

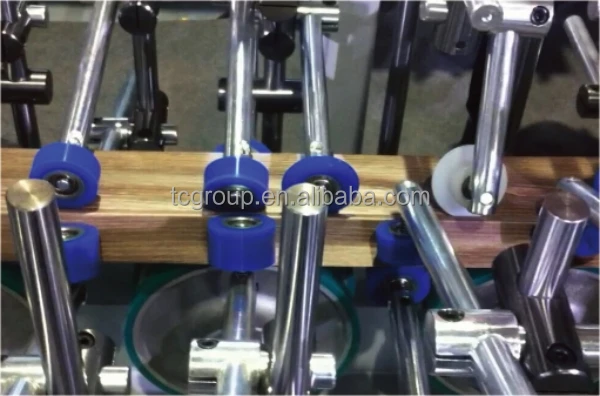

It is suitable for laminating PVC film,melamine paper, articial wood on decorative strips,aluminum , wood and plastic material.with scraping glue system to keep the glue spreading uniform, it is suitable for different complicate shape, as angle parts, around ARC, roughness, extruding shape, so as to get a excellent surface.



Max film covering width : 300mm

Max process thickness : 90mm

Min process length : 600mm

Speed of material delivery :0-50m/min

Sticking glue power : 5.5kw

Motibity power : 6kw

Heat power : 6kw

Machine weight : 2300kg

Max diameter of roll cover material: 400mm

Structure size :600*2000*6000mm



Plastic buckets specifications : 20kg(5gallon)

The inner diameter of the p;astic buckets : 280mm (customrized 286mm)

Heat power : 5.5kw



Platen stroke : Max:500mm

Max motor speed :60rpm

Control system : PLC +touched screen

Insulation function : yes

Over-temperature alarm : yes

The low plastic bits alarm : yes

Dimensions : L1000*W550*H1450

Net weight :400kg













About US

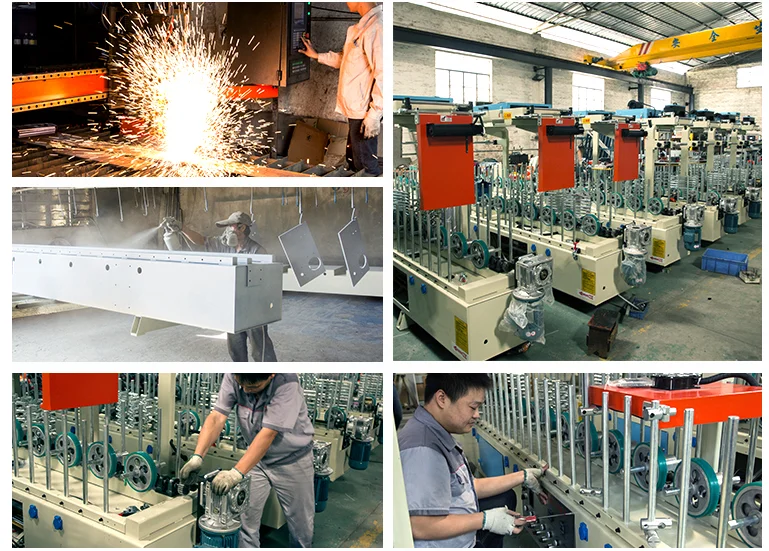

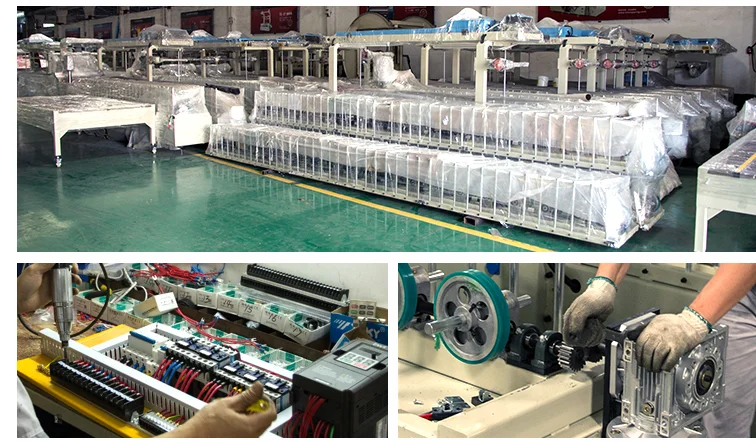

Foshan TC Woodworking Machinery Co., Ltd(Tongchi)-----woodworking machinery manufacturerspecializes in various surface laminating machines, found in 2018, with total areas of more than 40 acres, engaged in design, production, sales and services, with rich experienced technical team, continuously improves and updates in practice, adheres to the essence of traditional Chinese woodworkingmanufacturing, and absorbs the latest technological essence of woodworking machinery at home and abroad, enjoys a high influence in the international woodworking machinery industry by virtue of its strong economic strength and high reputation in product quality.



TC specializes in the developing and manufacturing woodworking machines- aims at surface decoration machineries, has rich experience in glue spreading, paper sticking, special-shaped surface laminating and composite materials. Main products are: profile wrapping machine, film cutting machine, flat panel laminating machine, vacuum press machine, etc. We can also customize a variety of different specifications or special-shaped surface decoration machinery according to the customers' requirements.



Over the years, Foshan TC  has been adhering to the spirit of honesty, innovation and enterprising. With the strong cultural brand, basing on markets' requirements, focusing on long-term development, keeping pace with the times, striving to provide customers with high quality and reasonable price, stable and reliable products and perfect after-sales service system, we has won the favor and trust of the majority of customers. Currently, our customers are from all over the world.



While mastering the product development and the production, we also continuously strengthen the enterprise management, which is the key to the development of enterprises;People are the first element of management and talents are always the primary productive force of enterprises, adhering to the "people-oriented" management concept is the solid foundation for the development of TC;Innovation is the source of success for enterprises; Actively participating in market competition is the greatest driving force of TC; Quality first, Reputation first, and Good ServiceS are the purpose of Foshan TC.

Welcome to contact with us for inquiry and welcome to visit our factories.
