1.5kw cnc router spindle motor ER16 for wood working machine (60684404243)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


1.5KW air cooling spindle motor ( GDZ80F-1.5)






Model:GDZ80F-1.5Dimension: Φ80Collet: ER16
Power: 1.5kW Voltage:220V Current:5A
Frequency:400HZSpeed: 24000rpmCool: Air Cooling
Lub:Grease Torque:0.91NmWeight: 4.4kg
Warranty period: Bearings=half a year, other parts a year

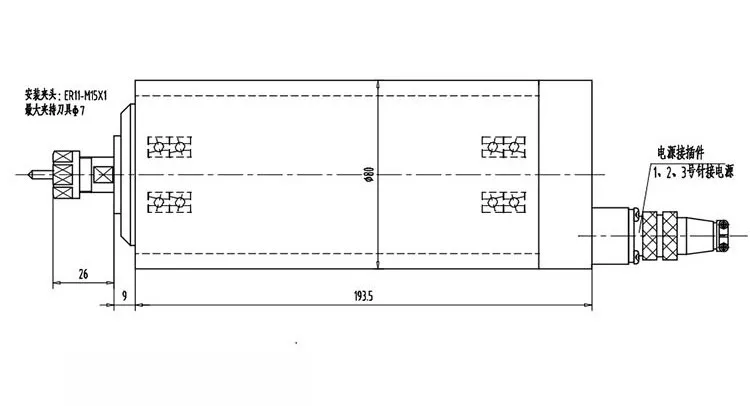

Dimension:






The datasheet of our air cooling spindle motor



TYPE

speed

(rpm)

power

(kw)

voltage

(V)

current

(A)

frequency

(HZ)

dimensioncollectproduct size(mm)

Weight

(kg)

L4L5L6L1L2L3
roundGDZ65F-800240000.82204400Φ65ER11182.51528.53
GDZ80F-1.5240001.52205400Φ80ER11193.59264.4
GDZ80F-2.2240002.22208400Φ80ER16193.519.531.54.5
GDZ80F-2.2240002.22208400Φ80ER20193.519.531.54.5
squareGDZ93*82-1.5180001.5 220  6.6300453020ER2013744.5376
3803.8
GDZ93*82-2.2180002.2220 8300453037ER2517348.5378
3804.6
GDZ93*82-3.5180003.5220 13300453037ER2521448.5379
3807.5
GDZ93*82-3.5D180003.53807.5300453037ER25,ER25201.548.530.59.5
GDZ120x103-4.5180004.522017.3 300603625ER3219056.546.513
38010
GDZ120*103-618000622020.8300603640ER3223356.546.515
38012
GDZ120*103-7.5180007.538014.5300603613ER3227256.546.518
GDZ170*150-12180001238022300605030ER32orER4027967.54128



Suitable VFD (220VAC or 380VAC)





Suitable Collet (ER series)


Water Pump




Bracket holder
