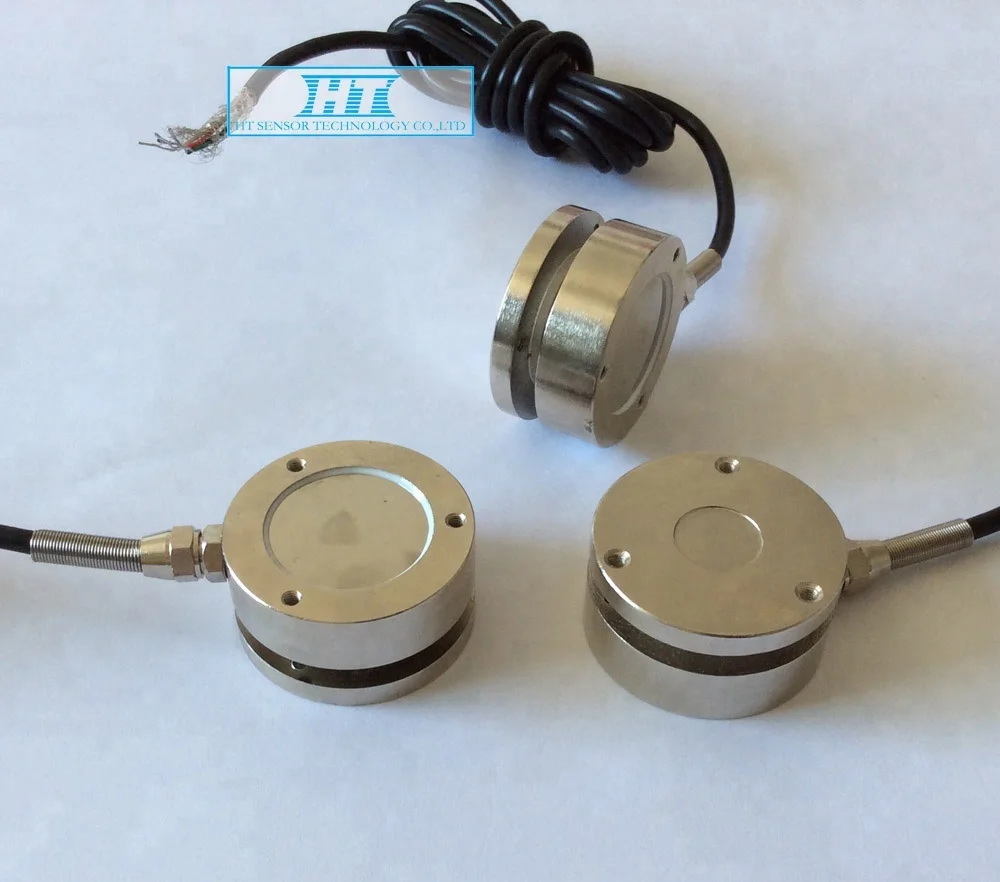

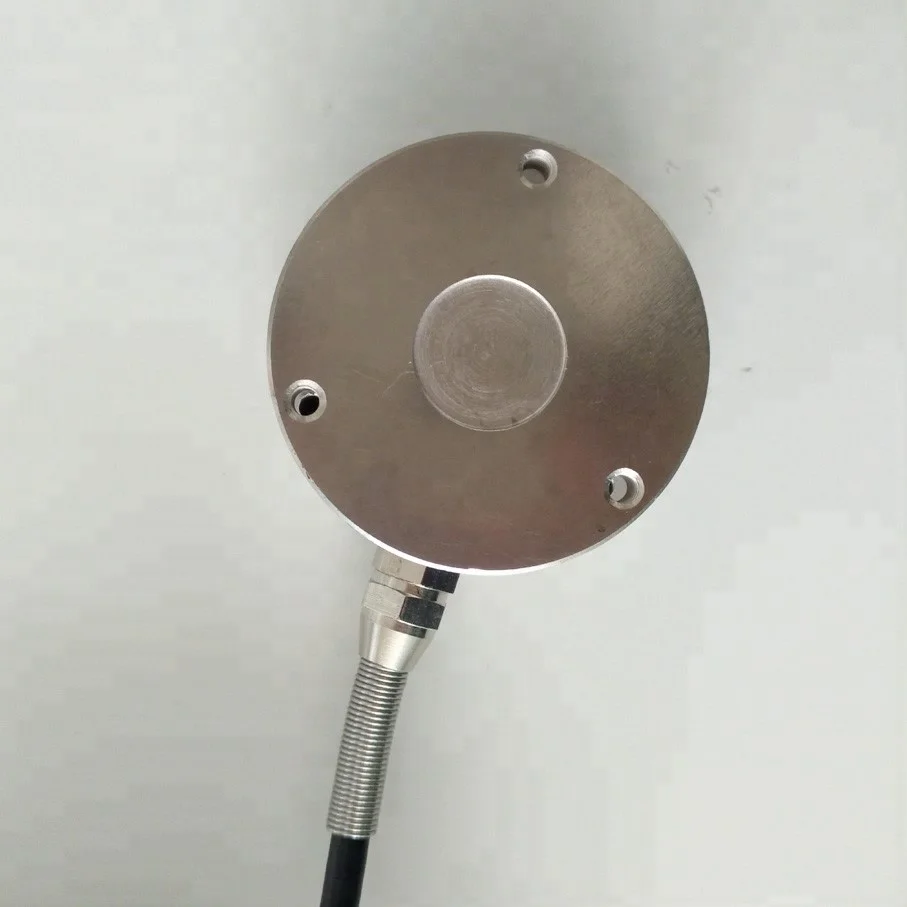

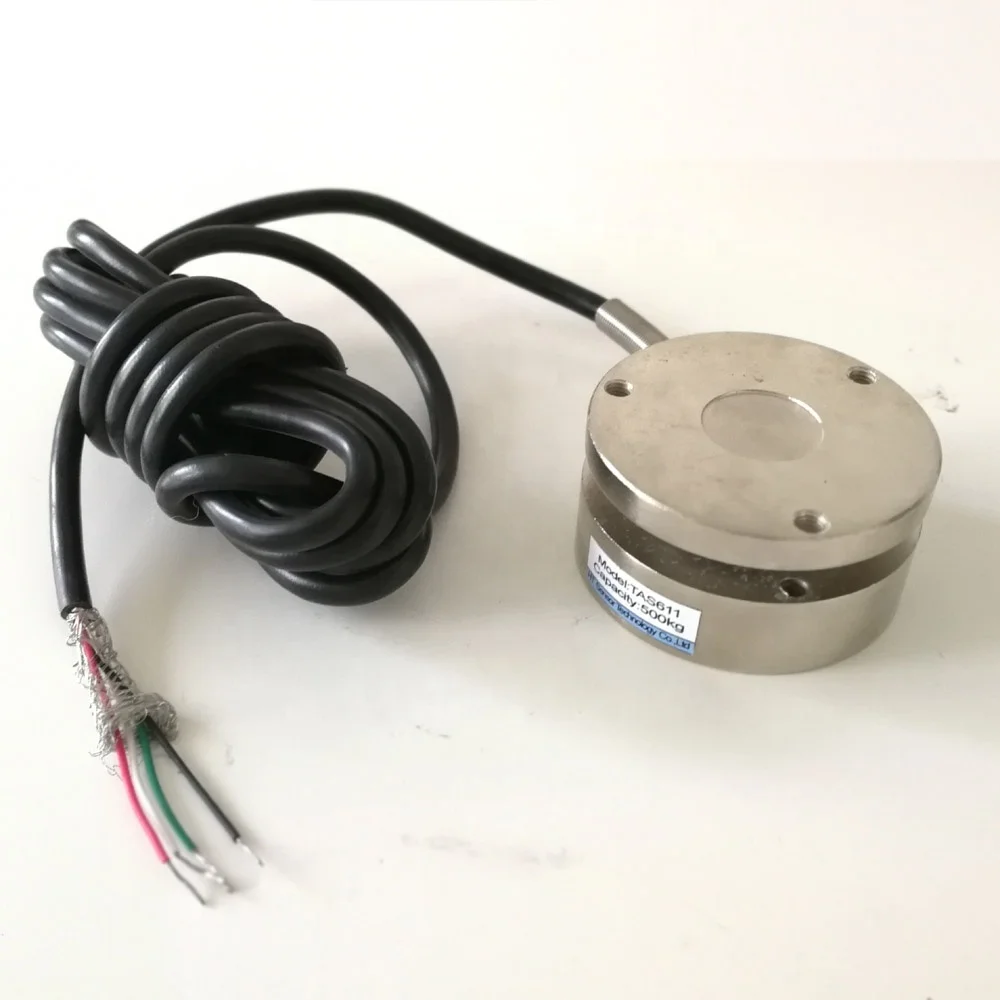

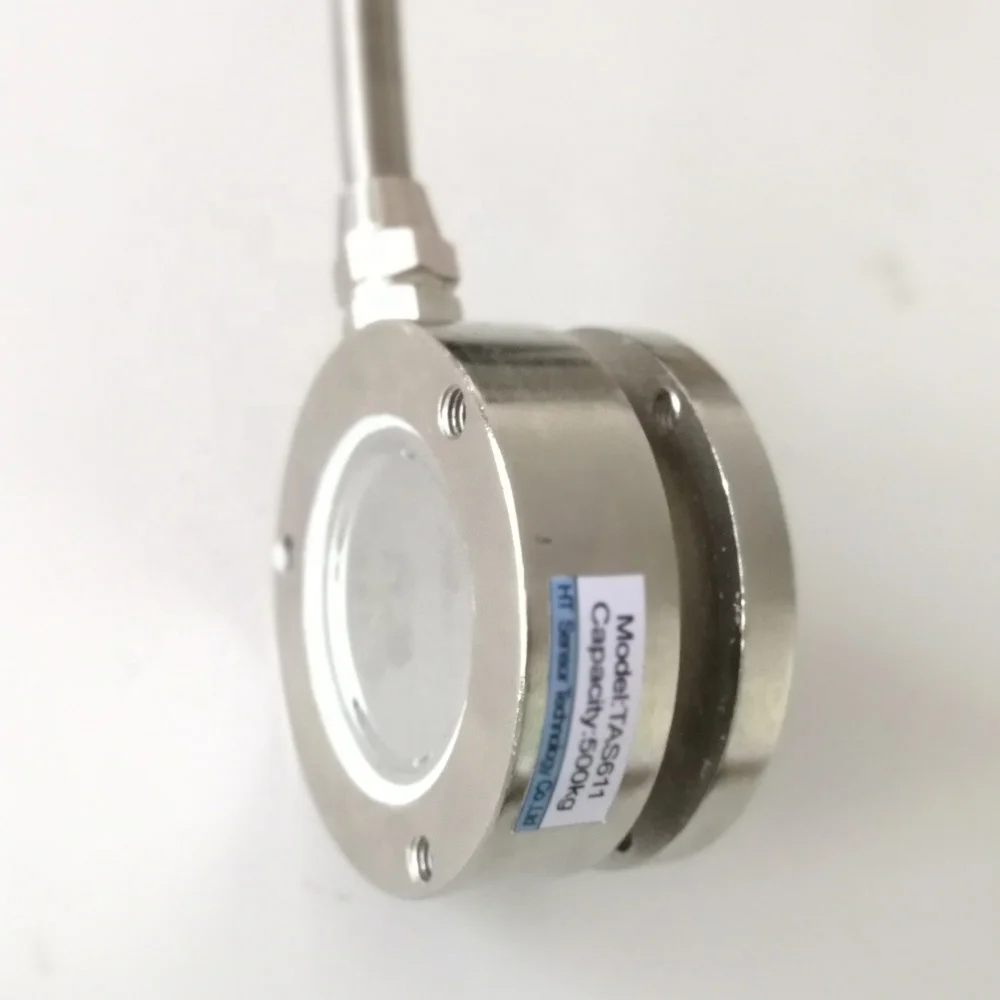

compression round load cell sensor 200kg 500kg 1Ton 2Ton 3Ton 5ton load cell
- Category: Sensors >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (60684407623):
Product Overview
Description
◆Model No. TAS611
◆Capacity :50kg~5Ton
◆Material: alloy steel
◆Type: force type
◆Defend grade: IP67.
◆Application: Suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields
Specificaiton
Techncial specifcaiton | |||
Capacity | kg | 50kg,100kg,200kg,300kg,500kg,1Ton,2Ton,3Ton,5Ton | |
safe overload | %FS | 120 | |
ultimate overload | %FS | 150 | |
rated output | mV/V | 1.5 ± 0.5 | |
excitation voltage | Vdc | 5 ~ 15 | |
combined error | %FS | ± 0.1 | |
zero balance | %FS | ± 1.0 | |
non-linearity | %FS | ± 0.1 | |
hysteresis | %FS | ± 0.1 | |
repeatability | %FS | ± 0.1 | |
creep | %FS/3min | ± 0.1 | |
input resistance | Ω | 350 ± 20 | |
output resistance | Ω | 350 ± 5 | |
insulation resistance | M Ω | ≥ 2000 | |
operating temperature range | ℃ | -10 ~ +55 | |
compensated temperature range | ℃ | -10 ~ +40 | |
temperature coefficient of SPAN | %FS/10℃ | ± 0.1 | |
temperature coefficient of ZERO | %FS/10℃ | ± 0.1 | |

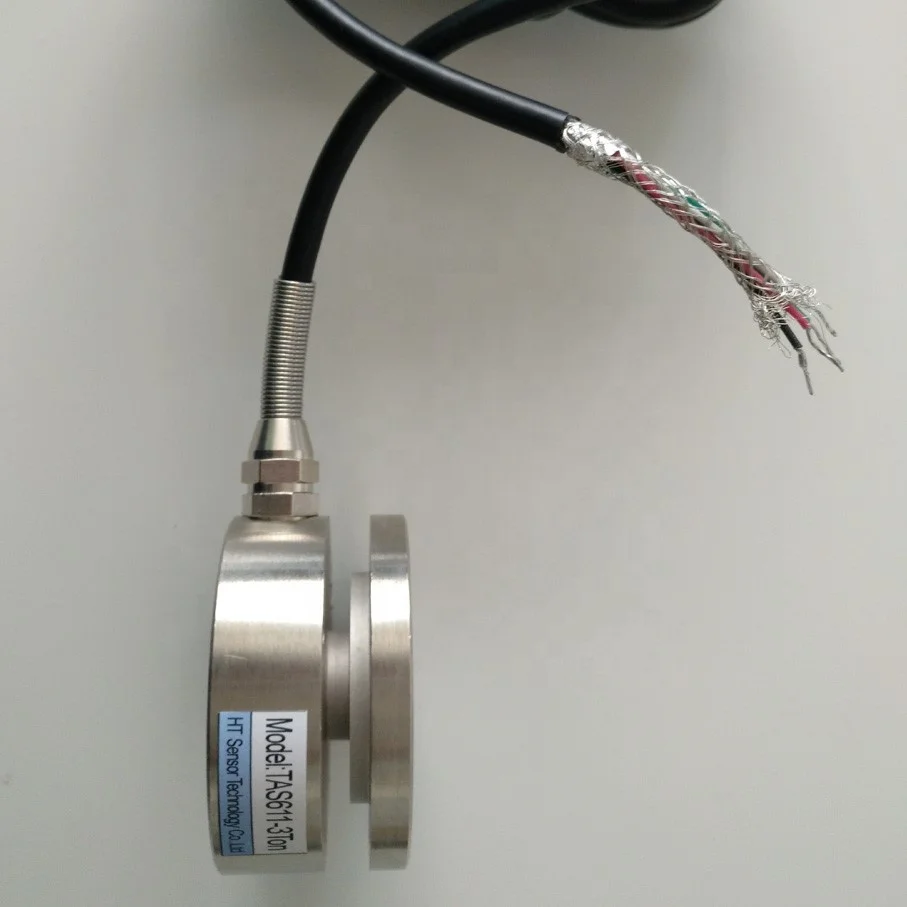

Electrical connection | cable | 4 core shielded PVC cable, Ø3.0 × 2m | |

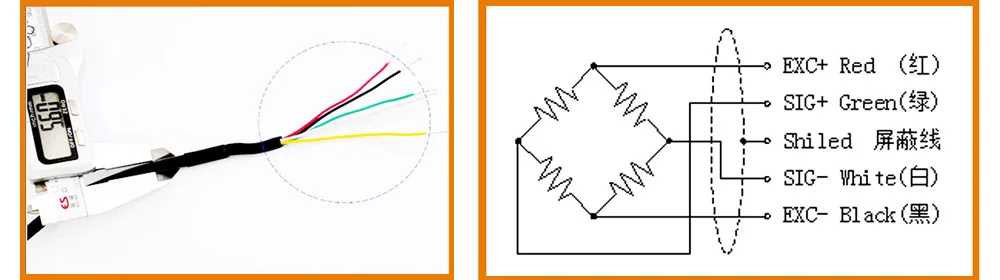

excitation(+):Red excitation(-):Black signal(+):Green signal(-):White | |||

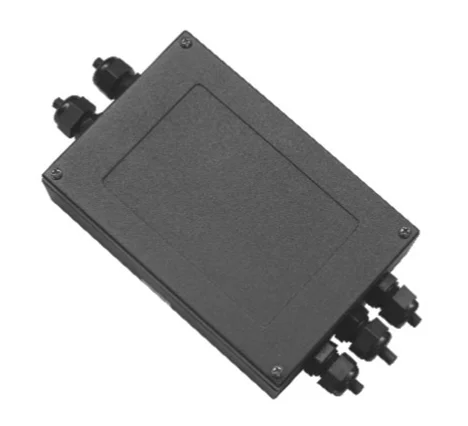

JUNCTION BOX
Load cell Junction boxes can accept inputs from multiple load cells and sum up the generated signals into a single output to
ensure an accurate multi-cell balance adjustment
ensure an accurate multi-cell balance adjustment
◆Material: Aluminum casting
◆ 2-8 single load cells input
◆High accuracy, good stability
◆ 2-8 single load cells input
◆High accuracy, good stability

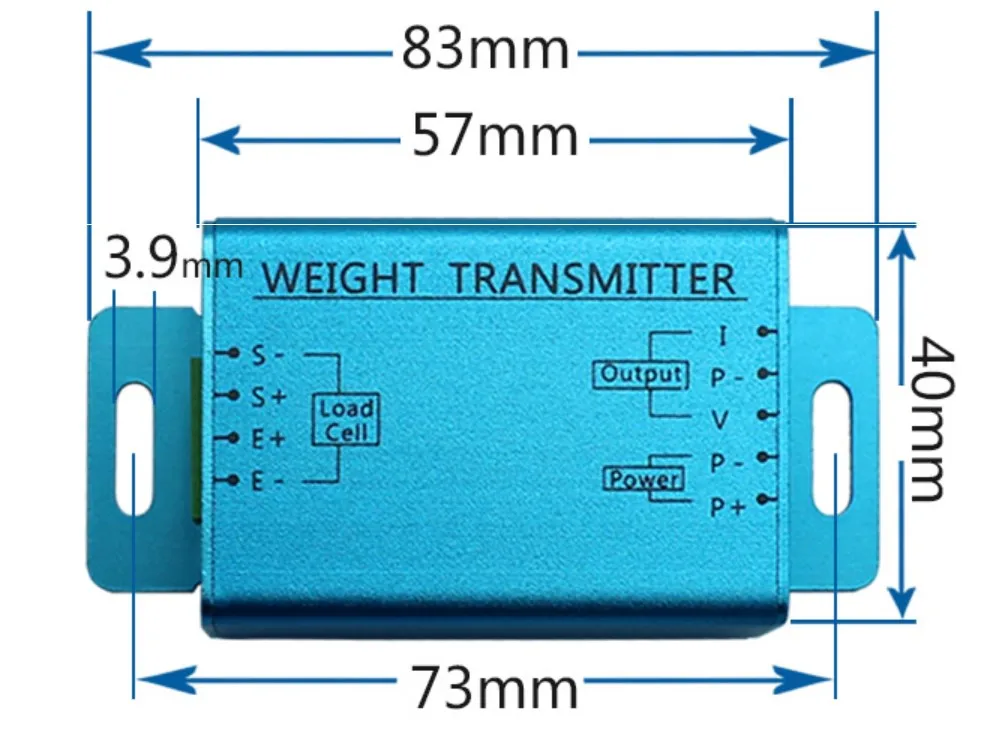

Amplfier
◆High accuracy, good stability, mini type.
◆Input signal: 0.5~4m V
◆ Output signal: 0~ ±5Vdc, 0~ ± 10Vdc, 0~20mA 4~20mA
◆ Power supply: 15~30Vdc
◆ Accuracy: 0.05%FS
◆ Working temperature: -20～80℃
◆Suitable for weighing, pull pressure, torque , and other strain sensor.
◆Input signal: 0.5~4m V
◆ Output signal: 0~ ±5Vdc, 0~ ± 10Vdc, 0~20mA 4~20mA
◆ Power supply: 15~30Vdc
◆ Accuracy: 0.05%FS
◆ Working temperature: -20～80℃
◆Suitable for weighing, pull pressure, torque , and other strain sensor.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our
customized service and help customers to get project solution.
Steps 1~5, you will get satisfied solution.
1. Contact our sales directly.
2.We will sign a confidentiality agreement with you to protect your project.
3. Provide the details technical information request and the application description.
4. 1~3 working days, we will provide the solution.
5. Once confirm, we will issue drawing , technical specification and provide offer .
customized service and help customers to get project solution.
Steps 1~5, you will get satisfied solution.
1. Contact our sales directly.
2.We will sign a confidentiality agreement with you to protect your project.
3. Provide the details technical information request and the application description.
4. 1~3 working days, we will provide the solution.
5. Once confirm, we will issue drawing , technical specification and provide offer .
