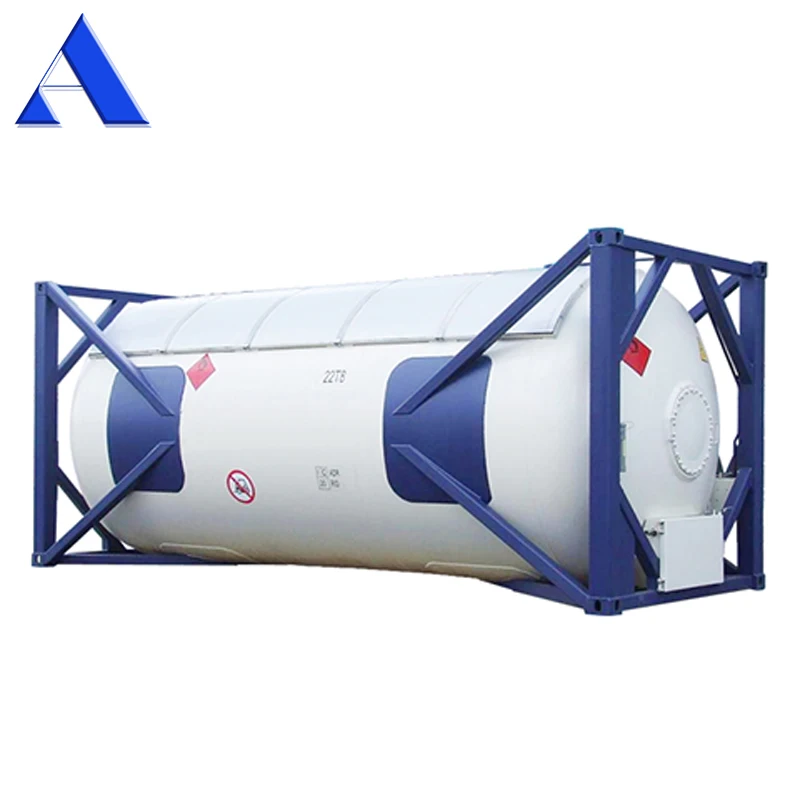

Anhydrous Liquid Ammonia ISO UN Portable Storage T50 Tank Container
Anhydrous Liquid Ammonia ISO UN Portable Storage T50 Tank Container
Anhydrous Liquid Ammonia ISO UN Portable Storage T50 Tank Container

Anhydrous Liquid Ammonia ISO UN Portable Storage T50 Tank Container

Share on (60685168131):


Price:$42,500.00 - $47,000.00

Quantity:


Product Overview

Description





Hot Sale Products


T11 ISO Tank Container
Swap Body 35000L T11 Tank Container
T14 Coating or Lining Tank


T3 Bitumen Tank
T50 Compreesed Liquefied Gas Tank
T75 Refrigerated Liquefied Gas Tank


Product Description


1. General introductions_ T50 ISO Tank Container for Liquid Ammonia

1. Approval by BV, LR, CCS.
2. Meet requirement of IMO/IMDG, ISO, UN, CSC, TIR, UIC, TC, ADR/RID
3. Materials: Main body: Corten-A steel, Vessel: Stainless Steel 316L
4. Design Code: ASME VIII Div. 2 with ASME U2-Stamp
5. Design Temperature: -40 to +55 centigrade






2. Drawing_ T50 ISO Tank Container





3. Specification_T50 ISO Tank Container for Liquid Ammonia


Frame Dimensions (L x W x H)
6058 x 2438 x 2591 mm
Nominal Capacity
24000 litre
Maximum Gross Mass
36000 kgs
Tare Mass
6360kgs
Design Temperature (Frame & Tank)
-40 to +55 °C
Pressure
Working
22 bar
Test
31.45 bar
Material
Tank (Shell & Ends)
SA612N/WNr 1.4402/1.4404
Frame
SPA-H,Q345D or equivalent
Insulation
Shell
Rock wood(50kgs/M3), Max thickness 50mm
Ends
Rock wood(16kgs/M3)
Manhole
DN500 inside diameter, with bolted cover, Spiral wound gasket(PTFE)
Safety Relief Assembly
One flange for safety relief valve on top of tank
Size DN80, equipped with fort vale relief, four vale bursting Disc,
manometer, and custom seal.

Liquid Line
One flange 2’’(DN50) for internal bottom valve and external manual
operated Fort vale 2’’ ball valve.
Gasket PTFE/304
One purge cock on the ACME coupling

Gas Line
One flange 2’’(DN50) for internal bottom valve and external manual
operated Fort vale 2’’ ball valve.
Internally a stand pipe to the gas phase
Gasket PTFE/304
Thermometer
Thermometer range: -40 to +100 ℃ and -40 to +202 ℉, dual scale
Manometer
External a DN15 ball valve and a 1/4’’manometer 0-40 bar.
Sun Shield
Tank fitted with a sin shield of 2mm aluminum alloy,covered angle approx. 120°
Data Plates
One set of stainless steel data plates
Design Code
ASME VIII Div. 2 with ASME U2-Stamp
Approval
Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR
600, CSC, TC, TIR, ISO UIC, US/UK DOT

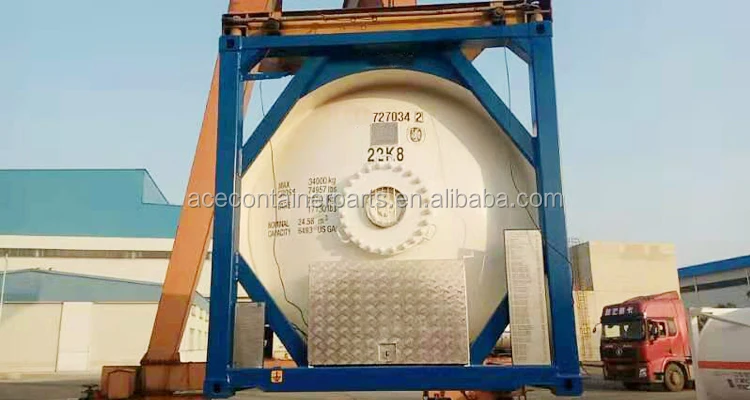

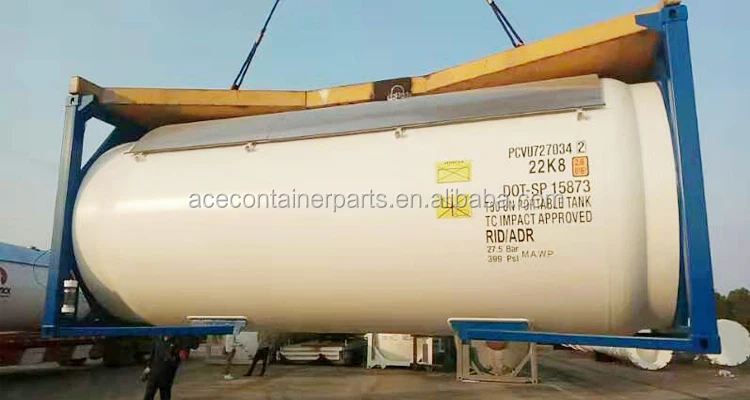

Detailed Images










Packing & Shipment




Certification






Company Information






Customer Visiting


The buyer from Malaysia visited our company


Mauritius's customer in our office


Japan customer visit the factory




Customers from USA are inspecting container

The buyers from Korea view the works how to operate the machine


Customers are measuring the container



FAQ


1. Are your lpg iso tank container for sale brand new?
Yes, all the container we provided are brand new. In fact, we will produce new container after order confirmation.

2. Does your iso tank containers for sale meet with international requirement?
All of our tank container will be approval by BV or LR or CCS and meet with below requirement.
ISO 1496/3
UN Transport of Dangerous Goods
UIC International Rail Approval
TIR International Transport Goods under Custom Seal
CSC International Convention for Safe Containers
DOT US Code Federal Regulations CFR49
DOT UK Carriage of Dangerous Goods
CTC Canadian Transport Commission (Rail)
AAR American Association of Railroads
FRA Federal Rail Association USA
BAM G.D.R Domestic Approval
ISO/TC11

3. Can you provide Drawings for confirmation?
Yes, we will provide drawing after order confirmed before production

4. Do you have Small or Large Volume Tank Container?
Sure, we could do Tank Container form 1000L to 60000L. And could produce offshore Tank as per DNV2.7-1 / EN12079 Standard.

5. Do you provide OEM Service?
Yes, we have a first-class team and could design as per your requirement.
