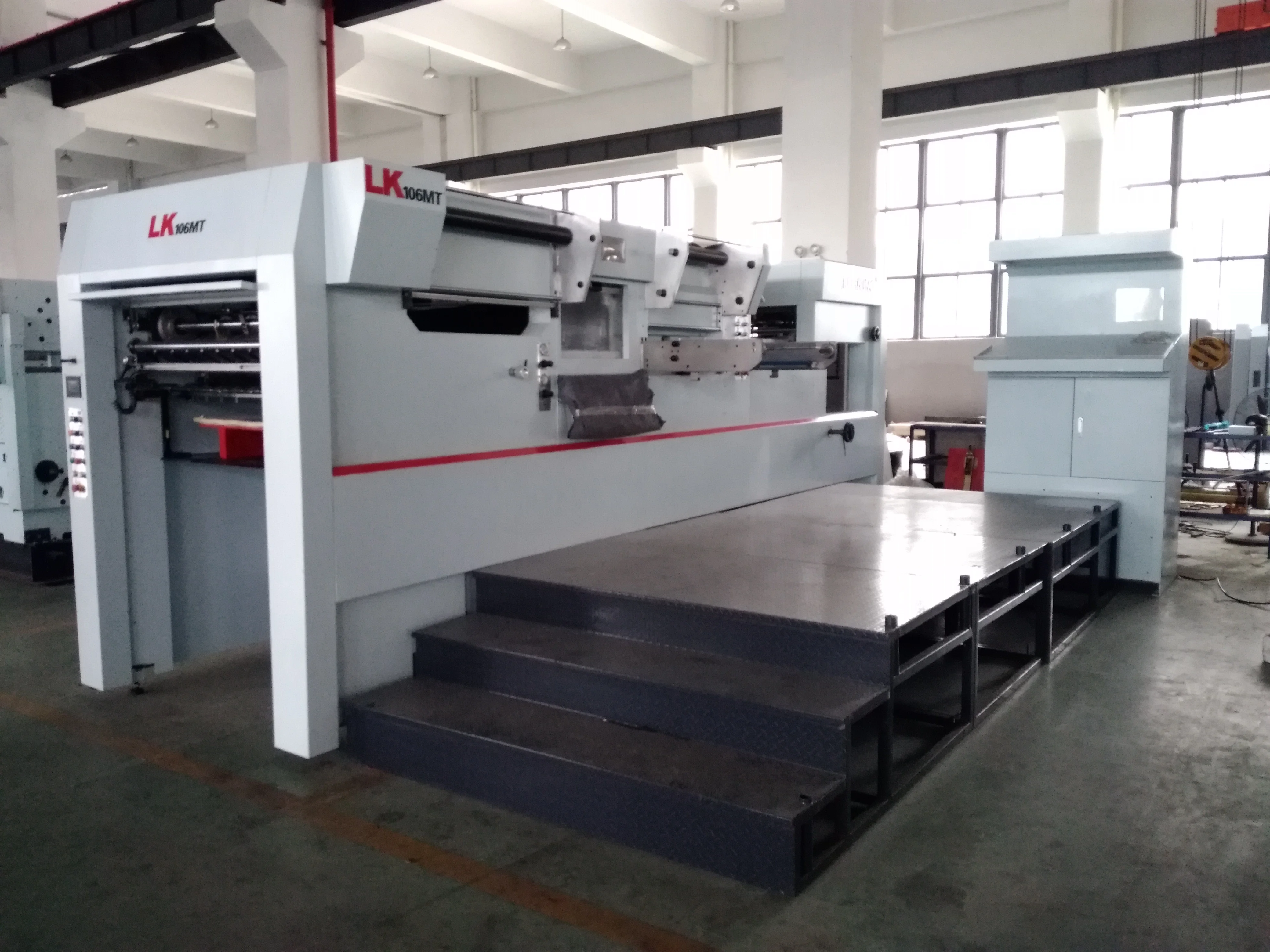

LK 106MT

Automatic Foil Stamping and

Die Cutting Machine (5 Groups Foil Feeding)

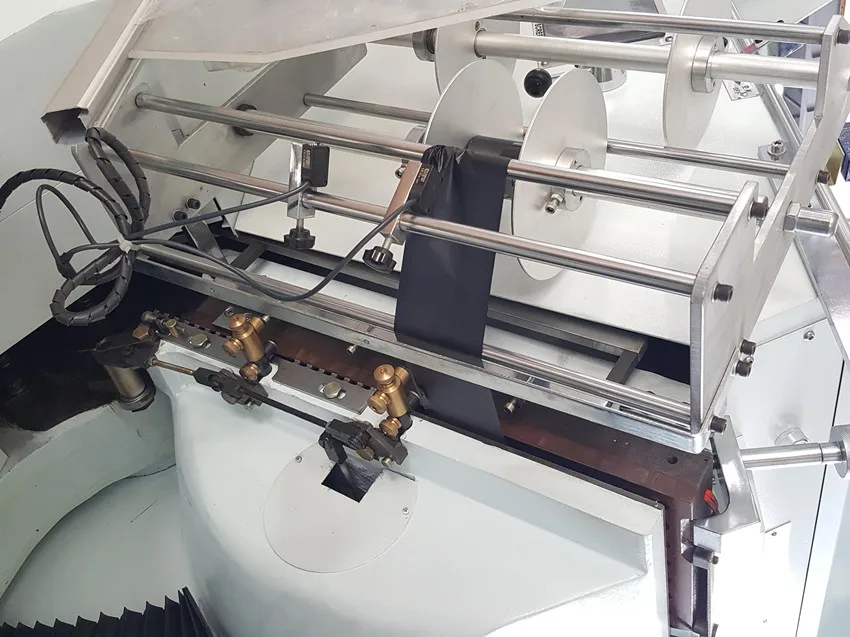

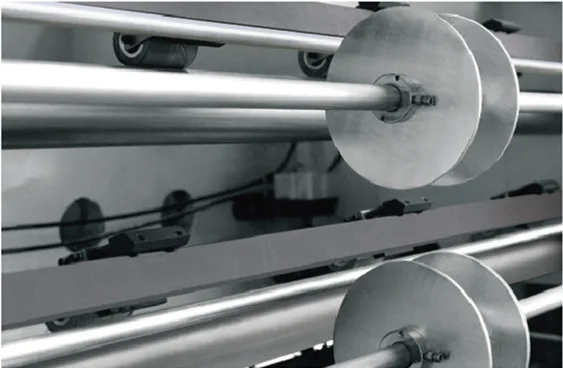

The machine is equipped with 3 sets longitudinal and 2 sets lateral foil feeding system, to ensure the foil feeding stable, accurate, reliable tension controlling, less stretching, the foil feeding difference is only about 1mm. The waste foil collecting hair wheel is driven by imported servo motor, which ensures the high speed, stable, precise stamping work. Strong heat-resistant special material formed and processed honeycomb plate, could be located at any position. The heat-resistant stick and the anti-side-moving special block lay, making the stamping more accurate and perfect. 12 individual temperature controlling zones, independent researched and developed "PID" precise controlled heating system, to keep the stamping molds temperature be stable, ensure the whole heating system's temperature control be more equal and fast response.

\t
TECHNICAL PARAMETER
\t
Max. sheet size
\t
1060*770mm
\t
Min. sheet size
\t
450*370mm
\t
Max. die cutting size
\t
1050*750mm
\t
Max. stamping size
\t
1050*750mm
\t
Gripper margin
\t
8-17mm
\t
Paper range
\t
90-2000g/m² (cardboard) 0.1-2mm (cardboard) ≤4mm (corrugated)
\t
Maximum cutting force
\t
300T
\t
Max. mechanical speed
\t
7500s/h
\t
Max. stamping speed
\t
6500s/h
\t
Foil pulling shafts, longitudinal 3, transversal 4
\t
Zones individually heated
\t
24 heating zones (each zone can be adjusted independently, max 200 degree)
\t
Max. foil longitudinal diameter
\t
250mm
\t
Max. delivery pile height
\t
1200mm
\t
Max. feeding pile height
\t
1350mm
\t
Main motor power
\t
11kw
\t
Machine power
\t
46kw
\t
Machine weight
\t
17000kg
\t
Overall machine dimensions
\t
6050*4200*2260mm
\t
Air requirements
\t
0.6Mpa, >0.37m³/min
Detailed Images
Packing & Delivery
Our Company


TO SUCCEED BY QUALITY,


TO DEVELOP BY INNOVATION

Zhejiang GUANGYA Machinery Co.,Ltd is a specialized manufacturer with a long history producing hot foil stamping and die cutting machinery. Since its establishment, our company have always been insisting on policy "Assure Success By Quality, Integrity Based", and placed stress on new product development and continual improvement. On designing machine, we adopt high and new technology from home and abroad; on producing, we have accumulated abundant experience over 21 years, and we keep on launching on the market our "SHIWEI" (Lion Power) brand series of hot foil stamping and die cutting machine with high quality.

Our machine is extremely popular in our domestic market and it is already exported to over 70 countries and territories as far as Europe, North America, Latin America, Southeast Asia, Middle East , Oceania and Africa.

Our target is to survive by quality, to develop by innovation, we are willing to strengthen cooperation and exchange idea with all clients, becoming your ideal partner by our superior quality and service, and creating brilliant future together.

Exhibition&Pictures
Hot Products
Contact Information


Our company reserve the right to revise product technical parameter without previous notice; all colors of machines could be customized.
