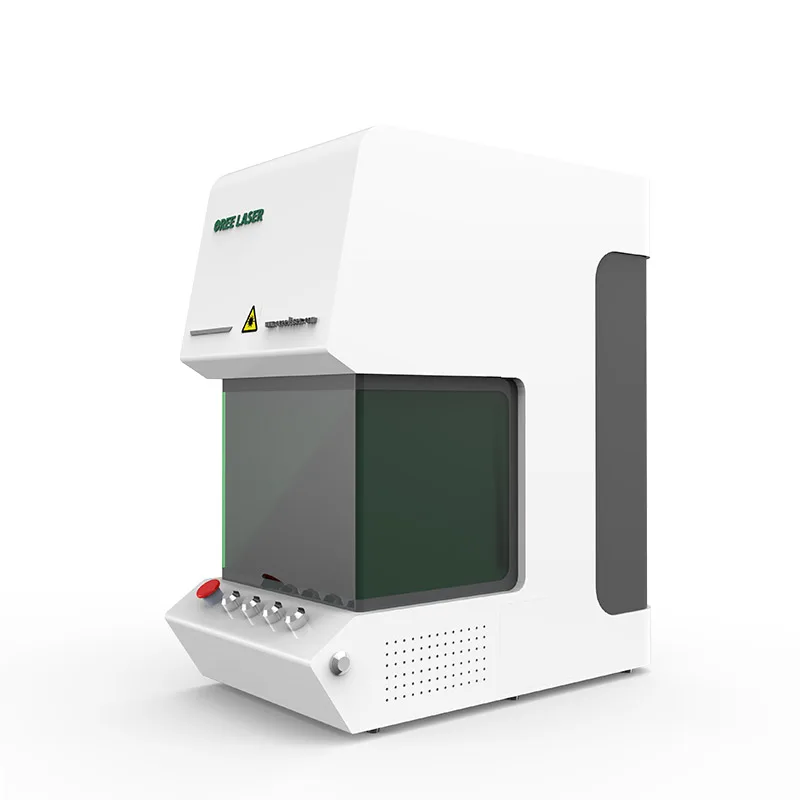

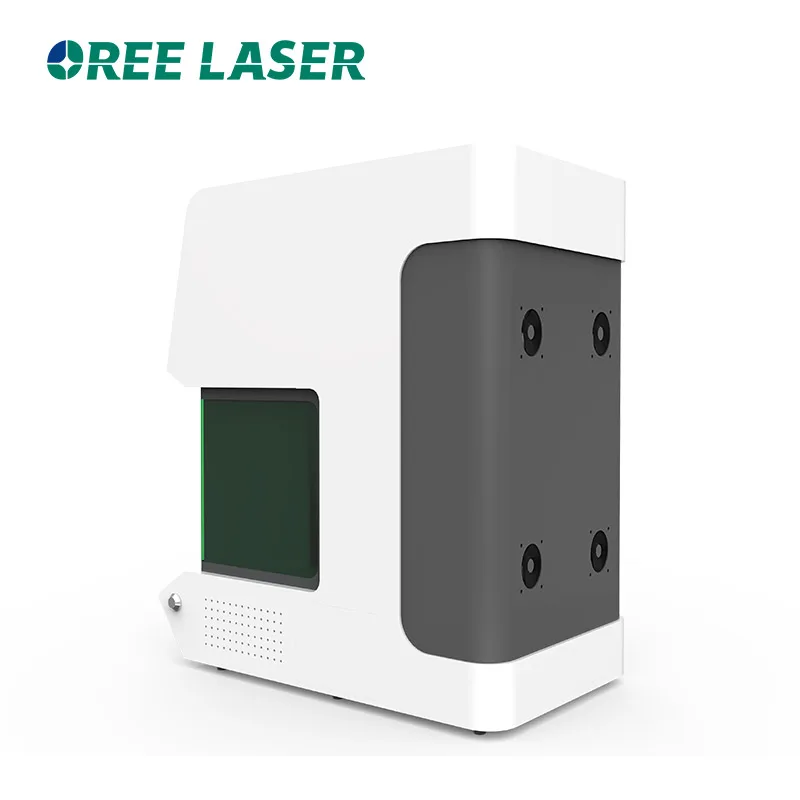

Лидер продаж в Америке и Европе, волоконная лазерная маркировочная машина для металла 20 Вт 30 Вт 50 Вт

Share on (60686207950):


Price:3 000,00 $ - 3 800,00 $

Quantity:


Product Overview

Description



Product Description

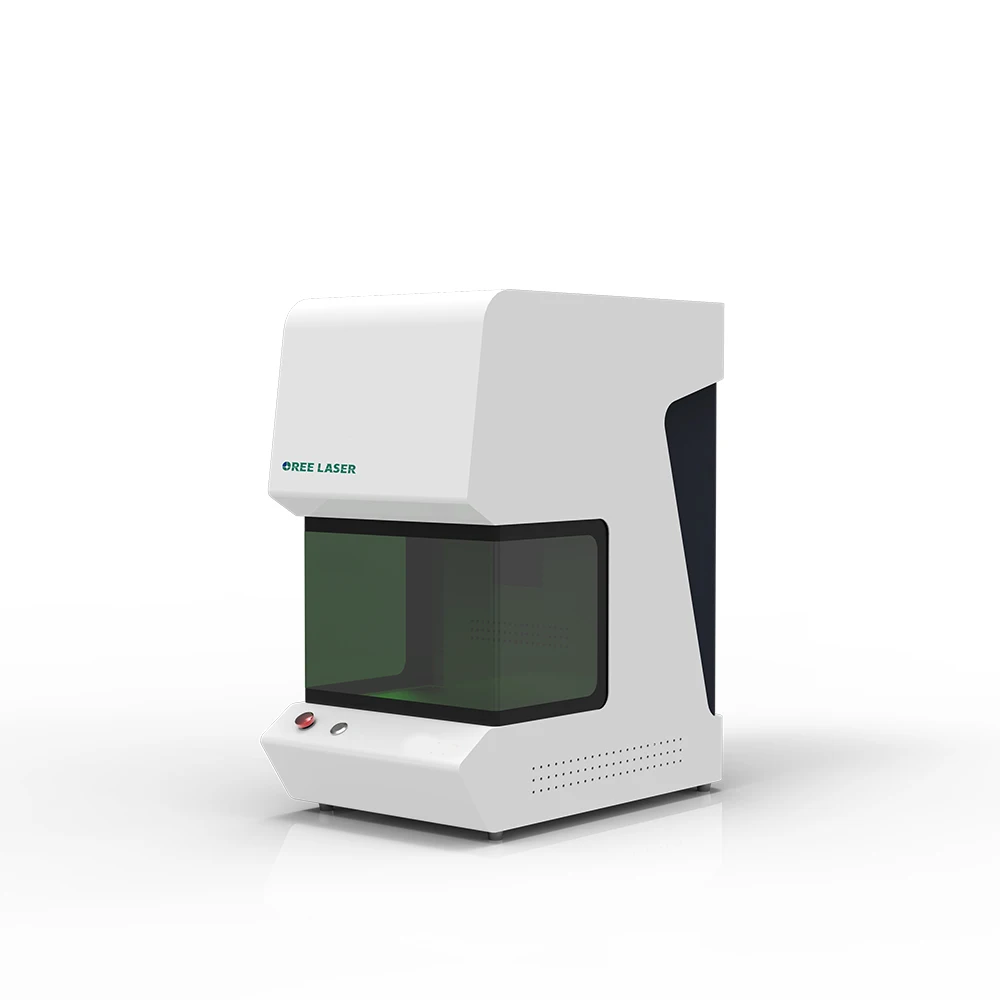

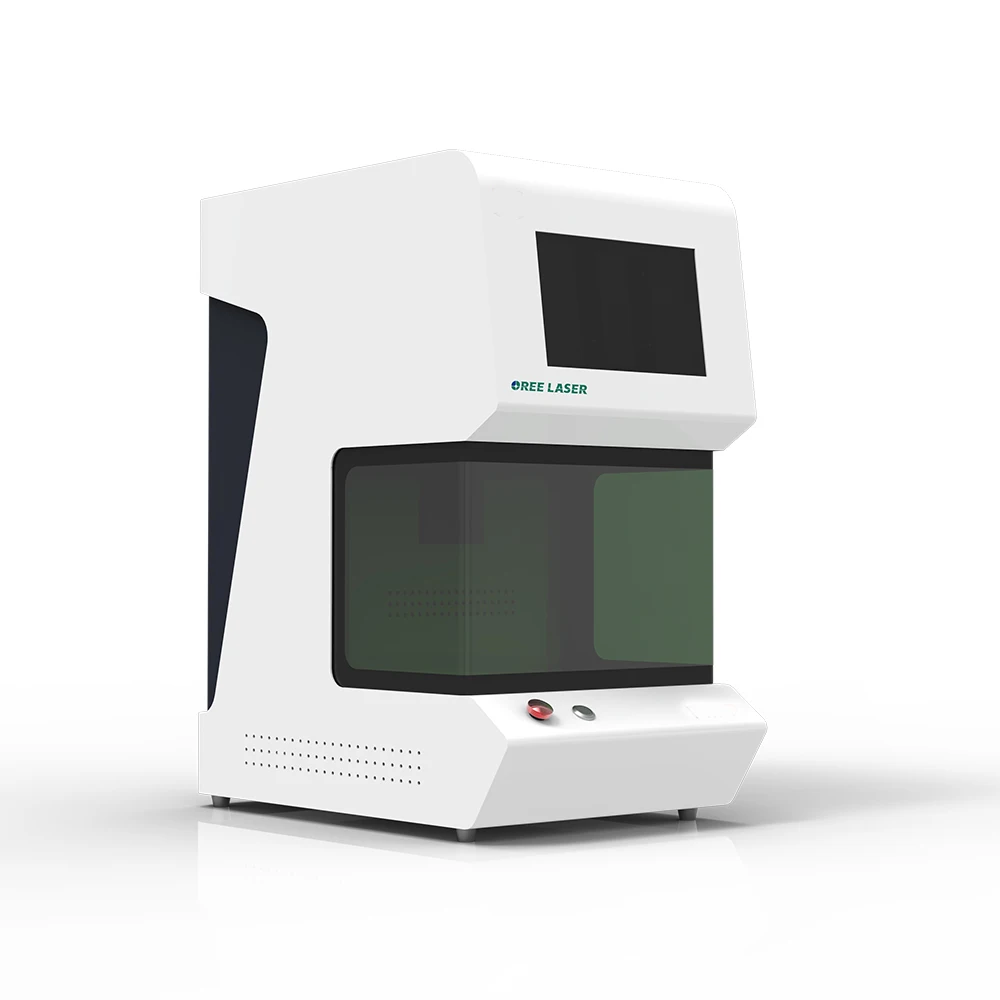

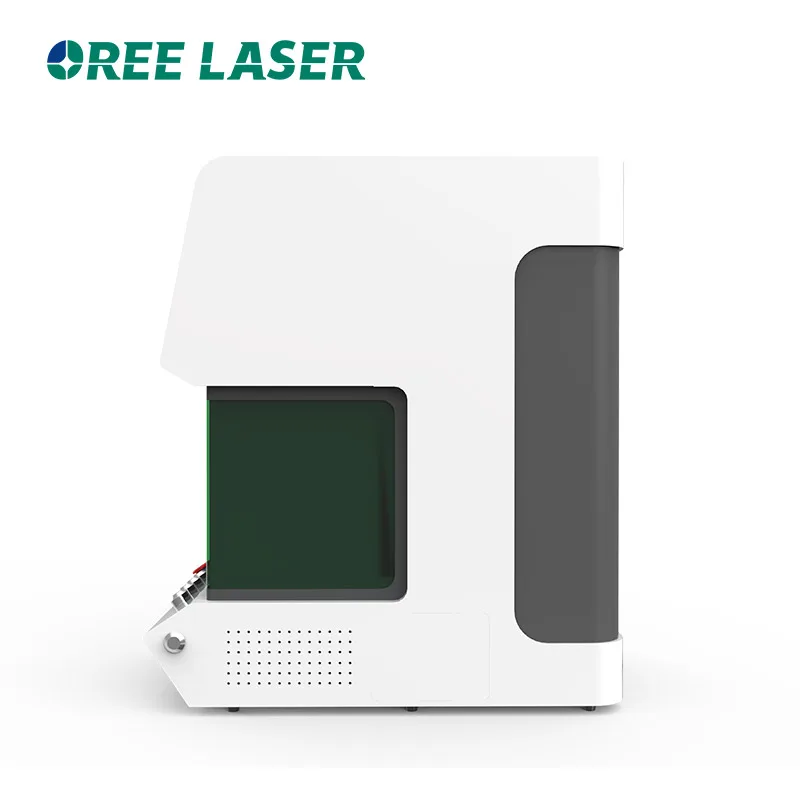

Protective laser marking machine with computer

OD4+ European standard laser protect glass.

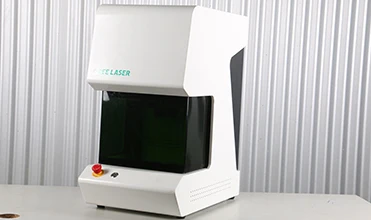

Protective fiber laser marking machine

OD4+ European standard laser protect glass.



· Onekey marking;

· Automatic focus control: Machine can detect the thickness of the workpiece automatically;
·
Flexible variable text: Changes the text real time while in laser processing, excel datasheet is supported;
· Image processing: Grayscale, White / Black Transformations;
· Opening language supporting system: Makes it easier to run the software in various languages platform.



Data Paremeter


Model
R-P
Working Area
100*100 mm/200*200 mm
Laser Power
20W/30W/50W
Marking Line Speed
≤7000 mm/s
Frequency
20KHz-80KHz
Laser Wavelength
1064nm
Minimum Line Width
0.02mm
Minimum Character
0.15mm*0.15mm
Working Voltage
220V/50HZ , 110V/60HZ
Graphic Format Supprted
BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc
Repeatability Accuracy
±0.01mm
Unit Power
<0.5kw
Laser Module Life
>100000 hours
Warranty
24 Months


Detailed Images

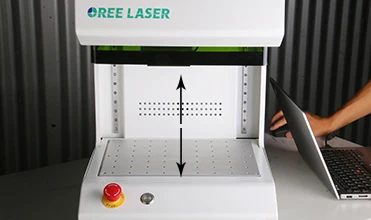

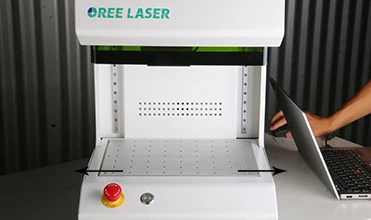

Automatic Lift Door

Safety, easy to operate.

The door will be automatic lifting down before work start and lifting up when finishing marking, laser source will be automatic cut off once the door be opened while machine working;

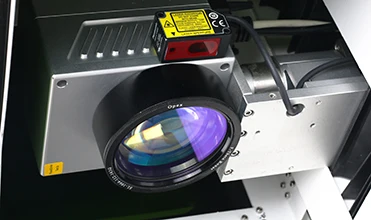

Auto Focus System

The machine comes with the PLC(Programmable Control System), Proximity Sensor, when marking, it can adjust the focus length itself.



Machine Size not Have Limitation

Machine can be applied on long tube and big work sheet.



Scanning Galvanometer

Germany SCANLAB galvanometer.

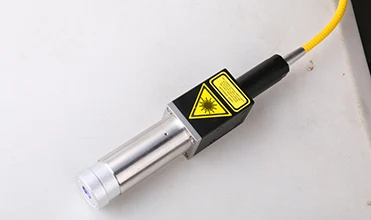

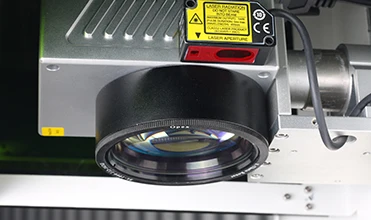

Laser Apperture

Nice design, durable in use.



Laser Protective Glass

Anti-radiation to better protect your eyes, dust proof function.



Application


Industry:

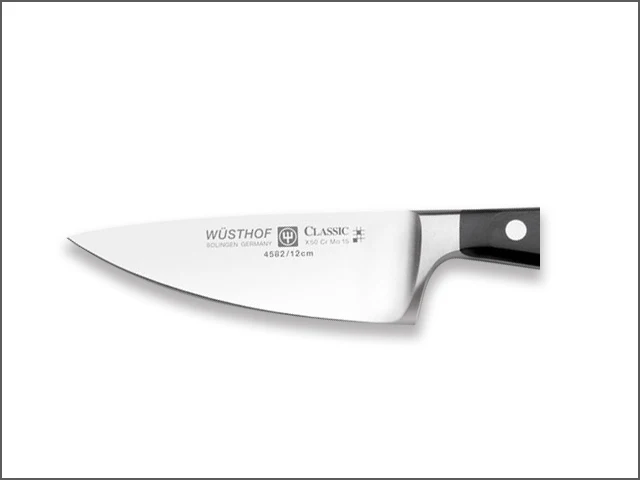

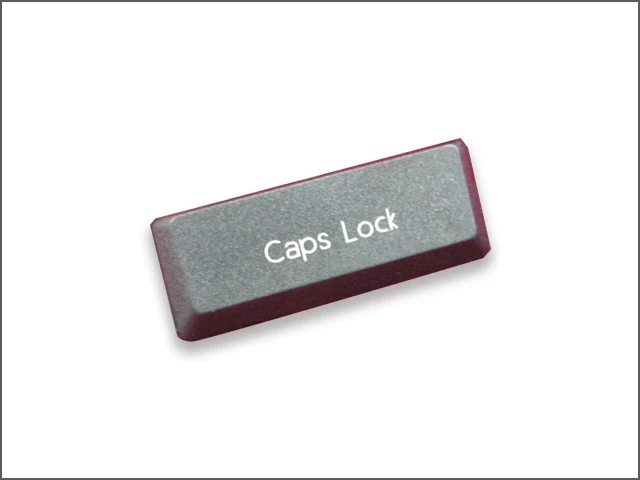

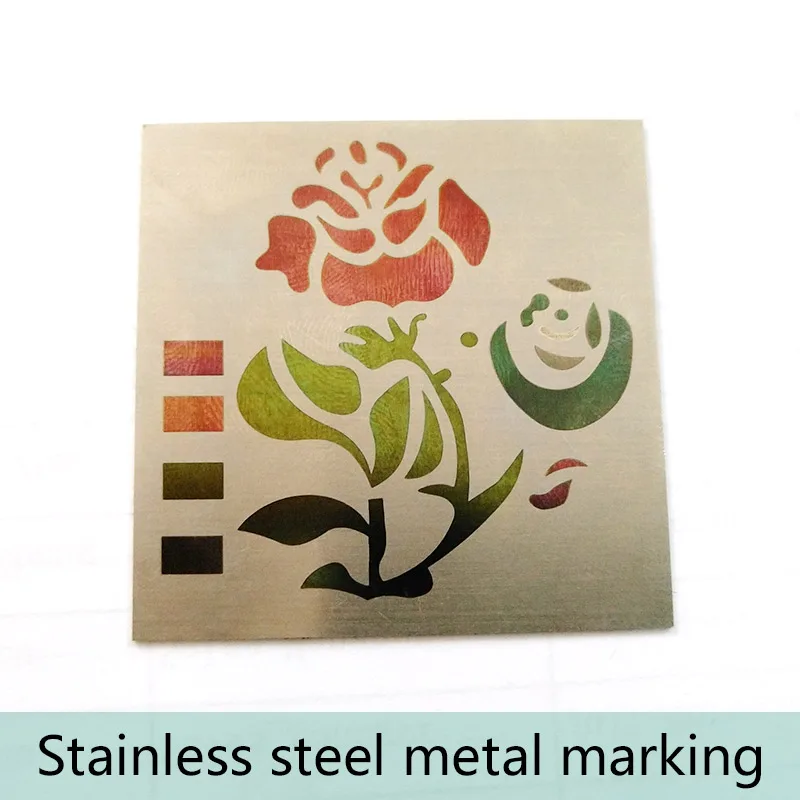

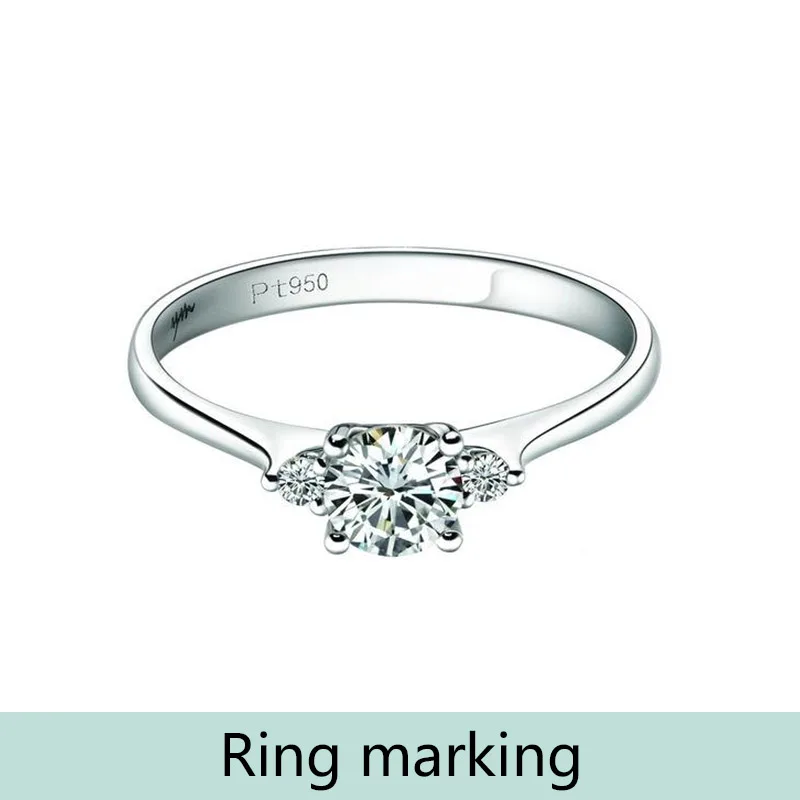

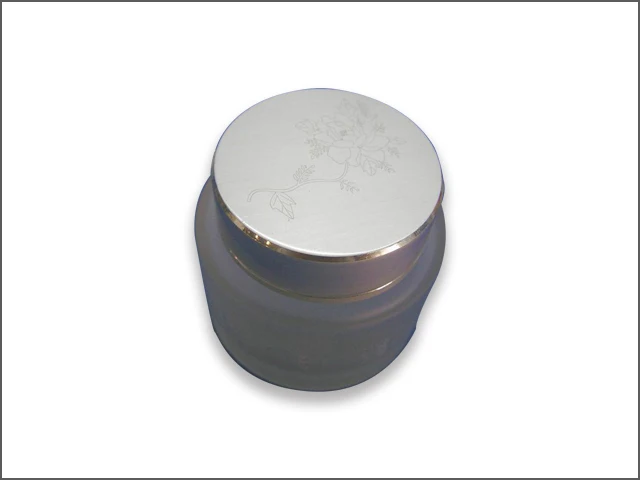

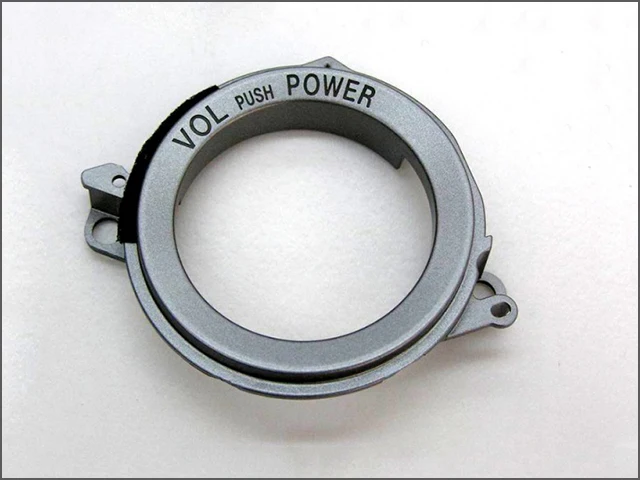

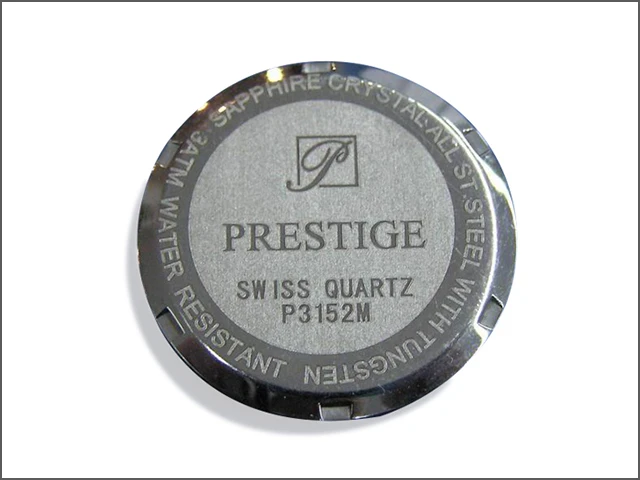

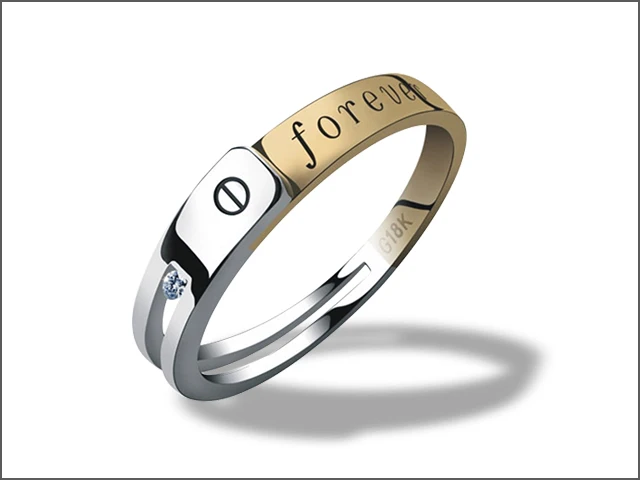

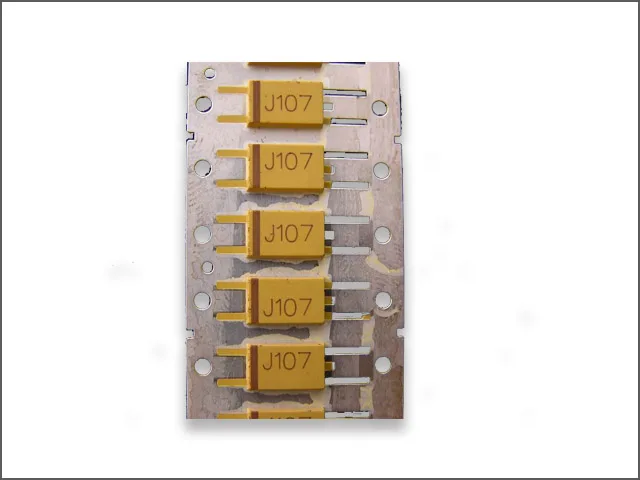

· Suitable for electronic components, integrated circuits, electrical appliances, communication products, sanitary ware, tools, accessories, knives, glasses, clocks, jewelry, auto parts, luggage buckles, kitchen utensils, stainless steel products and other industry products, etc.For artistic, clear and permanent identification mark.


Material:

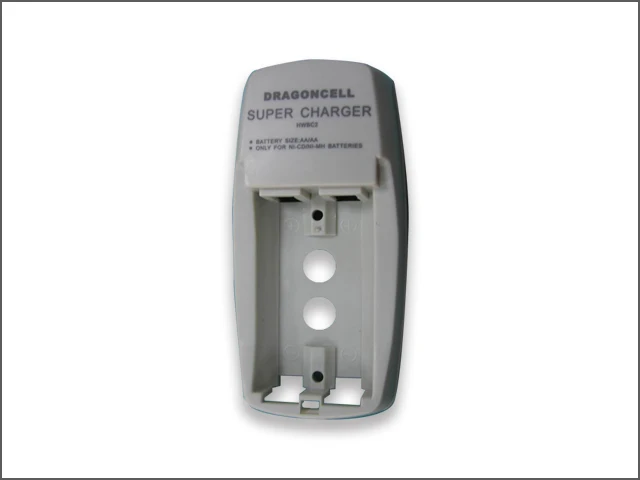

· Suitable for engineering plastics, electroplating materials, coating materials, rubber, epoxy resin, ceramic, ABS, PVC, PES, copper, titanium, steel and other materials surface for artistic, clear and permanent identification mark.







Packing & Delivery




Professional package of laser cutting machine:

1. Whole film packaging machine;

2. Anti-collision package edge;

3. Fumigation-free plywood wooden box and pallets with iron binding belt.



OREELASER Service


FAQ


Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity can reach 5,000 sets.

Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we will give you support with our heart and soul.

Q: How do your factory do regarding quality control?
A: Quality is priority. Each OREE laser machine will be tested by 24 items. After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE.



About OREELASER

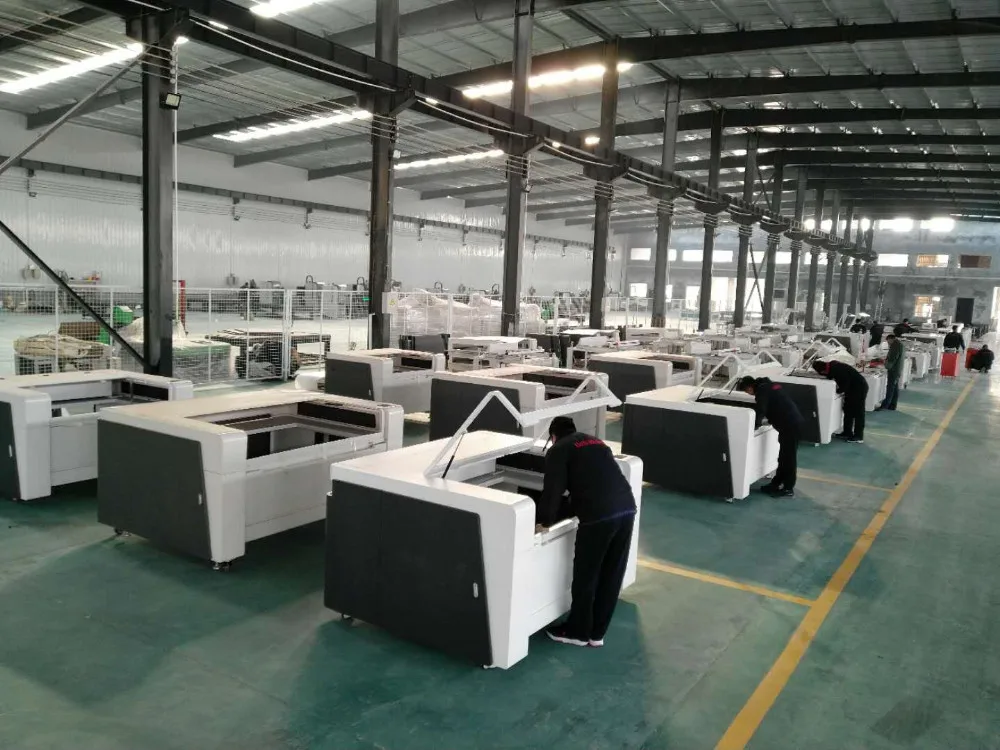

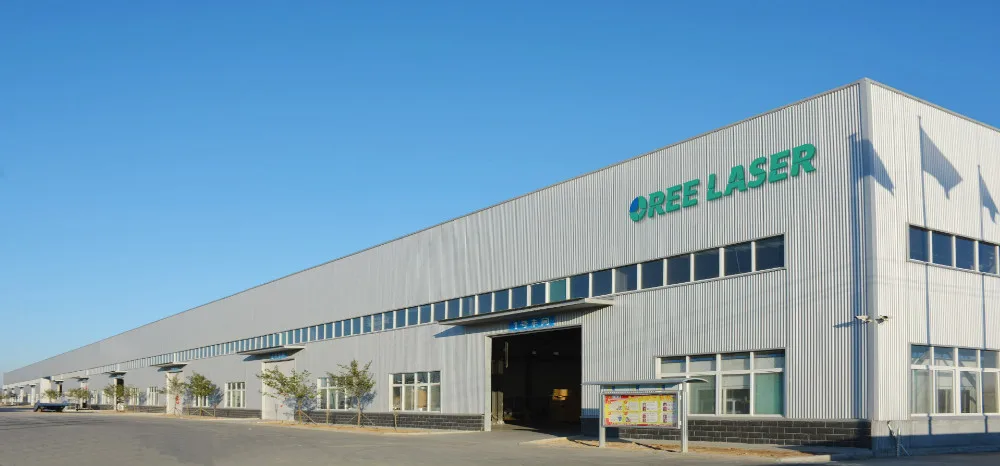

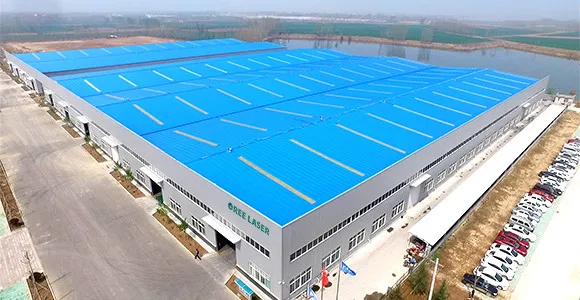

OREELASER are the subsidiary company of Shandong OYADE group, located in Jinan North economic development zone, JiYang industrial park, owns 300 employees, 1000 square meters research and develop center, 42000 square meters workshop.


OREELASER has several machine models, including Laser Cutting Series, Laser Engraving Series, Laser Marking Series and so on.


All these equipments have been widely used in the production of electronic appliances, integrated circuits,
telecommunication equipments, computers, auto parts, glass and optical units, construction materials,
medical devices, jewelries, packaging materials, crafts, fashion and clothing, urban illumination and
other fields.

Each product from Oree Laser is strictly examined according to ISO9001 (QCS) standard before it is put on to the market. Many laser equipment series have acquired CE certificate.






OREELASER focus on customer value, creates more superior cusotmer value than competitors. Our products are sold to USA, Canada, Australia, Europe, South east Africa ect, more than 80 countries and area.

As a model enterprise of laser intelligent manufacturing equipment, Oree Laser has been providing key technology and pertinent integrated solutions for Industy 4.0 and future factories, helping enterprises to carry out intelligent manufacturing, making intelligent manufacturing to change our work within touch.

Welcome to test us. Join us! We are looking forward to forming successful business relationships with new clients around the world in the near future.
