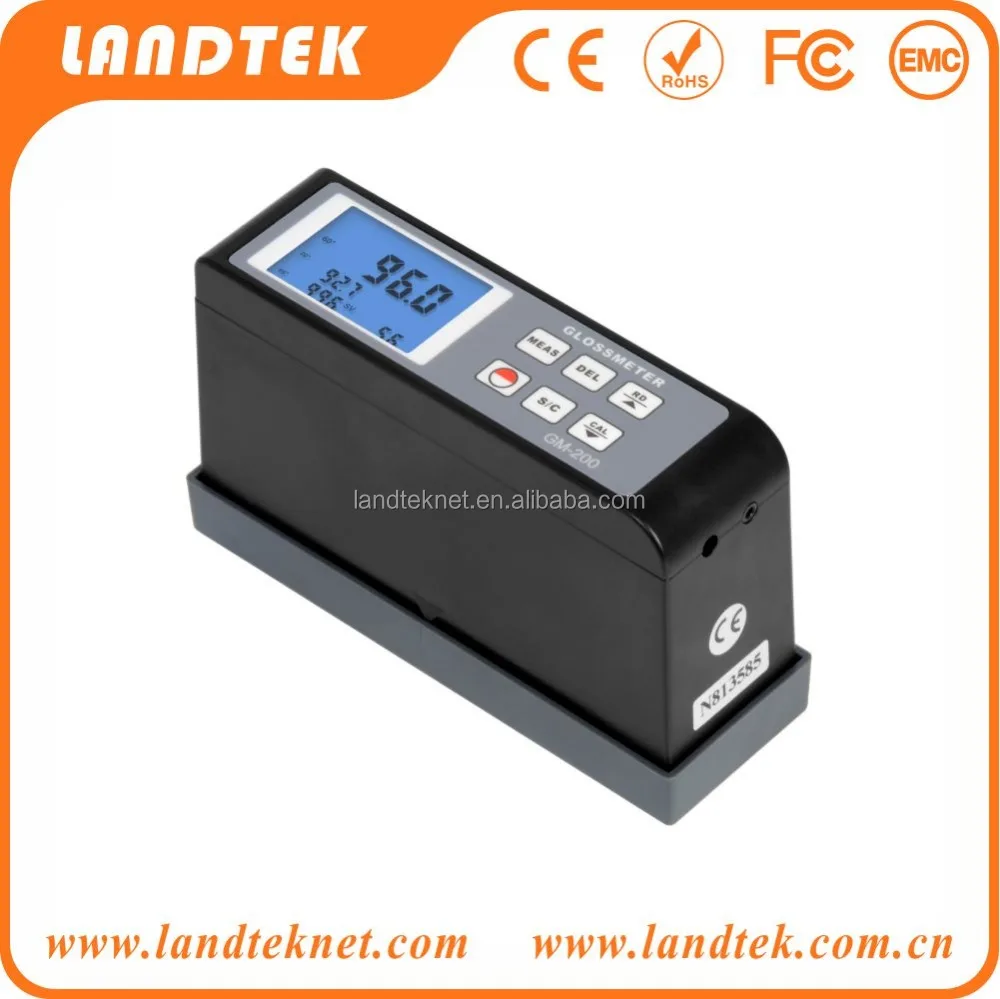

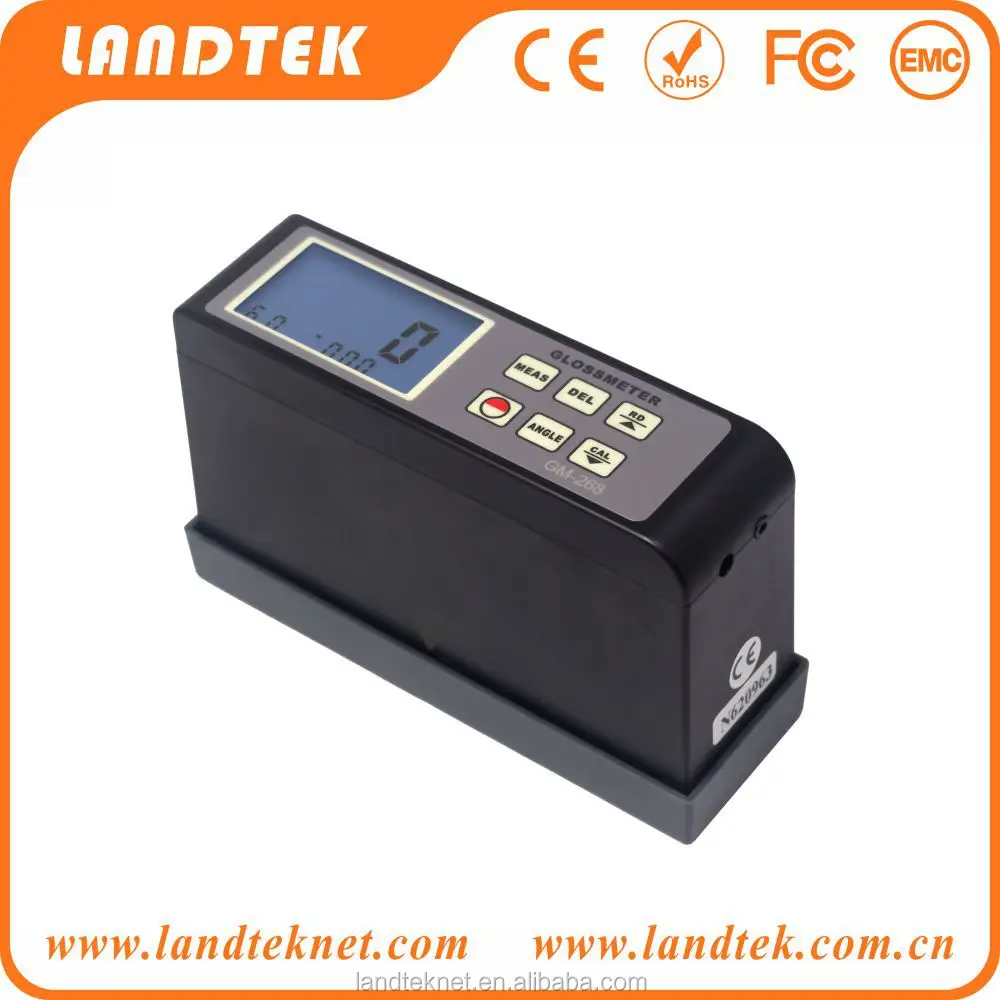

Multi angle Coating Paint Gloss Meter GM 200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.
Multi-angle Coating Paint Gloss Meter GM-200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.

Multi angle Coating Paint Gloss Meter GM 200 (20 60 85 degree),display gloss value of 20, 60,85 degree at the same time.

Share on (60686429331):


Price:$170.00 - $210.00

Quantity:


Product Overview

Description





Spec: Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement.


* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.


* Accurate measurement, good repetitveness.


* Small in size, easy to carry.


* Auto calibration.


* Intelligent design, rapid measurement.


* Able to store 56 groups of measurements.


* Can display gloss value of 20°, 60°, 85° at the same time.


* Built-in lithium ion rechargeable battery.


* Backlight display, suitable for low light environment.


* Use USB data output to connect with PC.


* Provide BT data output choice.





* 20°: High gloss paint, printing ink, plastics, paper and other materials.


* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.


* 85°: Low gloss paint, camouflage coatings materials.

















































































Display



4 Digits Backlit LCD



Measuring Angle



20º/60º/85º



Range



0.1~200 Gloss Units



Gloss Units



GU



Accuracy



±1.0GU



Resoltuion



0.1



Repeatability



±0.5GU



Measuring Area



7x14mm(Ellipse)



Data Memorized



56 Groups



Operating Conditions



Temp:0~40ºC      Humidity:<85%RH



Power Supply



3.7V Lithium Ion Rechargeable Battery



Dimensions



140x45x75mm



Weight



310g(Including Batteries)

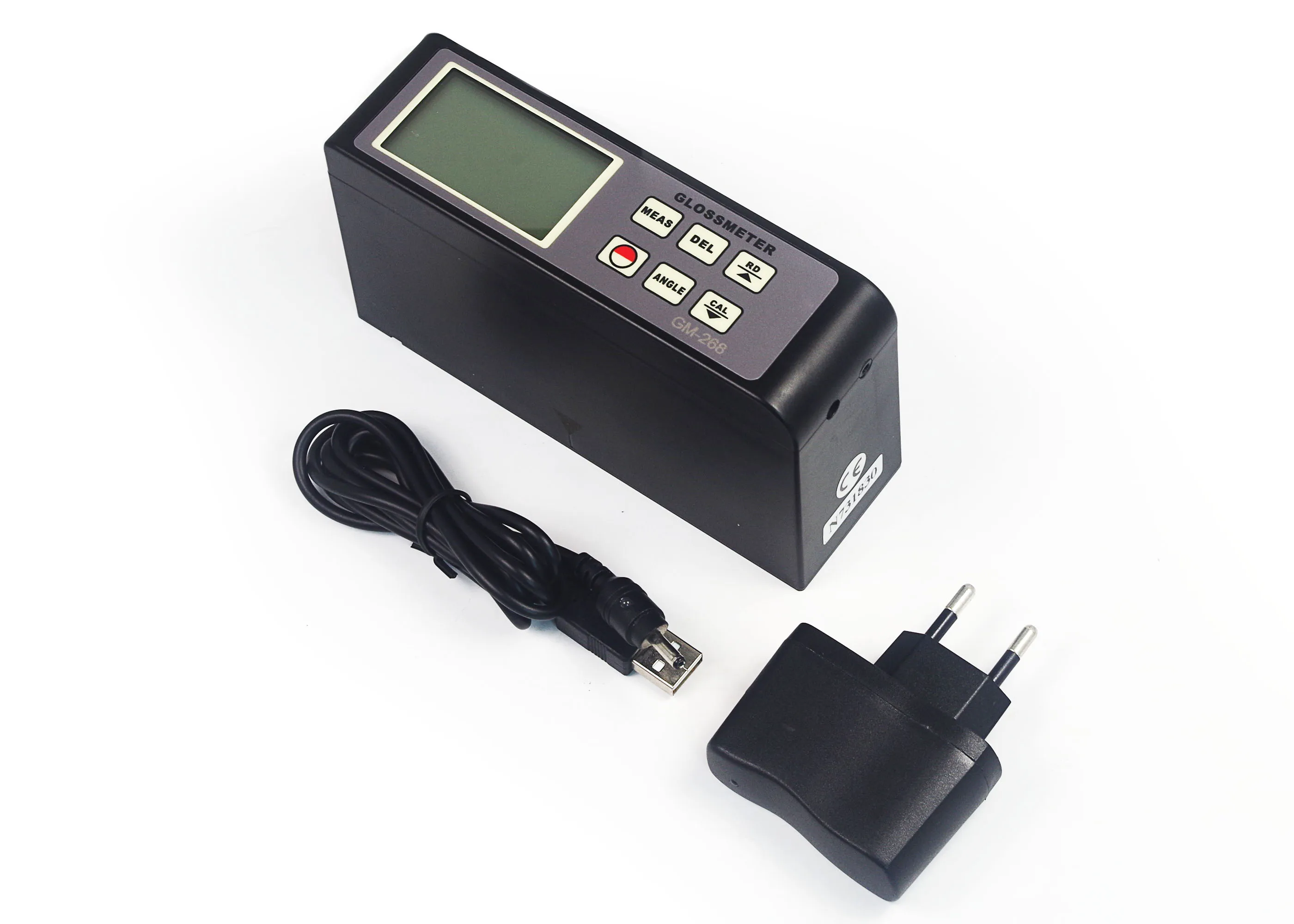

Standard Accessories



Main Unit



Holder with Calibration Standard



AC Adapter



Optical Cleaning Cloth



Carrying Case



Operation Manual















Optional Accessories



USB Data Cable with Software



BT Data Adapter with Software
