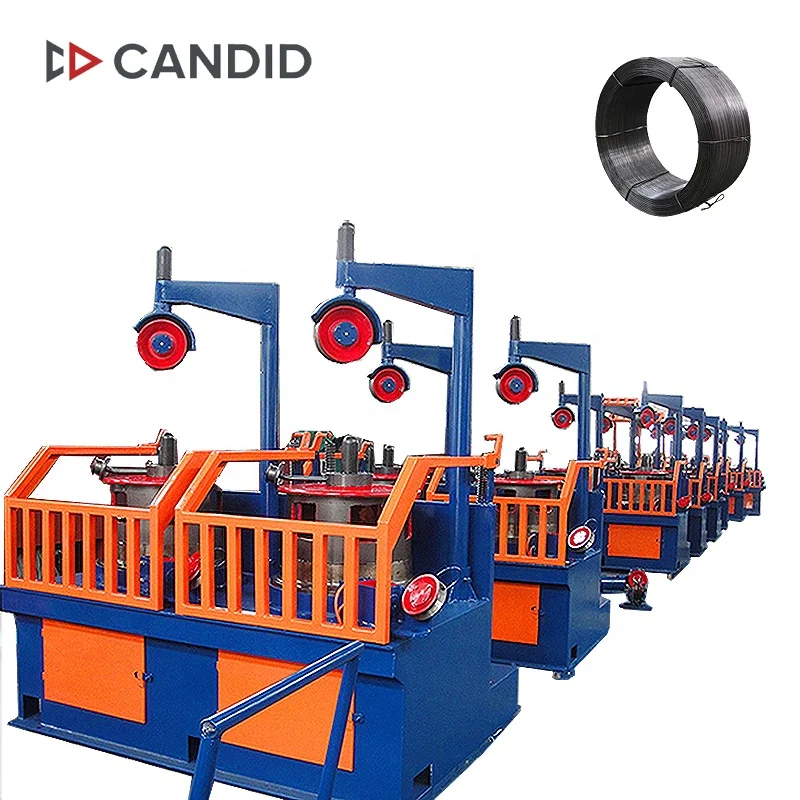

Станок для волочения проволоки колесного типа

Product Overview

Description

Continuous Wire Drawing Machine

Type	560	550	450	350
Material Intensity	δb≥110kg/mm2	120kg/mm2	128kg/mm2	δb≤140kg/mm2
Max. Dia. Of Inlet Wire	6.5mm-4.4mm	6.5mm	4mm	2.6-1.5mm
Min. Dia. Of Outlet Wire	2.6mm-1.8mm	2.2mm	1.6mm	1.2-0.8mm
Block	1	1	1	1
Max. average condensation	0.3	20%	20%	21%
Total Condensation	78-88.5%	78%	77.90%	78%
Max. Speed of Block	245m/min	260m/min	280m/min	200m/min
Total Power	22/30kw	18.5/22kw	11/15kw	5.5/7.5kw

Accessory Equipment

Name	Model	Range of Dia.
Discharging Machine
Pointing Machine	F-96	6.5-1.5mm
Pointing Machine	F-80	3.5-1.0mm
Butt-Welding Machine	UN-10	8--2mm
Butt-Welding Machine	UN-3	6.5-1.5mm
Butt-Welding Machine	UN-1	3.5-1.0mm
Automatic Discharging Machine	XB-600	capacity 800kg
Automatic Discharging Machine	XB-360	capacity 400kg
I Type Spool Reeling Machine	SG-800	capacity 800kg
I Type Reeling Machine	SG-630	capacity 500kg
Descaling Machine	SW650
Motorless Descaling Machine	with steel brush
Well Type Furnace	RJ-90-9
