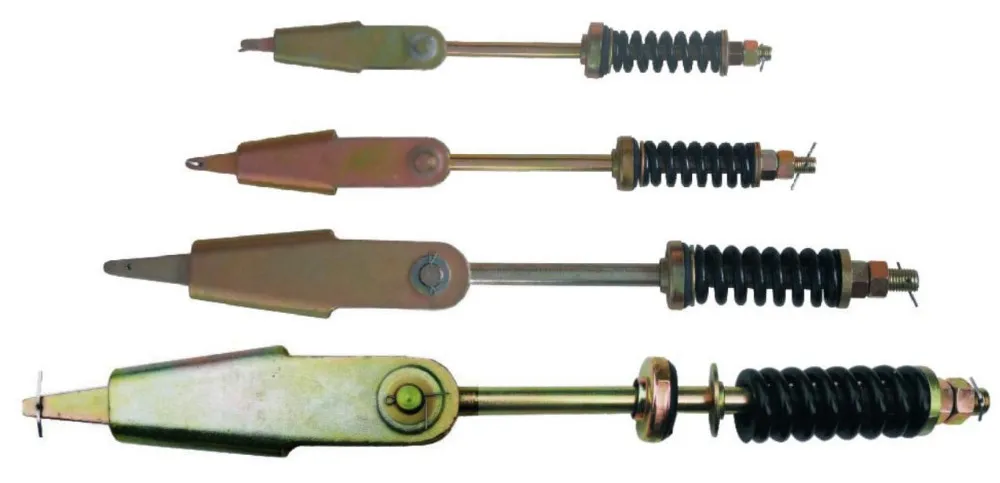

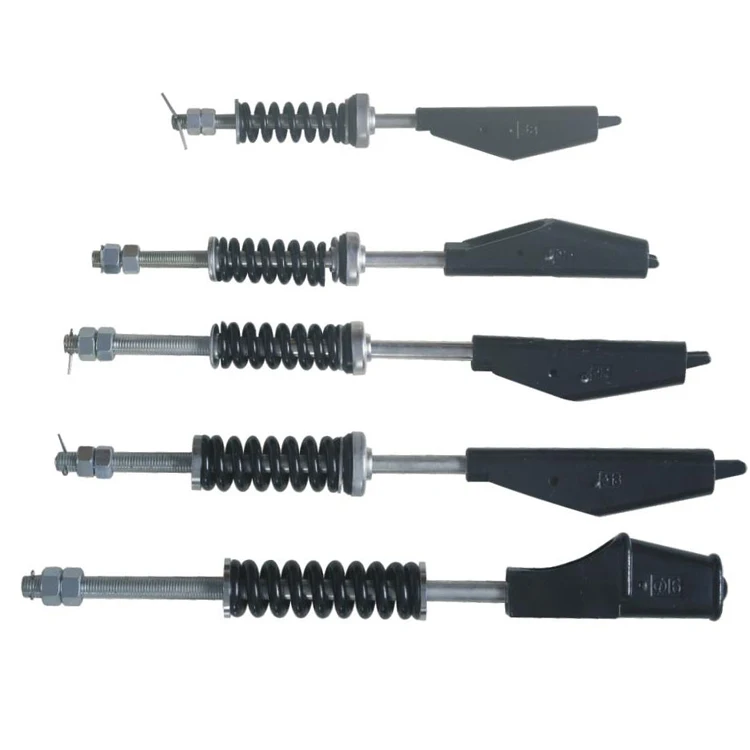

Elevator flexible rope fastening /spring rope fastening/rubber rope fastening

Share on (60687036957):


Price:RUB 226.02 - RUB 979.40

Quantity:


Product Overview

Description

Elevator flexible rope fastening /spring rope fastening/rubber rope fastening

Product Description



Descriptions of flexible rope fastening

* Reliableconnection between traction machine and the elevator car



* Stableconnection between counterweight and the spandrel girder



* Variouskind for option



* High quality and reasonable price

Specification of flexible rope fastening

Model NumberSN-HD Series SN-QSD Series
Length  435~595  mm375~620  mm
Specification of wire ropeΦ6~13 Φ8~16
(mm)
Length of taper bushes 150~230  mm160~218  mm
InstallationΦ26~30 Φ22~30
 D(mm)
Screw nut Md2(mm) M14~M20 M14~M20
Minimum Order Quantity1 pcs
Price4.55-11.51 USD/ PCS4.55-10.74 USD/ PCS
Payment TermsT.T, Western Union, Paypal, L.C
Supply Ability1000pcs/month
Delivery Time15 working days
Packaging DetailsStandard Export Package
Brand NameSUNNY
CertificationCE,ISO9001
Place of OriginChina



 Parameter of flexible rope fastening



Model No.Specification of wire rope
(mm)
Length
L(mm)
Length of taper bushes
B (mm)
Width of taper bushes
C (mm)
Installation
 D(mm)
Screw nut
Md2(mm)
SPRING ROPE FASTENING
SN-QSD8WΦ837516048Φ26M14
SN-QSD9.3WΦ9.339518054Φ26M14
SN-QSD10WΦ1049018054Φ26M16
SN-QSD11WΦ1149018054Φ26M16
SN-QSD12WΦ1251020060Φ26M16
SN-QSD13WΦ1358021862Φ30M18
SN-QSD16WΦ1662019076Φ22M20
FLEXIBLE ROPE FASTENING
SN-HD8WΦ6-843515045Φ26M14
SN-HD10WΦ9-1151018057Φ26M16
SN-HD13WΦ12-1359523074Φ30M20

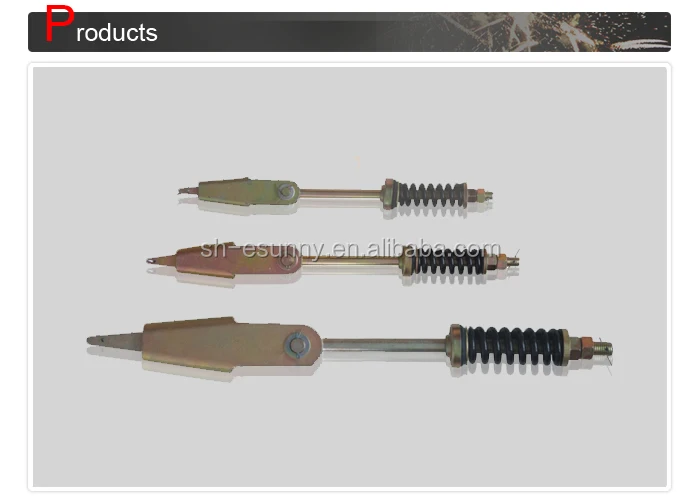

Picture of SN-HD Flexible Rope Fastening

7

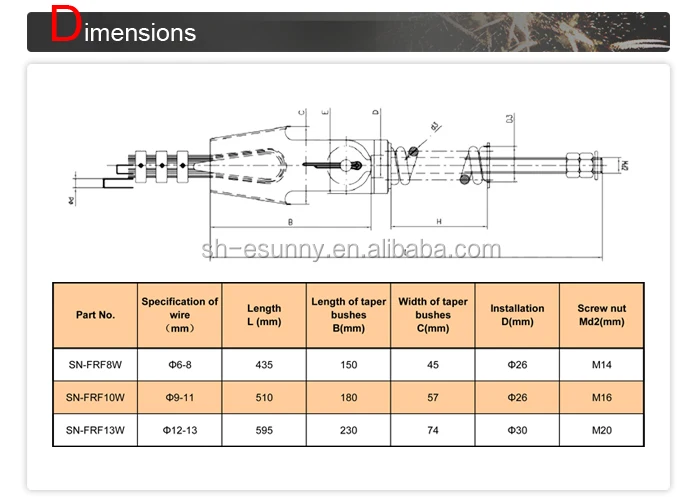

5

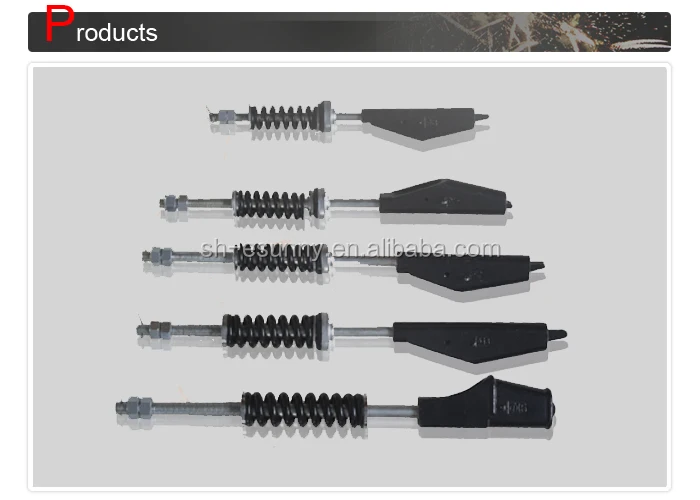

Picture of SN-QSD Spring Rope Fastening

8
6



Company Information

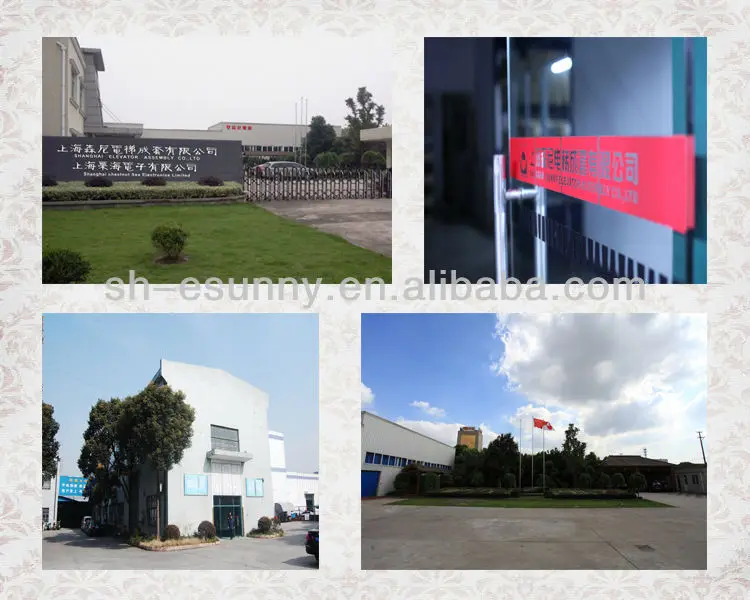

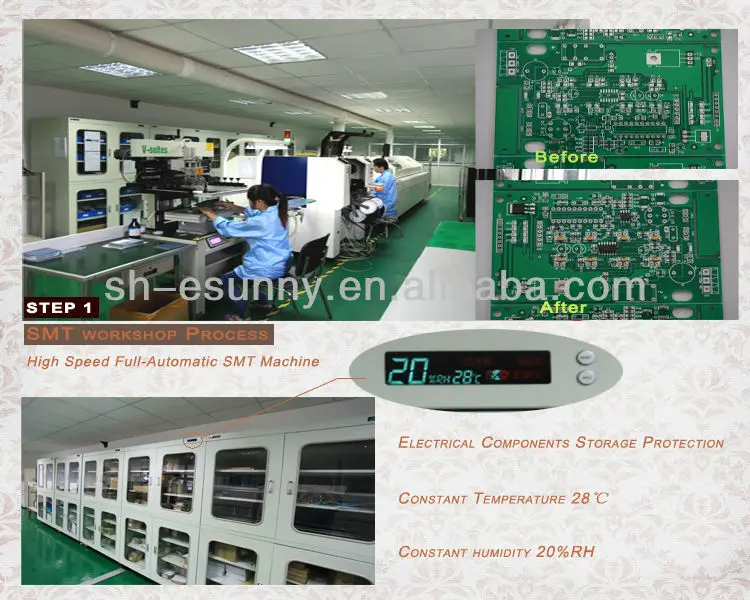

Shanghai Sunny Elevator Assembly Co., Ltd., Founded in 1992, is the exclusive enterprise that obtained the china compulsory certificate(CCC) for the light curtain series among our competitors . We specialize in developing and producing Opto-Electro-Mechanical products. Our equipments include SMT center, Plastics Machine Tools, Metallic Processing Machinery and many other equipments respectively used in key parts production, assembling line and quality detection. Such full range of equipments is rare in the field , which greatly increases our production flexibility and technological R & D capabilities. Eighteen years’ experience in the elevator industry ensures us to provide our clients reliable product quality, leading-edge technology and perfect after-sales service
