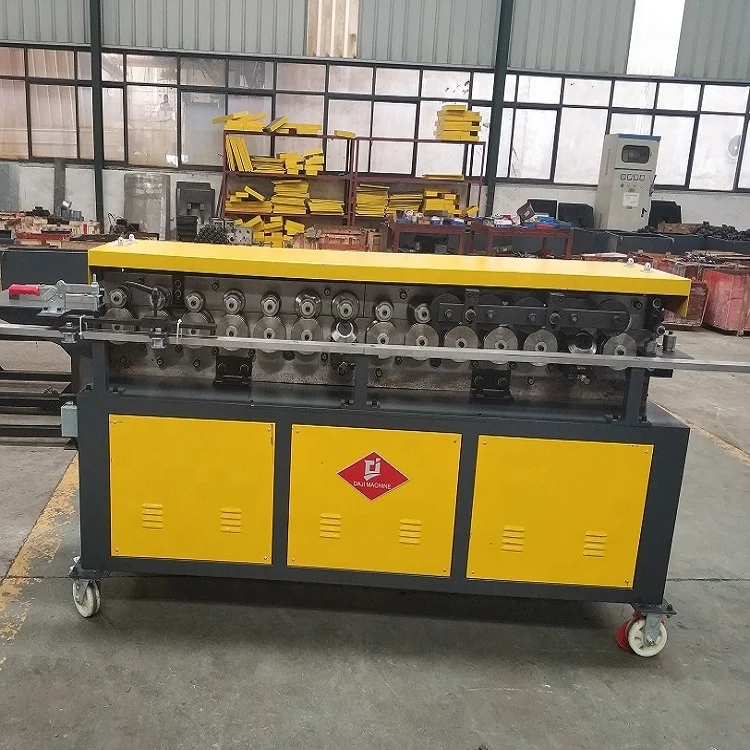

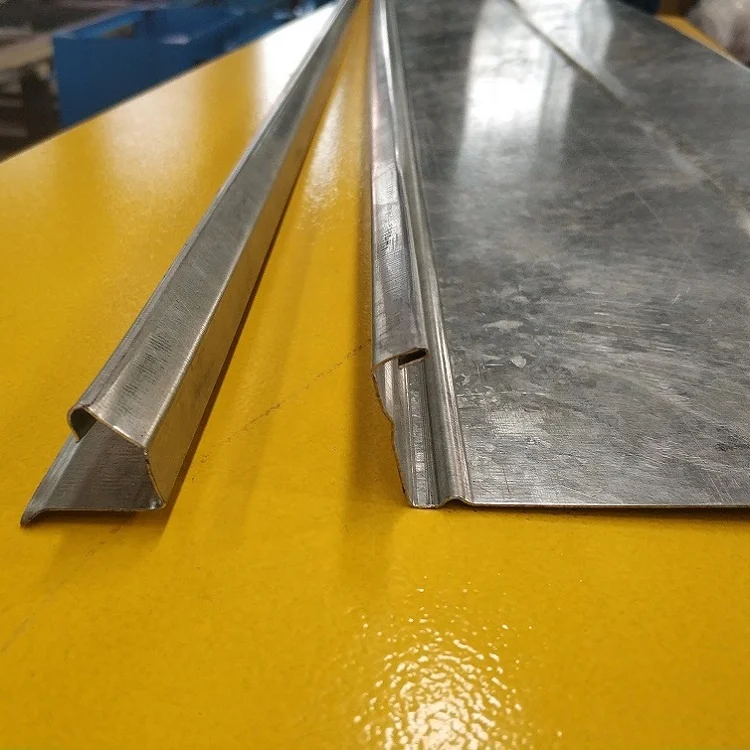

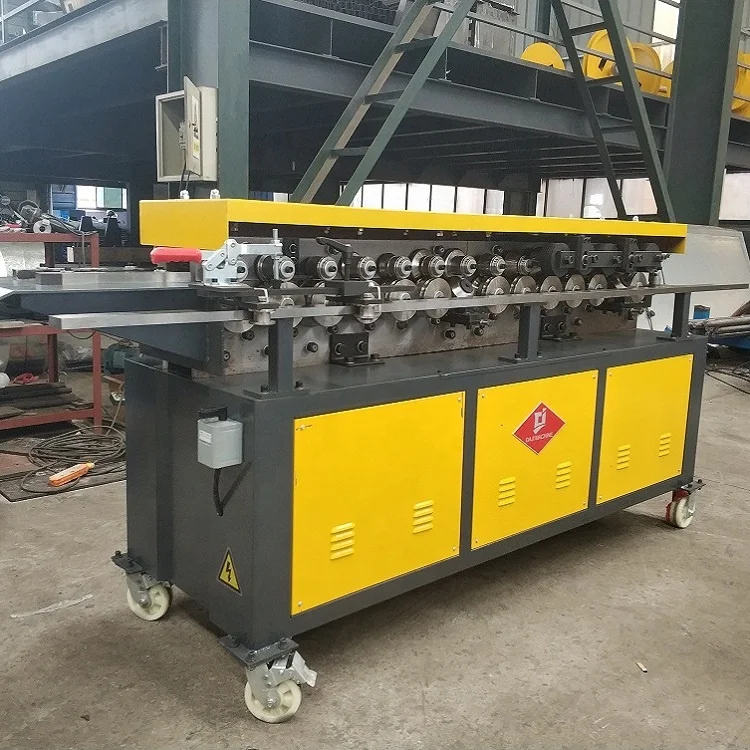

TDF flange machine can be divided into three types according to the working requirements: single type T-12 and T-15, duplex type 2-T-12. Single type machine like T-12 and T-15 can form flange edge at one side and crispening edge at the other side; duplex type like 2-T-12 can form flange edge at both sides simultaneously to improve efficiency and save time.

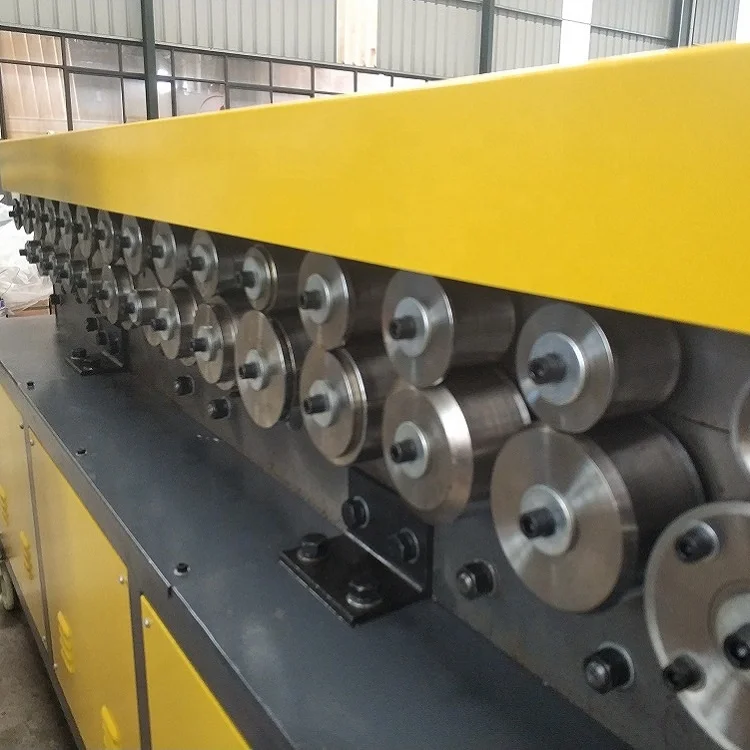

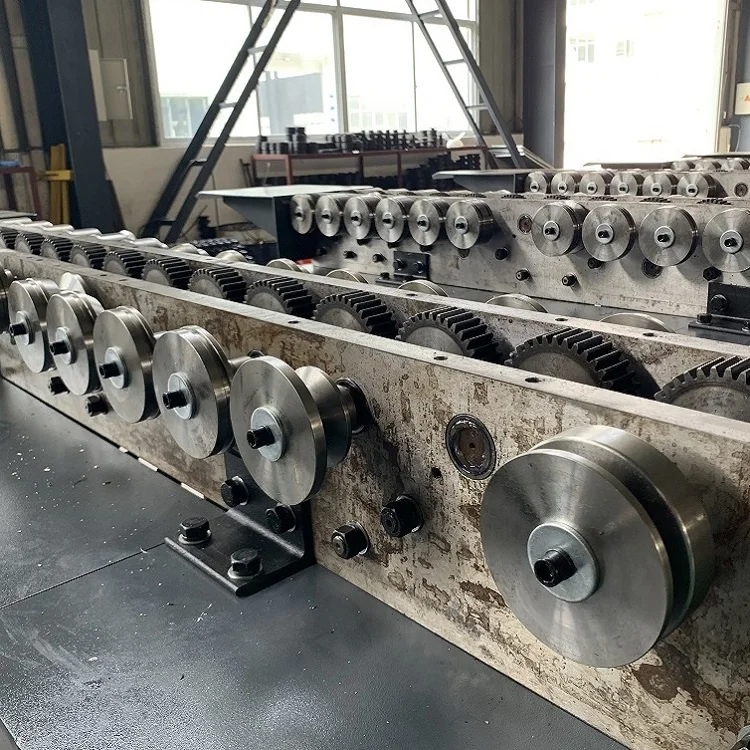

Additionaly duplex type can add flange edge or crispening edge outside at either side. Our company would specially introduce high-strength rolling reels made of GCr 15, a kind of steel which prolongs the machine life by more than 5 times and outputs stainless steel TDF flange.
Model
Sheet thickness
Shape
Power
Weight
Dimensions
L*W*H
T-12
0.5-1.2
3KW
840kgs
2700x700x1110mm
T-15
0.8-1.5
FAQ
1. Are you factory or foreign trade company?
We are industry and trade integration.
2. What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, it is very simple.
We have telephone and email support at 24 hours a day.
3. What are your payment terms?
We support T/T, L/C, Western Union and so on.
Other ways can also be received after we both sides discussion and agreement.
