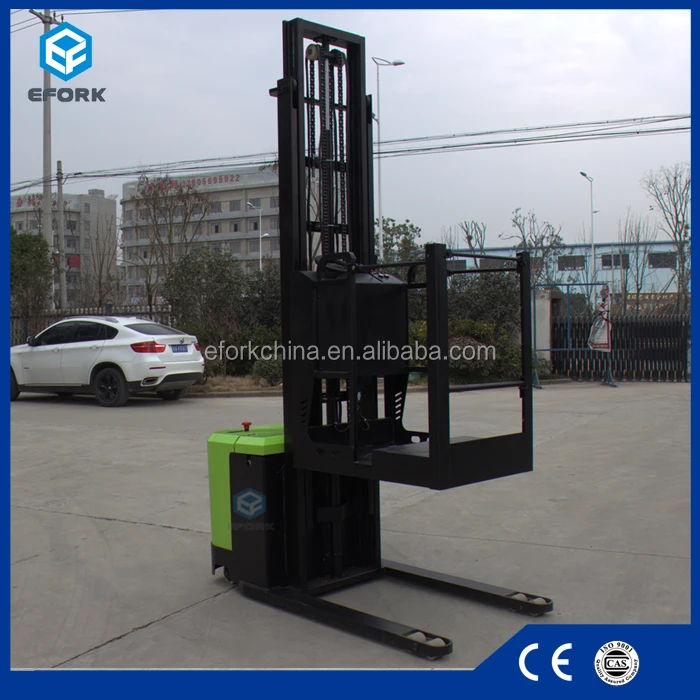

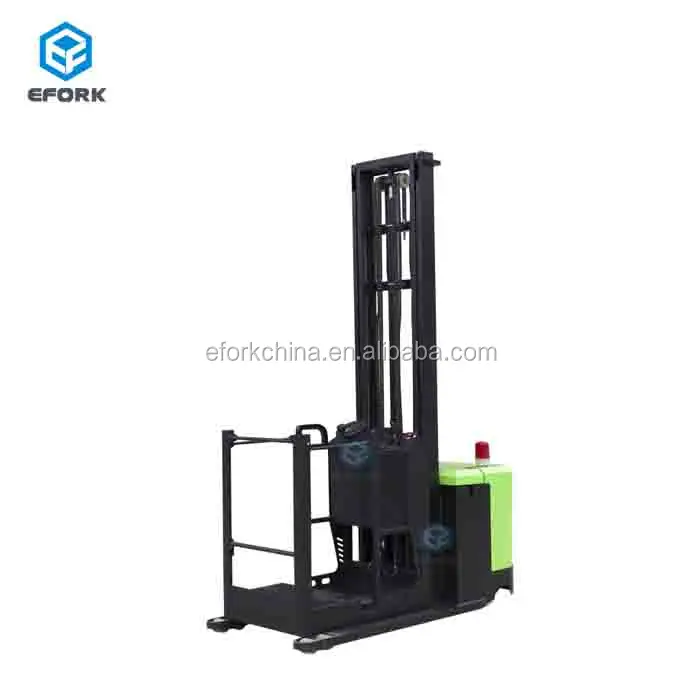

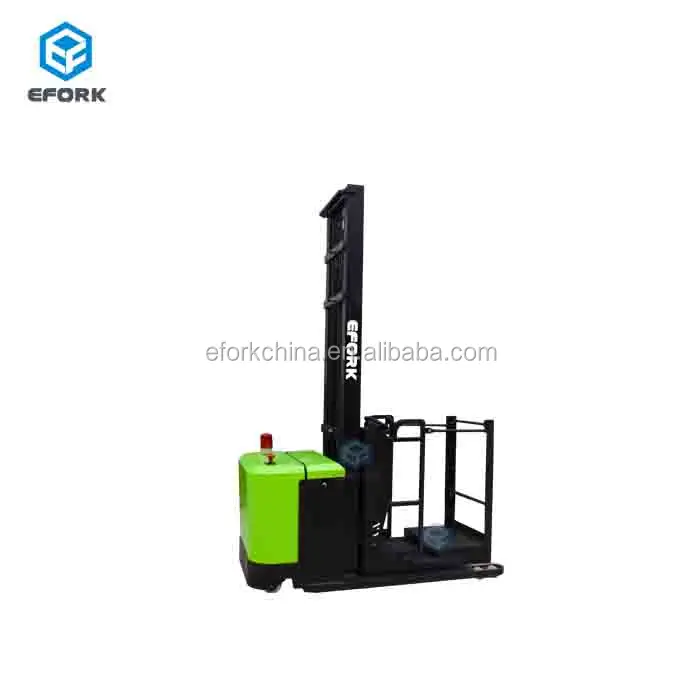

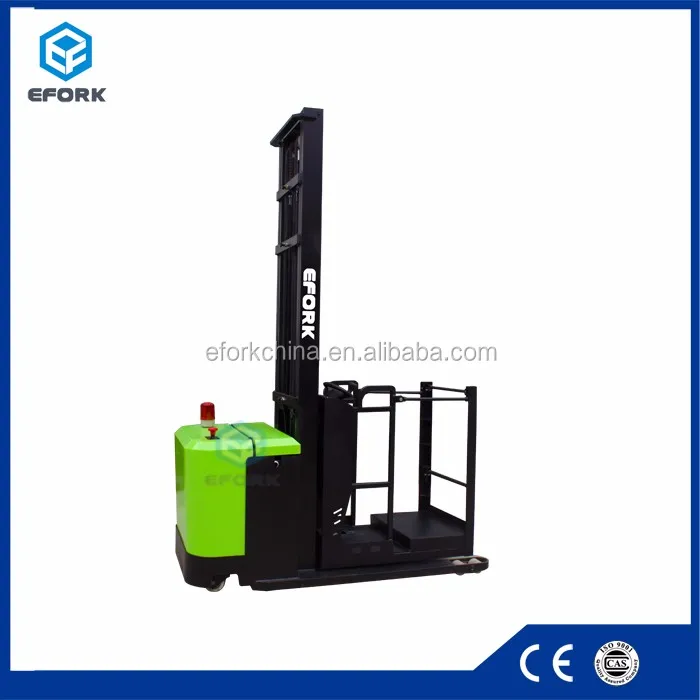

Electric Order Picker Capacity 1000 Kg Lifting height 4500 mm with imported Curtis controller and ZF Gearbox.High Efficiency Battery, Large Size Lifting Table
Features:
Compact structure,light weight and high mobility.Suitable for narrow aisle/worksite;
Brushless AC drive motor has distinguished climbing capacity;
Low voltage protection system can prolong battery's working life;
Dual protection leg structure assure the high safety of operators.
Products details:
STRONG Steel Frame,highly safer;
Ergonomic designed steering handle with comfortable layout controllers, assure operation convenient.
Large lift table and working space.
Large Pu tyre suitable for variety of pavement.Emergency power switch.
Need more produts and further information? Don't hesitate to contact us:
Website: www.eforkchina.com
Mobile:+86-18326192573
Technical Data:
Description
Electric Order Picker/Lift Table
Model
Unit
CDD10X-45
Rated Capacity
Kg
300
Max.Lift Height
H(mm)
4500
Load Center
C(mm)
500
Ground Clearance
mm
160
Material of Tyre
PU Solid Tyre
Table Size
mm
780*630
Overall Length
L(mm)
1910
Overall Width
S(mm)
900
Min.Overall Height
H1(mm)
2830
Max.Overall Height
H2(mm)
5600
Total Weight
Kg
1250
Min.Steering Radius
Wa(mm)
1785
Max.Travel Speed
Km/h
4.0/5.8
Grade Ability
%
3-6
Size of Driving Wheel
mm
∅230*75
Size of Front Wheel
mm
∅80*70
Size of Balance Wheel
mm
∅125*50
Battery Voltage/Capacity
V/Ah
24/210
Charger
V/A
24/30
Driving Motor
Kw
1.5
Lifting Motor
Kw
2.2
Walking Adjustable Type
Holzer Type Accelerator
Our Services
After-sale Service
All the product of EFORK supplied with one year or 1000 working hours(which occurs first) period quality warranty.Detail clauses and policies please check our website and consult our customer service executive.
Company Information
Anhui Yufeng Equipment Co.,Ltd
is an ISO 9001 accredited company which has been focusing on manufacturing&exporting Battery-powered Material Handling Equipment(MHE) for many years in China.With the strong capacity of R&D and manufacture,nowadays EFORK becomes one of the leading brand of battery-powered MHE at home&abroad.
We're a dedicated reputable company carrying our theme''Innovation,integration and enviroment friendly'',and we strive to privide only the best to our customers.Please allow us to support your handling/moving/lifting needs and you're welcome to visite our show room to view the products in details.
FAQ
1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, tow tractor, order picker etc?
Our equipment quality warranty is 1 year or 1000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Electric motor, CURTIS controller. Absolutely high quality.
5. How many colors of forklift you can supply?
Green, Orange, Yellow, Red. Or As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat, direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Anhui Yufeng Equipment Co.,Ltd
