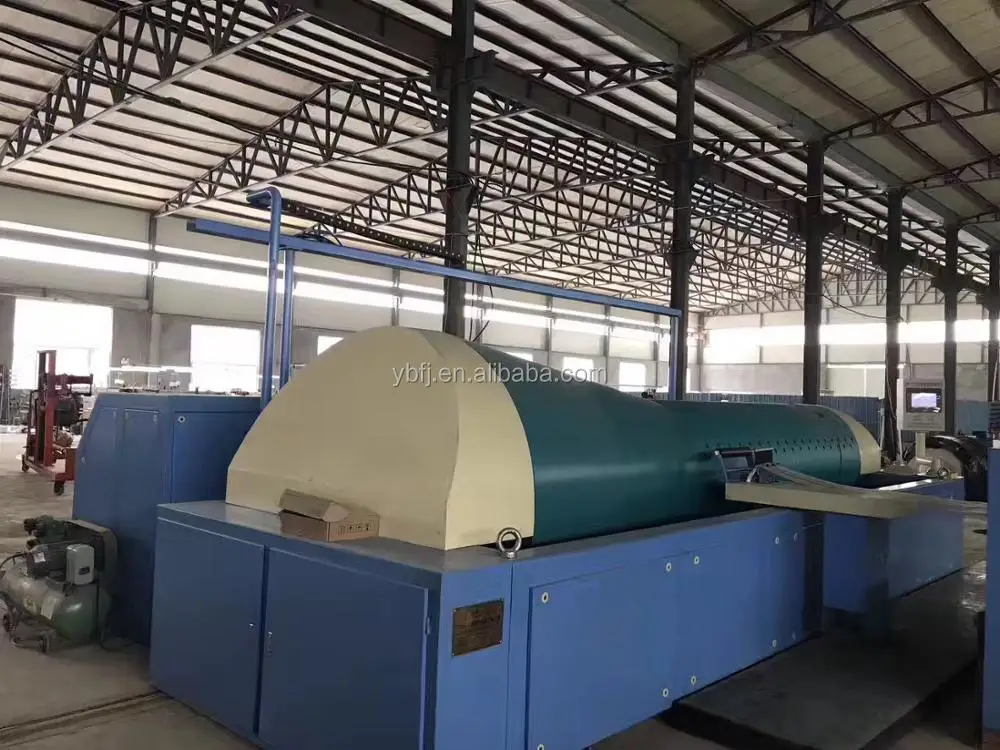

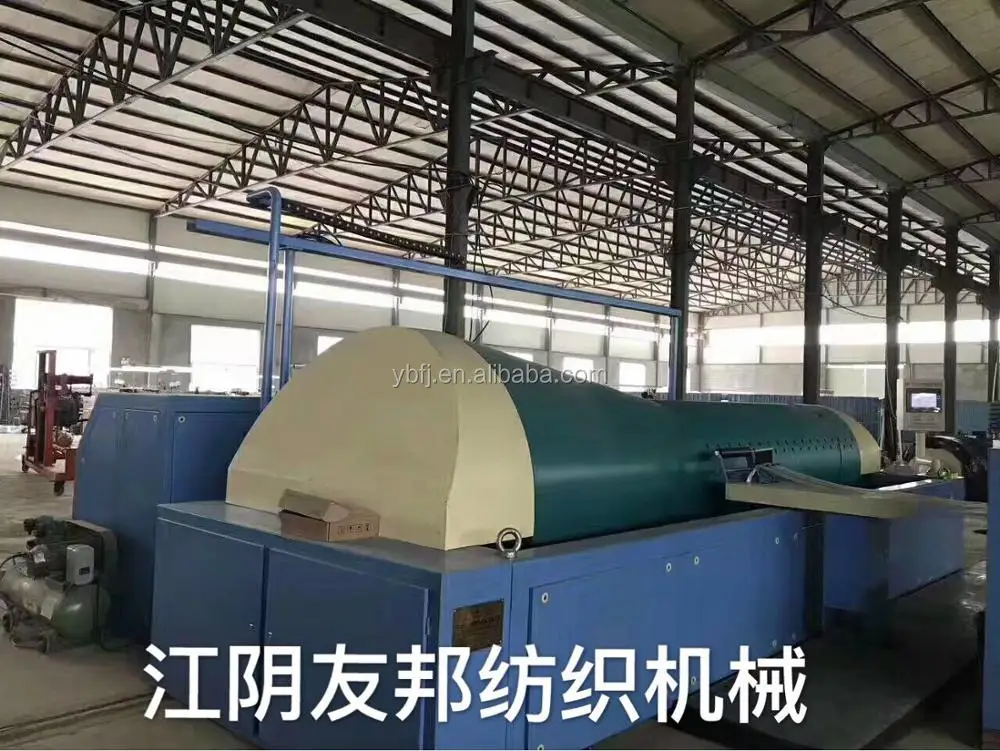

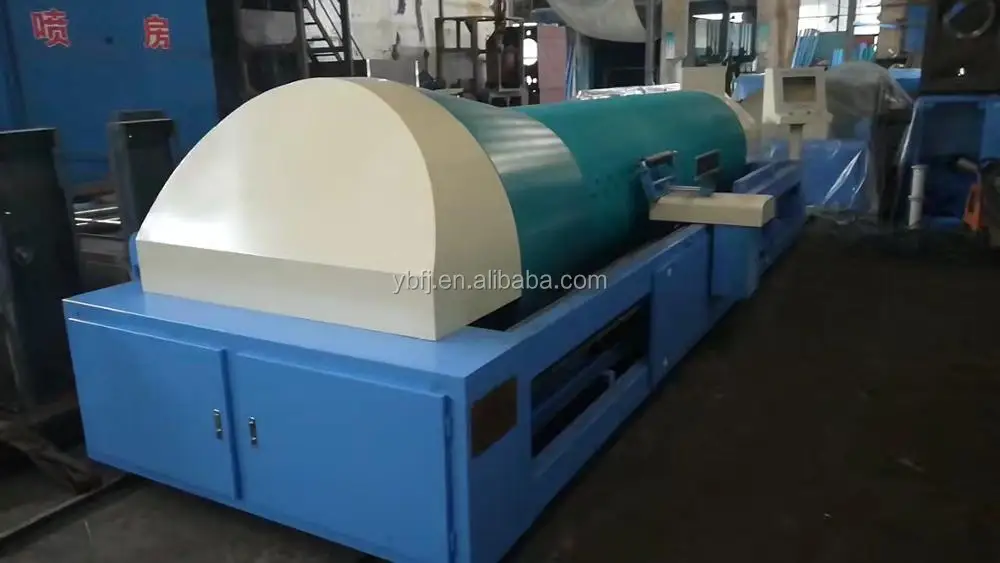

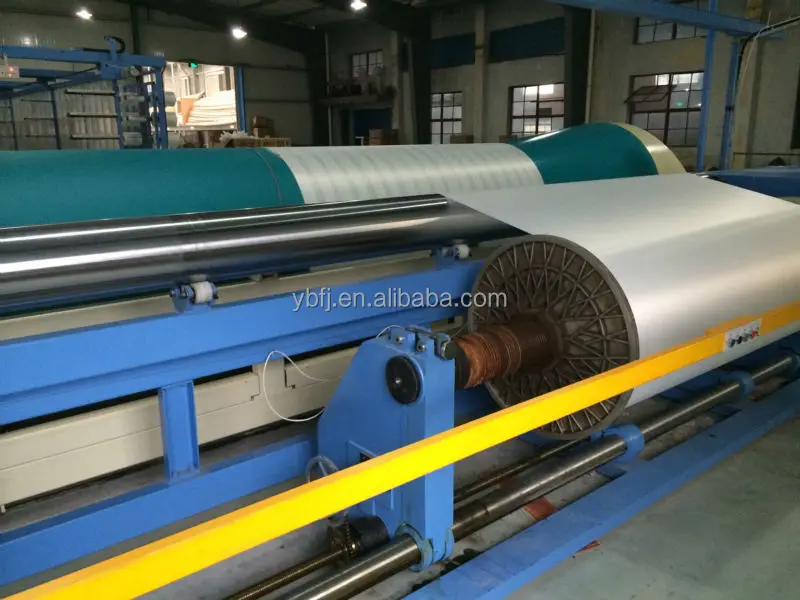

Электронная высокоскоростная машина YBGA628 для деформации и сверления секций

Product Overview

Description

Hello, dear friend. Wecome to vist our company website. Thank you very much!

I am Boswell from Jiangyin Youbang Textile Machinery Co., Ltd. I will be very happy if you give me an opportunity to introduce our company and machines to you. Any question or need, please just contact me. Thank you.

Our company is a professional manufacturer of high speed warping machine, which is founded in 2002. We can produce many kinds of warping machines, including direct warping machine, sectional warping machine, fiber glass warping machine and warping-sizing combination warping machine. With reliable quality and reasonable price, our products have been exported to many countries and obtained the customers' high praise.

Looking forward to buildup a long term cooperation with you and wish your business goes better and better.



Main technical parameters

   (1) Working width                                   2300-5500(as your requirement)

   (2) Beam flange dia.                              ≤φ1000mm

   (3) Warping speed                                 0~600m/min

   (4) Beaming speed                                0~100m/min

   (5) Power                                                3Phase   AC 380V  50HZ

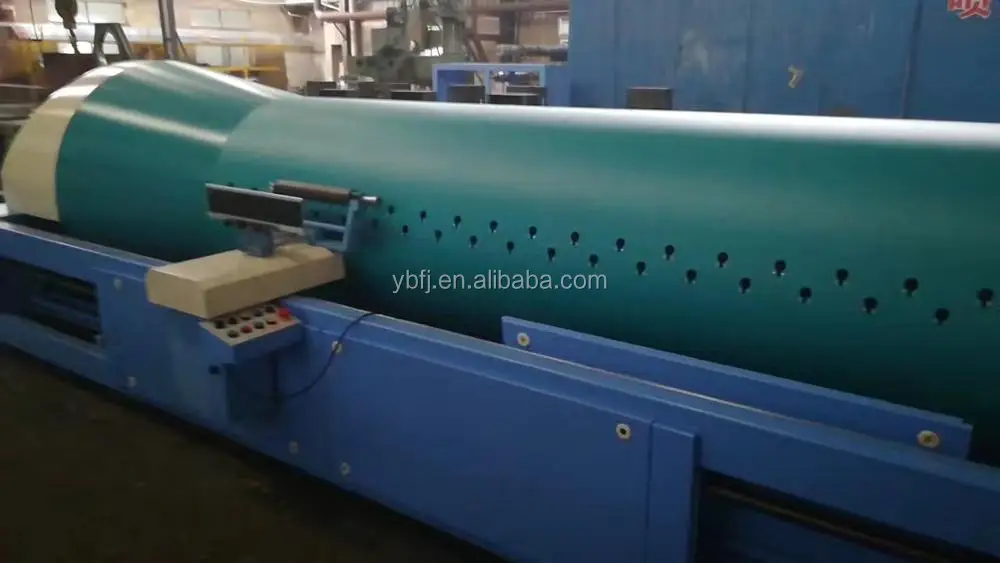

   (6) Drum dia                                           1026mm

   (7) Cone angle                                        9°(1:6.3)

   (8) Cone length                                       1360mm

   (9) Dynamic balance                              accord with GB9239 balance quality standard 6.3grade

   (10) Drum drive                                      11kw/15kw three-phase asynchronous motor

   (11) Speed deviation                             <0.5%

   (12) Speed fluctuate                              ±0.2%

   (13) Main bearing                                  SKF

   (14) Warping operation table traversing     ball lead screw fixed, servo drive nut

   (15) Guide rail                                        ball linear rail

   (16) Driving motor                                 0.75kw AC servo motor (Delta)

   (17) Section traversing speed             0.001~9.999mm/r

   (18) Section traversing deviation        0.02%

   (19) Section location                            automatic

   (20) Forward and back movement of warping table      servo motor, ball lead screw drive

   (21)Guide rail                                        ball linear rail

   (22) Yarn guide roller brake                electro-magnetic brake

   (23) Tension control                             constant

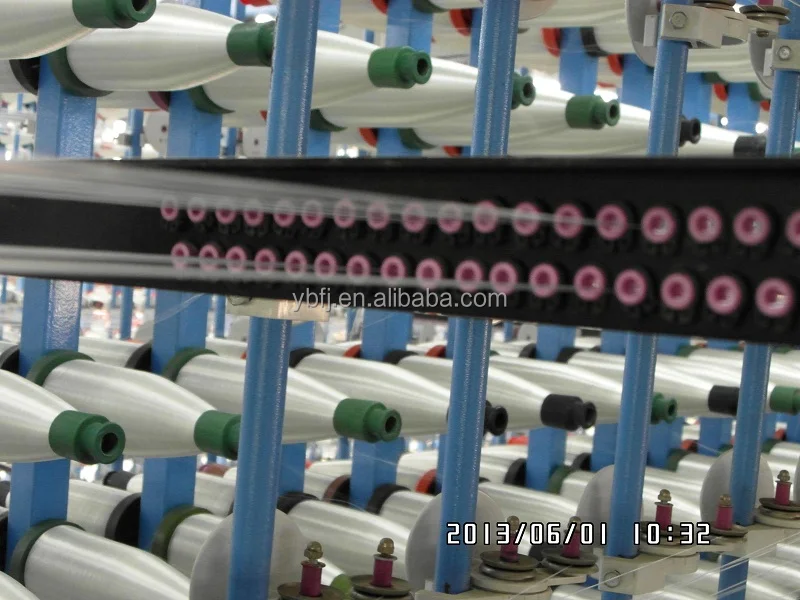

   (24) Safety                                            infrared automatic stop motion

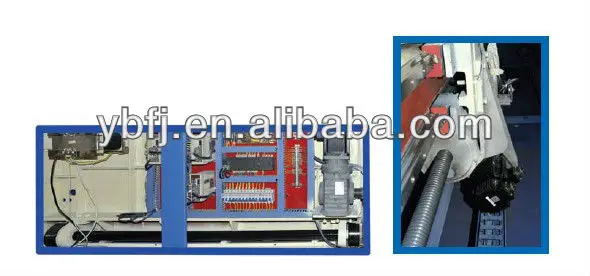

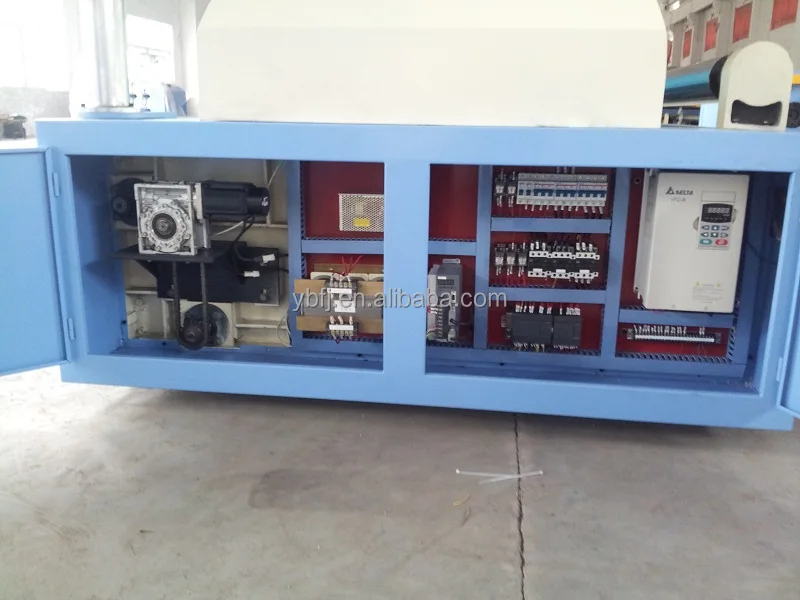

   (25) Main control                                  PLC

   (26) Screen                                          10.4 inch Delta colorful touch screen

   (27) Technical parameter                   calculations of warping length, roller length, strip, speed,

displacement, etc.



Technical Features

1. Axial displacement of warping table is control by accurate servo motor. Start point and section location can be set automatically.

2. Space reed and section are kept in equidistance which is optional .

3. Warping brake is clamp type. Beaming brake is external steel strip damping type, which eliminates the noise and uneven tension problems occured in traditional.

4. It is equipped with microcomputer and PLC, with function of total length count, roll lenth count, section count, broken end memory and stop motion of full total length or warp, etc.

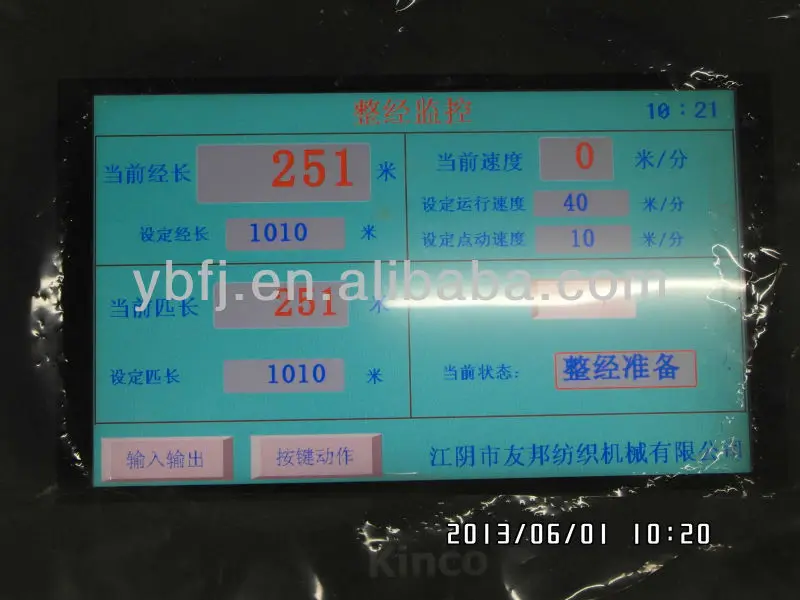

5. Touch screen shows info clearly, easy to operate.

6. Section tension is constant during warping and beaming.

7. Steel cone with angle 1:6.3 is good for kinds of warping.

8. Wax and pressure device are optional for beaming machine.

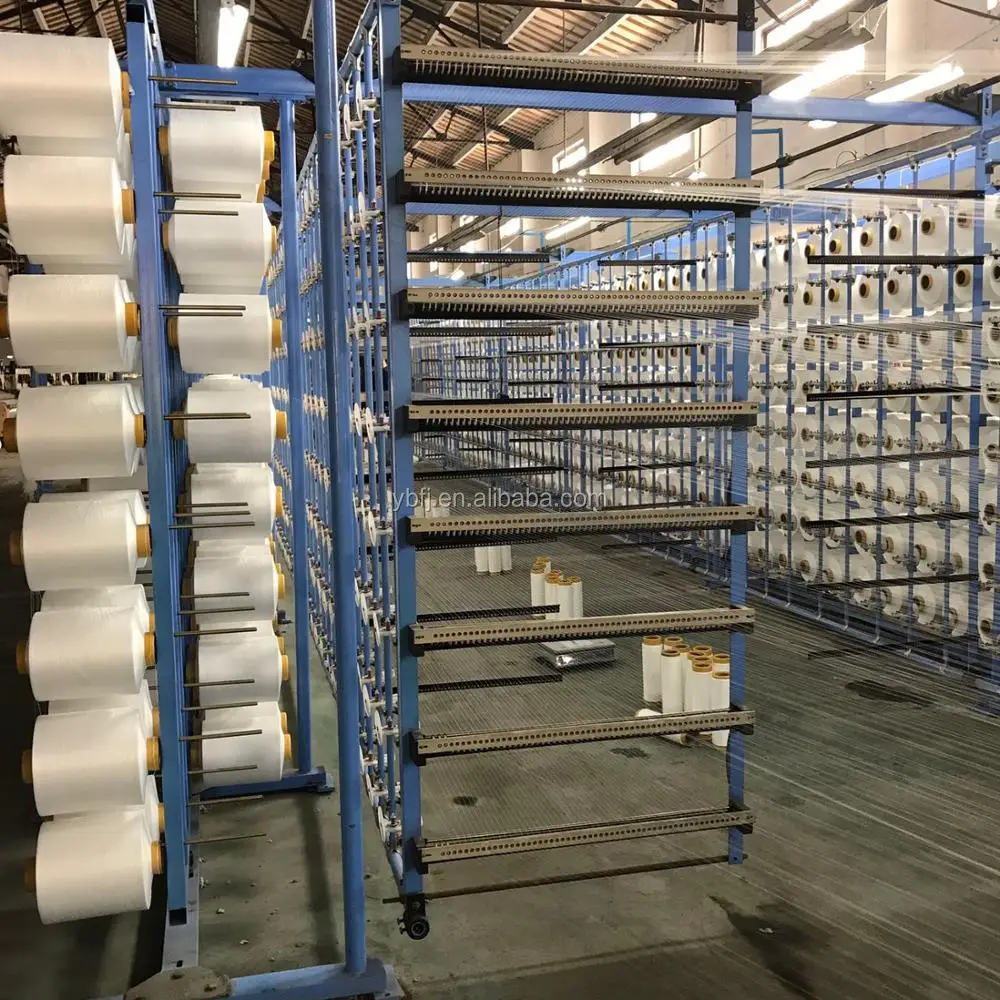

9. Creel number and pitch are as your requirements

10. Warp stop motion and static eliminator are optional
