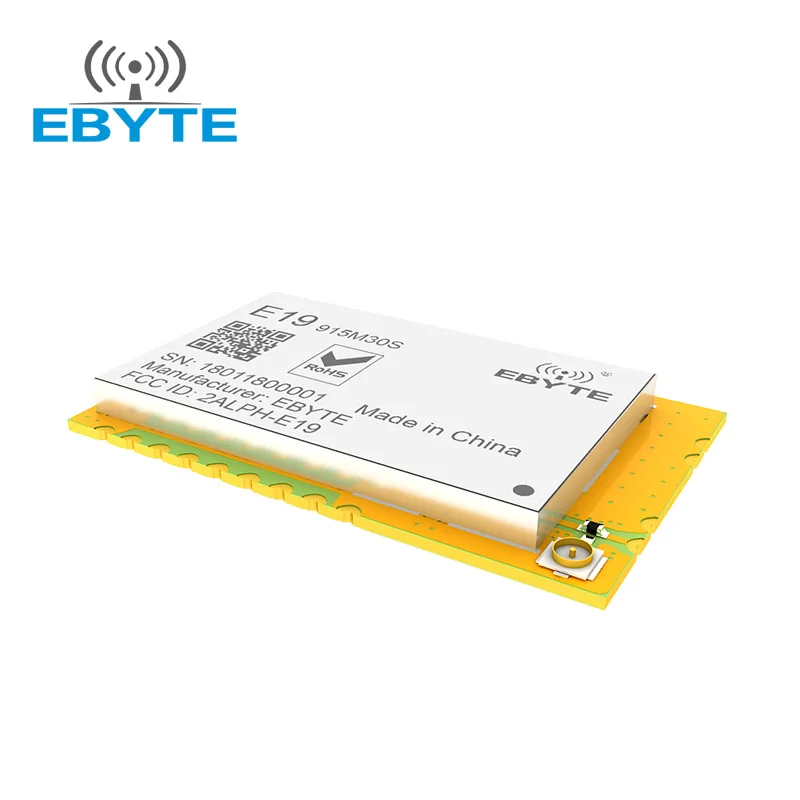

Ebyte E19 915M30S 10km rf module SX1276 Wireless 915MHz LoRa Module
- Category: Wireless & IoT >>>
- Supplier: Chengdu Ebyte Electronic Technology Co. Ltd.
Share on (60688057642):
Product Overview
Description

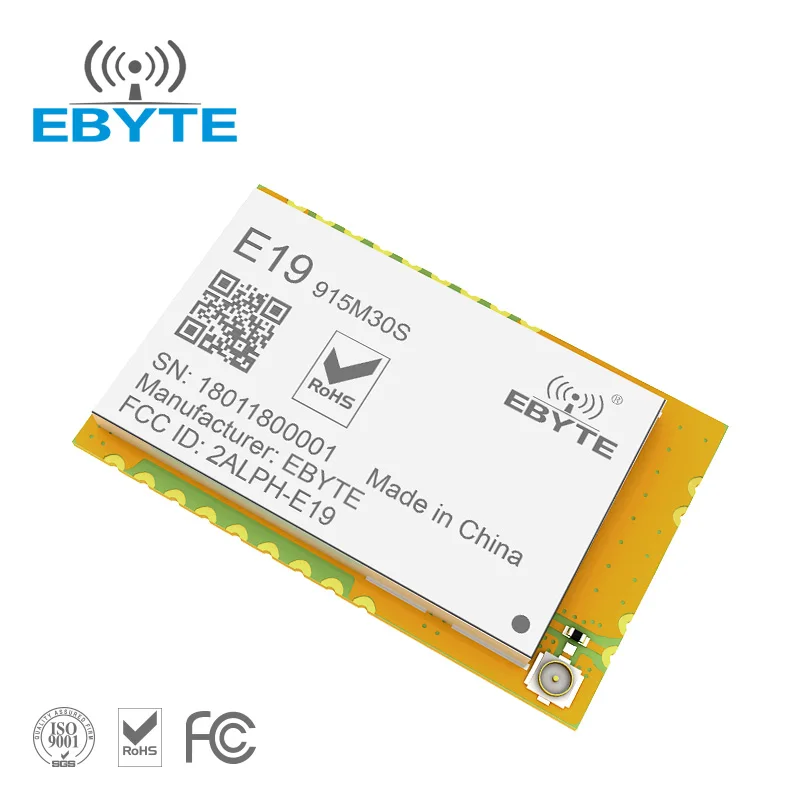

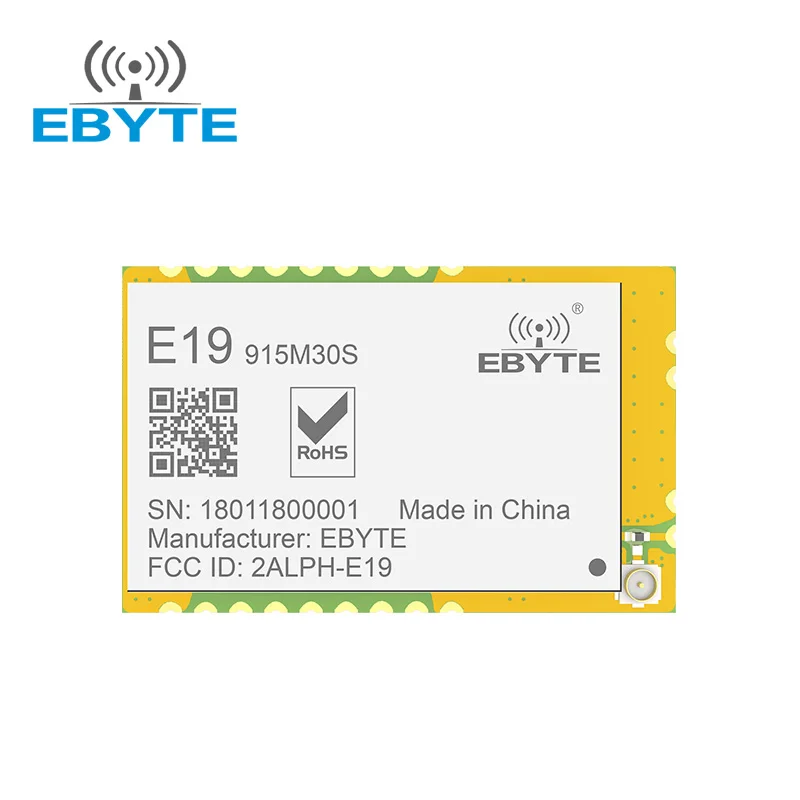

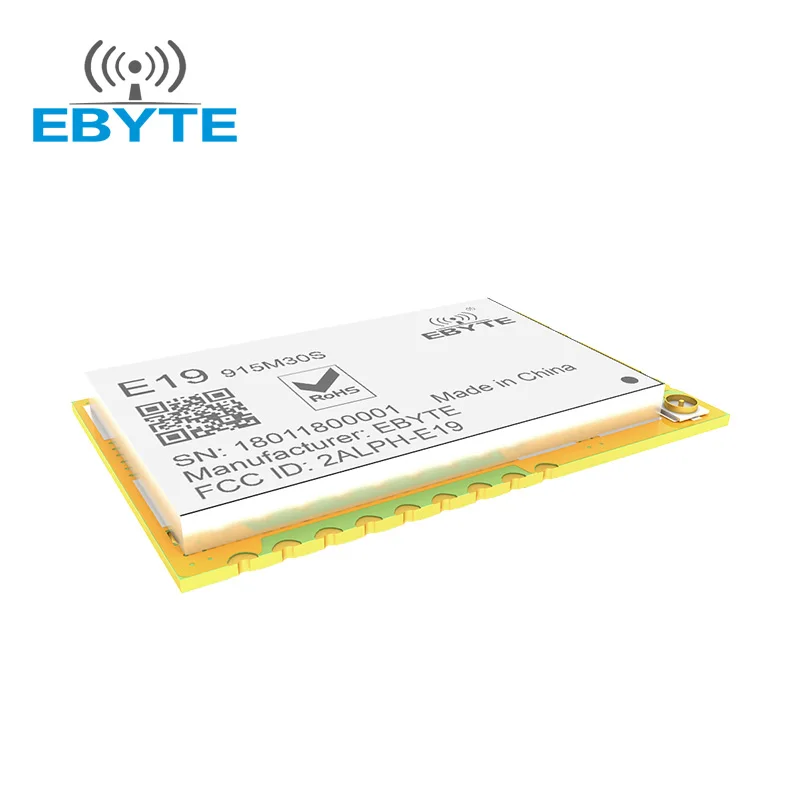

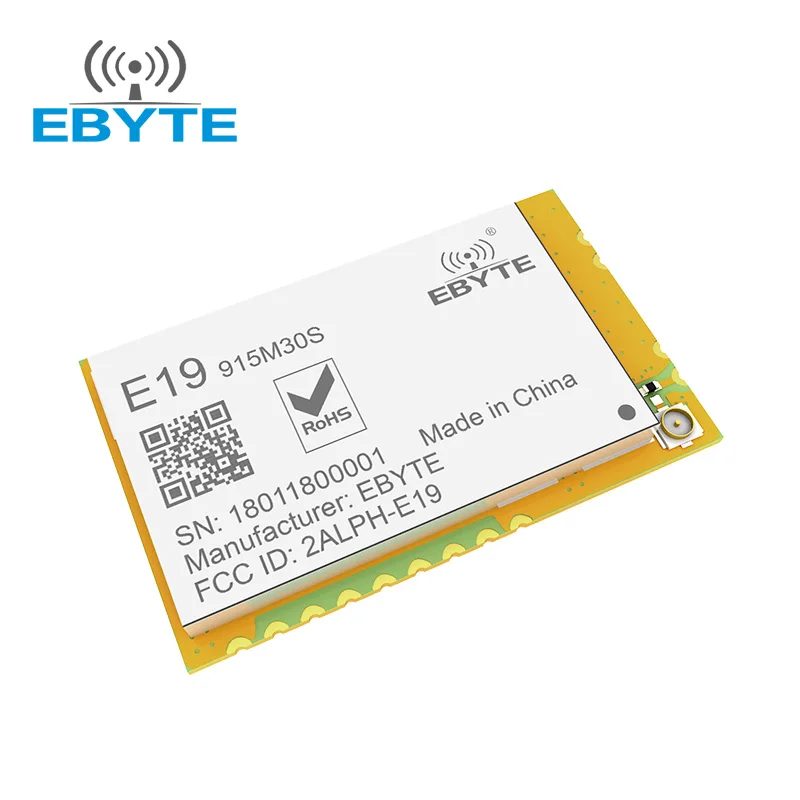

Ebyte E19-915MS1W 10km SX1276 Wireless 915MHz LoRa module
Product Description
[ Model ]: E19-915MS1W
[ RFIC ]: SX1276
[ Interface ]: SPI (SMD)
[ Power ]: 30dBm (1W)
[ Range ]: 10,000m
[ RF connector ]: IPX/Stamp Hole Antenna
[ Frequency ]: 915MHz (900~931MHz)

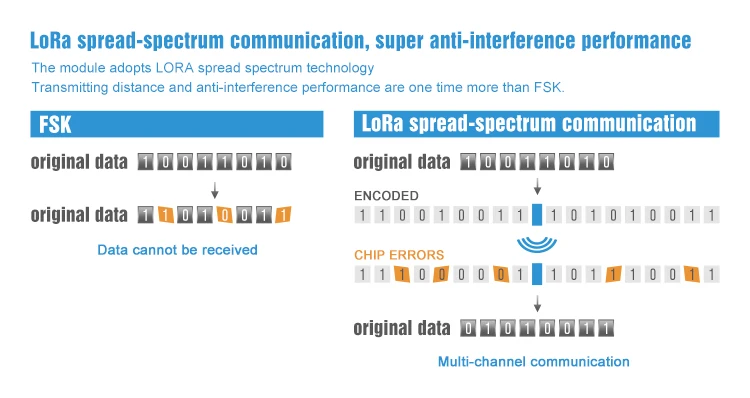

[ Feature ]: E19-915MS1W is a 1W wireless transceiver module, operates at 915MHz with SPI RF interface. It’s small-sized SMD module with low-noise amplifier to enhance the sensitivity. With stable batch production, the module is suitable for various applications
Electrical Parameter

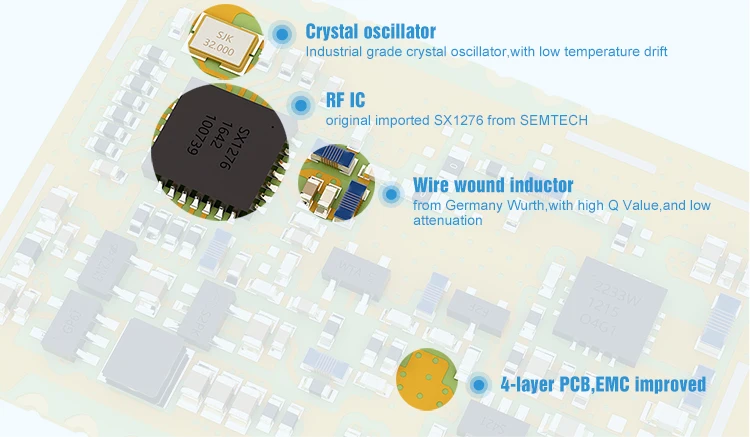

No. | Parameter item | Parameter Details | Description |
1 | RF IC | SX1276 | SEMTECH |

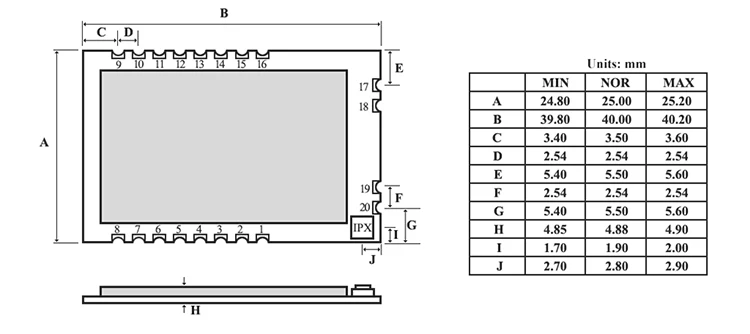

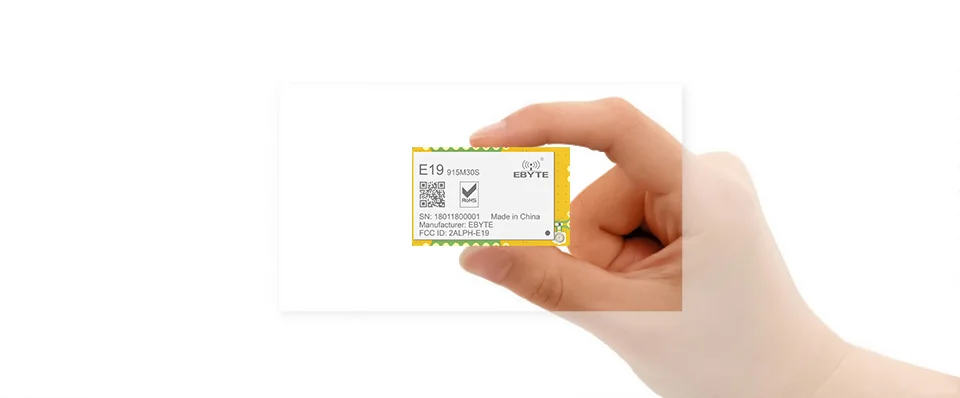

2 | Size | 25*40mm | whole size |
3 | Weight | 5.2g | whole weight |
4 | Frequency Band | 900 ~ 931MHz | adjustable, adopt 32MHz crystal oscillator |

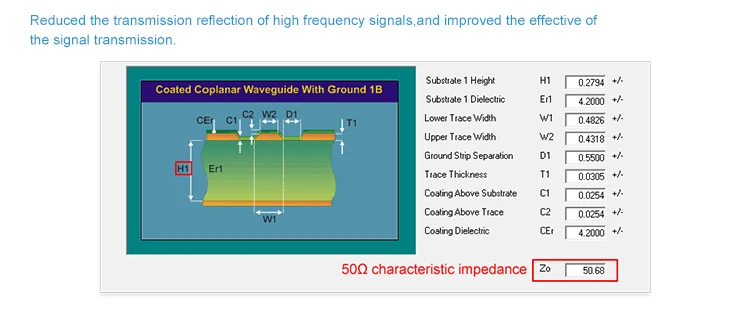

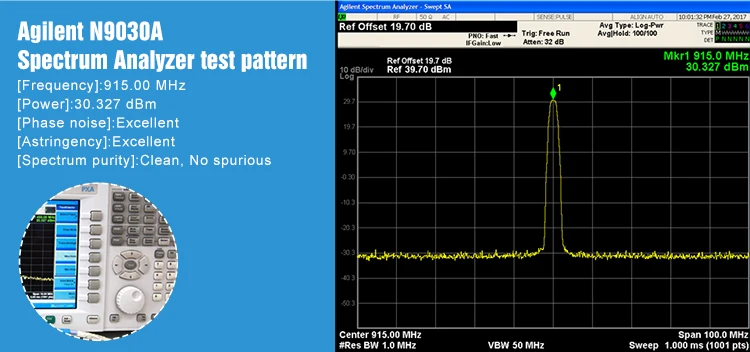

5 | PCB | 4 layers | Impedance-matching, lead-free,shield cover |
6 | Connector | 2 * 9 * 2.54mm | SMD |
7 | Supply Voltage | 5.0 ~ 5.5V DC | Note: The voltage higher than 6V is forbidden |
8 | Communication level | 0.7VCC ~ 5V | VCC refers to the supply voltage |
9 | Operation Range | 10000m | clear and open area& max. power,antenna gain: 5dBi, height: 2m,Coding rate 4/5, OVSF:12, air data rate:300bps |
10 | Transmitting power | 30dBm | about 1W |
11 | Air data rate | 0.018k ~37.5kbps | LoRa mode |

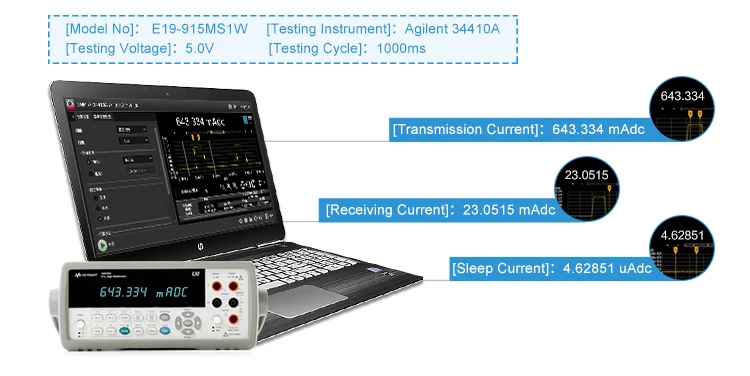

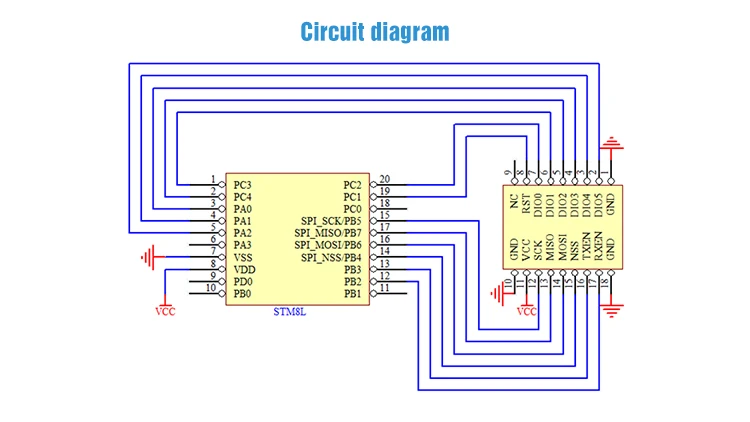

12 | Sleep current | 3uA (max) | on the sleep mode |
13 | Transmitting current | 640mA/30dBm | The power is supposed to be higher than 1.5A |
14 | Receiving current | 23mA BW = 500KHz | LoRa Mode. It’s different from BW. |
15 | Communication interface | SPI | data rate: 10Mbps maximum |
16 | Transmitting length | 256 bytes | FIFO |
17 | Receiving length | 256 bytes | FIFO |
18 | RSSI support | Available | Find more details on <SX1276 Data sheet > |
19 | Antenna type | IPX/stamp hole | 50ohm impedance |
20 | Operating temperature | -40 ~ +85℃ | Industrial Grade |
21 | Operating humidity | 10% ~ 90% | relative humidity, no condensation |
22 | Storage temperature | -40 ~ +125℃ | Industrial Grade |
23 | Receiving sensitivity | -138dBm/300bps | Find more details on <SX1276 Data sheet> |
