medical oxygen enrichment zeolite 0.4 0.8mm 13x hp molecular sieve desiccant for psa device

Share on (60688652590):


Price:RUB 460.83

Quantity:


Product Overview

Description

medical oxygen enrichment zeolite 0.4-0.8mm 13x hp molecular sieve desiccant for psa device




Product Description

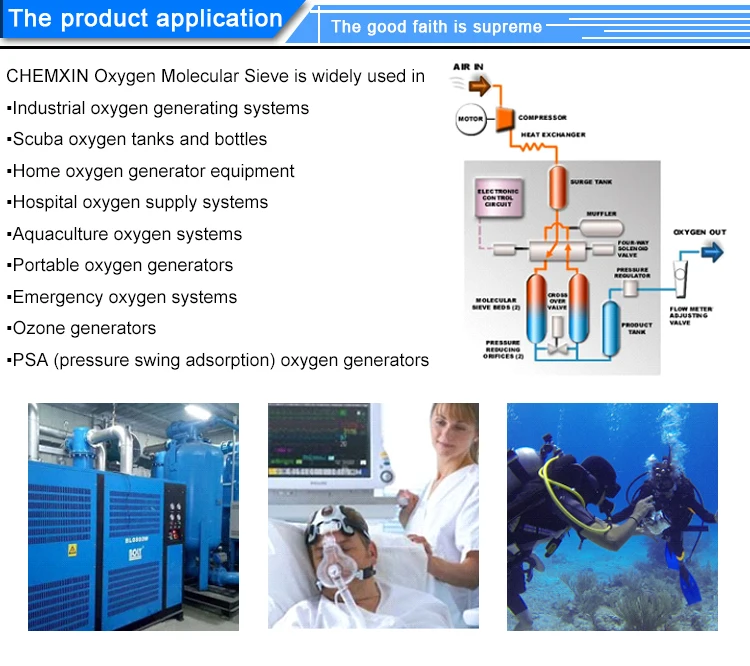

Molecular Sieve 13X HP is mainly used in PSA oxygen concentrators and oxygen concentrators device, and as well as the industrial PSA unit, with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity, easy desorption and etc.



Technical Parameter:

Model 13X HP
Color Light gray
Nominal pore diameter 10 angstroms
Shape Sphere (ball)
Diameter (mm) 0.4-0.8 1.6-2.8
Loss on Ignition (wt%.575℃, 1hr) ≤1.0 ≤1.0
Bulk density (g/ml) ≥0.62 ≥0.62
Crushing strength (N) / ≥30/piece
Static H2O capacity (wt% RH60%,25℃) ≥30 ≥30
Static CO2 capacity(wt% 250mmHg, 25℃) ≥19.8 19.8
Attrition (wt%) ≤0.2 ≤0.2
Particle Ration (%) ≥95 ≥97
N2 capacity(ml/g,) ≥8 ≥8
N2/O2 Selectivity(a,) ≥3 ≥3



Hand & Storage Recommendation:
It should be handled to avoid generation of dusty conditions at the workplace. Storage in a dry warehouse is recommended. Open packages should be resealed to prevent contamination and adsorption of water or other gases and vapors. The material in bag-in-box should be used within 12 months,while bag-in-steel drum should be used within 24 months.
