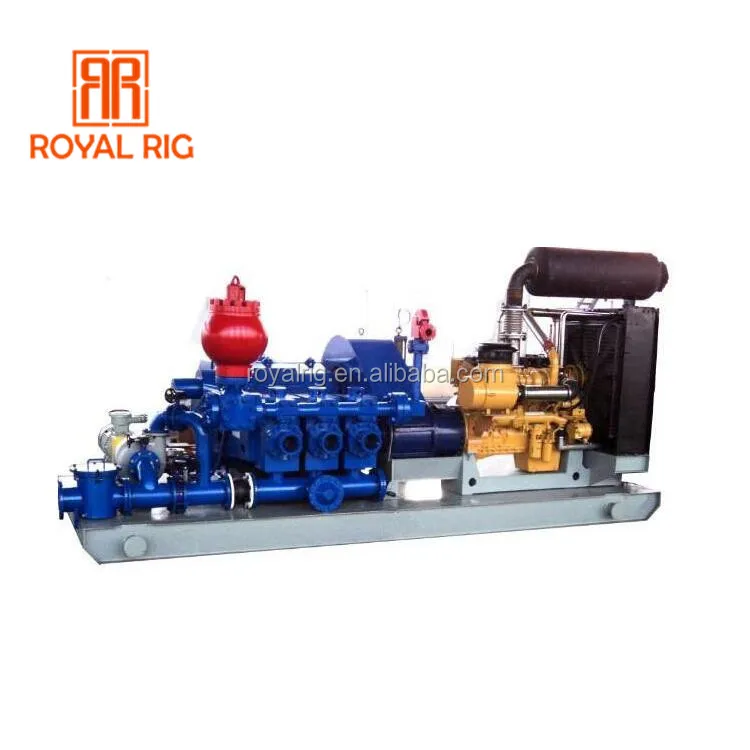

High quality BOMCO F500 drilling mud pump for sale

Product Overview

Description

BOMCO F-500 triplex mud pump

Description:



Mud pump is one of the most important equipments in the drilling operation  which discharge high viscosity,heavy density and low sand contented fluid to well bottom in order to cool drill bit,flush well ,crush the rock and take out debris.

Mud pump is designed and manufactured in compliance with API Speck 7K"Specification for Drilling Equipment".All wearing parts of fluid end(valve,valve seat,liner and ect) can be interchanged acc to API specification.



We can provide mud pumps  as below:



BOMCO Series:F500/F800/F1000/F1300/F1600/F1600HL/F2200HL

HHF Series: HHF500/HHF800/HHF1000/HHF1300/HHF1600/HHF2200

Rongsheng Series: RSF500/RSF800/RSF1000/RSF1300/RSF1600

RG Series: RGF500/RGF800/RGF1000/RGF1300/RGF1600

Qingzhou Series: QZ3NB800/ QZ3NB1000/ QZ3NB1300A/ QZ3NB1600



Model	F-500
Type	Horizontal triplex single acting piston pump
Max liner dia.mm	170
Stroke length.mm	190.5
Rated power.kw	370
Stroke rating,SPM	165
Gear ratio	4.286
Suction Inlet,mm	203.2
Discharge Outlet	4NPT*5000API
Weight,kg	9770
Valve cavity	API#5
Gear type	herringbone
Lubrication	force Lubrication and splash lub



Liner size mmm	170	160	150	140	130	120	110	100
Displacemmet L/S	35.6	31.6	27.7	24.2	20.8	17.7	14.9	12.3
Rated pressure	9.2	10.4	11.8	13.6	15.8	18.6	22.1	26.7
