Гибкий вибрирующий сито для обработки пищевых продуктов

Product Overview

Description

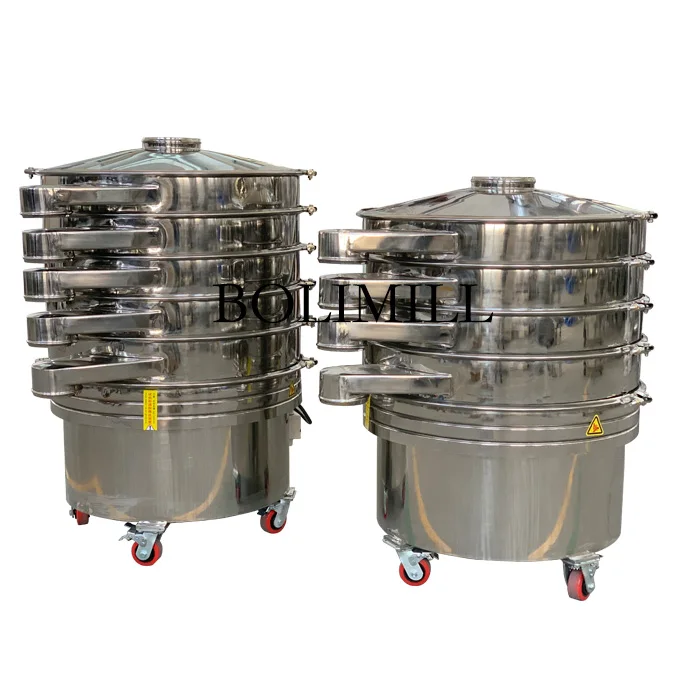

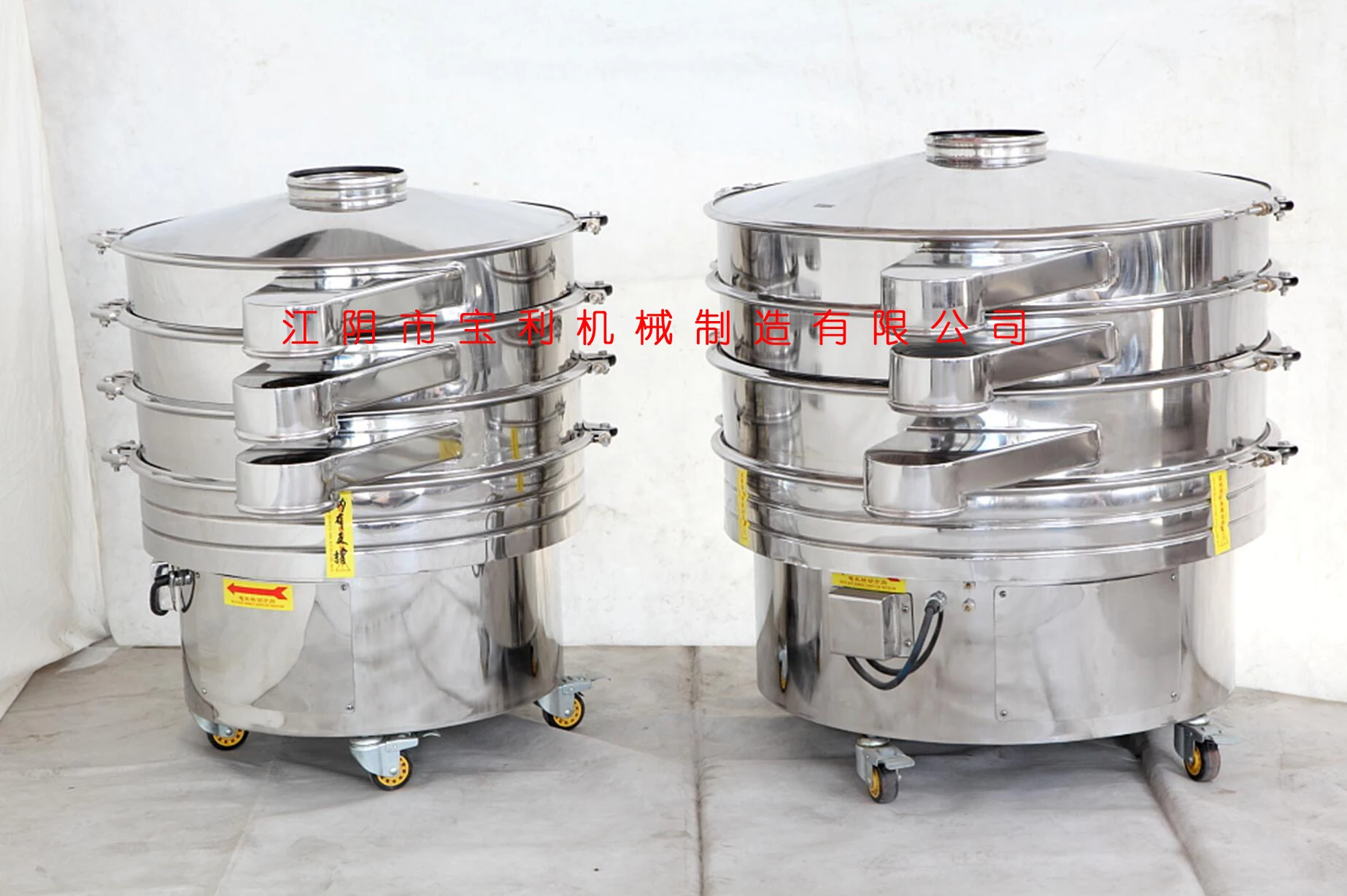

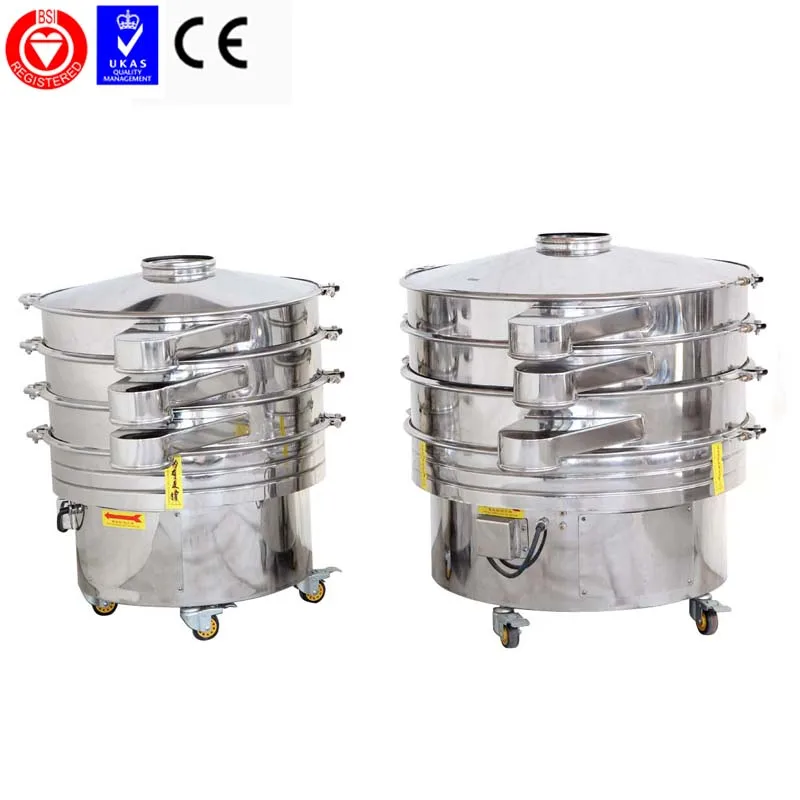

Flexible structure Vibrating sifter for Food processing











Specialty of sifting machine:

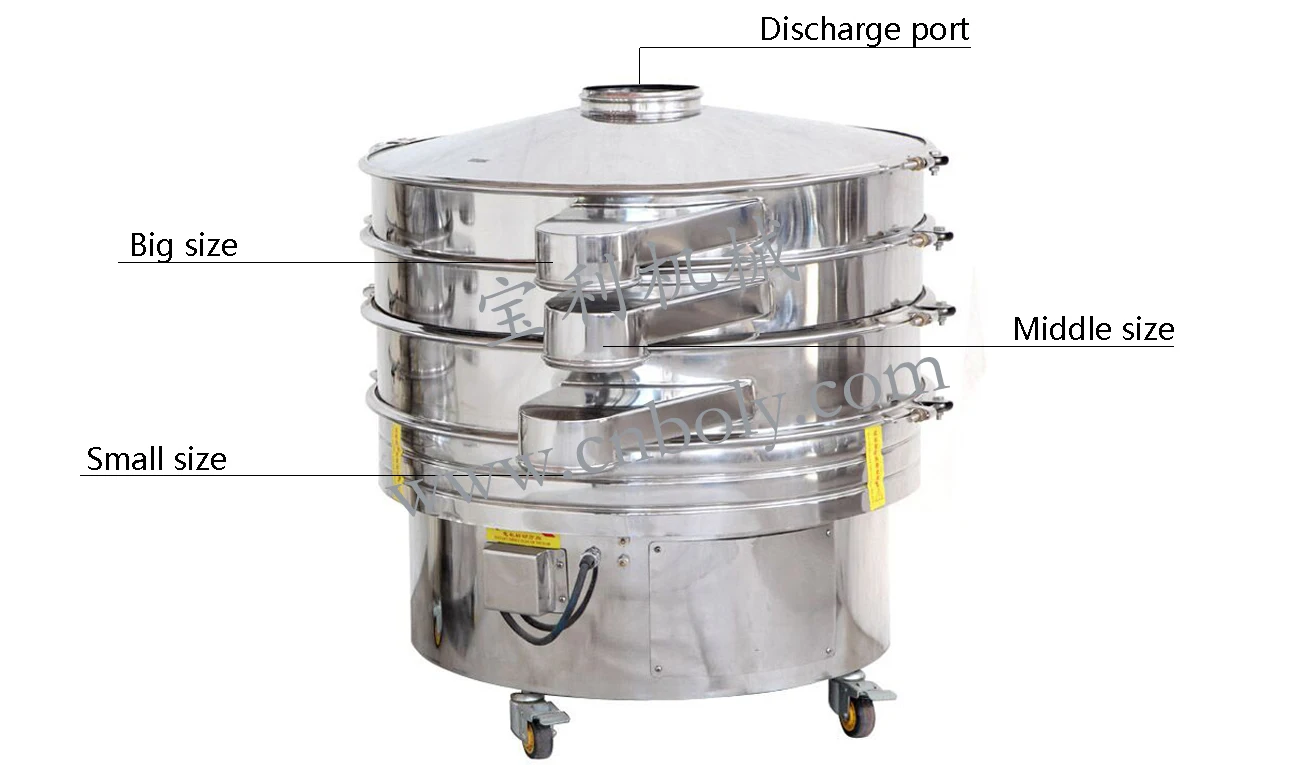

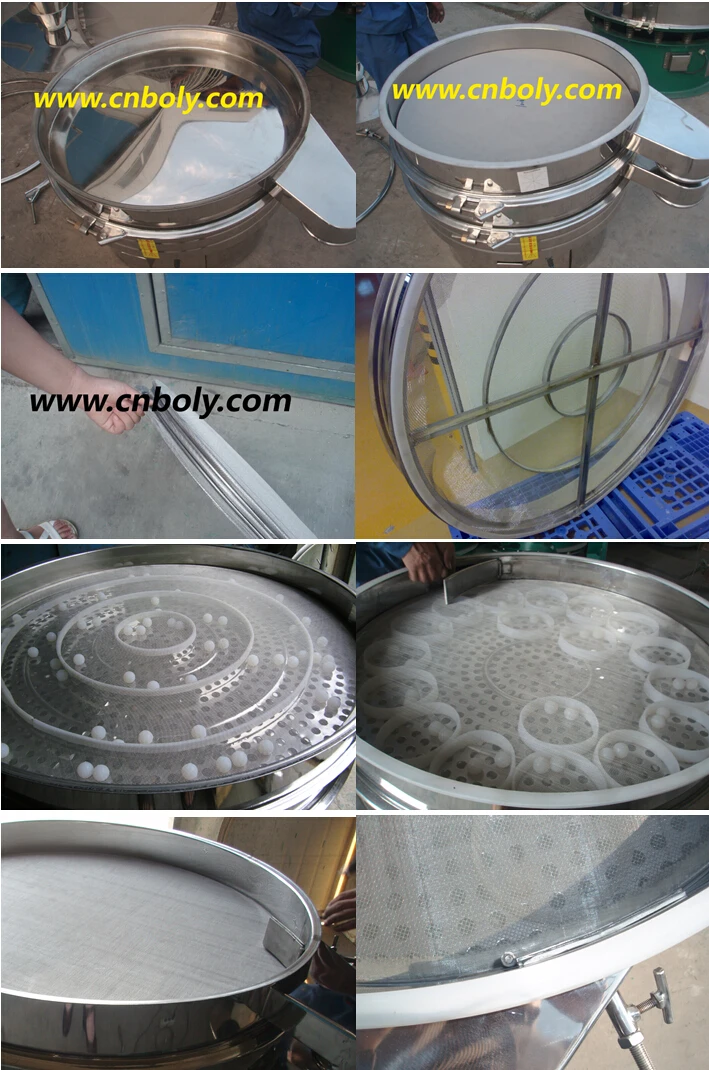

This machine is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.

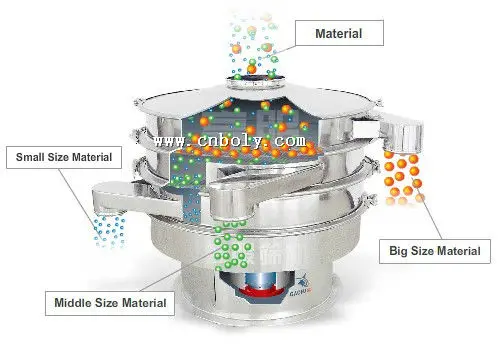

It can be operated for sorting purpose either in single sieve or multisieves with a compact structure, ease operating and repairing, smooth running, low noise,large target material-treating, good fineness and wide applicability.



 Technical Data of sifting machine:



Model	Effective Screening Diameter	Effective Screening Area	Screen Specifications	Number Of Layers	Motor Power	Overall Size (mm)					Weight
	mm	m2	mesh		kW	L	W	H1	H2	H3	KG
JB-600	550	0.23	2-500	1-5	0.55	750	750	785	885	985	100-180
JB-800	750	0.42			0.55/0.75	950	950	900	1000	1150	200-280
JB-1000	950	0.64			0.75/1.1	1150	1150	950	1060	1180	240-350
JB-1200	1150	0.95			1.1/1.5	1360	1360	980	1100	1220	320-550
JB-1500	1450	1.54			1.5/2.2	1700	1700	1180	1320	1470	420-680
JB-1800	1750	2.27			2.2/3	2150	2150	1250	1400	1580	580-900

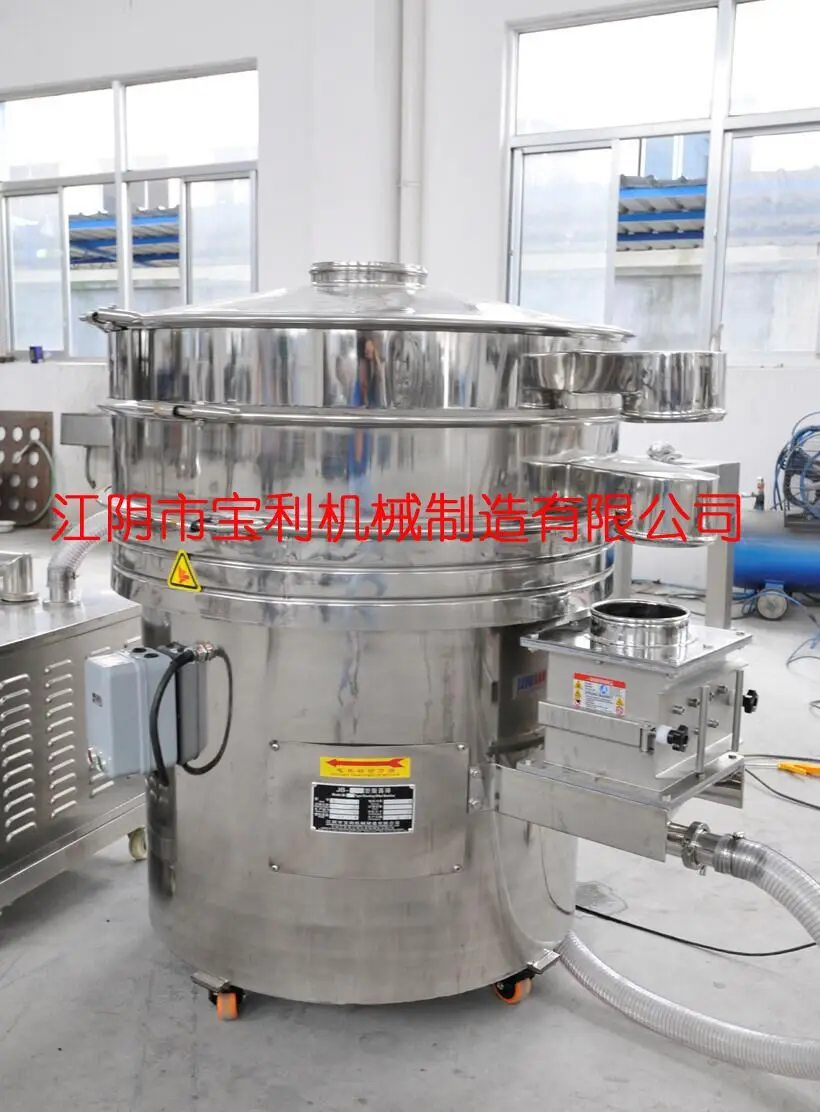

Factory look:
