Панель управления пожарной подавлением FM200
- Category: Fire Alarm Control Panels >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (60689471056):
Product Overview
Description
Product Description
Fire Suppression System FM200 Control Panel
Product Features:
1. AS-FSP1005 is a conventional fire Fighting and detection control panel designed to meet all the requirements of EN54-2&4 Microprocessor-based conventional fire fighting & alarm control panel
2. 4 Detection Zones Panel, 1 Fire Fighting Area, 20 to 32 Detectors per Zone
3. Relay output for fire condition, Relay output for double knock condition

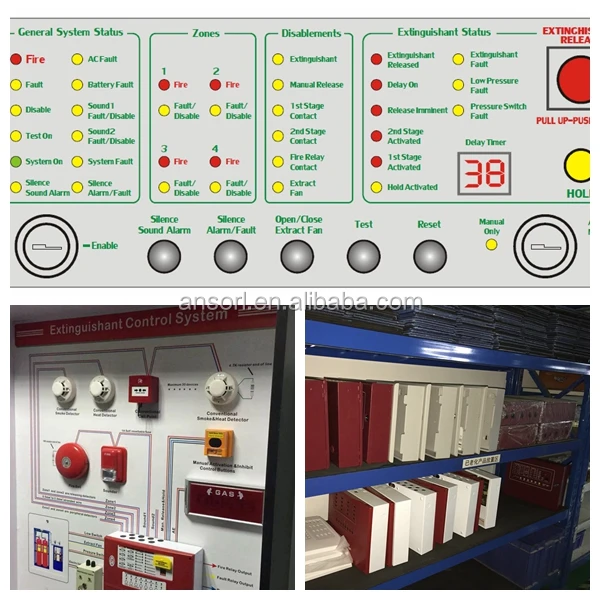

4. Zones Fault LEDs indication, Status for all steps of fire fighting Fault Relay Output, Auxiliary Output for 28 Volts
5. Sound output for Alarm & firefighting Condition
6. Up to 8 repeaters can be connected to one panel
7. Switched mode power supply 24 V,3A with 2 battery chargers 12V
8. End of Line Status Detection, Short circuit /open circuit detection
9. Release switch for gas release, Manual automatic switch control
10. Hold Switch, Enable / Disable key switch
Electrical Specifications:
| ITEM | ELECTRICAL RATING | COMMENT |
| Mains supply | 90 to 270VAC, 50Hz/60Hz(100 Watts maximum) | |
| Mains supply fuse | 3 Amp ( F3A L250V) | Replace only with similar type |
| Power supply rating | 3 Amps total including battery charge 28V +/- 2V | |
| Maximum ripple current | 200 millivolts | |
| Battery type | Two 12 Volt sealed lead acid in series. | 7Ah maximum |
| Battery charge voltage | 27.6VDC nominal | |
| Battery charge current | 0.7A maximum | |
| Battery fuse | 20mm, 3.15 glass | |
| Current draw in mains fail condition | 0.095 Amps | With buzzer sounding |
| Current draw in second stage alarm | 0.235A | Two zones in fire(470 ohm in circuit) |
| Current draw in post discharge condition | 0.310A | solenoid outputs active |
| Maximum current draw from batteries | 3Amps | With main power disconnected |
| R0V output | Fused at 500Ma with electronic fuse | |
| Sounder outputs | 21 to 28V DC Fused at 500mA with electronic fuse | 1.6Amp total load over all circuits |
| Fault relay contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| Fire relay contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| Local fire relay contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| First stage contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| Second stage contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| Extract contact rating | 5 to 30VDC 1A Amp maximum for each | Volt free changeover contact |
| Zone quiescent current | 0mA minimum, 2mA maximum | |
| Terminal capacity | 0.5mm2 to 2.5mm2 solid or stranded wire | |
| Number of detectors per zone | Dependent on type | |
| Number of sounders per circuit | Dependent on type and current consumption | |
| Detection circuit end of line | 6K8±5% 1/2 Watt resistor | |
| Monitored input end of line | 6K8±5% 1/2 Watt resistor | |
| Sounder circuit end of line | 10K±5% 1/2 Watt resistor | |
| Extinguishant output end of line | 1N4004 Diode | |
| No. of detection circuits | Four 21 to 28V DC | |
| No. of sounder circuits | Three 21 to 28V DC | 2X first stage, 1 X second stage |
| Extinguishant release output | 21V to 28V DC. Maximum load 1 Amp | |
| Extinguishant release delay | Adjustable 0 to 75 seconds | 5 second steps |
| SIL, AL, FLT, RST inputs | Switched –ve, min resistance 0 ohms, max 470 ohms | |
| Zone normal threshold (Allowable EOL) | 10K ohms to 2K ohms | Use 6K8 end of line resistor |
| Detector alarm threshold | 1K ohms to 390 ohms | |
| Call point alarm threshold | 370 ohms to 150 ohms | |
| Short circuit threshold | 130 ohms to 0 ohms | |
| Head removal condition | 15.5 to 17.5 volts+/- 5% | |
| Cabling | FP200 or equivalent | Metal cable glands must be used |
| Monitored inputs normal threshold (Allowable EOL) | 10K ohms to 2K ohms | |
| Monitored inputs alarm threshold | 2K ohms to 150 ohms+/-5% | |
| Monitored inputs Short circuit threshold | 140 ohms to 0 ohms+/-5% | |
| Status unit/Ancillary board connection | Two wire RS485 connection with electronic fuse | Max. of 16 units-RS485 data cable |
| Status unit power output | 21 to 28V DC, Fused at 500mA with electronic fuse | 300 milliamp maximum load |
