Automatic Stone Mosaic Small Block Cutting Machine

Product Overview

Description

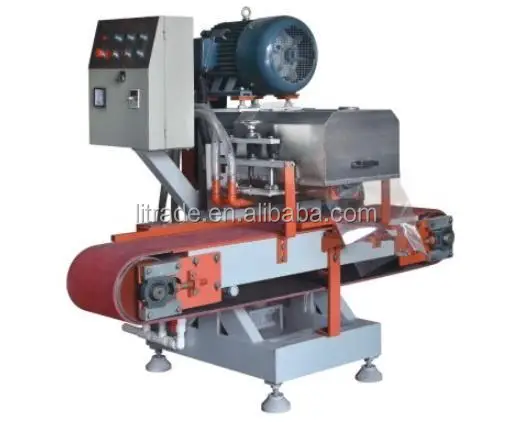

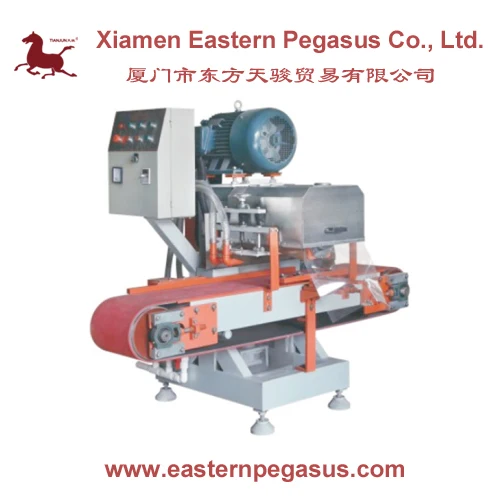

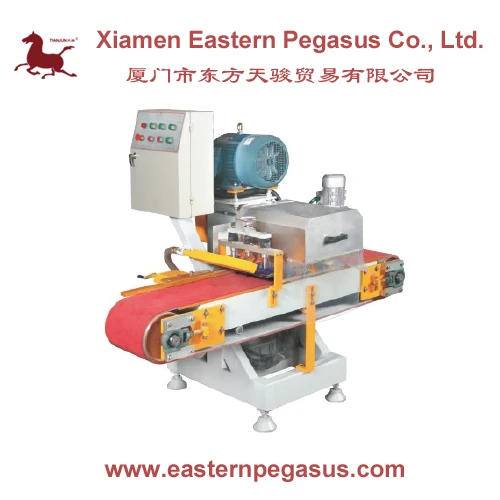

Automatic Stone  Mosaic Small Block Cutting Machine



The fully automatic multiple blade cutters are ideal to cut small stone blocks into multiple piecs of thin tiles at one time with many advantages such as high efficiency, high stability and long service life.

The motor is using energy saving motor; bearings are imported from Janpan to ensure low cost and low maintenance.



Model		TJPGP-600
Quantity of Spindles	pcs	1
Belt width	mm	620
Blade Diameter	mm	300-400
Main Motor Power	kw	22
Belt Motor Power	kw	1.5
Lifting Motor Power	kw	0.55
Cutting speed range	mm	20-600
The Max Cutting Thickness	mm	130
Total Power	kw	24.05
Belt Speed	mm/min	1000-6000
Overall Dimension	mm	2100*1600*1800
Total Weight	kgs	1350
