Swing Type Flat Fillet HK-6W Auto Welding Carriage



Feature


1.Well-shaped and solid body; lightweight and easy to carry; good-looking weld; welding tracks are available to choose.


2. It can gain more wide welded seam at a time.
3. The operator can adjust swing speed, swing angle, offset position of centre and length of stay.
4. It suits for vary specs beads. In non-welding state, the biggest trolley speed is 1900mm/min.
5. The magnetron hand grip can decrease a few magnetism, so it is convenient to clear iron waste and moving trolley.



Product Description

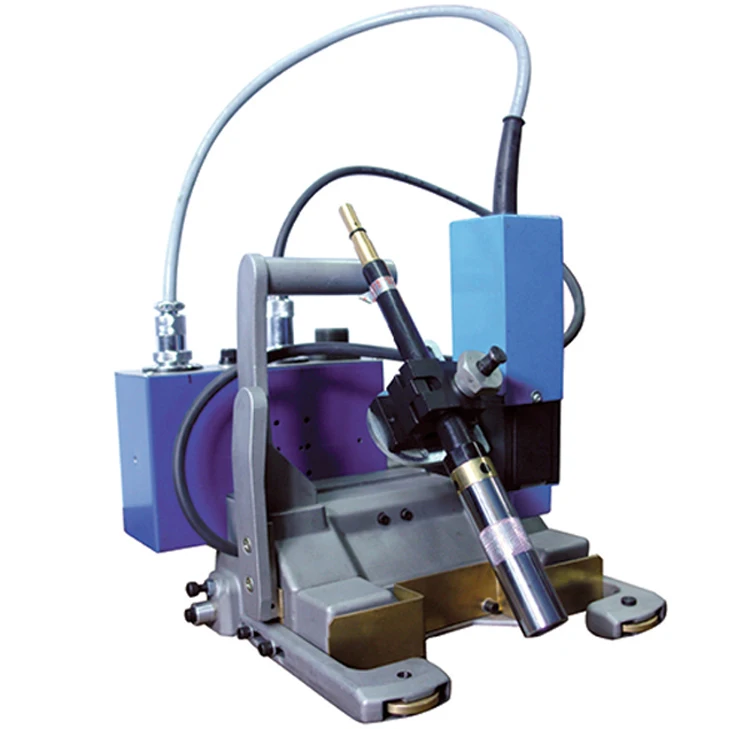

Angle welding carriage


 HK-6W Auto Welding Carriage introduction:

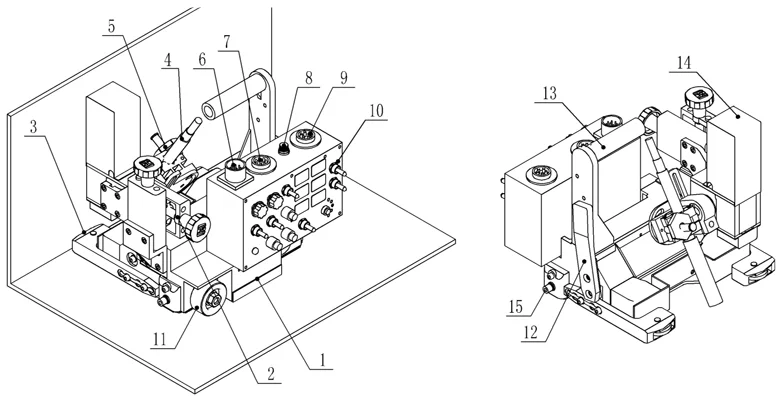

WELDING CARRIGE STRUCTURE.png


1)Small car essence part


2)The X-Y slips a piecet.


3)Lead to a round


4)Torch


5)The torch clips to hold a machine


6)Swing electrical engineering AC outlet.


7)Run about electrical engineering AC outlet.


8) Insurance.


9)Circumscribe AC outlet.


10)Control a box


11)Drive part


12)The controls a hand handle


13)Lift a hand handle.


14) The torch swings a machine


15)Inductive stop switch.





Technical Parameters





Main technical parameter of HK-6W Auto Welding Carriage








































































size



430×280×290mm



weight



12Kg(Included swing device)



power



AC220V



Swing motor



DC24V



driving method



Four rims driving(Rubber rim)



Walk speed



50~1900mm/min(Display by nixie tube)



Range of adjusting welding torch



Up and down



40mm



Front and rear



40mm



Range of working angle



±45°



Range of adjusting angle



10°



Swing parameter



Length of stay on left or right



0~2.5S



Set position of deviation



0~±8°



Swing speed



0~100



Swing angle



±15°



Choose swing model














 hk-6w auto welding carriage Welding processing parameters



















































welding wire diameter


welding parameter



Φ1.2mm



Φ1.4mm



Φ1.6mm






current(A)



Down hand welding



120-300



150-380



180-430



flush fillet welding



120-280



150-320



180-380



horizontal welding



120-280



150-300



180-330



voltage(U)




  1. U=14+0.051

  2. 300A under  U=0.041+16±1.50

  3. above 300A   U=0.041+20±2.0



distance between nozzle and workpiece(H)




  1. Below 200A: H=10~15mm

  2. 200~350A H=15~20mm

  3. 350~500A H=20~25mm



welding extension length(L)



The length is about 10 times welding wire diameter. It is L=10d

















Packaging & Shipping


1.Standard packaging: machine and accessories are packed into carton box.


2.Sea and air transport are available.


.jpg







Company Information


 Nanning ChuanJun Welding Hardware Co., Ltd. , founded in 2004, focus on welding equipment and accessory for more than 10 years. Our products are MMA, TIG welder, MAG/MIG welding machine, SAW welding machines, cutting machine, welding accessories, and welding materials.


Workshop


.jpg


Quality Control


.jpg


Warehouse


.jpg

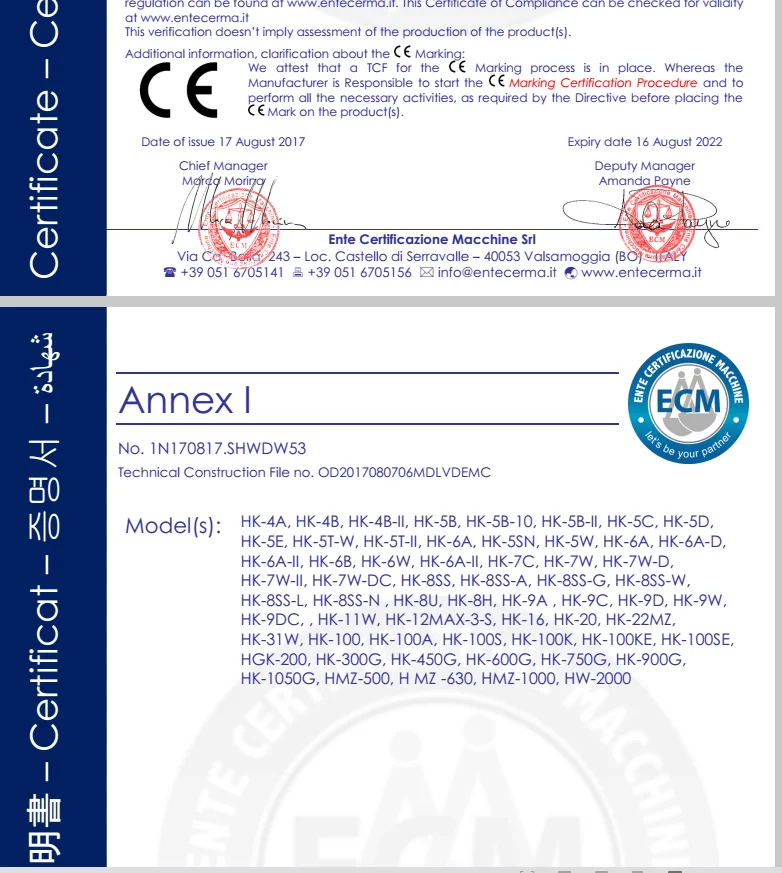

Certifications
