gypsum board machine/gypsum board making machines
US $7500-$12000
PU Sandwich Roof Panel Making Machine Metal Stud And Track Roll Forming Machine
- Category: Other Construction Material Making Machinery >>>
- Supplier: Xiamen Youdeli Industrial Co. Ltd.
Share on (60690431370):
Product Overview
Description
Standing Seam Metal Roofing Panel Machine Chinese Supplier
Standing Seam Roofing Forming Machine with Straight&Tapered
Technical Parameters
Dimension of Full line | 49M*4M*2M |
Total Weight | 25000KGS |
Voltage of Motor | 380V/50HZ/3PH |
Driving Motor for Roofing Machine | 7.5KW |
Hydraulic Power for Roofing Machine | 3.7KW |
Forming Step for Roofing Machine | 19 steps |
Forming Step for Bottom Siding Machine | 14Steps |
Working Speed | 0-15m/min |
Motor Power for High Pressure PU Forming System
| 18KW |
Thickness of PU Sandwich | 20mm to 50mm |
Driving motor for Foaming Convery System | 11KW |
Heating motor for Foaming Convery System | 36KW |
Length of Foaming Convey System | 25m |
Pipette Tips Pressure | 10Mpa |
Hydraulic Pressure | 20Mpa |
Volume of stuff canister | 250L*2 |
After-sales Service Provided | Engineers available to service machinery overseas |
Main Accessories
NO | Items | Quantity | Remarks | |
1 | Top Roofing Roll Forming Machine | 1set |
| |
2 | Bottom Siding Panel Roll Forming Machine | 1set |
| |
3 | Main PU Sandwich Foaming Machine | High Pressure PU Foaming System | 1set |
|
|
| Foaming Convey System | 1set |
|
|
| Cutting Device for PU Sandwich Roofing Panel | 1set |
|
4 | PLC control system with touch screen | 1set |
| |
5 | Run Out Table for PU Sandwich Roofing Panel ( L:3M ) | 2pcs | Up to customer | |

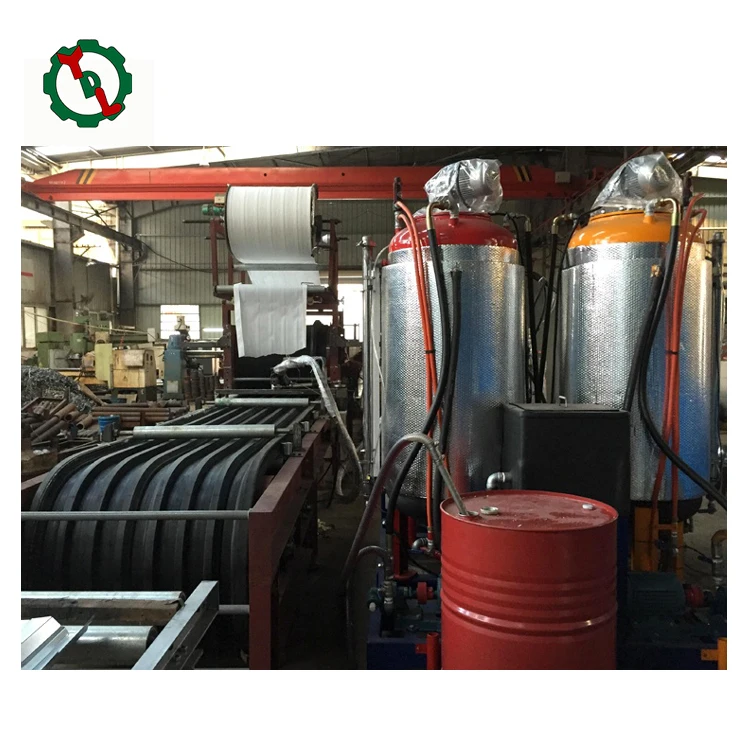

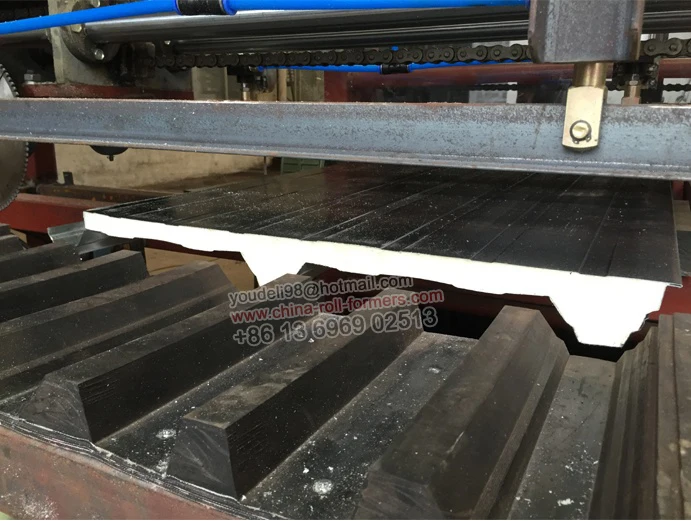

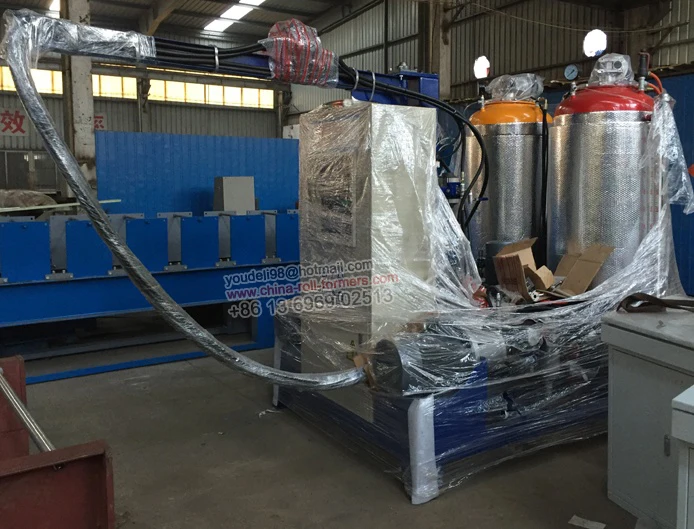

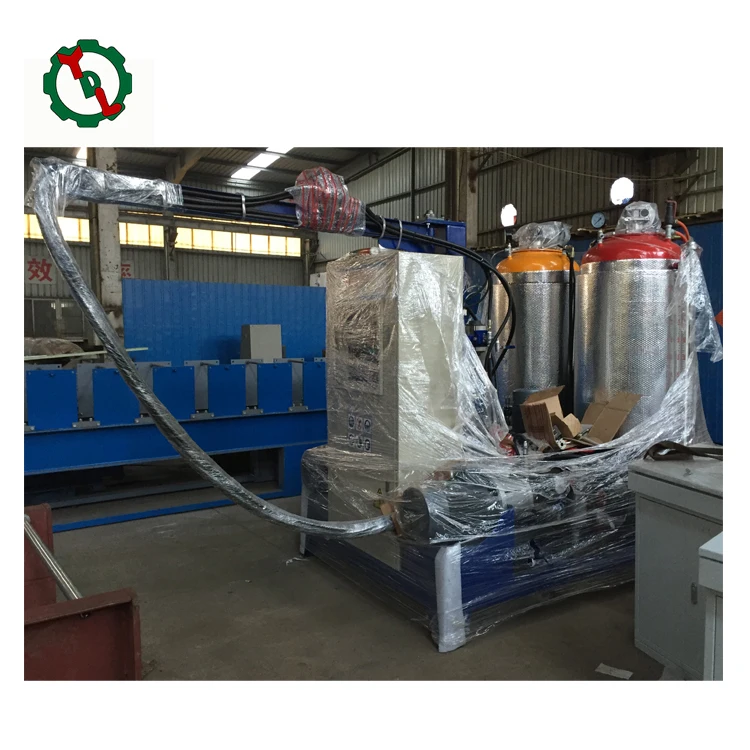

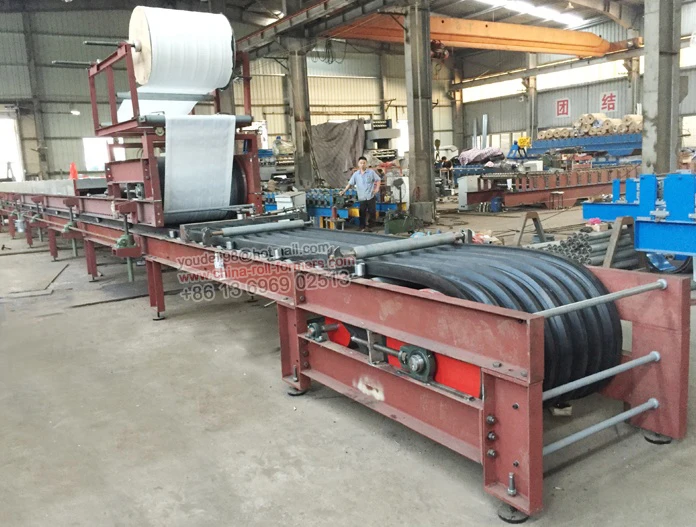

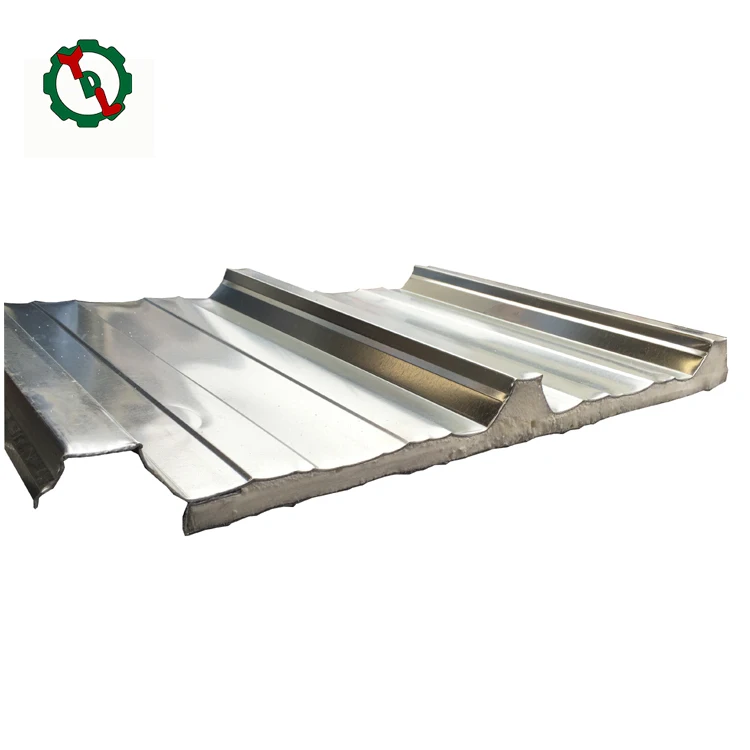

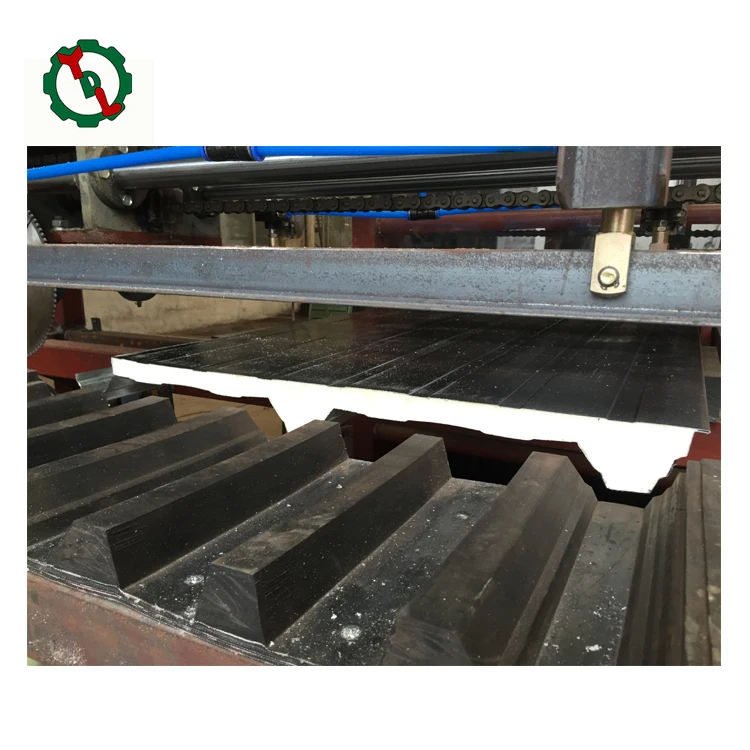

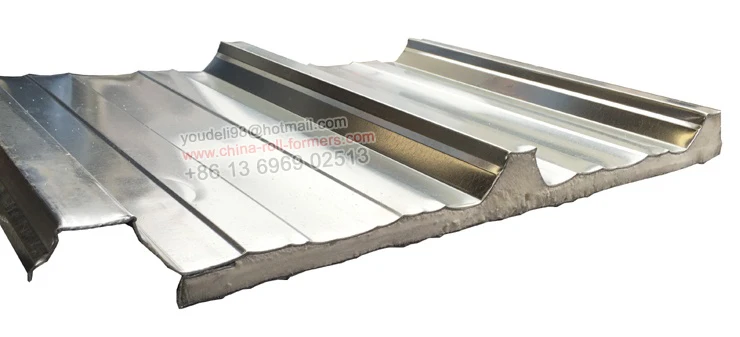

Product Show
FAQ
1. Are you the trade company or factory?
We are professional manufacturer for making cold metal roll forming machines.
2. How to visit your factory?
We can pick up you at the Xiamen International Airport or Xiamen North Railway Station
to our factory.
3. Do you provide customized machines?
Sure, we can design and make the machines as per your requests. We are the professional
designer and manufacturer for cold metal roll forming machines.
4. Does one machine can only produce one size?
Not exactly, it depends on the machine.
5. Is there quality control when manufacturing the machines?
Yes, we have responsible teams who will be in charge of the quality control from laying off the raw material, processing the machine frame, rollers, shafts and the other parts, making heat treatment the rollers and shafts, installing, adjusting, testing and packaging, etc.
6. Why your price is higher than others?
Because we insist on that every company must attach importance to the quality at first
place, we must confirm to do well every step of processing the machines, to get better quality for the machines, and supply good services for our customers.
7. What can you do if the machine broken?
The warranty period of our machines is one year.
If there are any problem with any parts within guarantee time, we will courier the new ones for replacing within one week. If after the warranty period, we can solve the problems by negotiation each other as per the actual situation of machines. Anyway we can promise to provide our technology supports for the whole life of our machines.
8. Do you have after technology support?
Yes, we are glad to give suggestions and also have skilled technicians available to service
machinery oversea if you needed.
9. Do you have oversea engineers?
Yes, we can supply not only good skilled technicians to oversea, and also provide
technology training.
10. Can you response for the transport of machines?
Yes, please check us your destination port or address, we have good services of
cooperated shipping line with us.
