High Quality High Efficient Truck Trailer Tpms Wireless Tire Pressure Monitoring System
- Category: >>>
- Supplier: Dongguan Tiremagic Electronic Technology Co. Ltd.
Share on (60690618959):
Product Overview
Description
product
Features

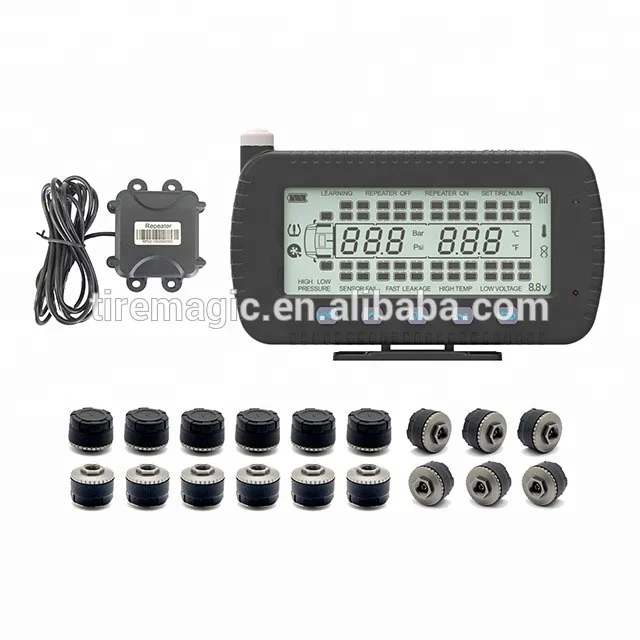

Internal truck tpms, truck trailer TPMS, support 1pcs tires to 46pcs tires
• tpms for trucks
• It requires professional installation tire removal tool
• Provide a power line to truck ACC or Cigarette lighter
• Monitor can support up to 46 tire pressure, temperature and battery voltage cycle

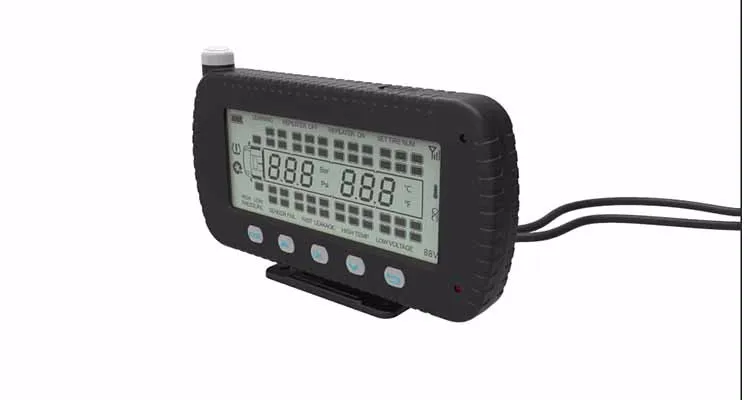

• High-definition 5.0-inch colorful LCD display
• you must use more repeaters when you use trailer
• Convertible pressure unit, Bar/Psi
• Adjustable viewing angle of display by steady
• High/low pressure alarm
• Slow/fast leakage alarm
• High temperature alarm
• Low battery alarm
• Sensor failure alarm
• Real-time tire data monitoring
• Visual/Audible alarm
• With RS232 tpms port, you can connected to GPS module

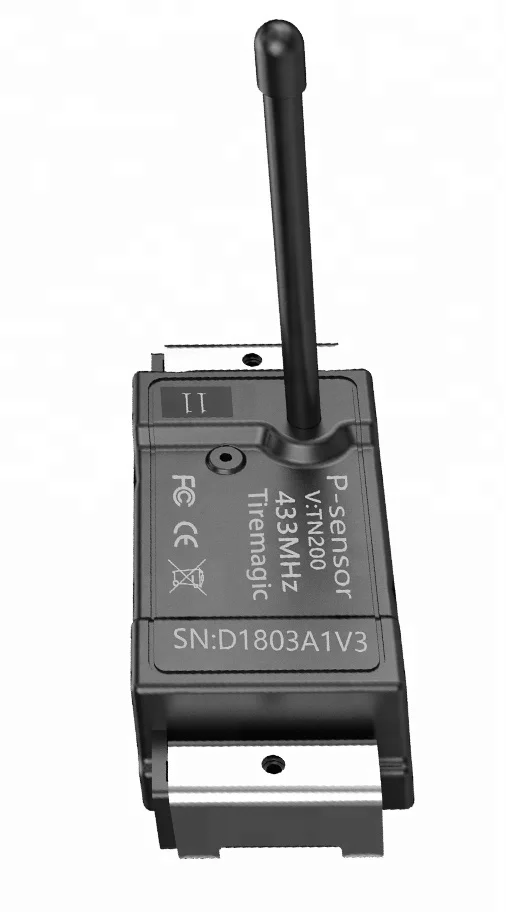

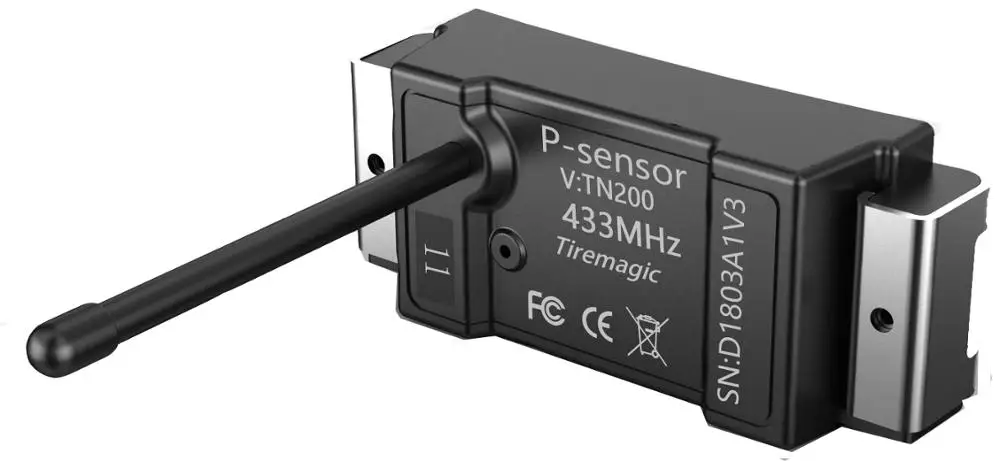

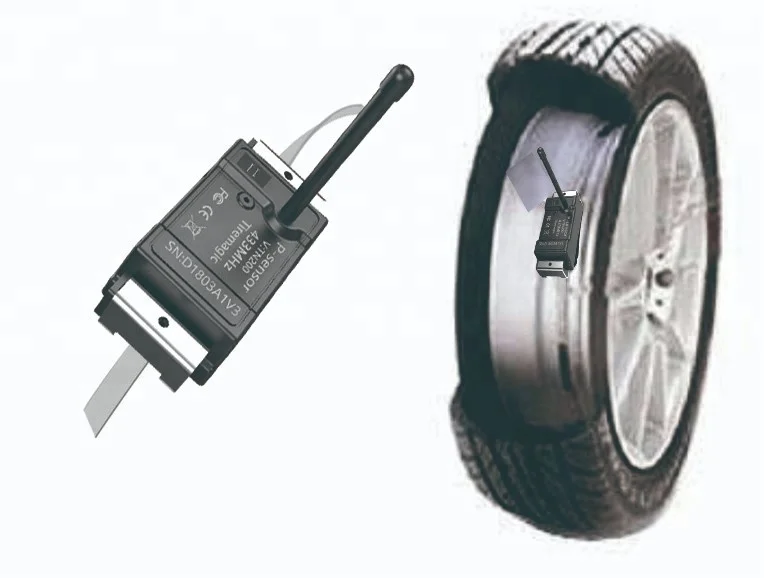

Bandage sensor:
• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• Operating current: ≤10mA
• Static current: ≤1uA
• Operating temperature: -40~+125°C
• Storage temperature: -40°C~+125°C
• Battery model: CR2050
• Battery lifespan: ≥5years
• Weight:32g ± 0.5g(without bandage)
• Pressure range: 0-14Bar/0-203Psi
Repeater:
• Operating frequency: 433.92MHz ± 68KHz
• Operating voltage: DC9V-DC30V
• Operating current: ≤50mA
• Static current: ≤10mA
• Operating temperature: -40~+85°C
• Storage temperature: -40°C~+125°C
• Power supply: Trunk power
• RF Transmitter power: <10dbm
• RF receiver sensitivity: >-105dbm
External sensor
• Operating frequency: 433.92MHz ± 28KHz
• Operating voltage: 2.0~3.3V
• Operating current: ≤10mA
• Static current: ≤1uA
• Operating temperature: -30~+85°C
• Storage temperature: -30°C~+85°C
• Battery model: CR1632
• Battery lifespan: ≥2years( the battery can be replaced)
• Weight:10g ± 0.5g(without screw)
• Pressure range: 0-14Bar/0-203Psi

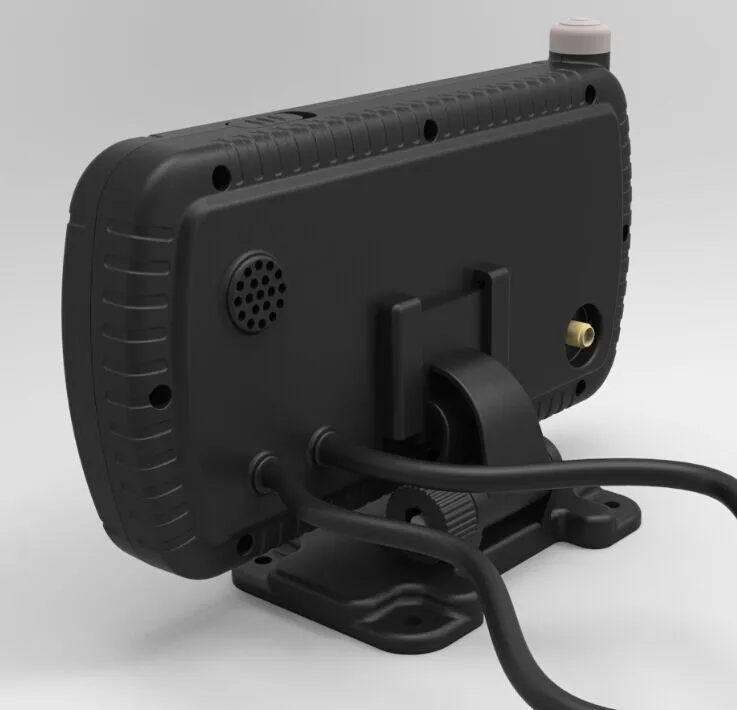

Display:
• Operating frequency: 433.92MHz ±68KHz
• Operating voltage: DC9V—DC30V
• Operating current: ≤60mA
• Static current: ≤10mA
• Operating temperature: -20°C ~ +70°C
with RS232 port, can be connected to GPS
guanlianyingxiao
Q: Why do we choose tiremgaic tpms?
A1: We have more than 14 years experience of TPMS R&D and Manufactory, and we can ODM for you.
A2:We have all type TPMS products, such as: TPMS for car, for truck, for otr truck ,internal and external sensor, OE sensor ect...
Q: What's the application rang for you TPMS products?
A: Our TPMS can be supported all car or truck, pasenger car, Truck, Otr Truck, long vehicle, BUS, ect.
Q: What's your MOQ? Can you support sample order?
A: Yes, we can support the sample order, and our MOQ is: 100set
Q: What are you shipping ways?
A: Air or sea shipment, and we can ship according to your request.
