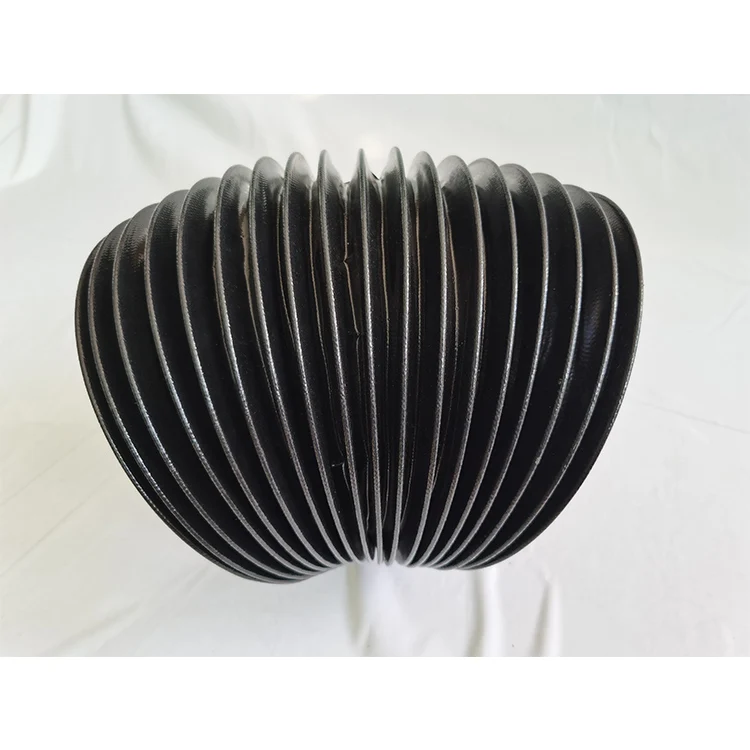

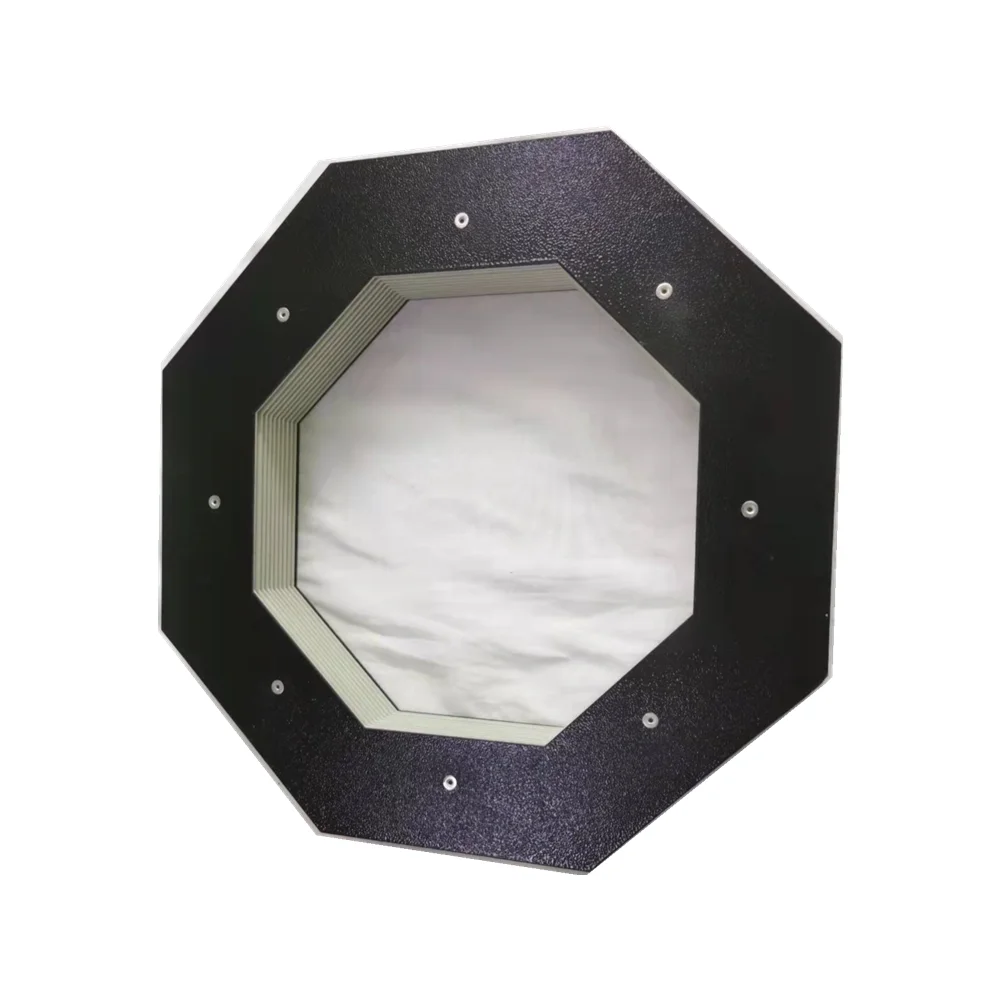

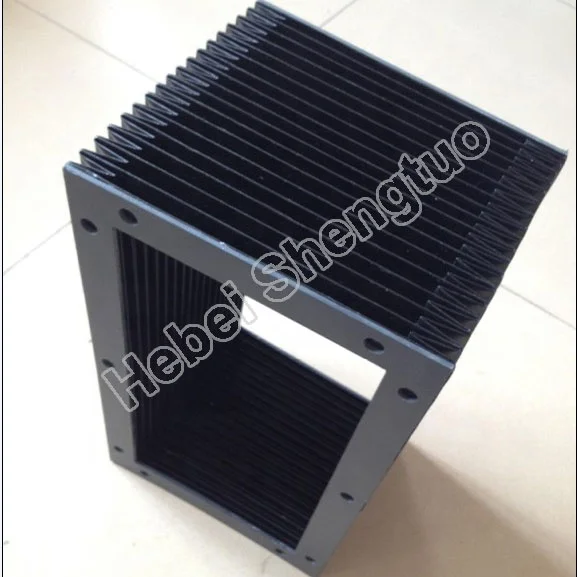

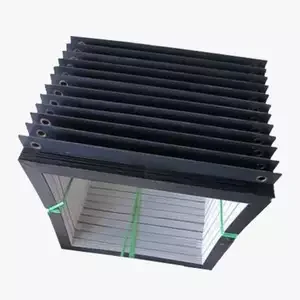

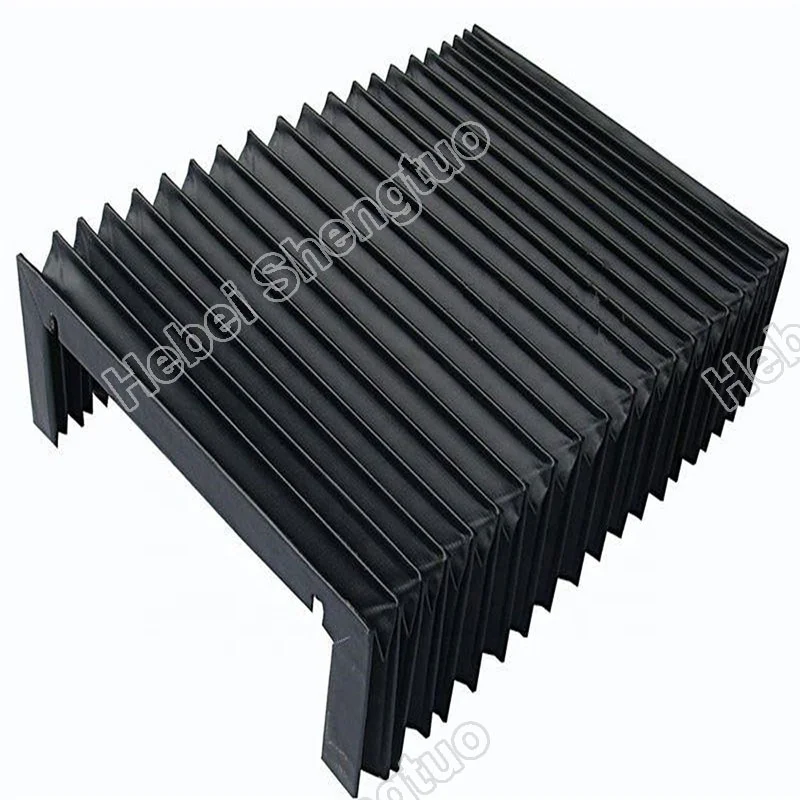

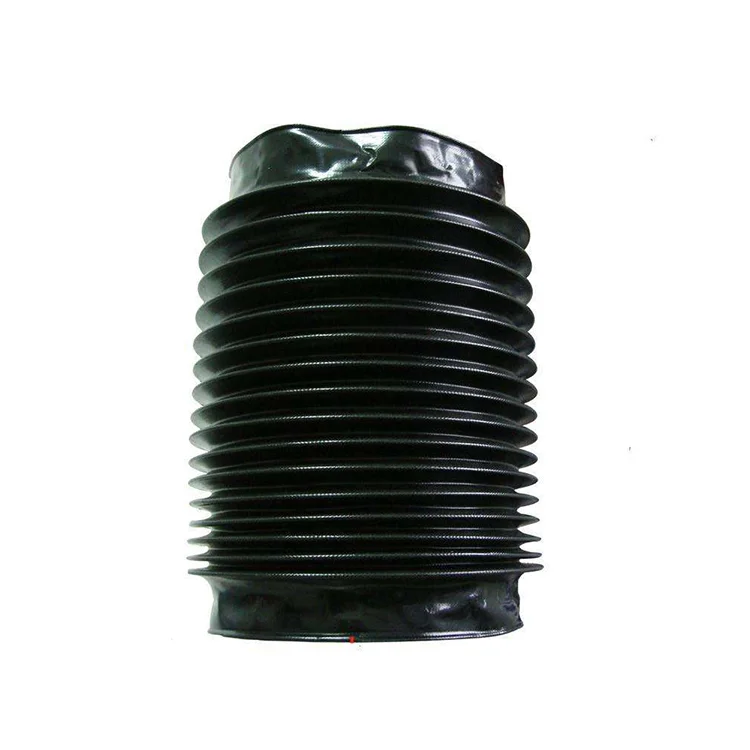

Manufacturer Wholesale Quality Dustproof Waterproof Telescopic Shaft Bellow Cover
- Category: Guard Shield >>>
- Supplier: Hebei Shengtuo Machine Tool Accessories Producing Co. Ltd.
Share on (60691521574):
Product Overview
Description
Product Overview
Here ,we have many types of shield for your choosing .
Just let me know which kind you like
Just let me know which kind you like
PRODUCT CONFIGURATION
Machine shield series mainlu include:organ form Rail machine shieled,seeel plate machine shield,silk lever shield,winding curtain shield,Aluminum curtain shield, galeiform machine shield, etc.They could be used to protecting the rail crossbeam vertical spigot,silk lever and zxis of all kinds of mechanism and equipment.
Our Advantage
Hebei Shengtuo has strong technical and manufacturing strength, and has a group of expert engineering and technical personnel management personnel with decades of practical experience. There are more than 30 sets of advanced and sophisticated numerical control equipment and professional equipment, and the manufacturing and processing capabilities are at the leading level in the country. Strict quality management system and perfect service system ensure product quality and after-sales service. The company's products are widely used in the fields of CNC machine tools, machinery, equipment, automation equipment, ships, cranes, etc., and are loved by users at home and abroad, and are exported to developed countries and regions such as Europe and the United States.
1.Timely delivery
2.Guaranteed product quality
3.After-sales service

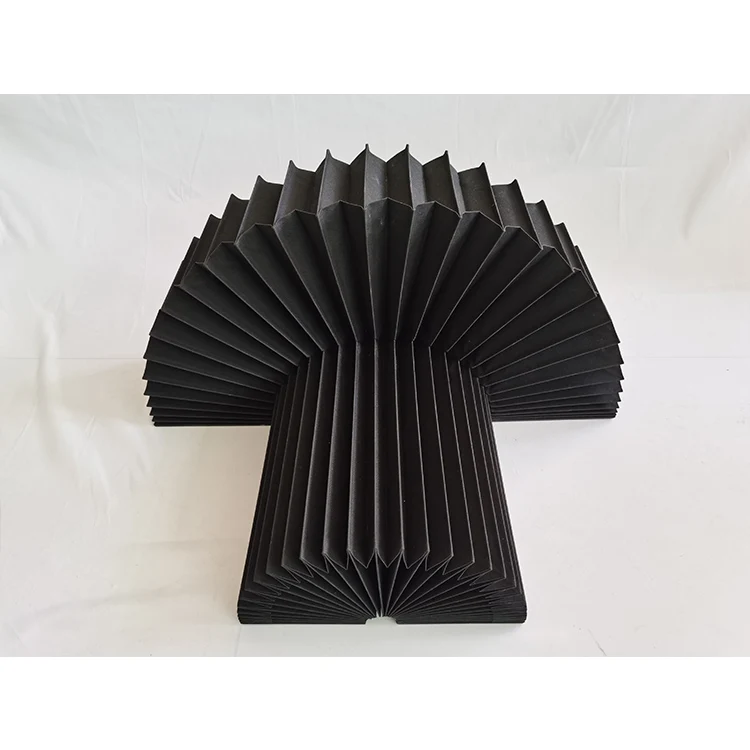

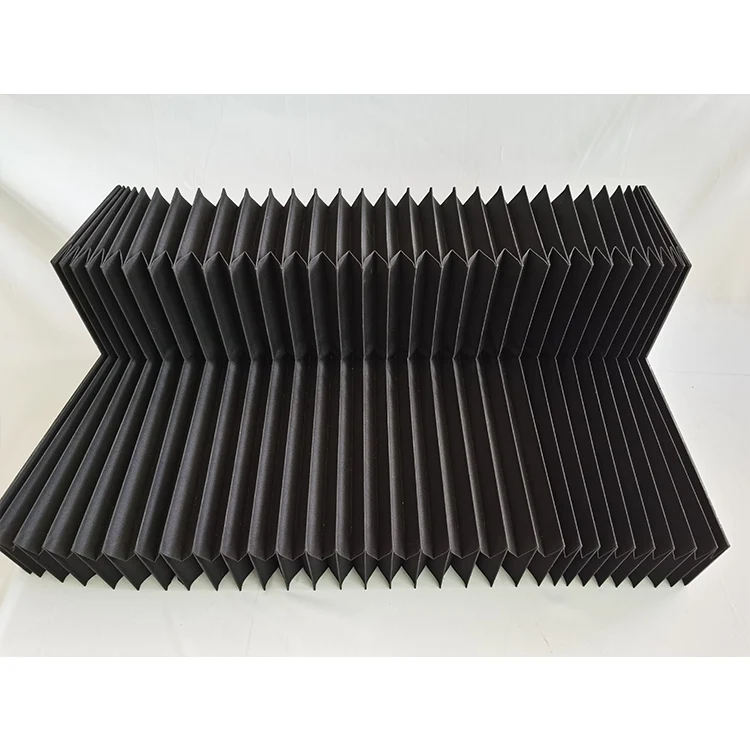

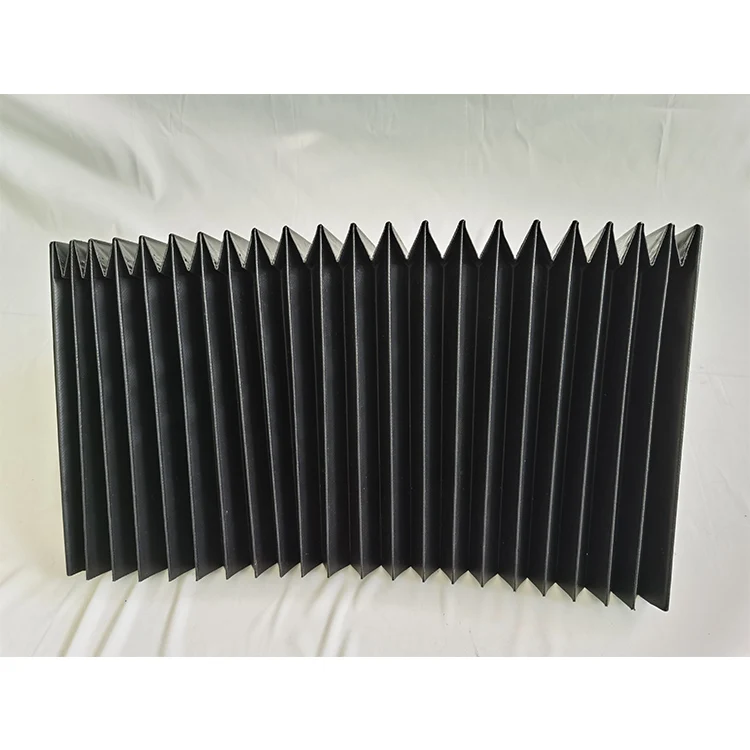

Sample Show
Product packaging
Use carton packaging or pallet packaging according to customer requirements
Products Design Parameters
To calculate the dimensions of the welded bellow at the design stage,it is useful to pay mind some data:
The standard folds have the following heights : 15mm 20mm 30mm 35mm 40mm 45mm 50mm
The total play between the slides and the bellow must be form a minimum of 5mm,to a maximum of 10mm.
The extension of one fold is equivalent to twice the fold is hright minus 10mm.
The thickness of a compressed fold is on averaage 4mm
The compressed lenght og the bellows is equal to:
extension of bellow/extension of one fold *(3-4.5mm)+flange thickness
