2022 wood processor firewood processor
US $9000-$10000

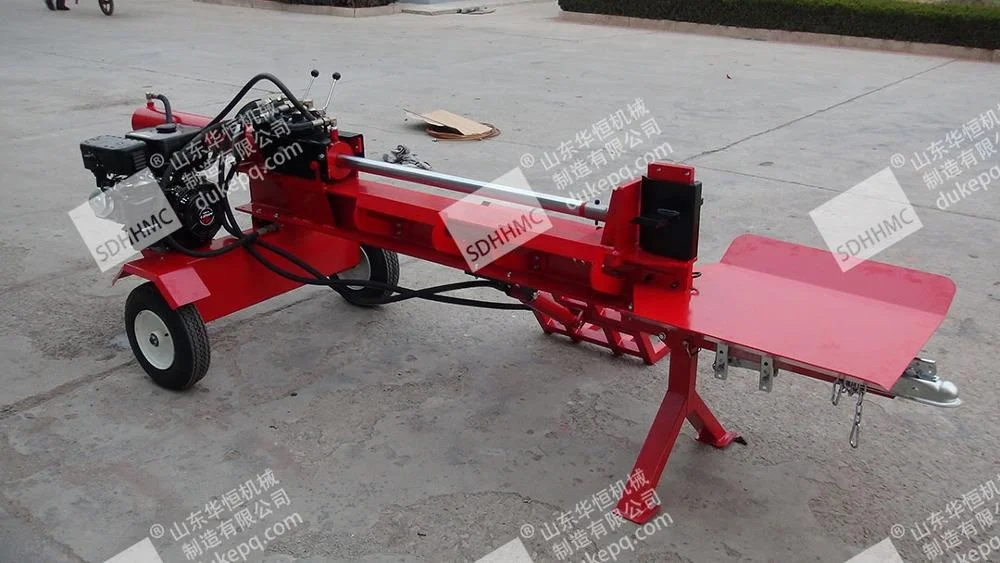

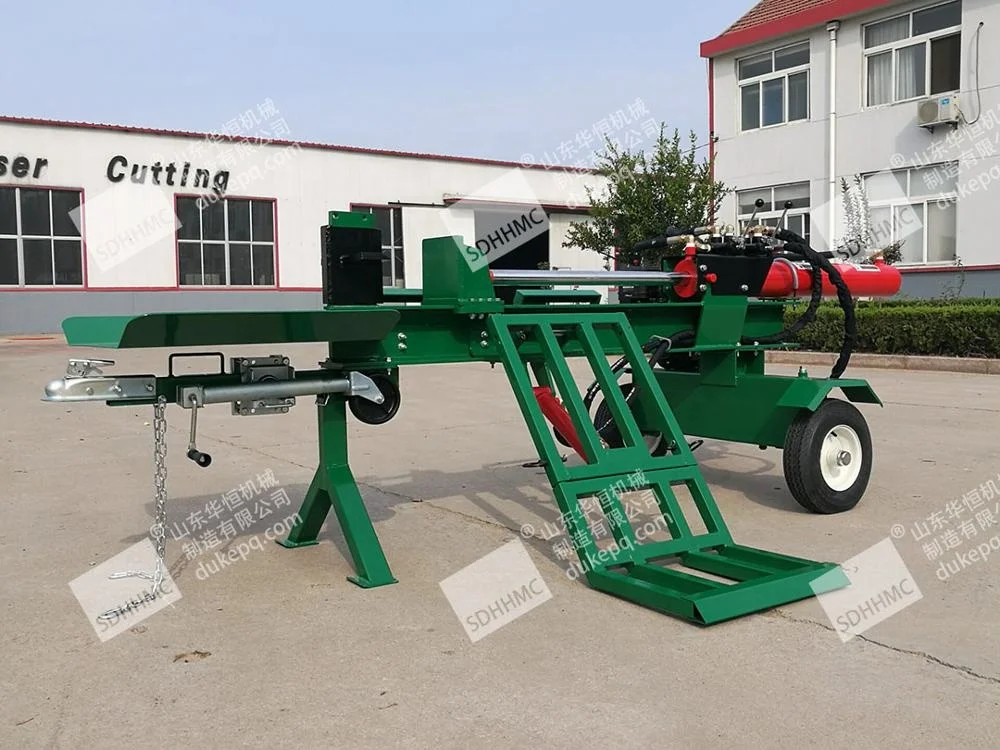

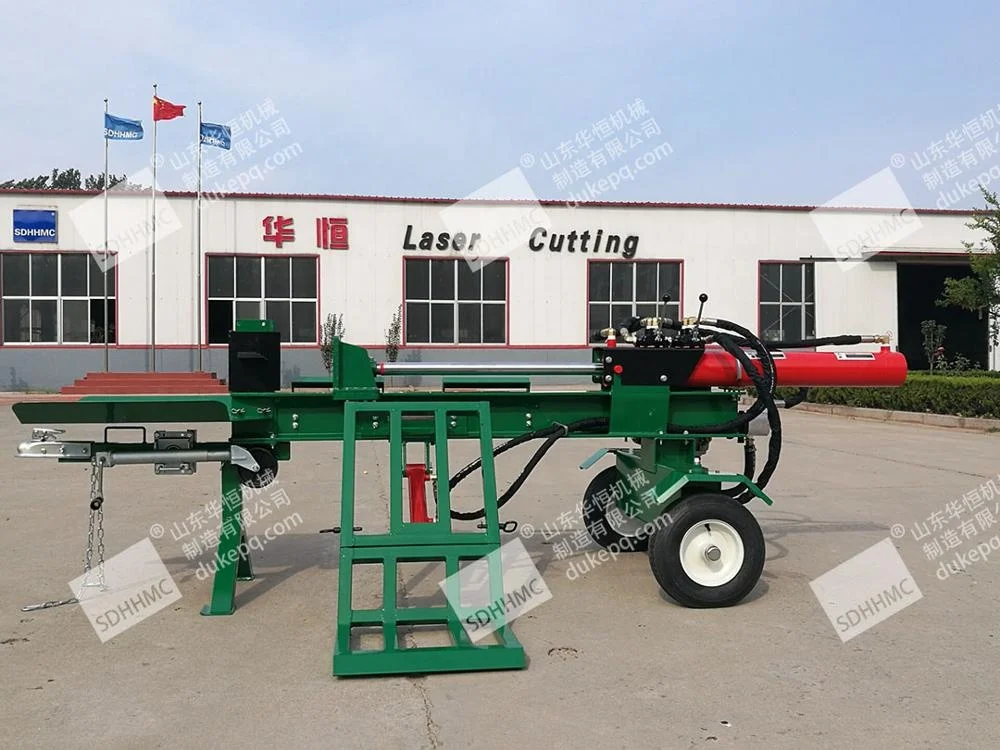

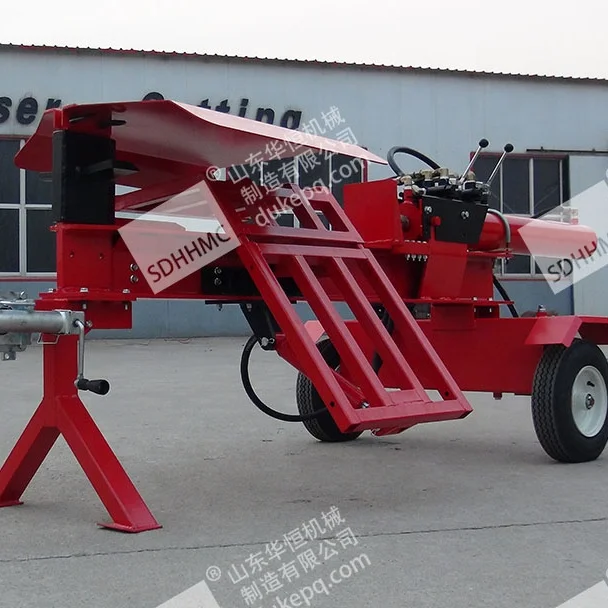

Factory Offer 50Ton Diesel Engine Powered Wood Log Splitter With Hydraulic Lift Arms
- Category: Forestry Machinery >>>
- Supplier: Shandong Huaheng Machinery Manufacturing Co. Ltd.
Share on (60691539774):
Product Overview
Description
Product Description
Product Application
for wood splitting with lift arms.
SPECIFICATIONS FOR LOG SPLITTER WITH LIFT ARMS | ||||||
Model | LS50T/1050H-BTG | Starting System | Electric start | |||
Description | Diesel engine driven, horizontal，4 way axe head，two handle | Packing dimensions | 2200L*870W*560H mm | |||
Motive power | 13HP | N.W./ G.W. | 420kg/450kg | |||
Max. split force | 50tons | Packing Method | 1pc./ wood crate | |||
Max split size | Φ500mm X 1050mm(L) | Container Quantity | 20pcs. for 20'FCL | |||
Hydraulic oil | 27L | Warranty | 12months since B/L date | |||
Oil cylinder diameter | 5 inch | Pump | 16GPM | |||
Travel time | 18 seconds | |||||
Certifications
Detailed Images
Machine Parts

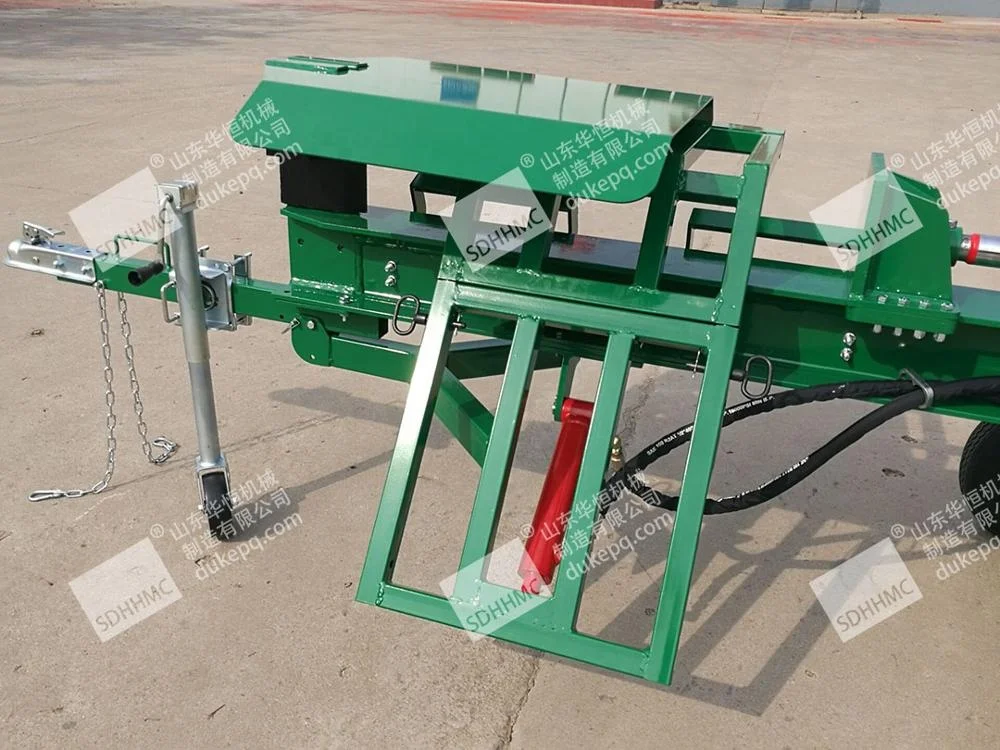

Name: LOG TRAY
Brand: HUAHENG
Original: CHINA
TO LOAD WOOD
Main Features
Name: Wedge 2 way or 4 way
Brand: HUAHENG
Original: CHINA
Split wood to 2 or 4 parts
Machine Parts
Name: PUMP
Brand: DELI
Original: CHINA
Famous brand pump in China with reasonable price
Main Features
Name: Tyre
Brand: HUAHENG
Original: China
Top quality DOT 4.8-8 tyre
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Offer warranty parts during 1 year time.
Packing & Delivery
Packaging | ||
Size | 2200(L) * 870 (W) * 550 (D)mm | |
Weight | 450KGS | |
Packaging Details | The normal package is steel plate or wooden box.We can also pack it according to customers special request. | |
