Manual Roller Blind Fabric Cuttiing Table
- Category: Other Home Textile Product Machines >>>
- Supplier: Guangzhou Stec Technology Co. Ltd.
Share on (60691881130):
Product Overview
Description
Product Description
Product Application

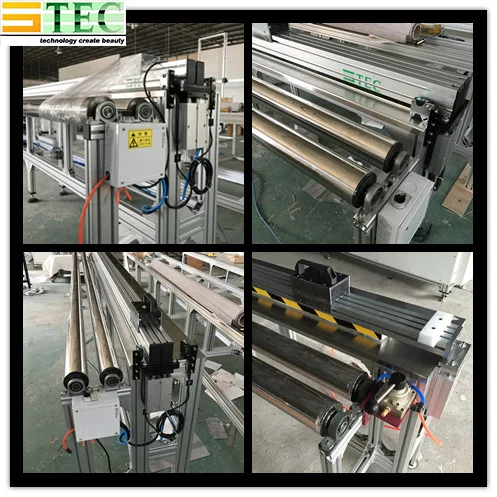

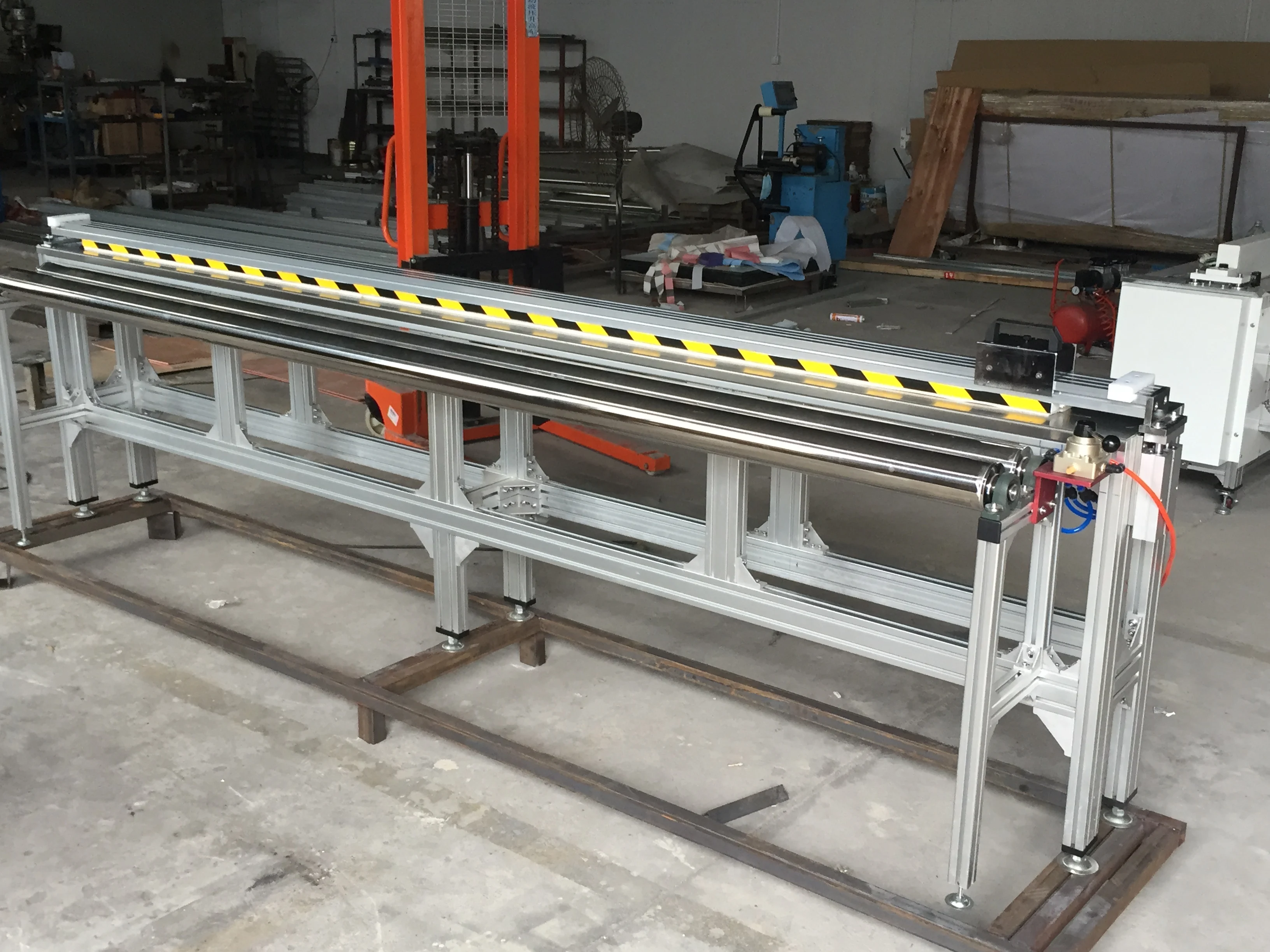

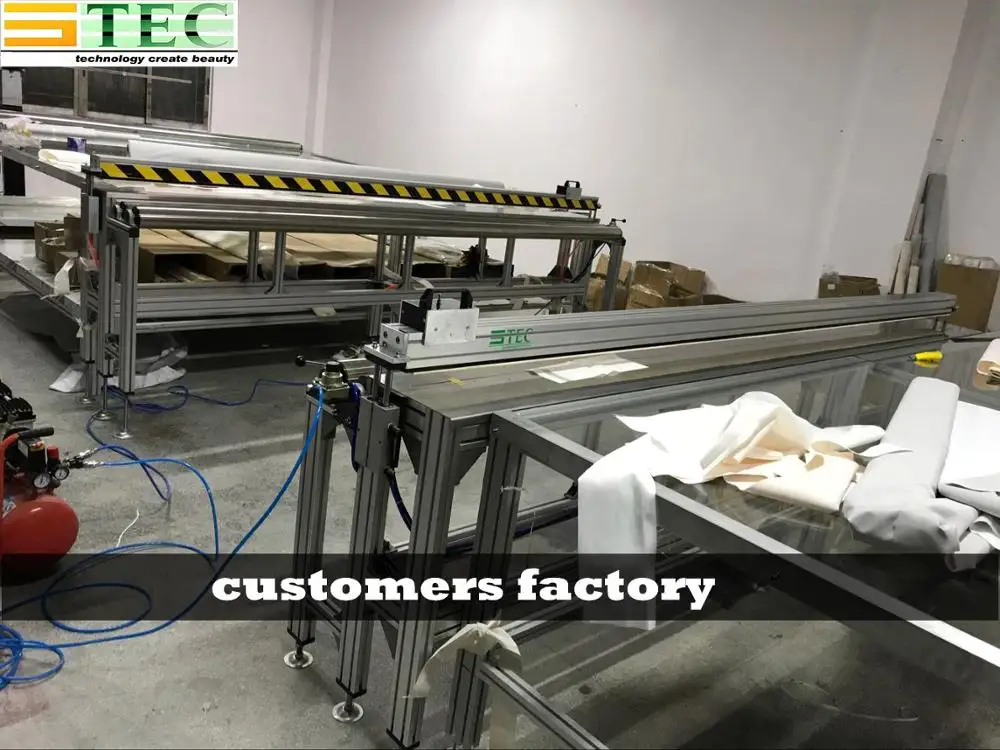

Manual Roller Blind Fabric Cutting Machine is one type simple ,efficient and affordable machine for the roller blind producer.. It is widely used to cut sunscreen fabric,blackout fabric ,one layer/two layer zebra roller blind fabric.
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR | ||||||
Voltage | V | 110/220V single phase(if safety sensor equipped) | ||||
Rate power | W | 30((if safety sensor equipped) | ||||
Working air pressure | bar | 5~6 | ||||
Max fabric cutting width | mm | 3000 standard | ||||
Cutting system | manual blade cutting | |||||
Safety sensor | optional | |||||
Dimension | mm | L3400*W600*H1000 | ||||
Packing size | mm | L3500*W700*H1200 | ||||
N.W | kg | 300 | ||||
Package | steel frame with poly wood | |||||
Main Features
1) Fast pushed moving cutter.Can starting cutting in both way to save time.
2) Double pneumatic fabric pressing bar to make sure fabric cut before it fixed.
3) Can cut most roller blind fabric with one layer or double layer.
4) Aluminum body frame, tungsten steel blade with durable cutting life.
5) Equipped with safety sensors in both side of the pressing bar.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
