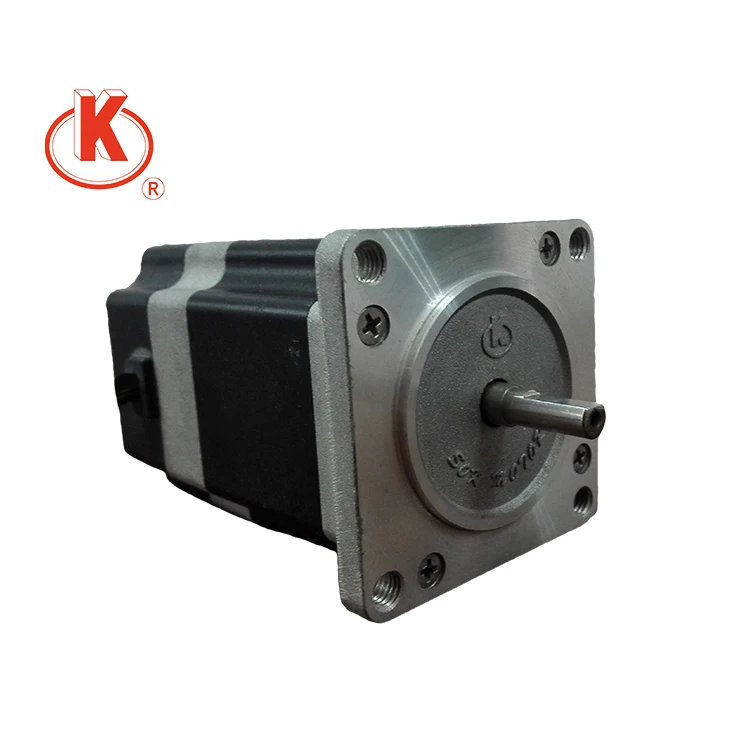

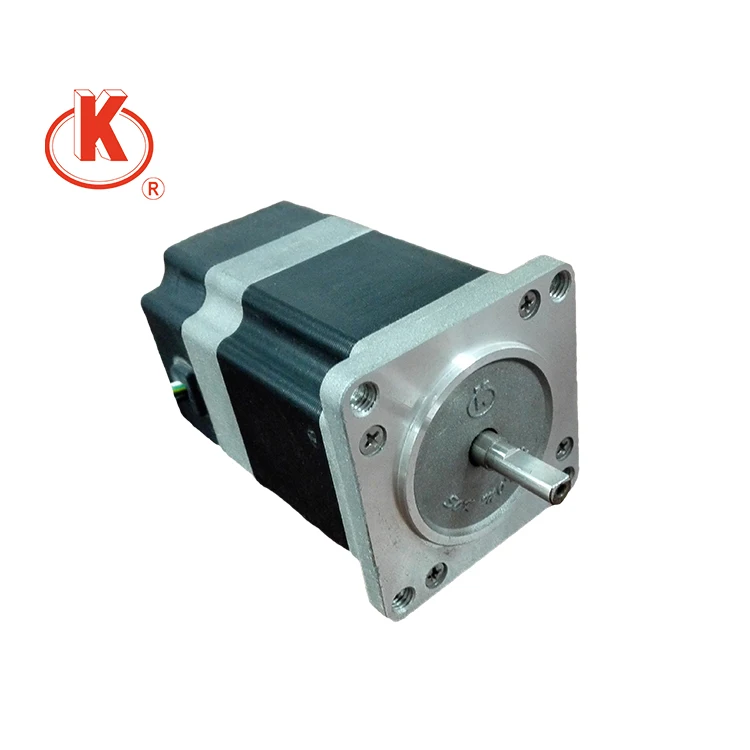

55TDY060D4 2C PM synchronous motor for heat recovery

 PM slow speed synchronous motors is one kind of totally enclosed motor, which can naturally turn at slower speeds(72 or 60RPM).
For even slower speeds planetary gear reducers are offered. SOK synchronous motors produce very slow speed with modest gear reductions.

1.Temperature:-25℃～ +40℃；
2.Relative humidity:≤95%；
3.Atmospheric pressure :74.8KPa（2500m);
4.Vibration:10～55Hz,double amplitude1.5mm;
5.Impact: 150m/s2

Auto-testing equipment

Medical equipment

Timing belt drives

X-ray scanning

Textile machines

Electrical valve actuator

Cryogenic pump

Heat exchanger

Remote control of switches rheostat

Printing,packaging machines

Antenna rotors

Auto-welding machines

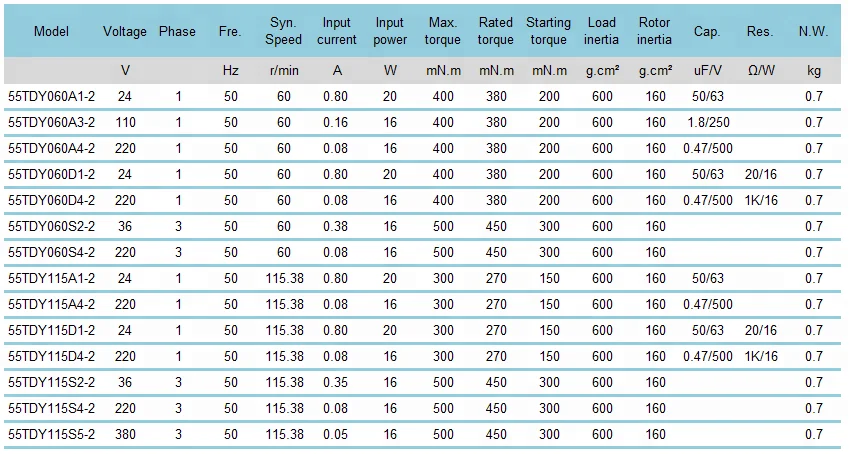

Parameter of synchronous motor for heat recovery

Note: The typical specifications above just for your reference. Please feel free to contact us if you can’t find the motor you required. We are always here being ready to help.

Dimension of synchronous motor for heat recovery
