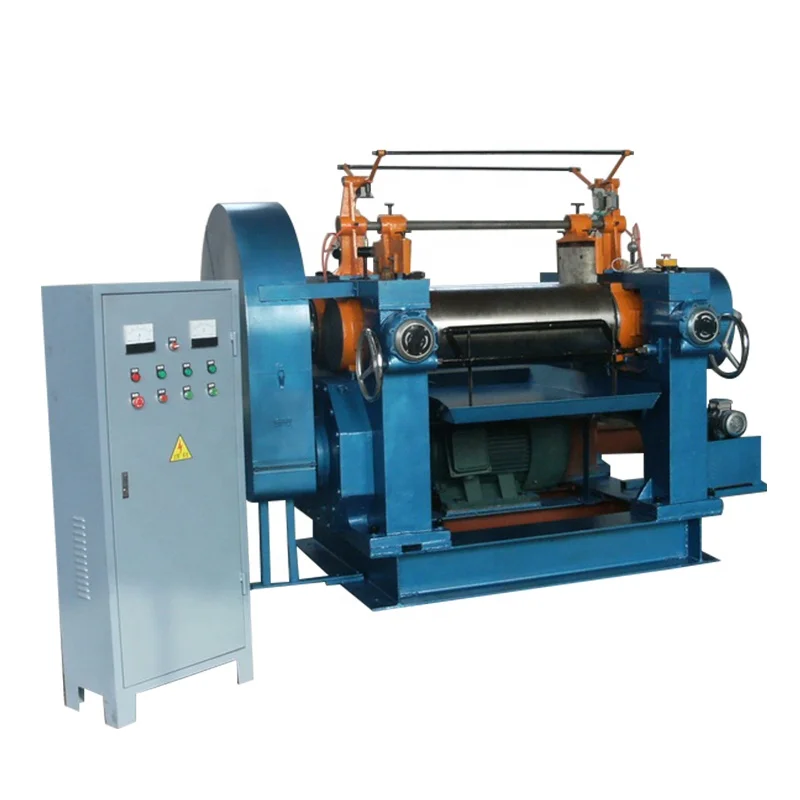

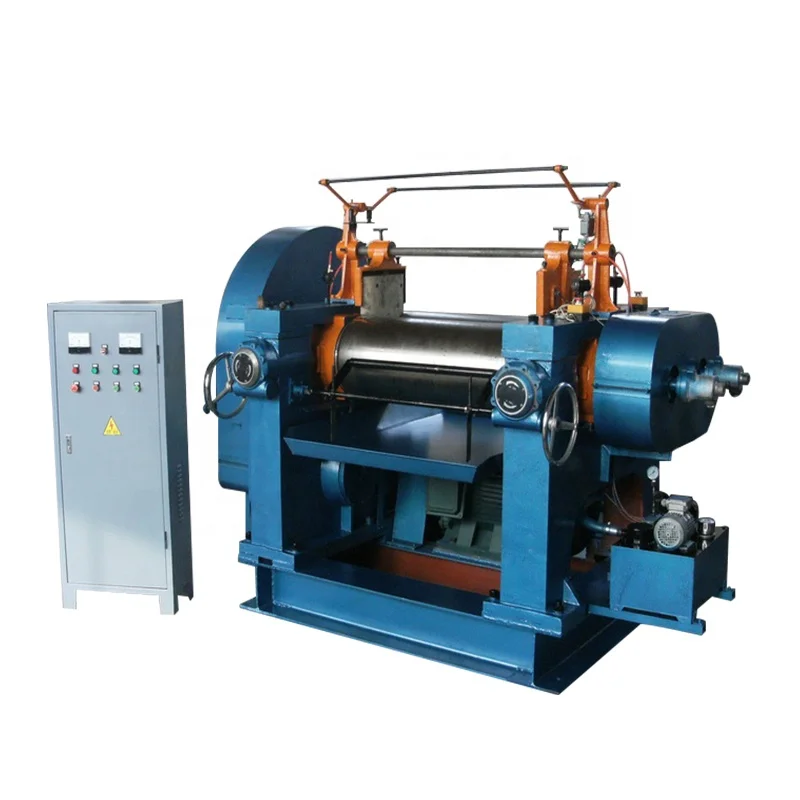

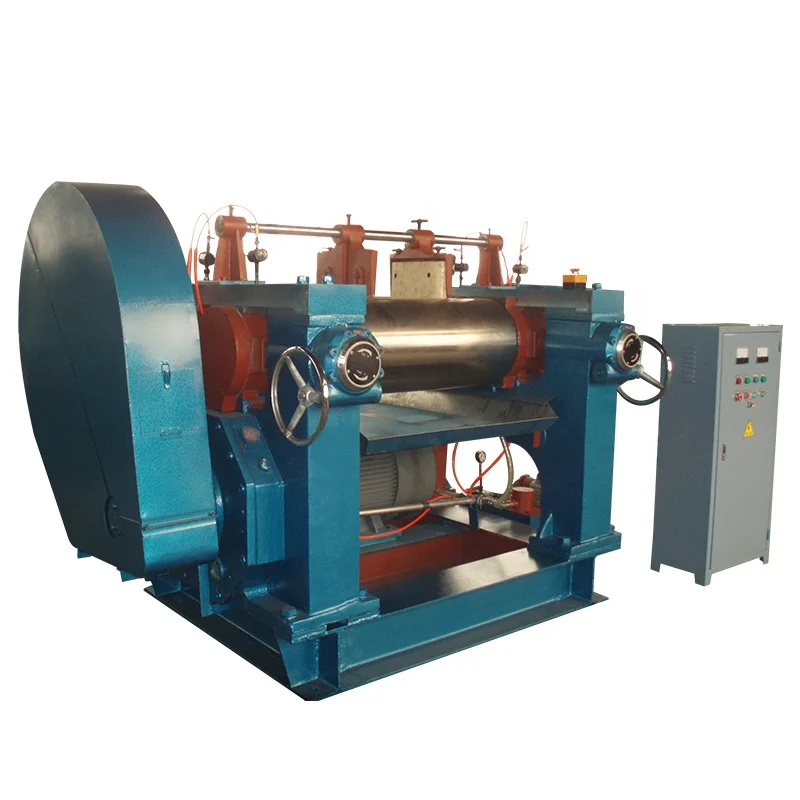

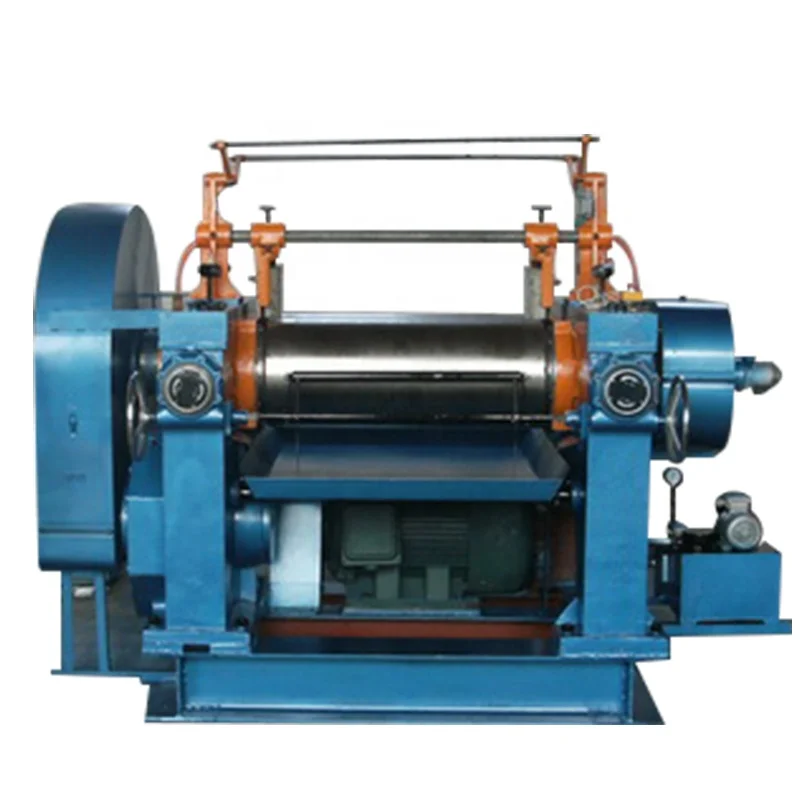

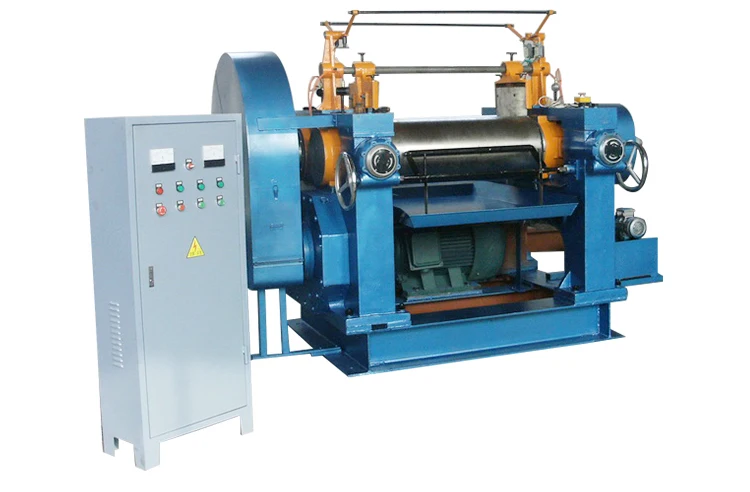

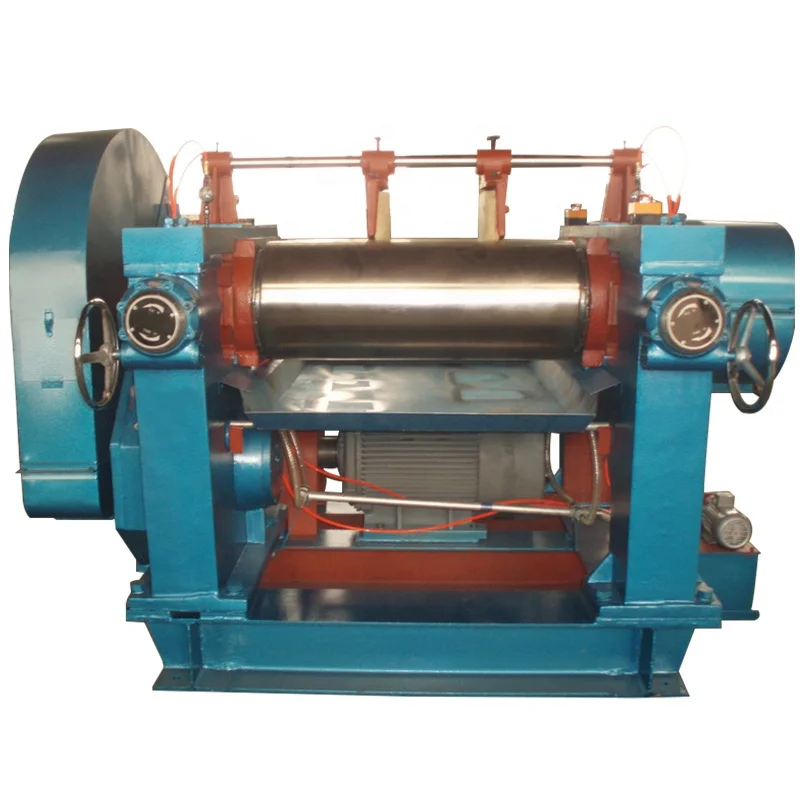

silicone rubber mixer/silicone rubber mixing machine with best price

Horizontal type rubber mixing mill is mainly used in following cases for rubber products factory: natural rubber refining, raw rubber and compound ingredient mixing, warming refining and sheeting of glue stock. This machine can reassure well lubricating and easy operation for it adopting oil cup lubrication.

Characteristic and advantage:

1. The present machine is a newly-designed two roll mixing mill with driving gears of the speed reducer mounted inside the right frame and the main driving electric motor in the gap between the base and rolls, so that it is compact in structure and takes less floor area. Moreover the elimination of the foundation fixing bolts and adoption of floatation mode in installation make the whole machine east and convenient to erect and move.

2. Surfaces of the rolls made of chill cast iron, are 68-75 of shore hardness, which are rigid and wear-resistant. The rolls are bored to pass steam or cooling water for controlling the working temperature of the roll.

3. Forced lubrication with diluted oil to the roll bearings is adopted and therefore full and reliable lubrication is guaranteed. Roll nip adjustment is carried out according to processing requirement by means of hand wheels located on both sides of the frame. Turn the hand wheel clockwise, the roll nip decreases, or otherwise it is increase. The stock guide is axially adjustable which can control pressing width in addition to prevent the rubber stock flowing over both sides.

4. Fitted onto the heating-cooling device are two spraying pipes extending respectively to the roll’s cavities into which they let pass steam or cooling water for roll’s working temperature control.

5. For emergency stop mounted at the upper part of the machine is a crosswise pull rod by means of pulling which, sudden stop of the machine can be obtained in case any unexpected trouble turn up.

Main technical parameters of the models:

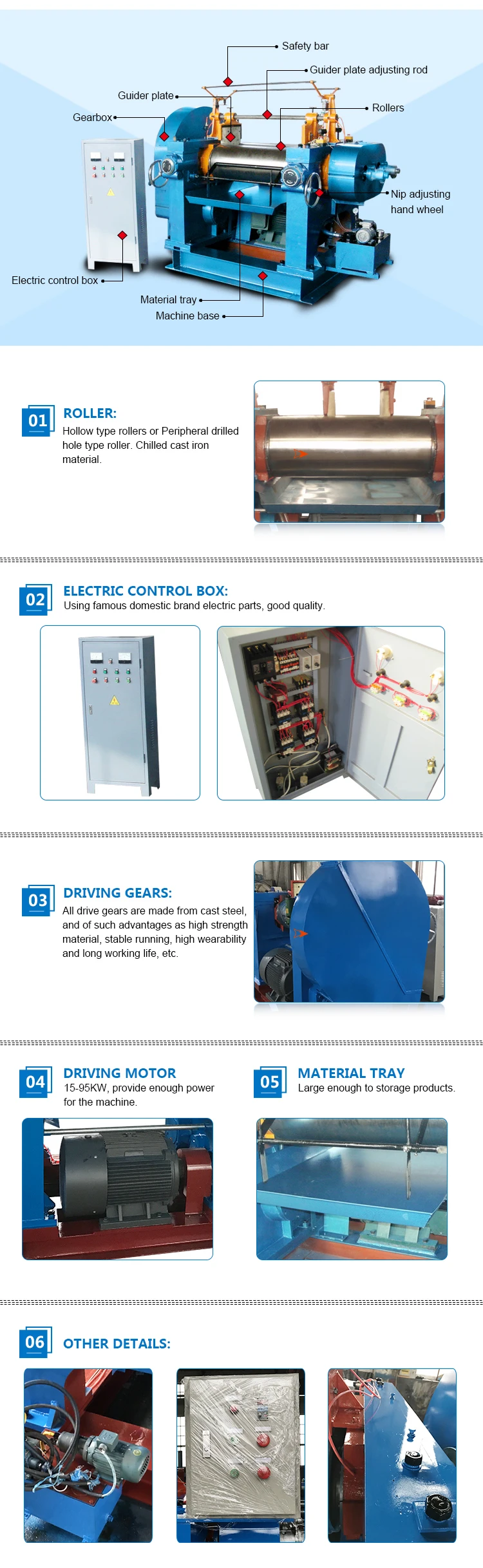

The series of horizontal type rubber mixing mill mainly consists of machine base, machine frame, rolls, drive system, lubricating device, heating and cooling device, roll gap adjusting device, safety brake device, motor and retarder etc.
