Product Overview

Description


Product Description

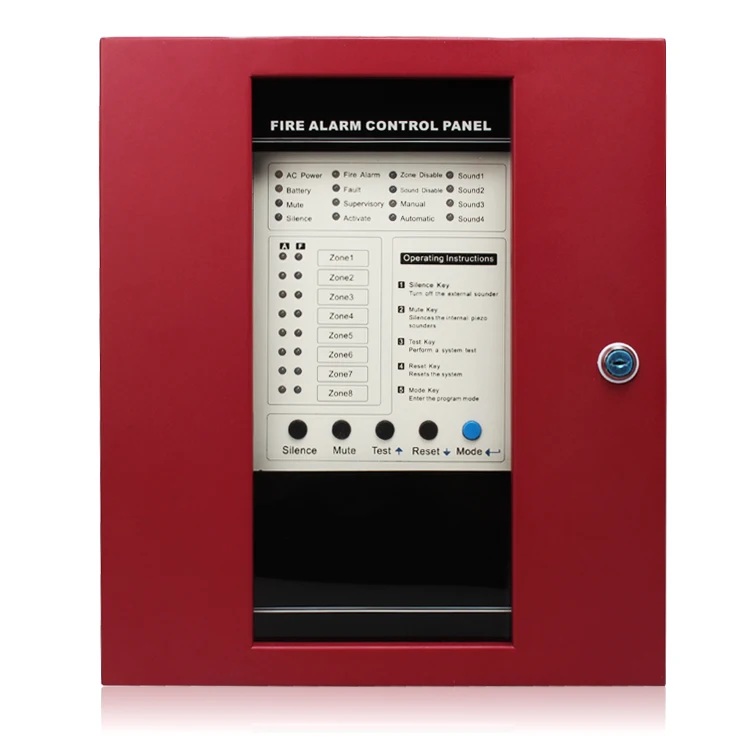

8 Zone Conventional Fire Alarm Control Panel
Features:

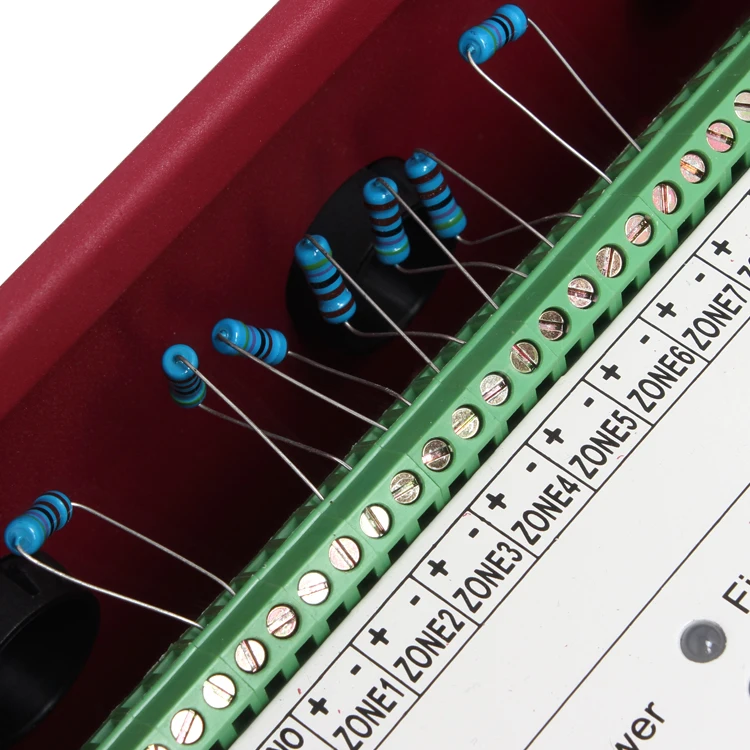

* Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept two-wire smoke detectors and any normally-open contact devices.Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
* Three General Alarm, Trouble and Supervisory, Form A Relay Output.
* One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits (NACs), NACs may be programmed: Silenceable or Non-Silenceable.
* 3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
* Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
* RS485 Communication Port (optional). Automatic/Manual mode can be programmed.
* Disable/Enable control per Zone (IDC) can be programmed.
* Disable/Enable Sound Output(NACs) can be programmed.

Technical Specifications:

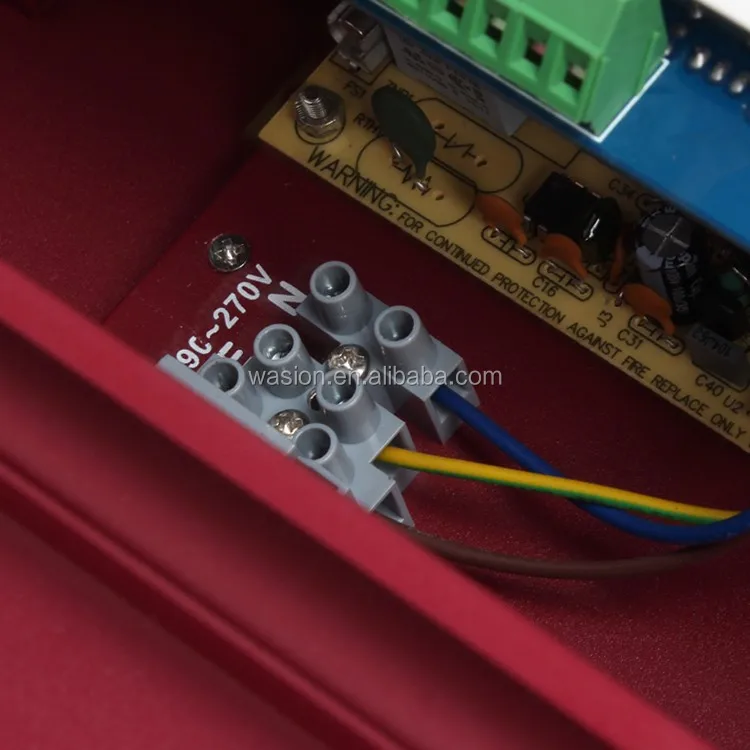

* AC POWER: 220VAC, 50 Hz.

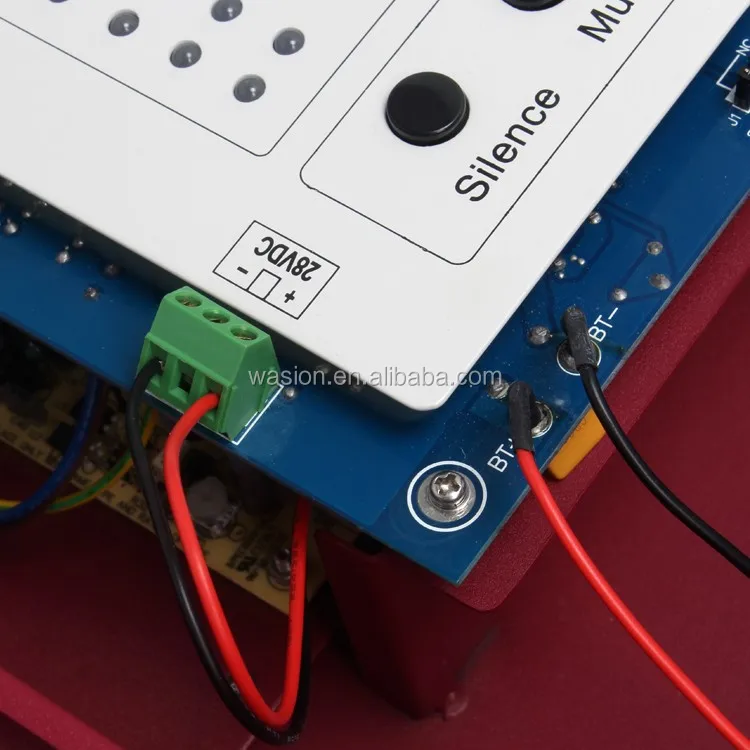

* BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for normal flat charge. Maximum battery charger capacity: 18AH battery.

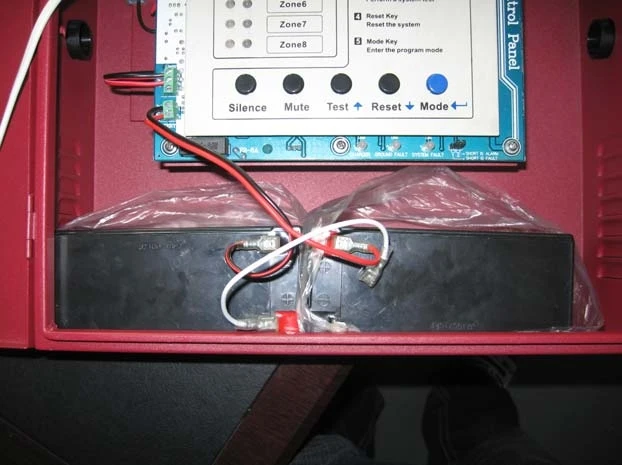

* NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate battery box.
* Total DC24V system power: 3.0 amps.
* Maximum current per NAC: 1.25 amps.
* Maximum battery charging capability: 18 AH.
* Resettable four-wire smoke detector power output.
* Non-resettable power output.
* Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC (resistive), 2.0 amps @ 30 VAC (resistive).

Package included:

1  sets fire alarm control panel
1 x English Manual

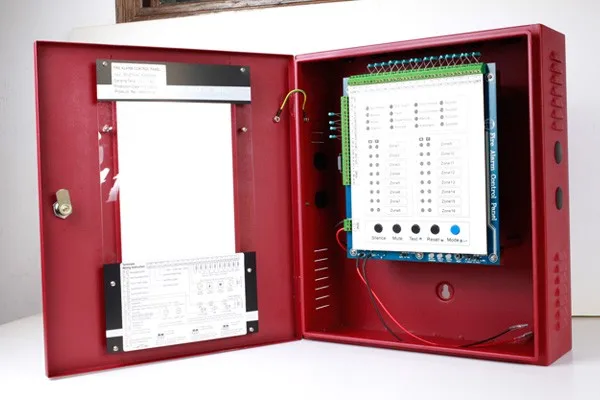

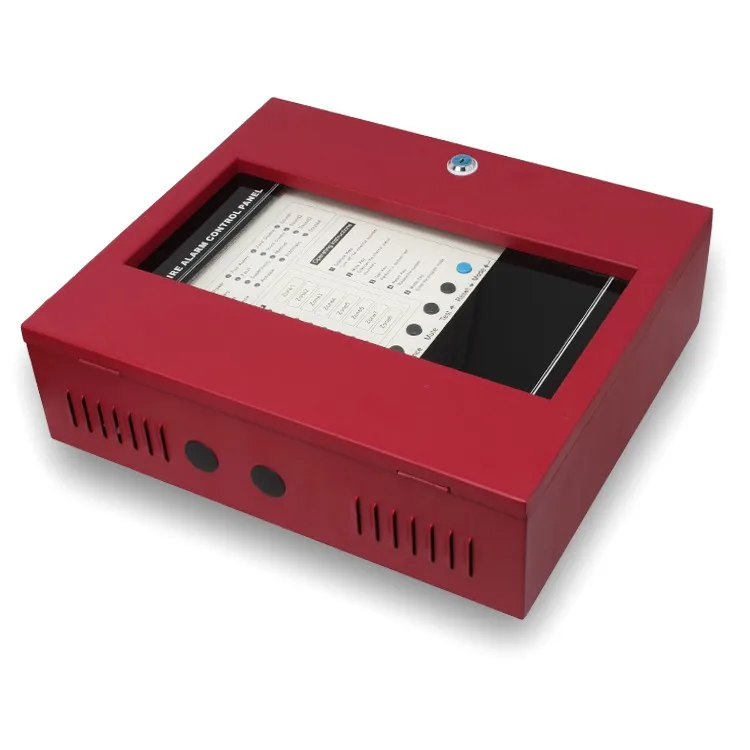

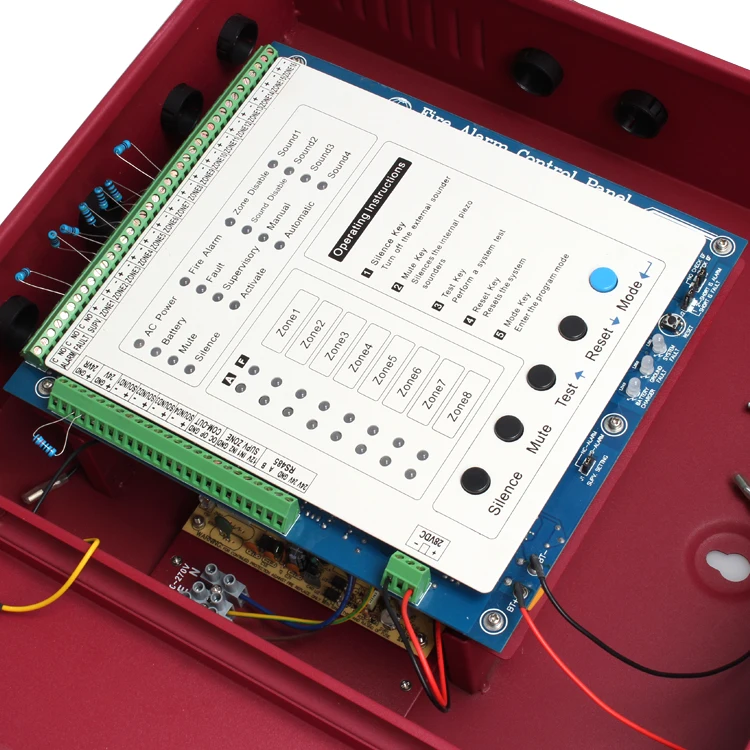

Products Show
Packing & Delivery

Packing Details  :1sets/Carton, 50pcs/carton

Delivery Details : 2-5 days for sample order, 15-20days for container order, Delivery time according the quantities

1. Attractive Individual packaging

2. Suitable carton size

3. Standard export carton packing

Our Company

Company information:

Guangzhou Wasion Electronic Factory is a Hi-tech enterprise which was established in 1999 and specializes in research & development of security products including PIR detector, IR detector, smoke detector, gas leakage detector, security alarm system, magnetic switch, button, alarm siren and etc.With advanced equipments, specialized engineers and versatile service, the ODM/OEM and direct sales services are provided to the customers around the world.

Since the establishment, We insure the high product quality benchmarked against ISO9001, adopting famous main element and strict quality control. It’s known that win-win situation is the basis of stable relationship forever, so we strive to provide our valued customers and let market response as the driven force.

Guangzhou Wasion Electronic Factory sums up the missions to four emphasis: Emphasis on product quality, product quality is the life of the company; Emphasis on service, service is the basis of the company; Emphasis on qualified personnel, centers in qualified personnel development strategy which can make the company get more competitive and value-added development; emphasis on technology, only the non-stopped innovations in technology can provide the limitless impetus to the company. We regard customer’s security as our responsibility.

Our Certifications

High quality

Our products which has passed the CE certification meet the basic requirements of the European Union's new method of technical coordination and standardization.

FAQ

Welcome to here,Maybe we can help you to do more for your business,pls read following words with carefully.

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: 2. What is the lead time?
A:Sample needs 1-3 days, mass production time needs 10-15 days for order less than 10000 pcs.

Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 100 pcs under neutral gift box; MOQ FOB is 1000pcs. MOQ for OEM is 2000PCS.

Q: 4. How do you ship the goods and how long does it take arrive?
A: General we ship samples by DHL, UPS, FedEx or TNT. It usually takes 3-4 days to arrive. for cargos, you can choose sea or airline service by your needs.

Q: 5. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.

Q: 6. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.

Q: 7. Do you accept drop shipping?
A: Yes, it’s available.
Why Always Wasion

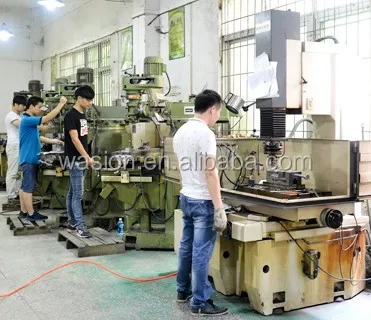

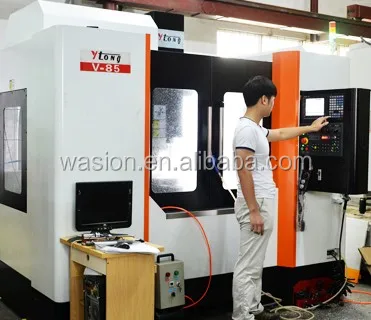

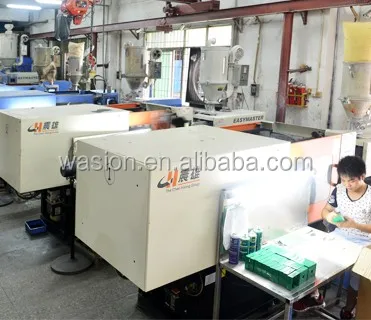

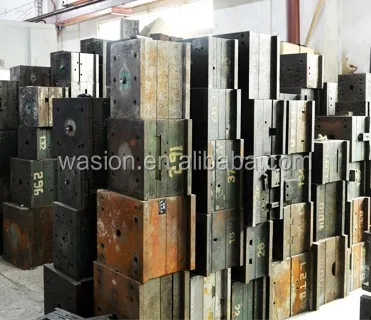

* We have injection mold making and plastic injection workshop with 16 years experience. (4 sets CNC and 8 sets plastic injection machine)

* Professional experience and ability to accept and fulfill ODM/OEM orders.
* Answer your enquiries, questions and emails in 8 hours
* Direct control on material, testing, quality, lead time ect.
* Flexible Payment terms ranged at different quantity
* One year warranty life for all detectors sold out from Wasion
