57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
27~50nm 182~280mm 5A Current Nema 51 130byg350 130mm Cnc 3phase Torque 3 wire Stepper Motor Nema52 Hybrid 0.8~1.1n.m 16 24.5kg
- Category: Stepper Motor >>>
- Supplier: Sumtor,(wuxi),Electric,Co.,Ltd.
Share on:
Product Overview
Description

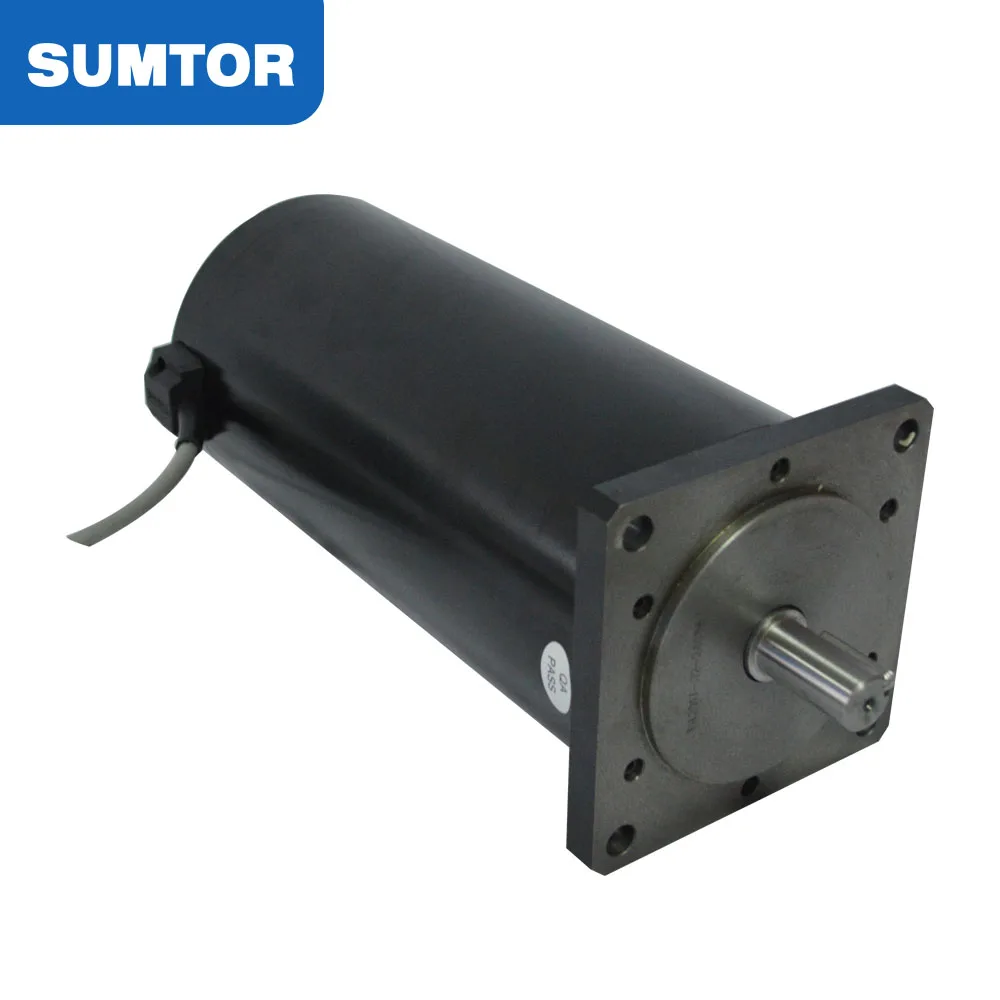

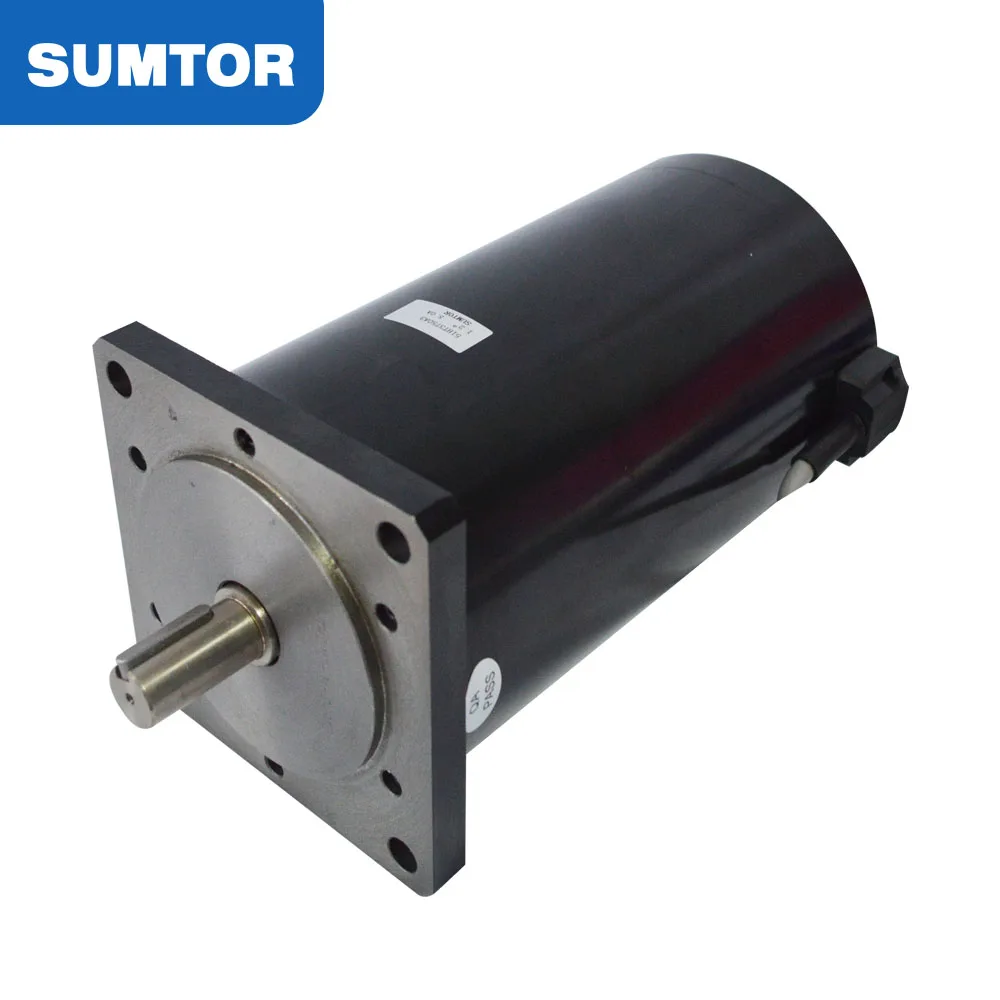

27~50nm 182~280mm 5A current nema 51 130byg350 130mm cnc 3Phase torque 3-Wire stepper motor nema52
Product Description
Series Model | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.m) | Detent Torque (N.cm) | Rotor Inertia (g.cm2) | Motor Lenth (mm) | Lead Wire (NO.) | Motor Weight (Kg) |
130HT2750A3 | 5 | 3.5 | 20 | 27 | 80 | 28 | 182 | 3 | 16 |
130HT3750A3 | 5 | 1.8 | 25 | 37 | 95 | 37 | 232 | 3 | 19.5 |
130HT5050A3 | 5 | 3.5 | 30 | 50 | 110 | 45 | 282 | 3 | 24.5 |
2. 232mm motor body length
3. 37N.m holding torque
4. keyed shaft
5. 19mm shaft diameter
2. 282mm motor body length
3. 50N.m holding torque
4. keyed shaft
5. 19mm shaft diameter
Application Areas
Production process
winding line
stator waveform check
wiring
R cover assembly
F cover assembly
driver a screw
magnetizing
characteristic check
axis height check
visual inspection
attach a label
packaging
Our certification
Package and Delivery
