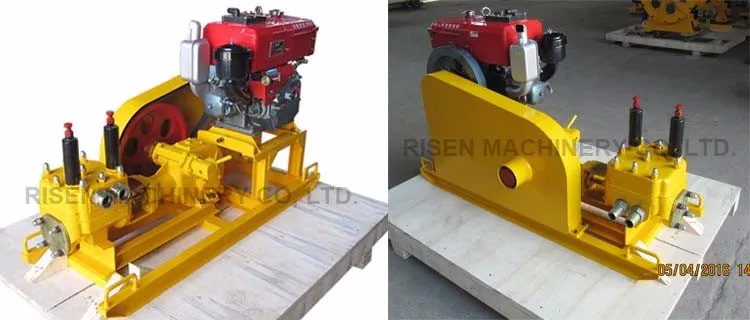

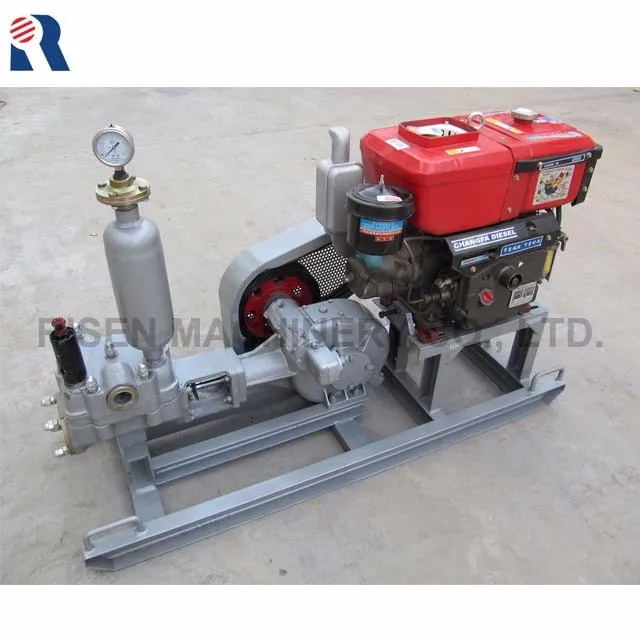

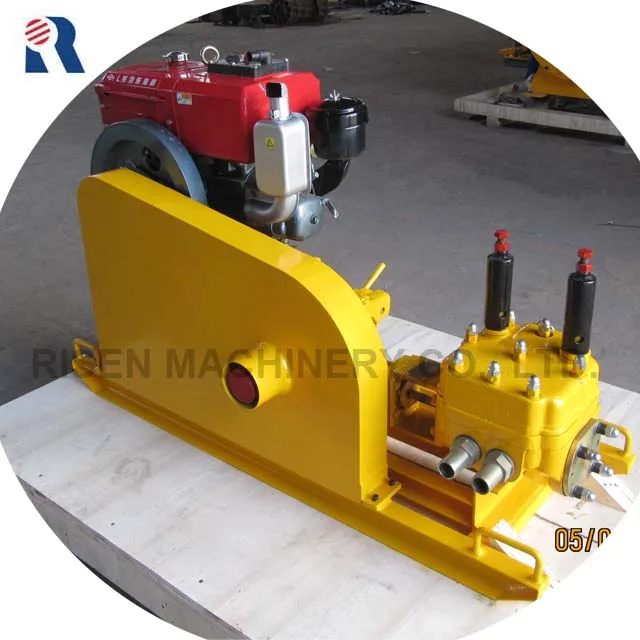

Single Piston Double Acting Cement Grout Pump / Grouting Machine


Product Instruction & Application

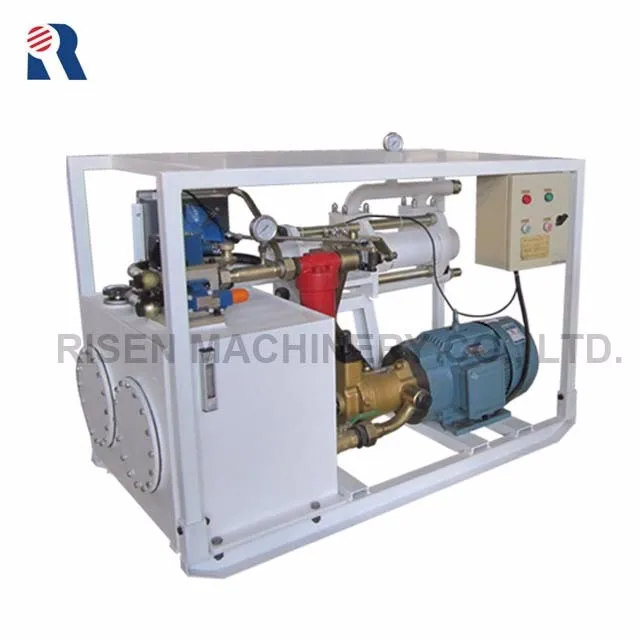

RISEN RG60/40 is a kind of single piston cement grout pump with double-acting. The max. work pressure is 40bar. It is applied for the processing of middle pressure grouting. This machine is suitable for grouting with either of two same slurries and two different slurries, such as cement slurry and sodium silicate.

The RG60/40 can be driven by E-motor or diesel engine.

The main application is:

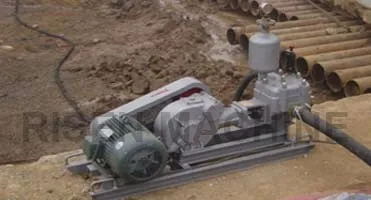

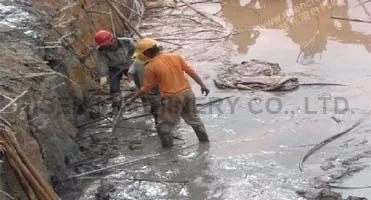

Middle-pressure grout the cement slurry or similar slurry to do the sealing, strengthening and stabilizing of rock and soil in Tunneling, Mining, Hydro-power Project, Slope Stabilizing and underground project, etc

\t
SPECIFICATIONS FOR RISEN RG60/40 (Diesel)
\t
Engine
\t
Diesel Engine Power
\t
hp
\t
11 (Electric motor is optional)
\t





Main performance parameters
\t
Output
\t
L/min
\t
60
\t
Working Pressure
\t
MPa
\t
4 (40kgf/cm2)
\t
Working Cylinder Diameter
\t
mm
\t
75
\t
Piston Stoke
\t
mm
\t
85
\t
Piston Speed
\t
times/min
\t
85
\t
Inlet Hose Diameter
\t
mm
\t
38
\t
Outlet Hose Diameter
\t
mm
\t
32
\t
Weight
\t
KG
\t
300
\t
Overall Dimension (L×W×H)
\t
mm
\t
1400*650*920

Main Features

\tAvailable to be the double slurry grouting or single slurry grouting.
\tSingle piston double acting
\tGear & Vee belt transmission makes this pump high mechanical efficiency and working reliability
\tIntegrated valve house and ball valve, together with compact structure
\tBody of pump is made of aluminum casting, low weight is an advantage for transport.
\tGrouting/pumping mud slurry, cement slurry, soluble glass etc.

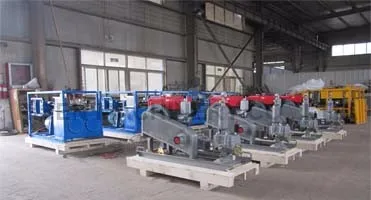

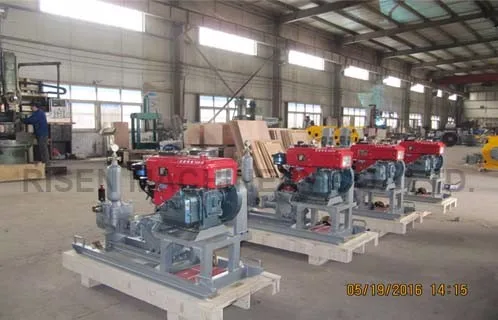

Factory Images
Advantage

\tGearbox housing manufactured by thicker plate as our drawing;
\tStandard gears and shaft to ensure the enough strength;
\tIP55 100% new electrical motor or 100% new diesel engine;
\tElectrical control box manufactured by thicker plate and standard Schneider electrical elements;
\tStandard seal parts to ensure the excellent seal quality;
\tAll the casting units manufactured as our special design to ensure the enough strength;
\tPainted after sandblasting for a pretty appearance;

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
420KG
\t

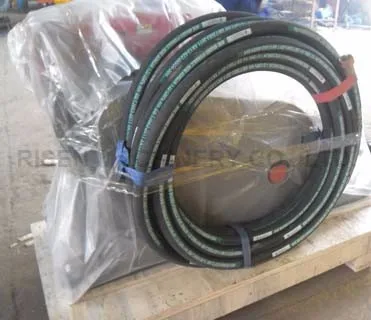

Packaging Details
\t
For one diesel RG60/40 with accessories, the normal package is a plywood crate (Estimated Size: L150*W90*H120cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
150 (L) * 90 (W) * 120 (H)cm
\t
Weight
\t
420KG
\t



Packaging Details
\t
For one diesel RG60/40 with accessories, the normal package is a plywood crate (Estimated Size: L150*W90*H120cm). If container is too tighter, we will use the pallet for packing or pack it according to customers special request.
