Высокочастотный пресс для изготовления стульев из фанеры, пресс для изготовления деревянных стульев

Product Overview

Description

High Frequency Plywood Chair Seat Making Hot Press Machine Wood Chair Maker Forming Press



Technical Parameters:



Model No.	YX80-SA	YX150-SA
HF Generator	20KW, 1 or 2 Outputs	30KW, 1 or 2 Outputs
Hydraulic Cylinder	80T (2 PCS)	150T (2 PCS)
Power of Hydraulic	7.5KW	7.5KW
Press Plate Dimension	1600x800 mm	2500x1300 mm
Stroke of Cylinder	600 mm	600 mm
Control Type	Automatic	Automatic
Max. Opening Height of Plate	1200 mm	1200 mm
Overall Dimension	2300x800x2200 mm	2900x1300x2200 mm



Product Description:



High Frequency Plywood Chair Seat Making Hot Press Machine Wood Chair Maker Forming Press

applies high frequency generator to hydraulic press, by mould and electrode. It transfers the high frequency power to the work piece to achieve fast gluing and forming. Fit for curving plywood or solid wood for chair, skateboard, furniture, bed, cloth hanger, body of wooden musical instrument, etc.

Features:

1. Fast and uniform heating;

2. The bent shape is stable;

3. High frequency is a selectively heating power, it concentrates only on water or glue, wood does not consume High Frequency power, so HF heating is efficient and power -saving.

4. Use Wooden or MDF mould, much more economic than metal mould if shape is frequently changed.

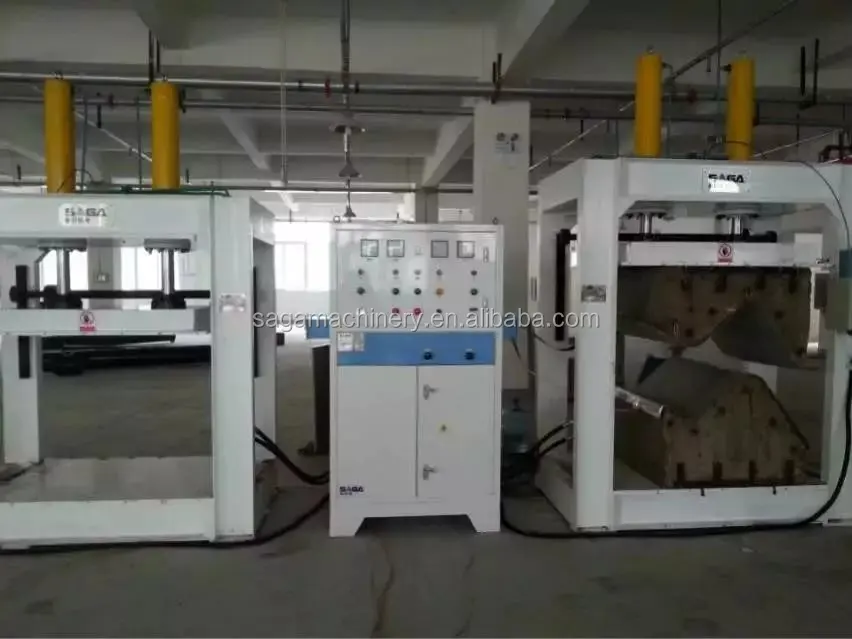

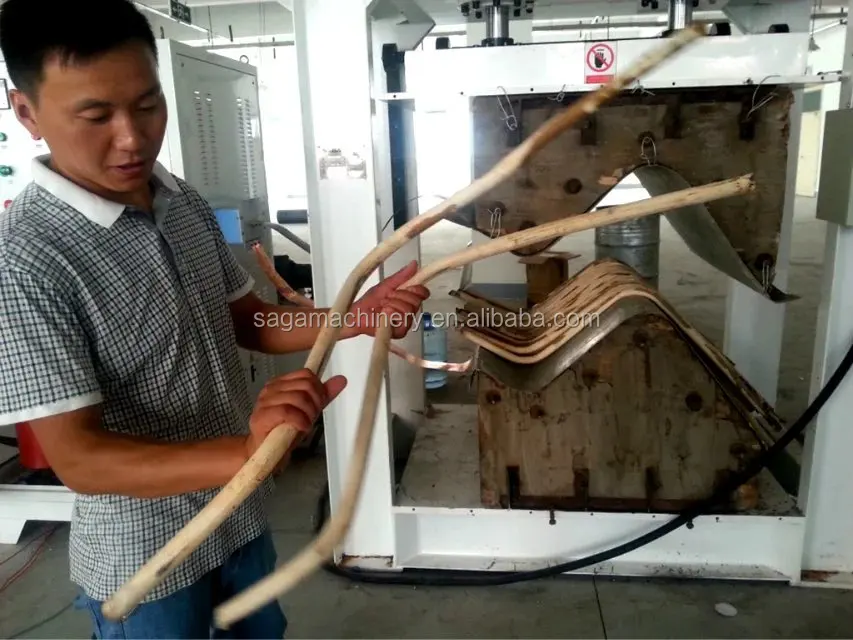

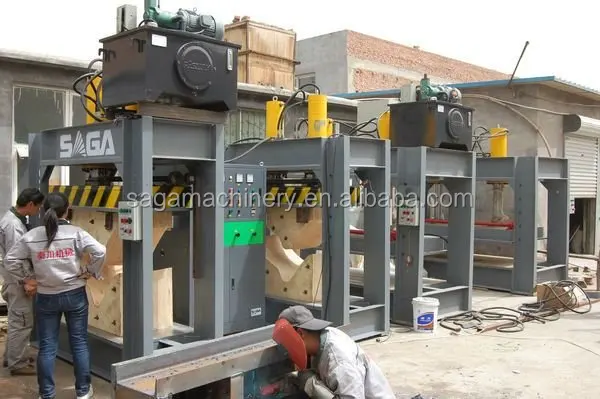

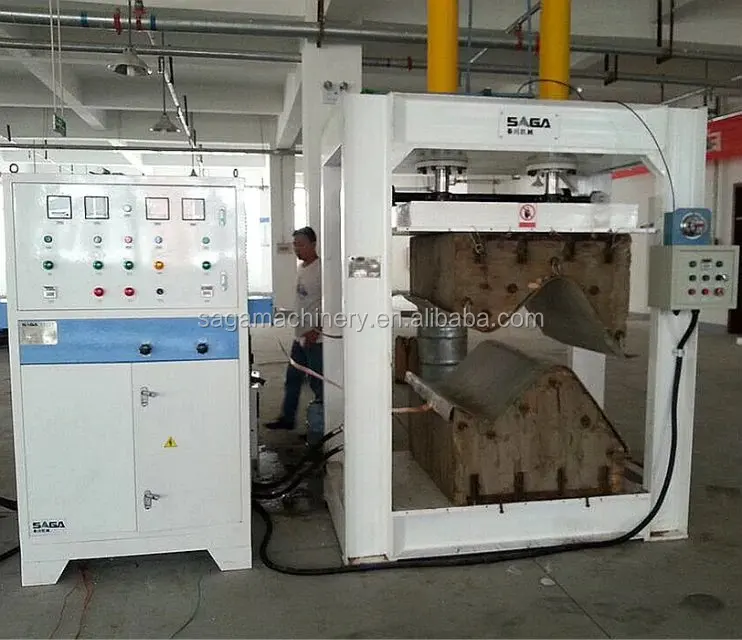

Detailed Pics:

















Packing:





After-sale service:

1. Engineers install and train the operators overseas.

2. One year guarantee for whole machine except high frequency tube;

3. Calling or door-to-door service when having a problem in use.



About Saga Machinery:





Shijiazhuang Saga Machinery Co., Ltd. specializes in developing, designing and producing smart series high frequency woodworking machinery. Our products cover high frequency vacuum wood dryer, edge gluing machine, wood curving machine, wood frame assembly machine and high frequency generator, etc.



Saga’s senior engineers, production manager, sale group and persons for after-sale service have more-than-15-year professional experience in high frequency machine industry. The energetic and passionate staff and the highly-efficient and innovative team of Saga are hoping to cooperate with you.
