Высококачественная пластина горячего прессования для ламината короткого цикла

Share on (60694611910):


Price:

Quantity:


Product Overview

Description

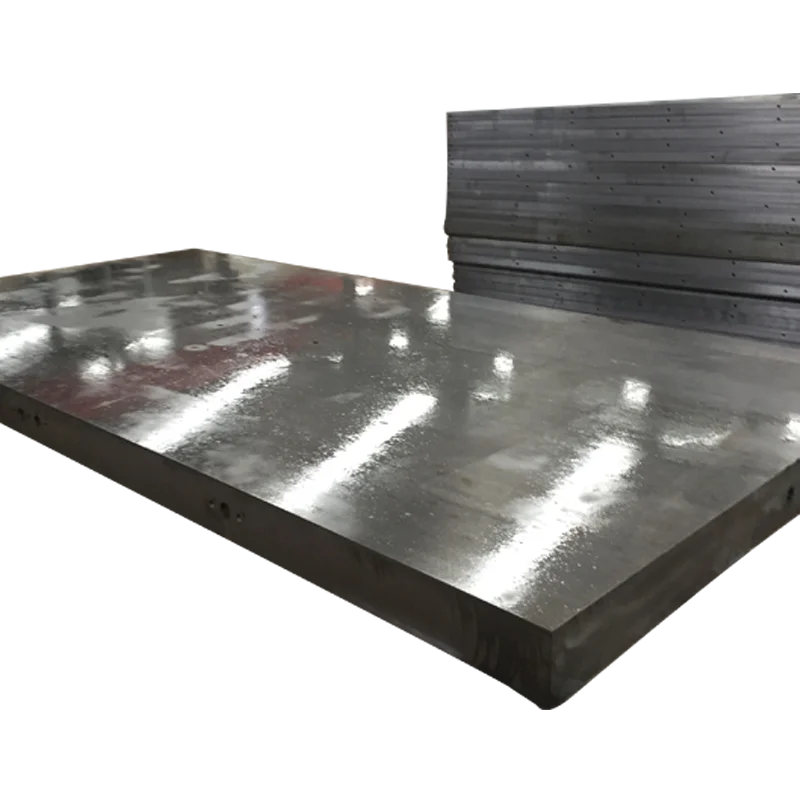

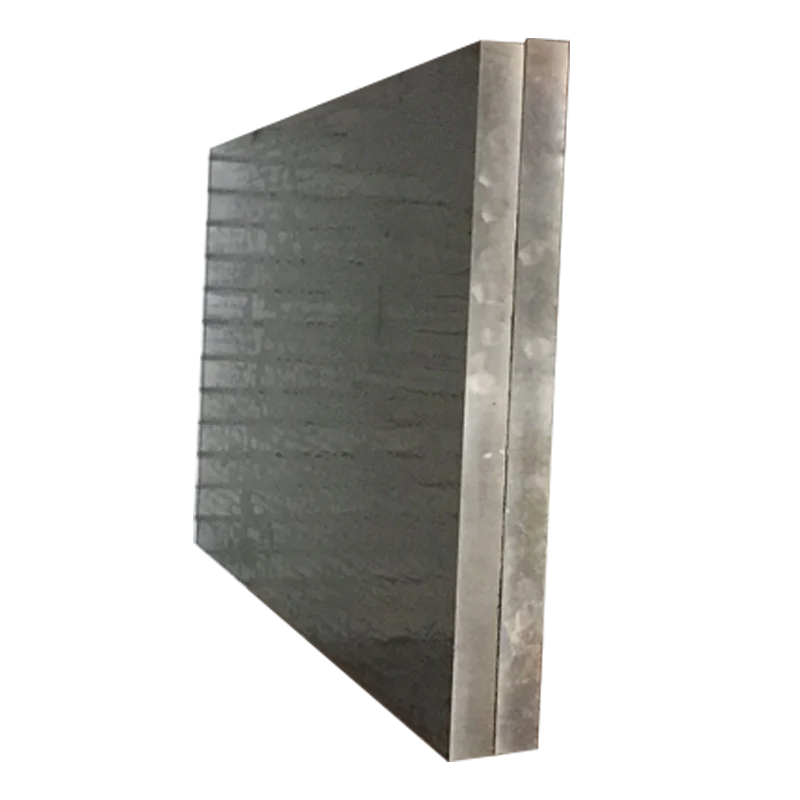

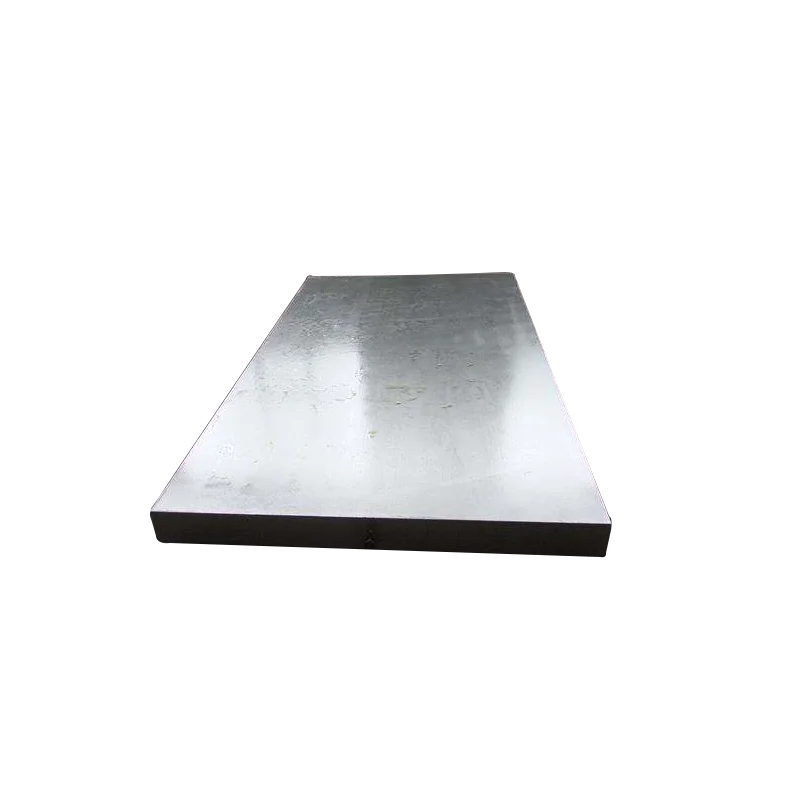

High quality hot press plate for short cycle laminate


Our Products





Product Description



Name

High quality hot press plate for short cycle laminate

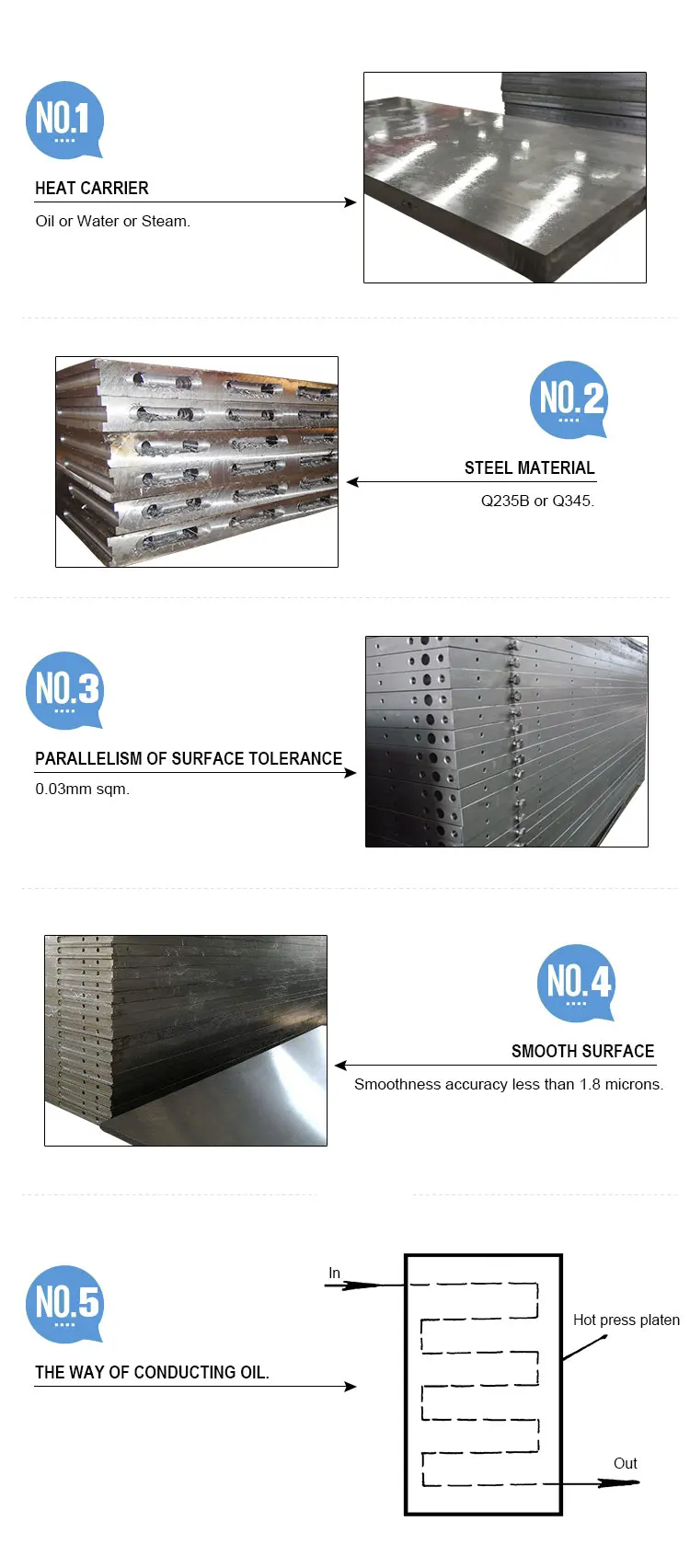

Heat carrier

Oil or Water or Steam

Steel material

Q235B or Q345

Parallelism of surface tolerance

0.03mm sqm

Smoothness accuracy

Less than 1.8 microns

Thickness tolerance

"+/- 0.5mm"

Diameter of cross holes internal

30mm or 25mm

Distance between cross channels

90mm

Accuracy of alignment inside channels

0.033mm

Hydraulic pressure of welding gap

30kg/cm2

The uniformity tolerance of surface temperature

3°C


 We can design this hot platen according to your request

Hot platen Size

Length

Width

Thickness

Specification 01

2100

1100

42mm

Specification 02

2700

1370

42mm

Specification 03

2700

1370

52mm

Specification 04

2600

1500

120mm

Specification 05

2600

1500

100mm

Specification 06

2600

1400

100mm

Specification 07

2600

1400

120mm



Product Details




Product Application

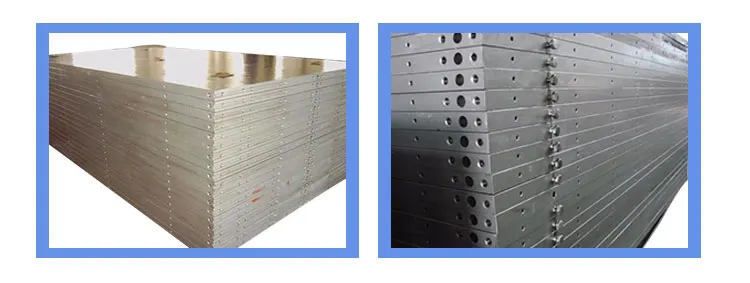

Plywood hot press platen used for hydraulic press, mainly used in wood based panel hot press.widely used in the plywood, particle board, short cycle lamination press. quality raw material Q235B Q345 steel excellent hole drilling technique with advanced equipment guarantee . The platen size and thickness as the customer requirement .




Packaging Shipping





Company Information


Linyi Ruifeng Machinery Factory, founded in 1993, is a professional wood-based panel machinery manufacturers in China. After several years of hard work and innovation, we have formed our own brand. The equipment are sold well in our country and many of them are exported to over 10 countries and areas of Africa, South Asia, Southeast Asia. With reliable product quality and excellent service , we have gained a strong reputation among our customers.We have a large gantry planer, gantry milling machine, lathe, planer and other professional advanced production equipment , so we can produce: complete plywood producing equipment, complete particleboard producing equipment, OSB producing equipment, complete MDF producing equipment, short-cycle laminating equipment, complete block board equipment and other wood-based paneled machinery. Moreover we can produce hot press, forming machine, edge trimming saw, glue spreader and other board making machines according to customers' requirement.The general manager and all the staff sincerely thank the new and old customers at home and abroad over the years for their support. We welcome all the customers to visit our company and negotiate business .




FAQ



Q:A FACTORY OR A DEALERS?

We are producing hot press plates at factories for many years, not dealers

Q:SUPPLY CAPACITY?

10 sheets/day

Q:PAYMENT?

TT/LC If you have any questions,please contact us!

Q:DELIVERY TIME?

7-15 days

Q:IN WHICH PORT?

Qingdao

Q:MOQ?

Our MOQ is 2 set
