Product Overview

Description

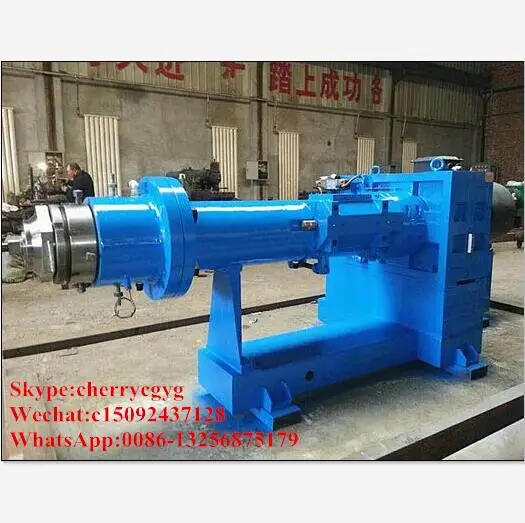

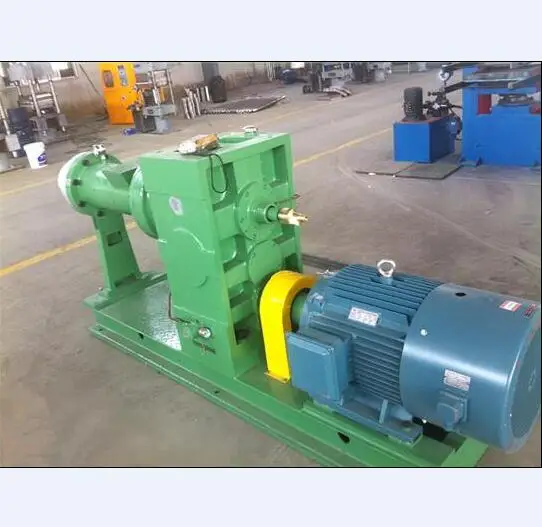

Hot feeding motorcycle tire flap rubber strip extruder machine





Usage

The machine is used for the extrusion of half-finished rubber products such as tire tread ,inner tube ,rim band and rubber tube.



Structural features

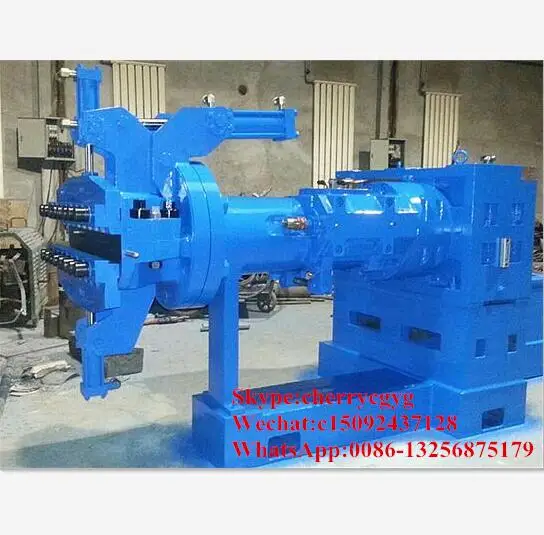

1.The machine is equipped with inner tube and tire tread extrusion heads ,and can also be eqipped with other extrusion heads as required by other users.

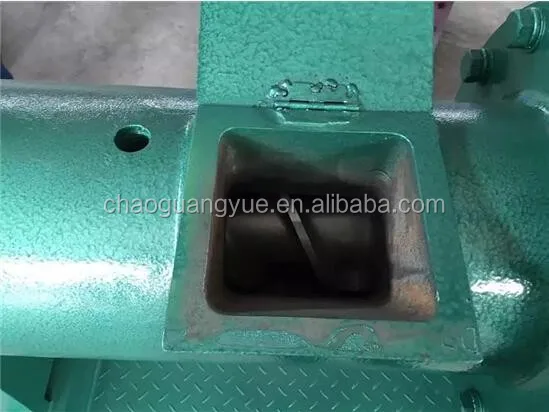

2.A machine body temperature measuring and indicating device is installed .The feeding zone over 150 is equipped with side rolls for the enhancement of feeding capability.

3.The screws and bushes are subjected to nitrogenation treatment to get enough strength and wear-resistance.

4.The reduce has a forced lubrication unit ,which is featured by high transmission efficiency,long service life and low noise.

5.The machine over 150 is driven by a variable-speed motor.

6.The side rolls are designed as side-open type for easy rubber removal.



Main technical parameters



Model Item			XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia		mm	65	85	115	150	200	250
L/D ratio			4	4.8	4.8	4.4	4.4	4.5
Screw speed		r/min	20,27,35,47	28,40,52,72	20~60	27~81	3~64	3~56.3
Motor power		kW	7.5	15	30	55	90	110
Capacity		kg/h	50~80	62~270	100~420	800	1500~2200	3600
Overall dimensions	L	mm	1594	2065	2770	3411	4549	4950
	W	mm	604	760	655	814	1140	1150
	H	mm	1053	1154	1350	1470	1750	1483
About weight		t	~1.2	~2.6	~4.0	~4.8	~5	~9

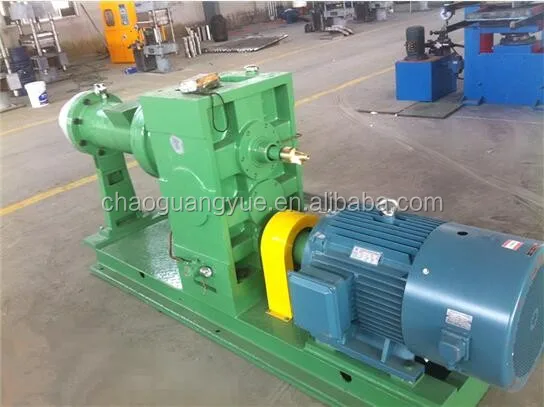

The machine is hot-feed and single screw extruder. The rotation speed could be changed. With the headpiece changing, we can give different filtering and rubber covering of press plate of semi-product for contant outline, so the machine has many uses.

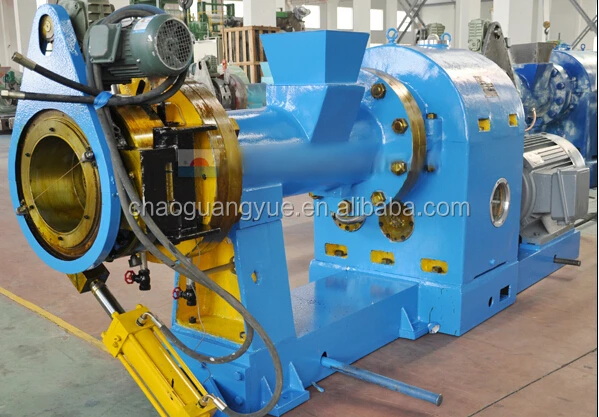

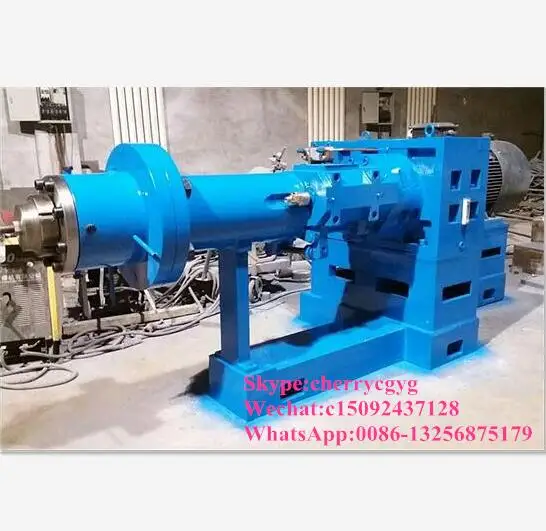

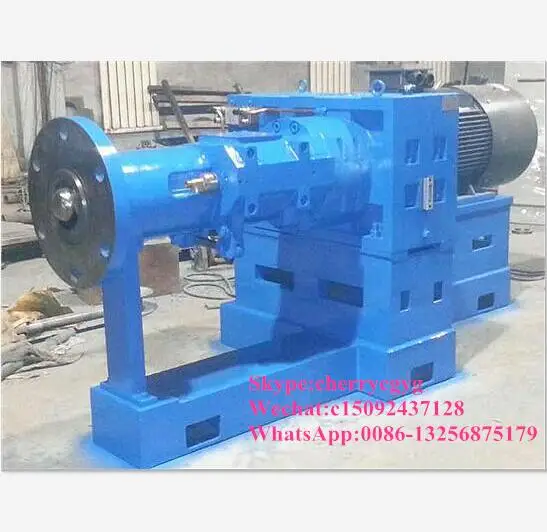

Hot feed rubber extruder

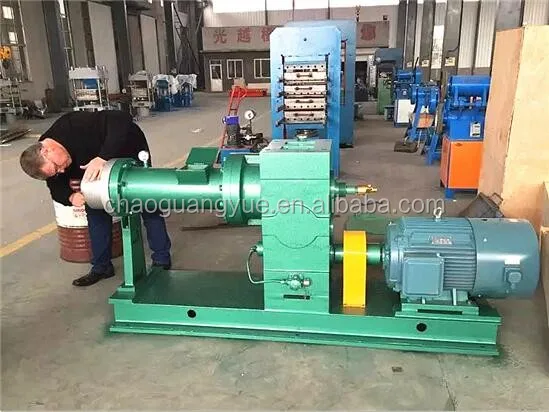

Cold feed rubber extruder

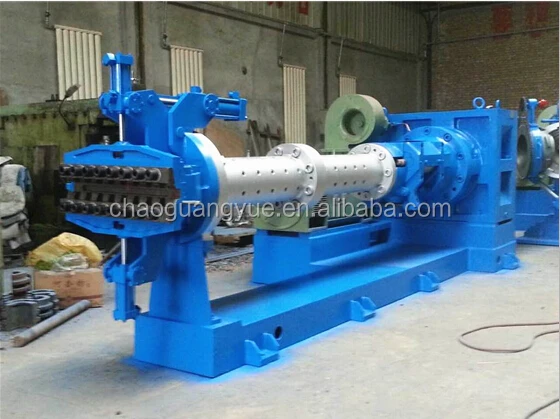

Pin-barrel cold feed rubber extruder



Rubber strainer

Our packing way: Exported standard (wooden package ) or according to your requirement .







Our Services :

1. We will design,manufacture,install and test the machines according to customers' requirement. Relevant personnel training for customers,ensure that customers fully grasp the use and maintenance of technology.

2. Our service department listen to customers' feedback at any time and provide spare parts timely.

 Welcome to visit our factory and we can show you the machine in working condition:



 If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make non-standard machines according to your request.
