Rock Drill Tool Double Head Casing Drilling Systems Crown Ring Bit Inner Bits

Double Head Casing Drilling Systems: Acedrills offers a full range of Double Head Casing Drilling Systems designed for specific drilling applications. They could be utilized in rotary-percussive mixed drilling or pure rotary only drilling.

 Drill Bits

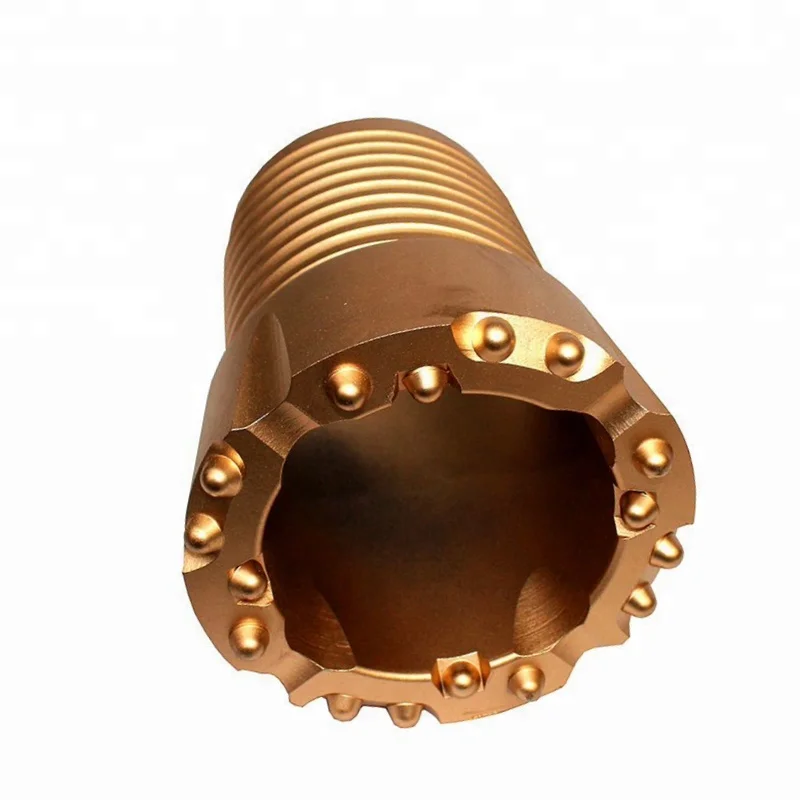

   Crown Ring Bits

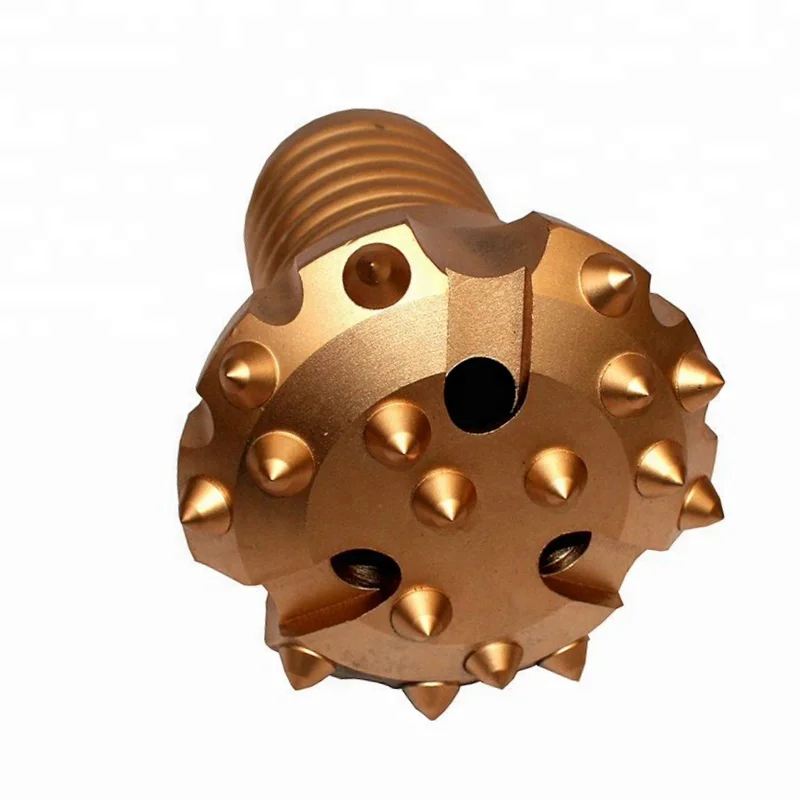

   Inner Bits

   Tool Joint

  Diameter

125~225mm

83~165mm

 73~168mm

   Thread

   T104.2~T203

   R56*17.7

   R102*22.56

R120×22.56

Notes:

      1.The other specifications are also available if

       upon customers’ request;

      2. How to order?

       Crown Ring Bits: Casing OD + Bit OD + Thread Size

       Inner Bits: Bit Diameter + Thread Size

       Tool Joints: Diameter + Length + Thread Size

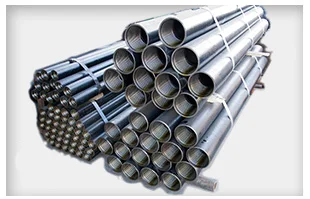

      Outer/Inner Tube: Diameter + Length + Wall Thickness +

      Thread Size

For brochure and more product information, please click here

to tell us the detail.

The Double Head Casing Drilling Systems add flexibility to drilling in varying conditions. During drilling, water or compressed air are used as medium, and the discharge head makes the casing tube and drill rod rotate and penetrate. In addition to the benefits of increased flushing control, the inner and outer strings are able to be separately controlled, which greatly increases control over drilling operation. For deeper borehole applications the double casing drilling tools allows for a dual string drilling system with internal flushing, which maximizes the precision to target. The Double Casing Drilling method reduces risk, project time and produces optimal results. It can be widely used in drilling for grouting holes in projects such as cofferdam, foundation and geothermal well and etc..
