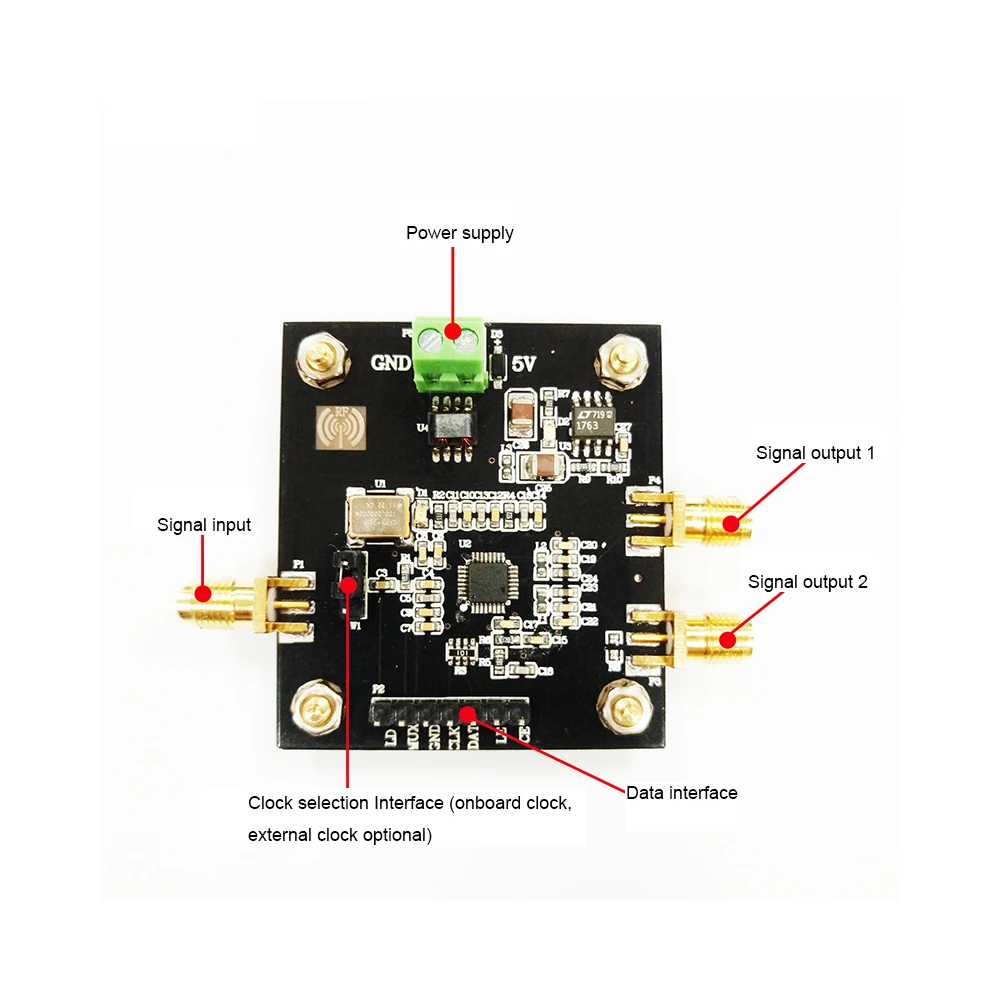

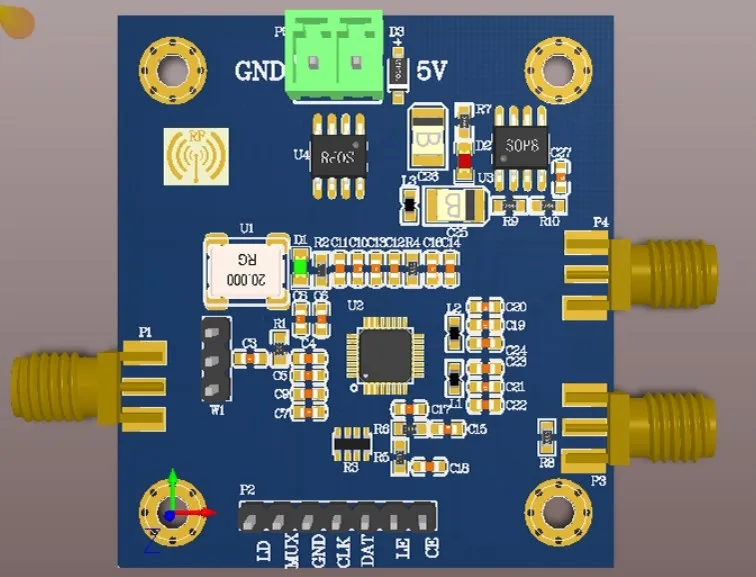

Taidacent 35M-4.4GHz Phase Locked Loop Board RF Signal Source Generator Module ADF4350 ADF4351 PLL RF Frequency Synthesizer


Product Description


The ADF4351 is a digital phase locked loop. The frequency output below 2.2G is the frequency division output, and the output waveform is similar to a square wave. If a sine wave is required, an external filter is required.


Specification


Output frequency range
ADF4351 output frequency range 35M-4.4G
ADF4350 output frequency range 138M-4.4G
Output signal
Output speed, signal strength: + 5dBm (programmable)
Control Interface
Three-wire Serial Peripheral Interface Bus
Reference Clock
10.000MHZ (default)

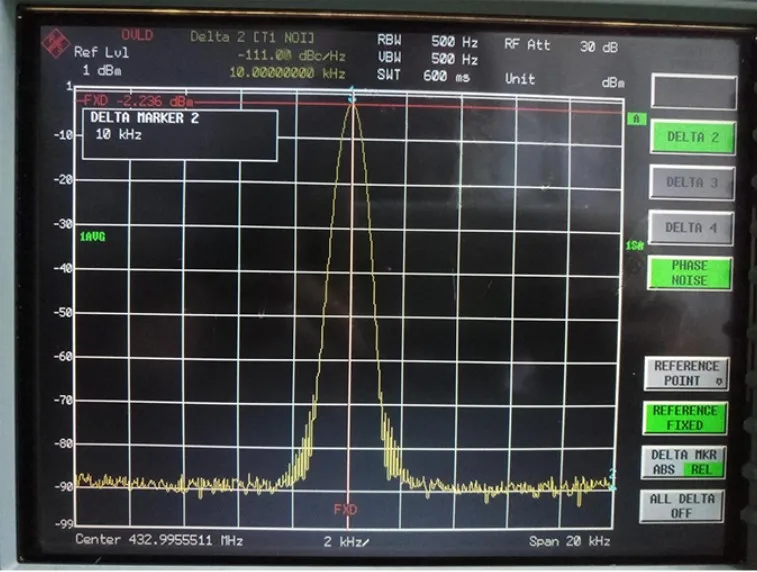

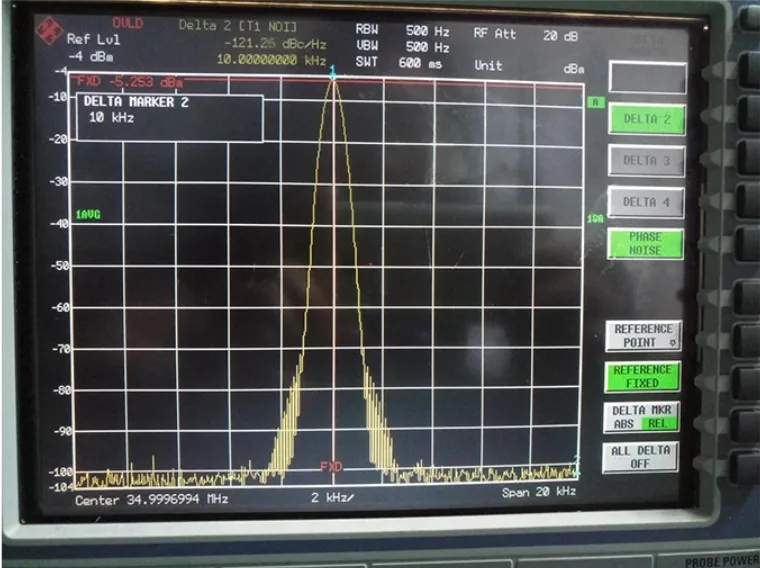

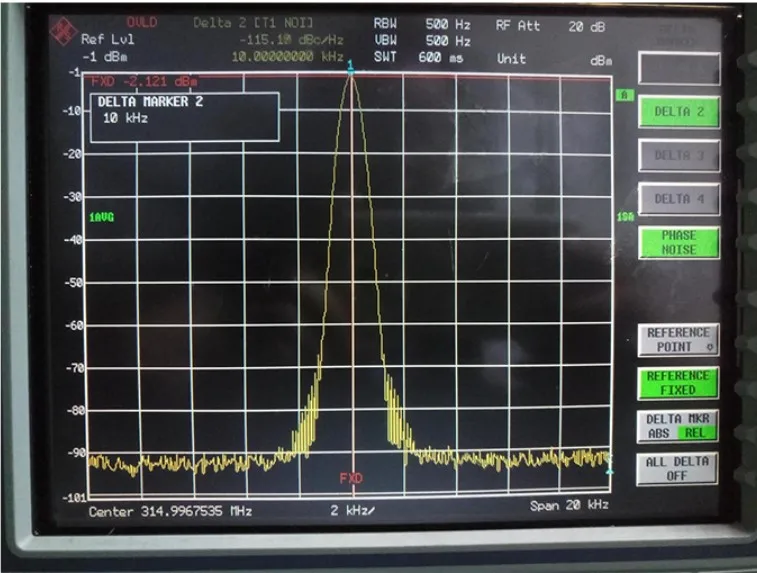

Testing result
Signal 100MHz output Power amplitude: -2.03dBm -104dBc at 10KHz
Signal 500MHz output Power amplitude: -0.97dBm -103dBc at 10KHz
Signal 1GHz output Power Amplitude: 1.93dBm -103dBc at 10KHz
Signal 2GHz output Power amplitude: 3.20dBm -101dBc at 10KHz
Signal 3GHz output Power Amplitude: 2.87dBm -97dBc at 10KHz
Signal 4GHz output Power amplitude: 1.86dBm -95dBc at 10KHz
Signal 4.4GHz output Power amplitude: 1.09dBm -93dBc at 10KHz
Signal 4.4GHz output Power amplitude: 1.09dBm -99dBc at 100KHz
Signal 4.4GHz output Power amplitude: 1.78dBm -96dBc at 200KH
